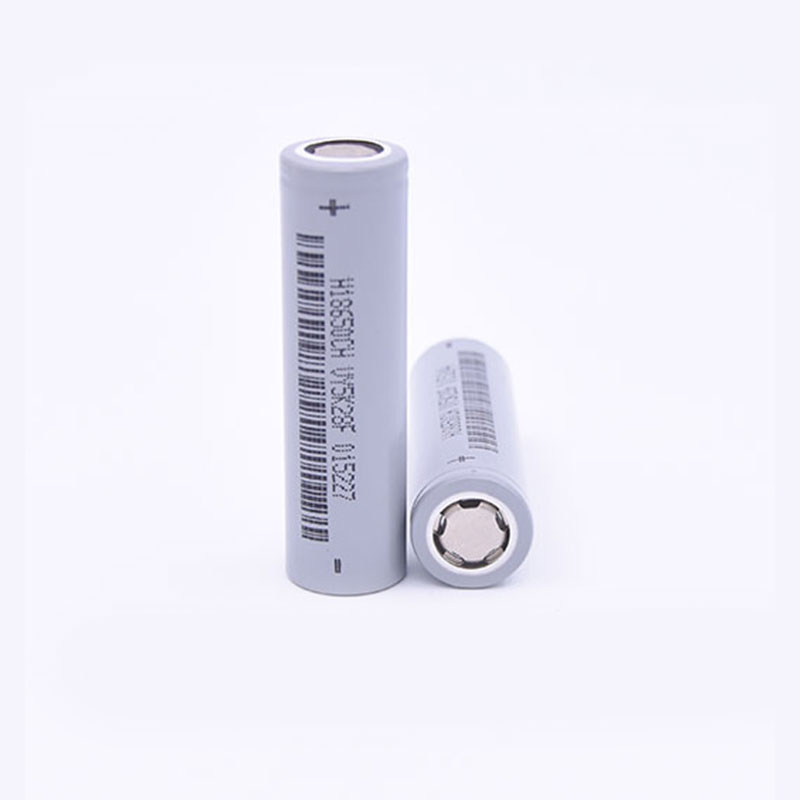

BAK H18650CH 3.6V

Nominal capacity
2600 mAh@0.2C(500mA)By Standard Charge/Discharge
Minimum capacity
2500 mAh@0.2C(500mA)By Standard Charge/Discharge
Nominal voltage:3.6 V
Charge voltage(End current):4.2V±0.05V(25 mA)
Quantity:

Nominal capacity
2600 mAh@0.2C(500mA)By Standard Charge/Discharge
Minimum capacity
2500 mAh@0.2C(500mA)By Standard Charge/Discharge
Nominal voltage:3.6 V
Charge voltage(End current):4.2V±0.05V(25 mA)
Energy density:200Wh/Kg
Discharge ending voltage:2.75 V
Max charge current
1C (2500mA) 45℃≥T≥25℃
0.5C(1250mA) 25℃>T≥15℃
0.33C(830mA) 15℃>T≥10℃
0.15C(375mA) 10℃>T≥5℃
0.1C(250mA) 5℃>T≥0℃

Max discharge current
1C (2500mA) 60℃>T≥50℃
4C (10000mA) 40℃>T≥20℃
3C (7500mA) 20℃>T≥10℃
2C(5000mA) 10℃>T≥5℃,50℃>T≥40℃
0.5C(1250mA) 5℃>T≥-20℃
Storage temperature and time
-20~25℃: less than 1 year
25~45℃: less than 3 months
45~60℃: less than 1 month
Internal resistance:≤35 mΩ(AC Impedance, 1000 Hz)
Cell dimension
Height: 64.85±0.25 mm
Diameter: 18.35±0.15 mm




Provide better quality assurance for battery packs
