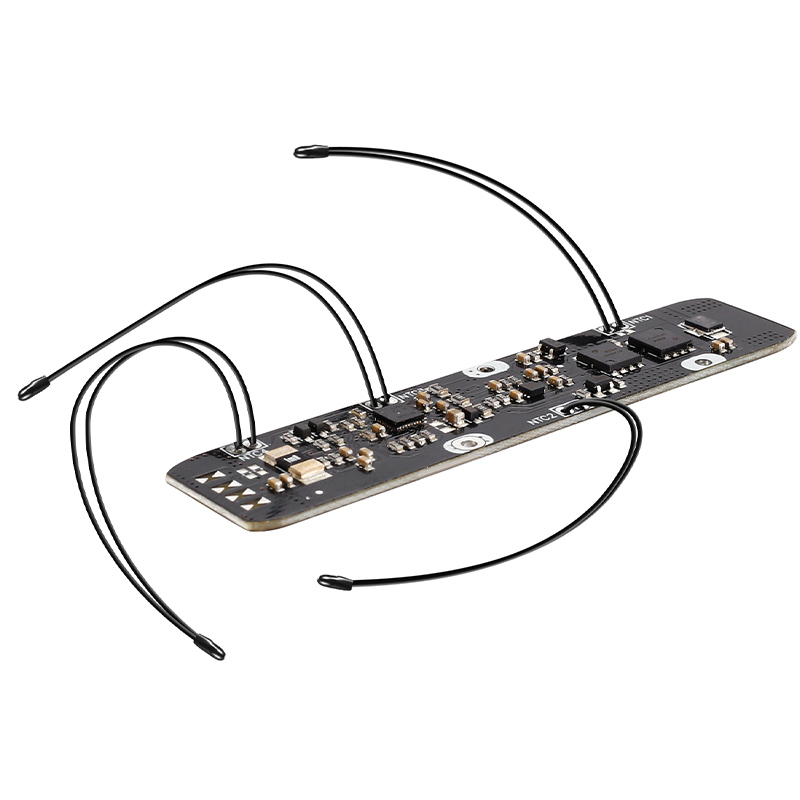

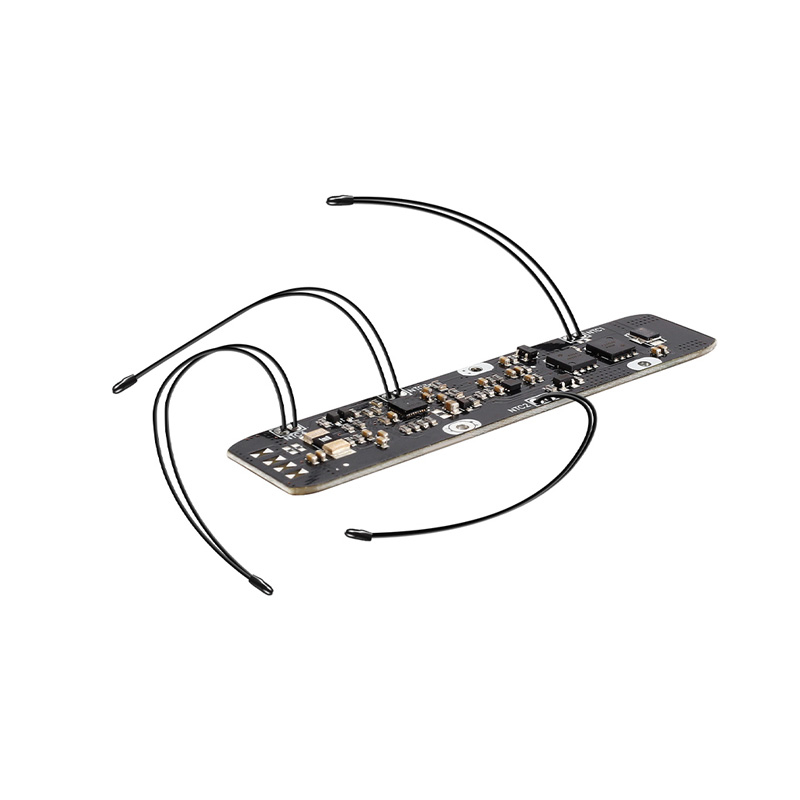

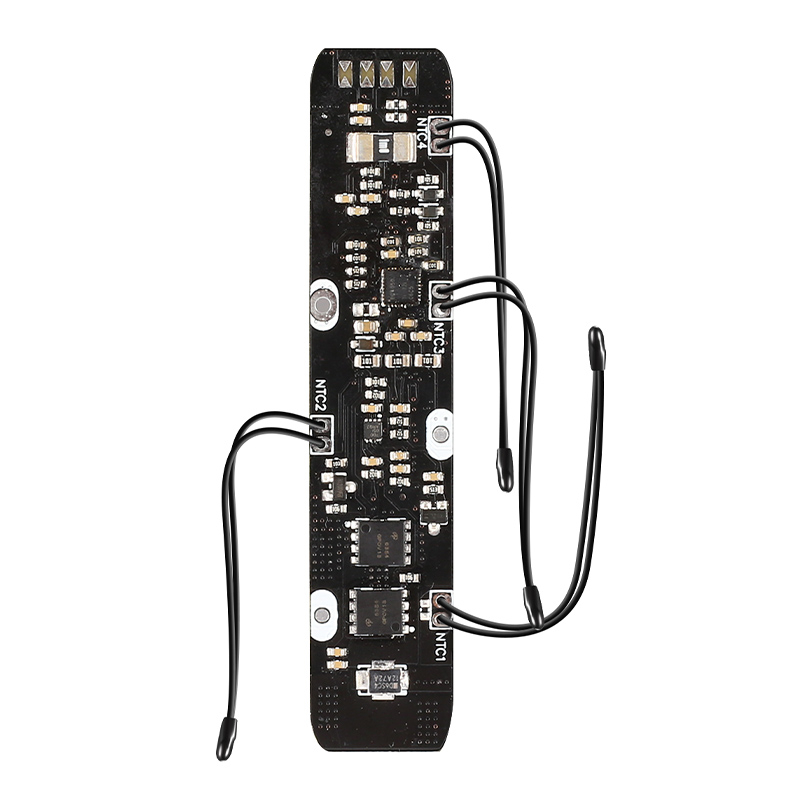

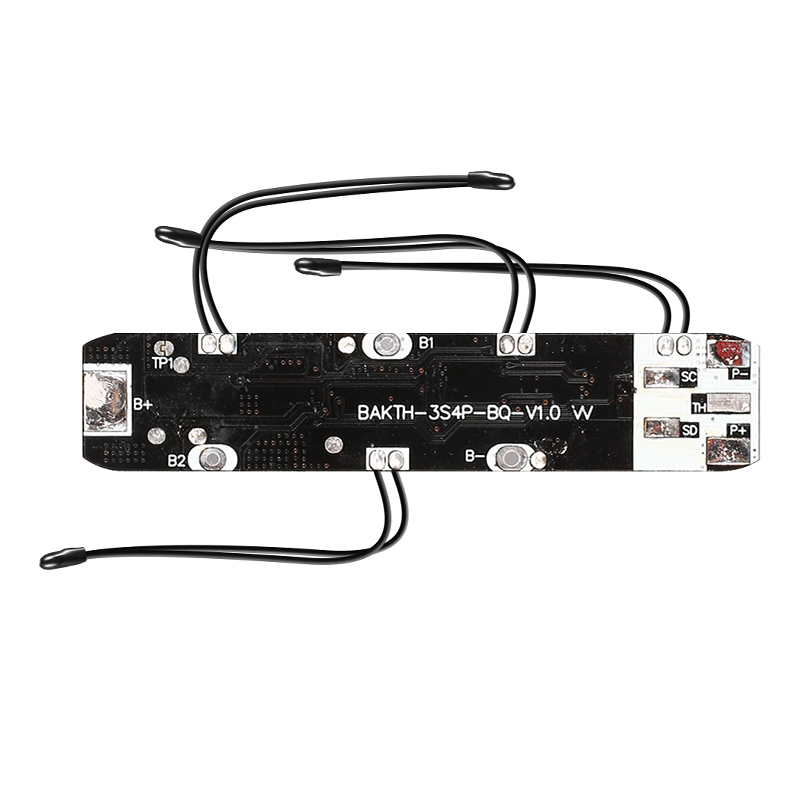

Item | Content | Criterion |
Application | Battery Type | Li-ion |
Battery Cell | 3 |
Basic protection item for PCM
NO | Items | Protection condition | Delay time | Release condition | ||
1 | Cell Over charge voltage Cell | 1st level safty | 4.250V±0.025V | 2.0s±0.5s | 4.08±0.050V | |
2nd level safty | 4.35V±0.050V | 2.0s±0.5s | permanent fail | |||
2 | Cell Under discharge voltage Cell | 1st level safty | 2.750V±0.025V | 2.0s±0.5s | 3.000±0.050V | |
SUV Threshold | 2.000V±0.025V | 5.0s±0.5s | permanent fail | |||
3 | Over current | OCC1 Threshold | 8A±0.2A | 3.0s±0.5s | -50mA/5s | |
OCC2 Threshold | 10A±0.2A | 2.0s±0.5s | -50mA/5s | |||
OCD1 Threshold | 8A±0.2A | 3.0s±0.5s | 0mA/10s | |||
OCD2 Threshold | 10A±0.2A | 2.0s±0.5s | 0mA/10s | |||
AOLD Threshold | 30.0A±3.0A | 10ms-30ms | 0mA/5s | |||
ASCC Threshold | 54.00A±5.0A | 350uS-600us | 0mA/5s | |||
ASCD1 Threshold | 54.0A±5.0A | 800uS-1000us | 0mA/5s | |||
ASCD2 Threshold | 66A±5.0A | 300uS-600us | 0mA/5s | |||
4 | Over temperature | OTC Threshold | 65±3℃ | 2.0s±0.5s | 60±3℃ | |
OTD Threshold | 70±3℃ | 2.0s±0.5s | 60±3℃ | |||
OTF Threshold | 90±3℃ | 2.0s±0.5s | 80±3℃ | |||
UTC Threshold | -3±3℃ | 2.0s±0.5s | -0±3℃ | |||
UTD Threshold | -25±3℃ | 2.0s±0.5s | -20±3℃ | |||
5 | Charge Balanced | Cell Balance Threshold | 3.600±0.050V | |||
Balanced Cell Balance Window | 100mV | |||||
Cell Balance Min | 40mV | |||||
Cell Balance Interval | 20s | |||||
6 |
continuous current | Charge current | 5.0A | |||
discharging current | 5.0A | |||||
7 | (L*W*H) | 82*17*2.5mm±0.5mm |
Item | Value | Unit |
Input voltage(B+ to B-) | Vss-2.2 to Vbat+20V | V |
Max operating temperature range | -20 to 70 | ℃ |
Max storage range | -50 to 100 | ℃ |
Item | Content | Criterion |
Application | Battery Type | Li-ion |
Battery Cell | 3 |
Basic protection item for PCM
NO | Items | Protection condition | Delay time | Release condition | ||
1 | Cell Over charge voltage Cell | 1st level safty | 4.250V±0.025V | 2.0s±0.5s | 4.08±0.050V | |
2nd level safty | 4.35V±0.050V | 2.0s±0.5s | permanent fail | |||
2 | Cell Under discharge voltage Cell | 1st level safty | 2.750V±0.025V | 2.0s±0.5s | 3.000±0.050V | |
SUV Threshold | 2.000V±0.025V | 5.0s±0.5s | permanent fail | |||
3 | Over current | OCC1 Threshold | 8A±0.2A | 3.0s±0.5s | -50mA/5s | |
OCC2 Threshold | 10A±0.2A | 2.0s±0.5s | -50mA/5s | |||
OCD1 Threshold | 8A±0.2A | 3.0s±0.5s | 0mA/10s | |||
OCD2 Threshold | 10A±0.2A | 2.0s±0.5s | 0mA/10s | |||
AOLD Threshold | 30.0A±3.0A | 10ms-30ms | 0mA/5s | |||
ASCC Threshold | 54.00A±5.0A | 350uS-600us | 0mA/5s | |||
ASCD1 Threshold | 54.0A±5.0A | 800uS-1000us | 0mA/5s | |||
ASCD2 Threshold | 66A±5.0A | 300uS-600us | 0mA/5s | |||
4 | Over temperature | OTC Threshold | 65±3℃ | 2.0s±0.5s | 60±3℃ | |
OTD Threshold | 70±3℃ | 2.0s±0.5s | 60±3℃ | |||
OTF Threshold | 90±3℃ | 2.0s±0.5s | 80±3℃ | |||
UTC Threshold | -3±3℃ | 2.0s±0.5s | -0±3℃ | |||
UTD Threshold | -25±3℃ | 2.0s±0.5s | -20±3℃ | |||
5 | Charge Balanced | Cell Balance Threshold | 3.600±0.050V | |||
Balanced Cell Balance Window | 100mV | |||||
Cell Balance Min | 40mV | |||||
Cell Balance Interval | 20s | |||||
6 |
continuous current | Charge current | 5.0A | |||
discharging current | 5.0A | |||||
7 | (L*W*H) | 82*17*2.5mm±0.5mm |
Item | Value | Unit |
Input voltage(B+ to B-) | Vss-2.2 to Vbat+20V | V |
Max operating temperature range | -20 to 70 | ℃ |
Max storage range | -50 to 100 | ℃ |
