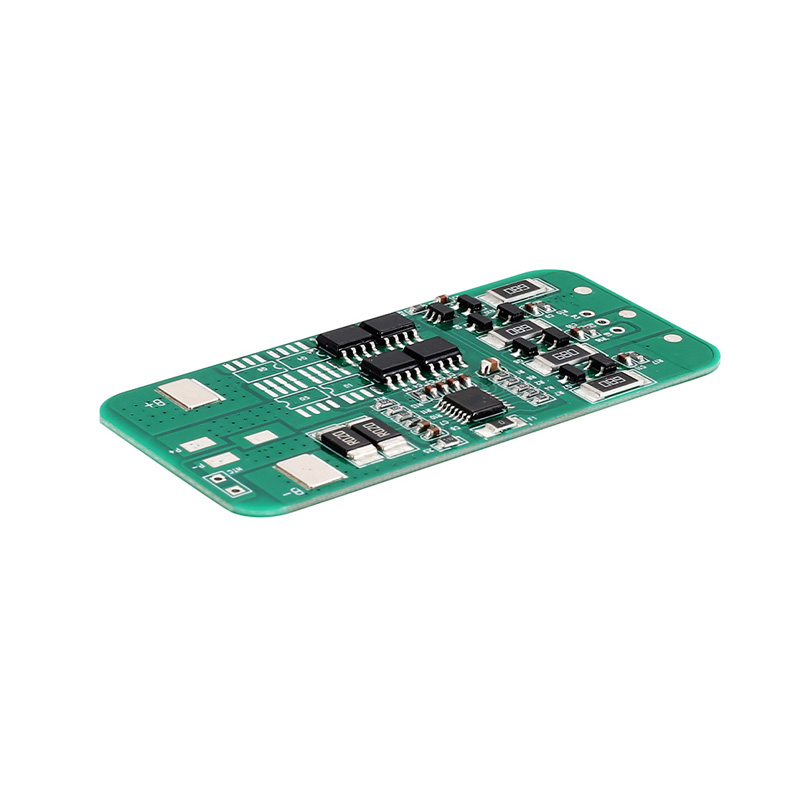

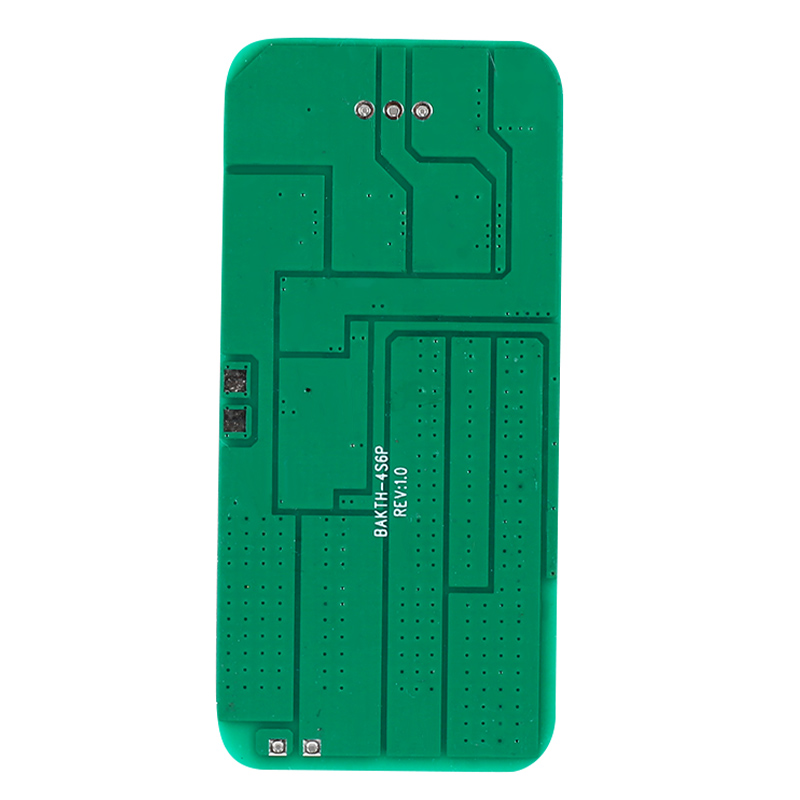

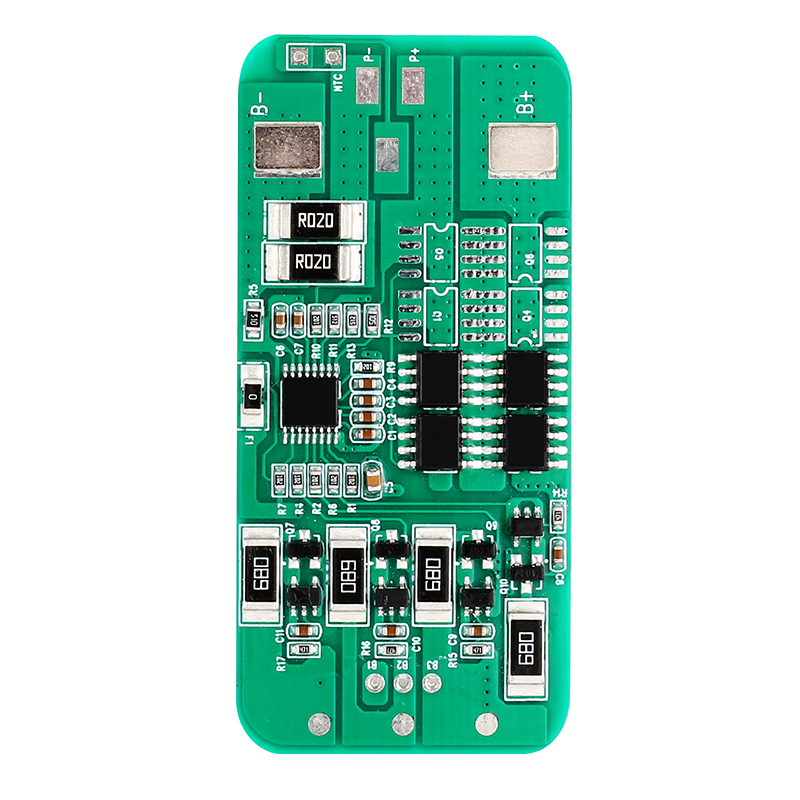

Basic protection item for PCM
Item | Content | Criterion | Remarks |
Application | Battery Type | Li-ion | |
Battery Cell | 4 | ||
Charge Parameters | Input charging voltage | 16.8V±0.1V | |
Input charging current | Max6A | ||
Discharge Parameters | Continuous discharge current | Max6A | |
Item | Content | Criterion | Remarks |
Over charge protect | Over charge detection voltage(Cell) | 4.350V±0.025V | |
Protect delay time | 500ms—1500ms | ||
Over charge release voltage(Cell) | 4.150V±0.050V | ||
Over discharge protect | Over discharge detection voltage(Cell) | 2.400V±0.080V | |
Protect delay time | 50ms—150ms | ||
Over discharge release voltage(Cell) | 3.000V±0.080V | ||
Over Current protect | Overcurrent Discharge | 15A±3A | |
Protect delay time | 5ms—15ms | ||
Protect relieve condition | Cut load | ||
Balanced | Balanced open voltage(Cell) | 4.200V±0.050V | |
Balanced release voltage(Cell) | 4.200V±0.050V | ||
Balanced current(Cell) | 60±10mA | ||
Short Protection | Detection delay time | 100-600us | |
Recovery condition | Cut short circuit . Cut load | ||
Dimension(L*W*T) | 65*30*3.5mm |
