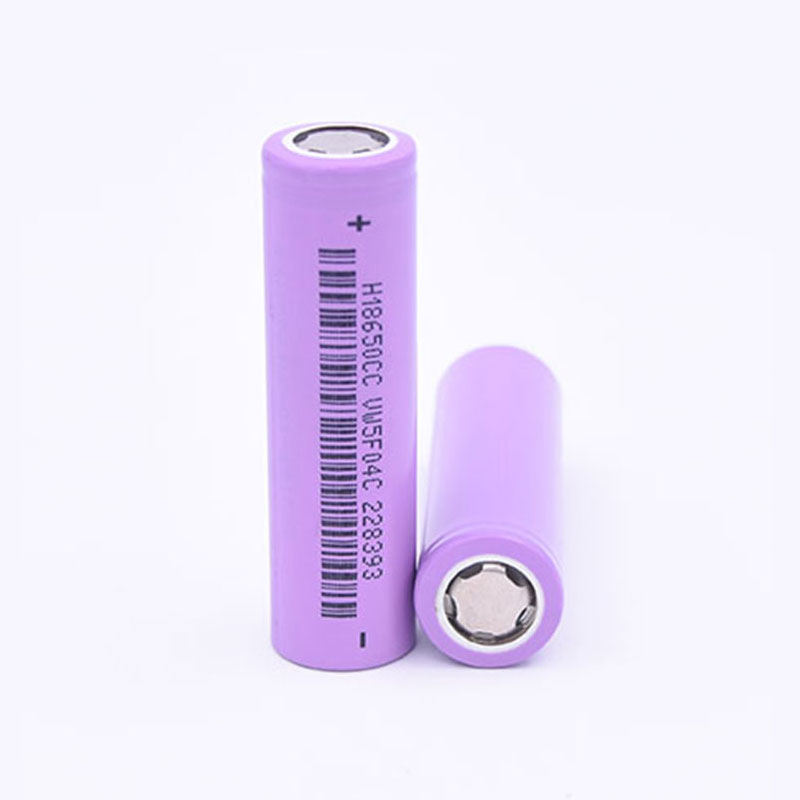

H18650CC 3.6V 2150mAh 5C

Nominal capacity:3350mAh @0.2C (650mA)
Minimum capacity:3250mAh@0.2C (650mA)
Nominal voltage:3.6V
Charge voltage (end current):V 4.20
Availability:
Quantity:

Nominal capacity :2150 mAh@0.33C
Minimum capacity :2050 mAh@0.33C
Nominal voltage :3.6V
Charge voltage :4.2 ±0.05 V
Discharge cut-off voltage :2.75 ±0.05 V
Energy density : 172Wh/Kg
Standard charge current :0.33C(720mAh)
Standard discharge current :0.33C(720mAh)

Max charge current :
1C(T≥10℃)
0.33C(10℃>T≥0℃)
0.2C(-20℃≤T<0℃, ) Recycling is not recommended

Max discharge current(continuous)
5C (45℃>T≥0℃)
1C(0℃>T≥-10℃)
0.5C(-10℃>T≥-20℃)

Storage temperature
1 year : -20~25℃
3 months : -20~45℃
1 month : -20~60℃

Humidity range :0~90%RH (non-condensing )
Internal resistance :≤35mΩ (AC Impedance, 1000 Hz)
Cell dimension: Height : 65.0 mm
Diameter :18.4mm
Weight :≤45g
Cycle life: ≤1000
