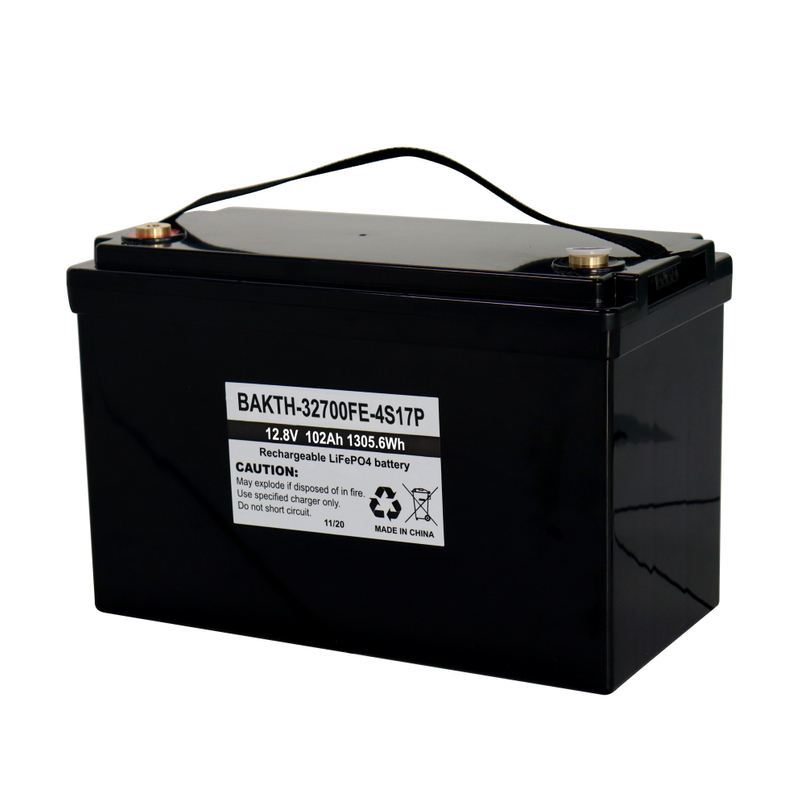

BAKTH-32700FE-4S17P
| Normal Voltage 标称电压 | 12.8V | |
| Nominal Capacity 标称容量 | 102Ah | Standard charge & discharge 标准充放电 |
| Minimum Capacity 最小容量 | 98Ah |
|
| Max Charge Voltage 上限充电电压 | 14.6V (标准充电方法:恒流/恒压/ Standard Charging Method CC/CV) | |
| Discharge cut-off voltage 放电终止电压 | 8.8V（PCB板下限保护电压） | |
| Quantity: | |
|---|---|
BAKTH-32700FE-4S17P
BAKTH
序号 No. | 项目 Items | 规格 Specification | |
1 | Normal Voltage 标称电压 | 12.8V | |
2 | Nominal Capacity 标称容量 | 102Ah | Standard charge & discharge 标准充放电 |
3 | Minimum Capacity 最小容量 | 98Ah | |
4 | Max Charge Voltage 上限充电电压 | 14.6V (标准充电方法:恒流/恒压/ Standard Charging Method CC/CV) | |
5 | Discharge cut-off voltage 放电终止电压 | 8.8V（PCB板下限保护电压） | |
6 | Standard Charge 标准充电 | 0.2C (恒流充电至14.6V，然后恒压充电至14.6V电流0.01C截止/ CC charge to 14.6V, then CV to 0.01C cut off) | 25±2℃ |
7 | Standard Discharge 标准放电 | 0.2C (CC Discharge to 8.8V / 恒流放 电至8.8V | 25±2℃ |
8 | Max. Charge Current / 充电电流 | 100A | 0℃-60℃ |
9 | Max. Discharge Current / 放电电流 | 100A | -10℃-60℃ |
10 | Humidity range 湿度范围 | 65%±20% RH (non-condensing 不冷凝) | |
11 | Impedance 内阻 | ≤180mΩ (AC Impedance, 1000 Hz) | |
12 | Battery Weight 电池重量 | Approx: 12kg 约:12k g | |
13 | Battery Dimension 电池尺寸 | L(长): 332mm Max W(宽): 172mm Max T(高): 220mm Max | |
14 | As of shipment Voltage 出货状态电压 | 12.8V (or according to customer’s required/ 或按客户要求） | |
Application
◆ UPS
◆ Solar &Wind Power System
◆ Golf Cart
◆ Electric Vehicle , E-bike, E-rickshaw etc.
◆ Lighting
FAQ
1. How about the quality and warranty time?
All Lifepo4 products come with a 12-month warranty. Welcome to buy through Alibaba Trade Security.
2. What is the minimum order quantity?
There is no minimum order quantity for samples. For large orders, the larger the quantity, the cheaper it is.
3. What is the delivery date?
For samples, it takes about 10-15 days, and for formal orders, it takes 20-25 days.
4. How long is the shipping time?
Express delivery such as DHL and UPS usually takes 3-10 days, China Post takes 15-50 days, and shipping takes 20-35 days.
5. Can the customer's brand be used to produce orders?
Yes, of course. Enthusiasm to provide OEM & ODM services.
