SKU: BAKTH-N18650CR-2S6P-2E
Categories: Customizable battery pack, General, Lithium-ion batteries / pack
Tags: BAKTH-N18650CR-2S6P-2E, 2S6P / BAKTH-N18650CR-2S6P-2E, 7.2V, 20160mAh, 145.152Wh, Lithium Battery, Low temperature lithium ion battery, Shenzhen BAK Technology
IEC62133 / UN38.3 / RoHS
| Model NO. | 2S6P / BAKTH-N18650CR-2S6P-2E |
| Brand Name | BAKTH / Neutral / OEM |
| Compliant certification standards | UN38.3 / RoHS compliant |
| Discharging temperature | -40~70℃ |
| Nominal Voltage | 7.2V |
| Nominal Capacity | 20160 mAh |
| Power Capacity | 145.152 Wh |
| Max. charging voltage | 8.4 V |
| Cut-off voltage | 5.0 V |
| Length | 83.5mm |
| Width | 56mm |
| Height | 67mm |
| Weight | 585g |

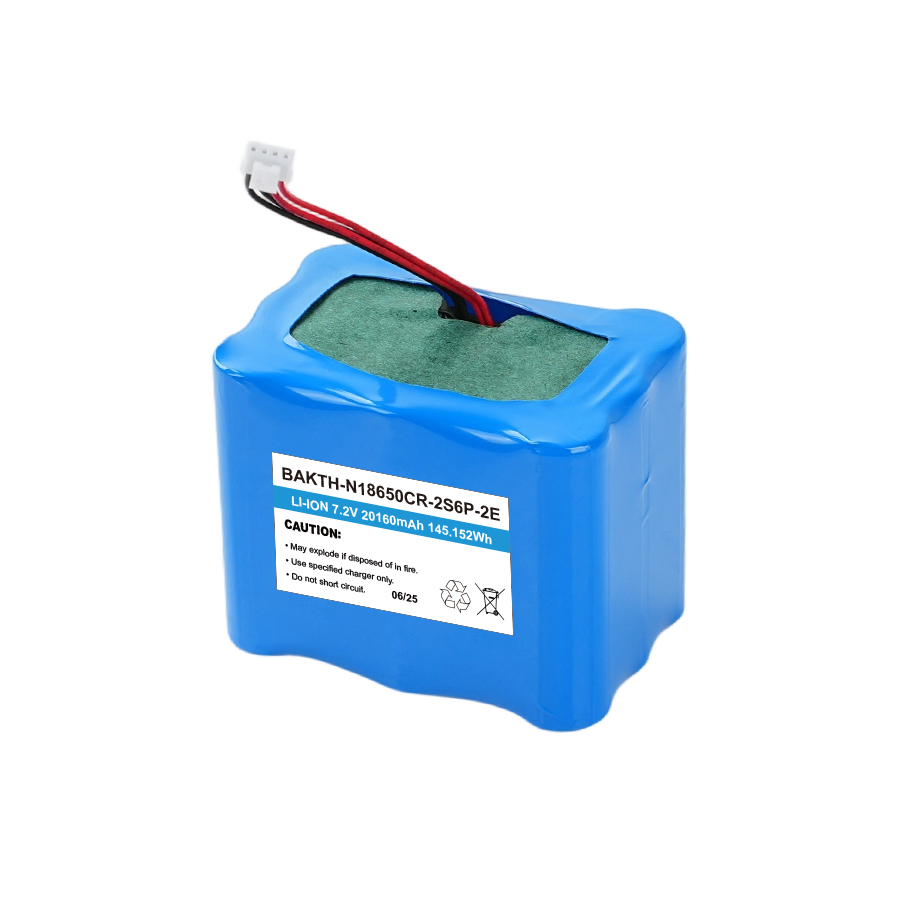

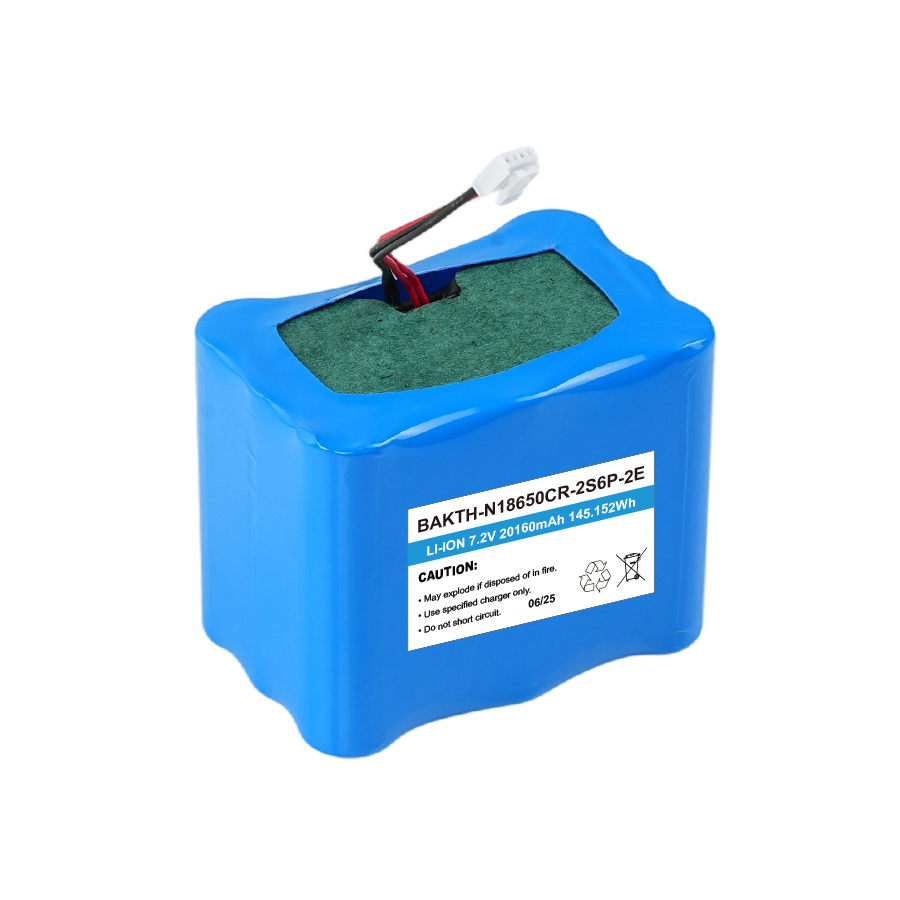

Featured with 2S6P configuration, the BAKTH-N18650CR-2S6P-2E is a high-capacity low-temperature lithium battery pack rated at 7.2V, 20160mAh and 145.152Wh. It is independently developed and produced by Shenzhen BAK Technology, a professional high-tech enterprise focused on the whole production chain of rechargeable battery design, research and global sales.
This high-density lithium battery pack delivers steady power output and outstanding low-temperature resistance for harsh working environments. Fully certified with IEC62133, UN38.3 and RoHS standards, it meets international safety and environmental requirements. Custom battery solutions are available, making it a reliable power option for general equipment and industrial application scenarios.
1. Adopts 2S6P efficient configuration with 7.2V rated voltage, 20160mAh large capacity and 145.152Wh high energy density, delivering stable power supply and long-lasting battery life.
2. Designed with professional low-temperature lithium-ion technology, ensuring stable discharge efficiency even in cold environments and harsh working conditions.
3. Certified with IEC62133, UN38.3 and RoHS international standards, featuring strict quality control and fully complying with global safety requirements.
1. Industrial testing and intelligent control equipment, providing reliable power support for long-term outdoor operations and mobile devices.
2. Portable medical devices and precision electronic instruments requiring highly stable power supply.
3. Low-temperature special equipment, emergency power systems and various energy storage devices with long endurance demands.
Built with high-standard safety cells and multiple protection functions to effectively prevent short circuit, overcharge and overcharge risks for safe operation.
Support full customization of battery parameters, interfaces and appearance; 24-hour online service for fast response to inquiries and after-sales support.
Q1: Are your lithium batteries exportable? Is transportation safe?
A1: All products have passed UN38.3, IEC62133 and other international safety certifications. We support global export and can provide official transport identification reports.
Q2: How long is the warranty period? How to solve quality problems?
A2: We provide a 1-year warranty. For non-artificial quality issues, we will take responsible and provide effective after-sales solutions promptly.
Q3: Can you provide datasheets and certification documents?
A3: Yes. Complete datasheets, test reports and certification files are available for factory inspection, customs declaration and project filing at any time.
Q4: Can low-temperature lithium batteries work normally in cold environments?
A4: Professional low-temperature models ensure stable discharge in cold conditions, with stable performance, suitable for outdoor and harsh environments.
Q5: Does the quotation include freight? What payment terms are supported?
A5: The quotation can be EXW or freight included. We accept formal payment methods such as T/T and L/C for safe cooperation.
