* Product solution Model number: BAKTH-ITL0040100033-01

* Product Solution: BQ40Z50RSMR-R1

* Compatibleinterface: I2C

* Battery Type: Li-ion

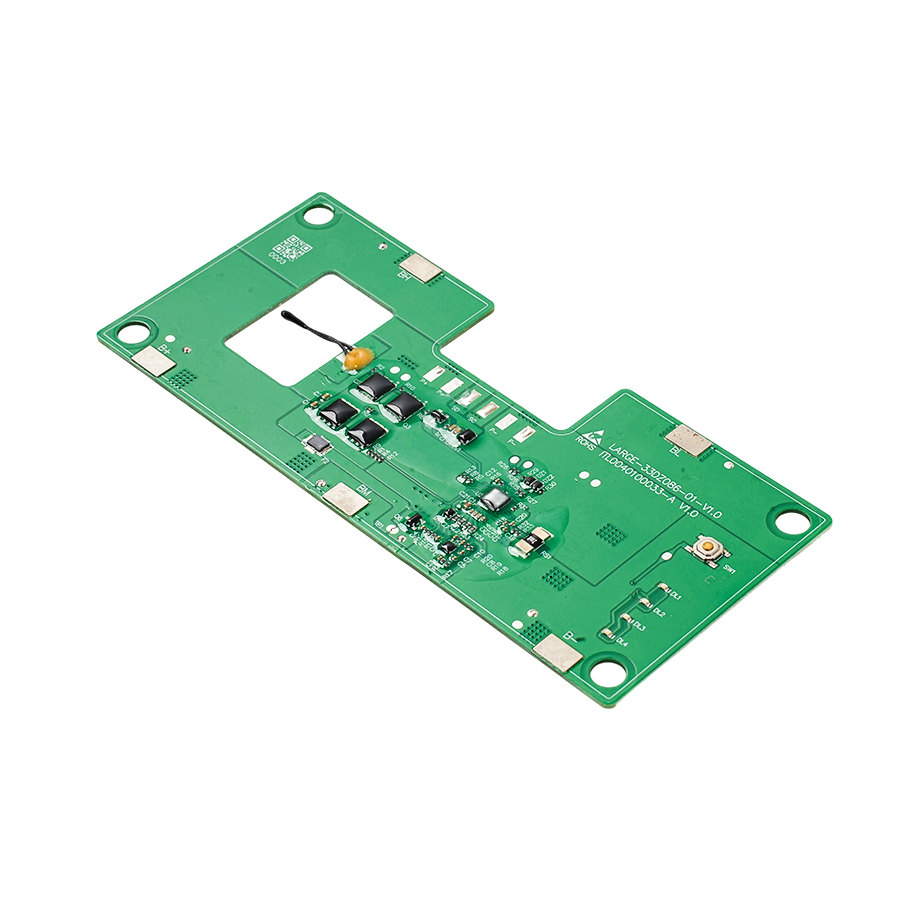

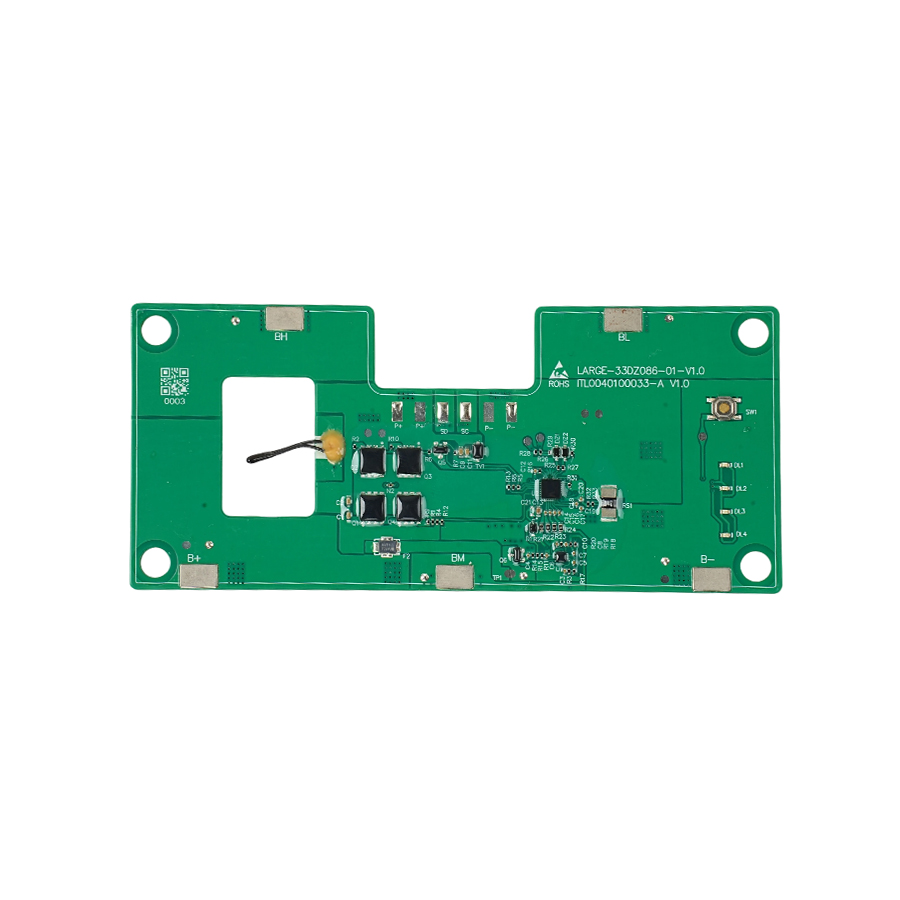

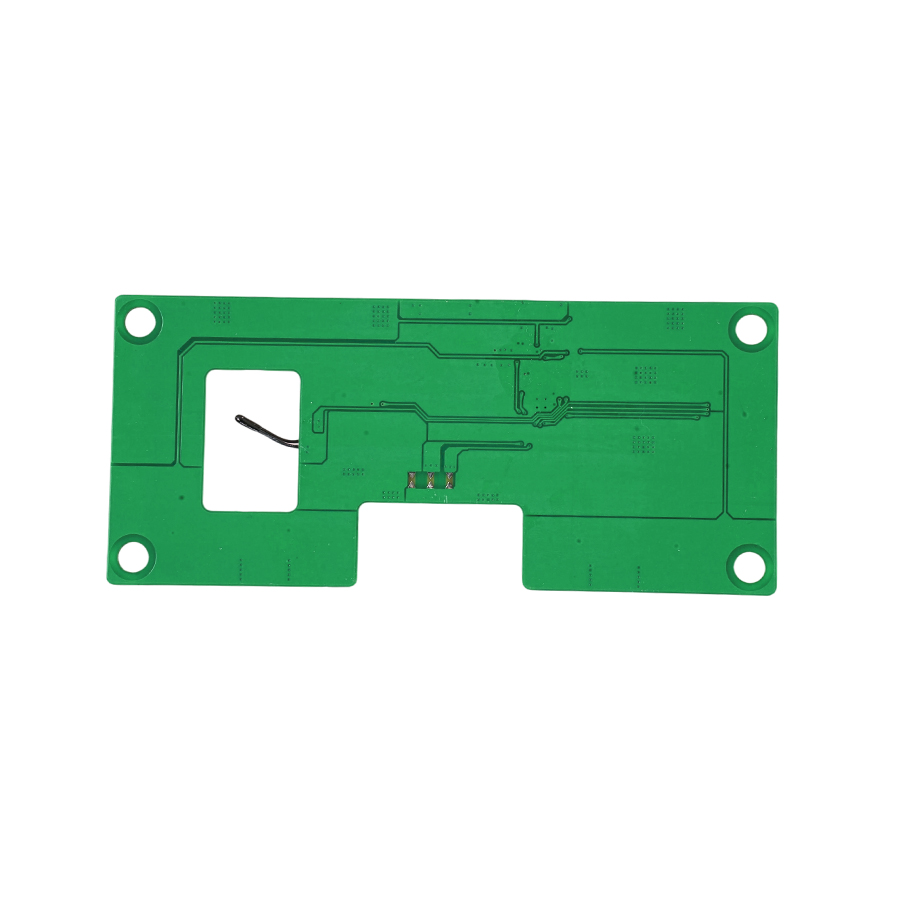

* Serial number: 4S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.025V

* Over Discharge Detection Voltage(Cell): 2.500V±0.025V

* Over Current Discharge: 9.8A-10.2A

* Over Current Charge: 8.5A-9.5A

* Discharging Temperature:  /

* Charge Temperature:  /

* Max.Discharge Current: 8A

* Max.charge Current: 7A

* Design Certification Requirements: Conform to UL2054、IEC62133、KC、PSE

* Dimension(mm): 141*62*12mm
