* Product solution Model number: BAKTH-ITL0040050019-01

* Product Solution: BQ4050/BQ40Z50

* Compatibleinterface: SMBUS

* Battery Type: Li-ion

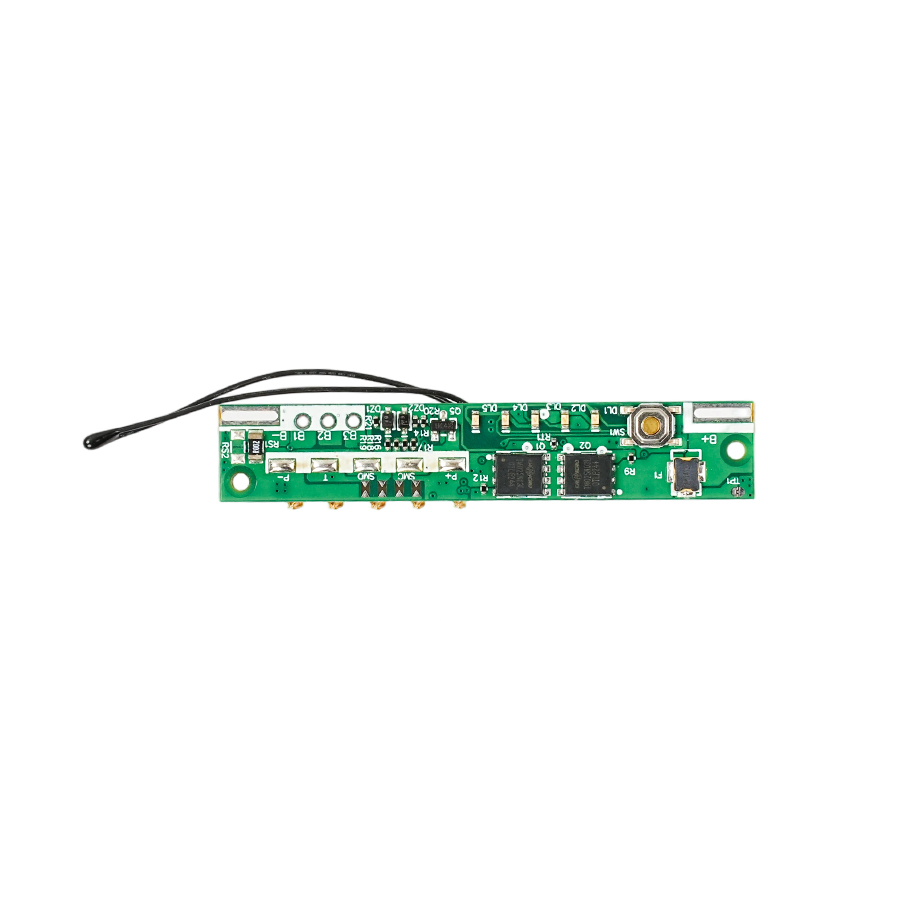

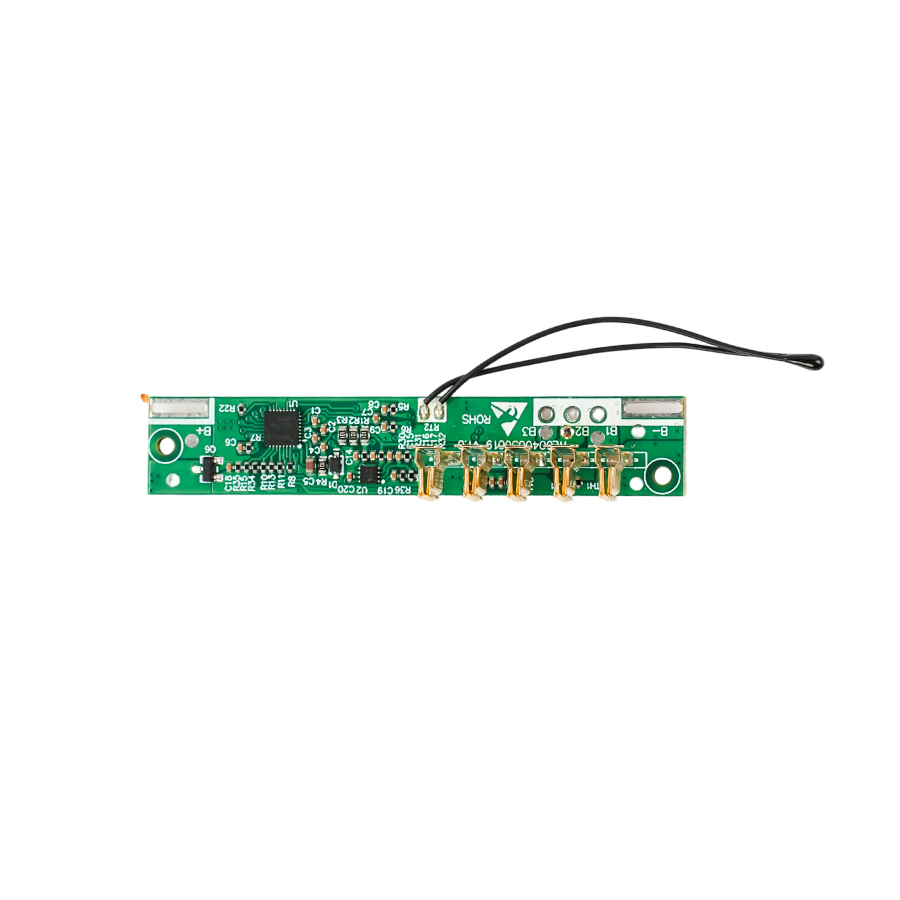

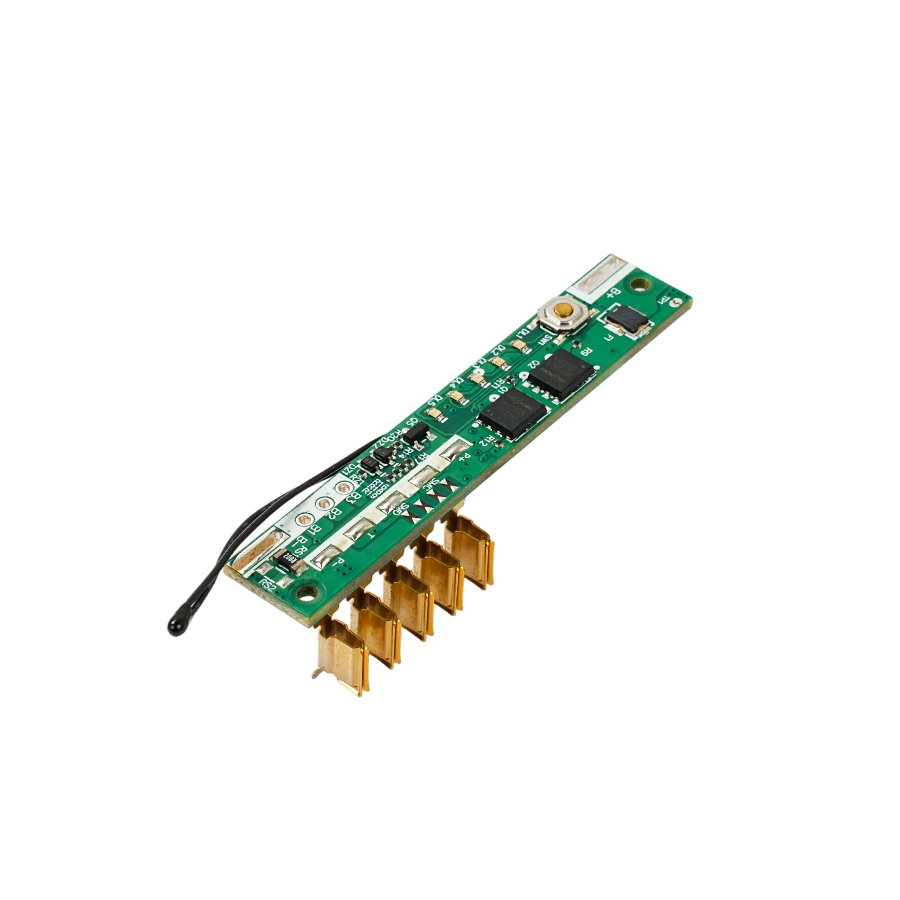

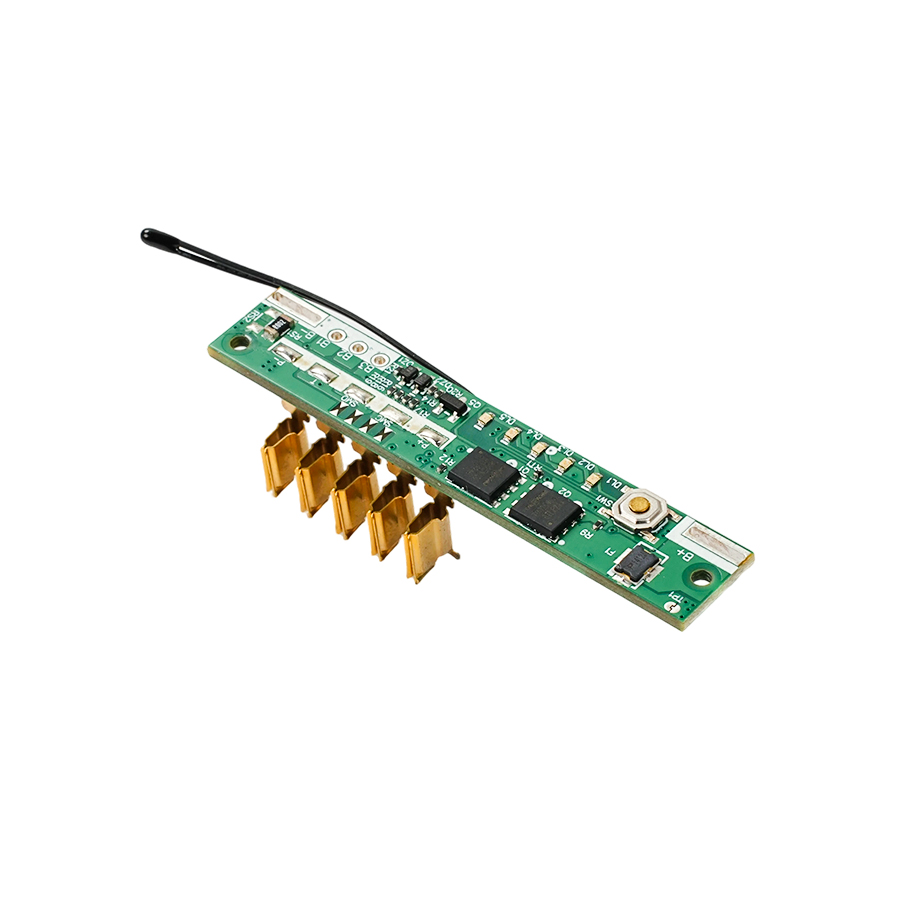

* Serial number: 4S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.025V

* Over Discharge Detection Voltage(Cell): 2.500V±0.025V

* Over Current Discharge: 8.0A±0.5A

* Over Current Charge: 12.0A±0.2A

* Discharging Temperature:  0℃~55℃

* Charge Temperature:  -20℃~65℃

* Max.Discharge Current: 5A

* Max.charge Current: 5A

* Design Certification Requirements: Conform to ULIEC62133、KC、PSE、UL2054

* Dimension(mm): 64*34*15mm
