* Product solution Model number: BAKTH-ITL0080650011-01

* Product Solution: BQ78350-R1+SH3676010B+HYG022N10NS1TA

* Compatibleinterface: SMBUS

* Battery Type: Li-ion

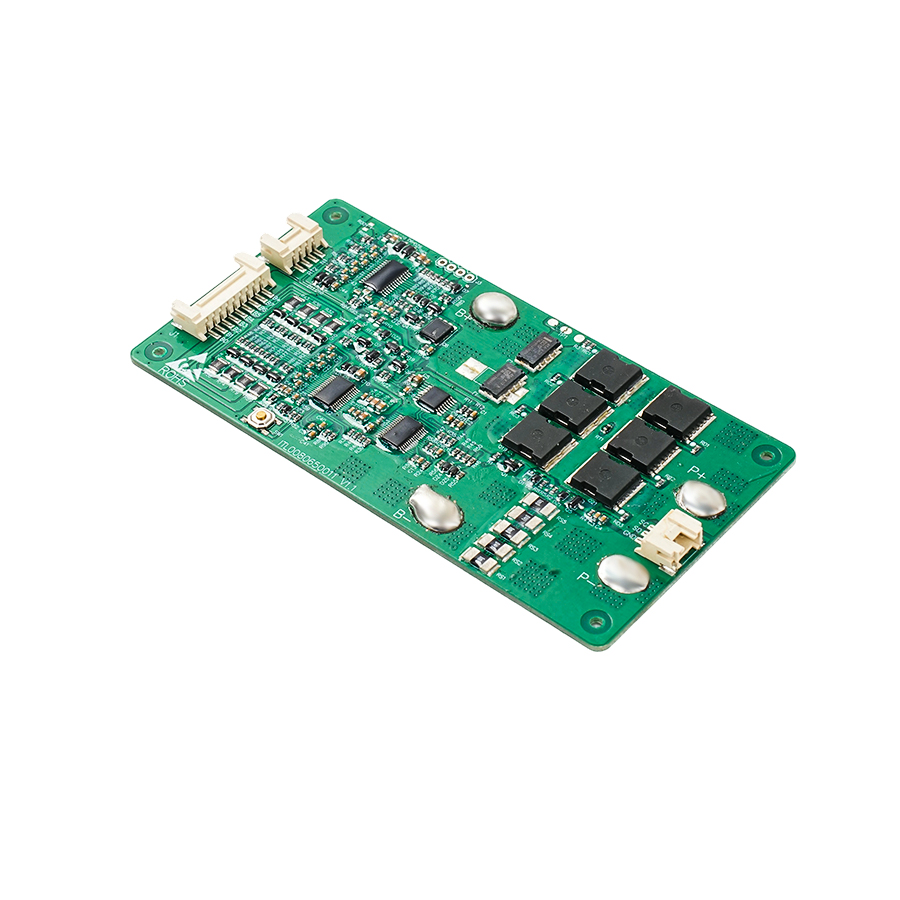

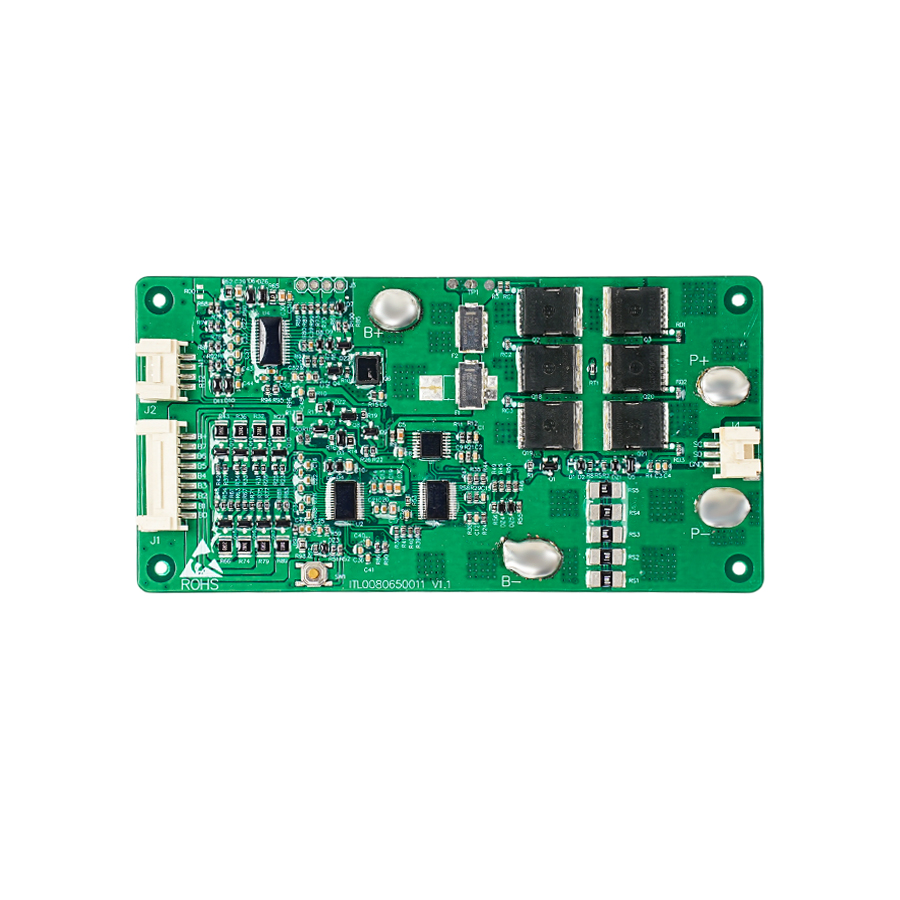

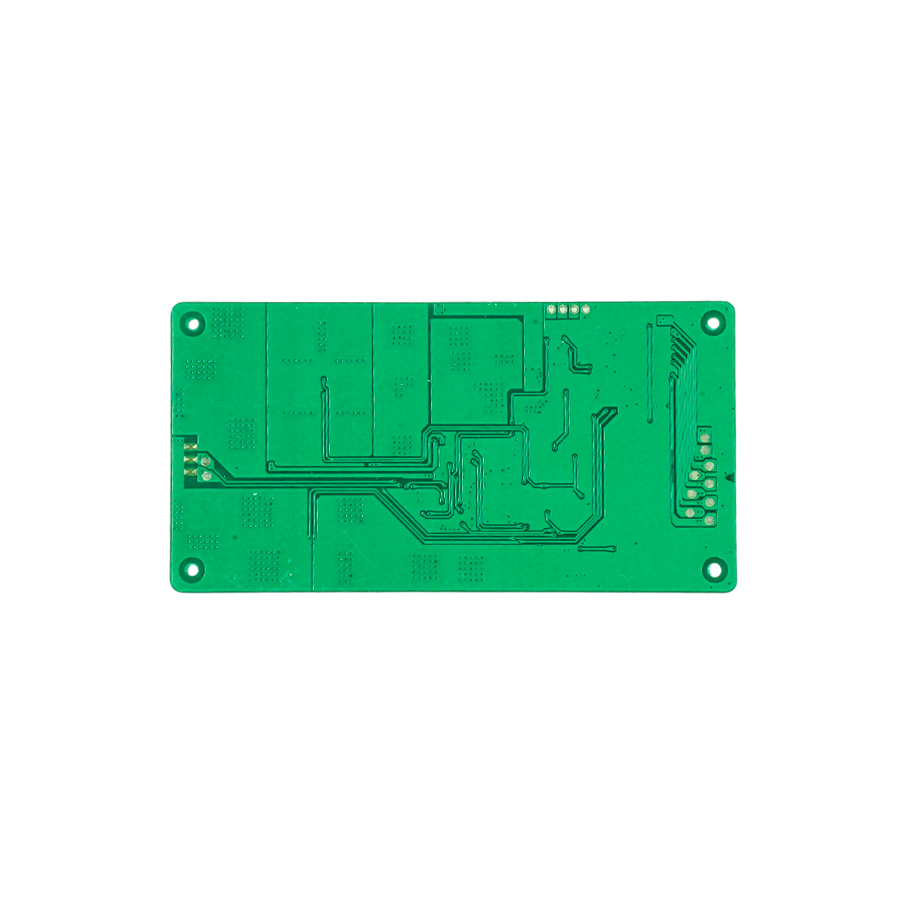

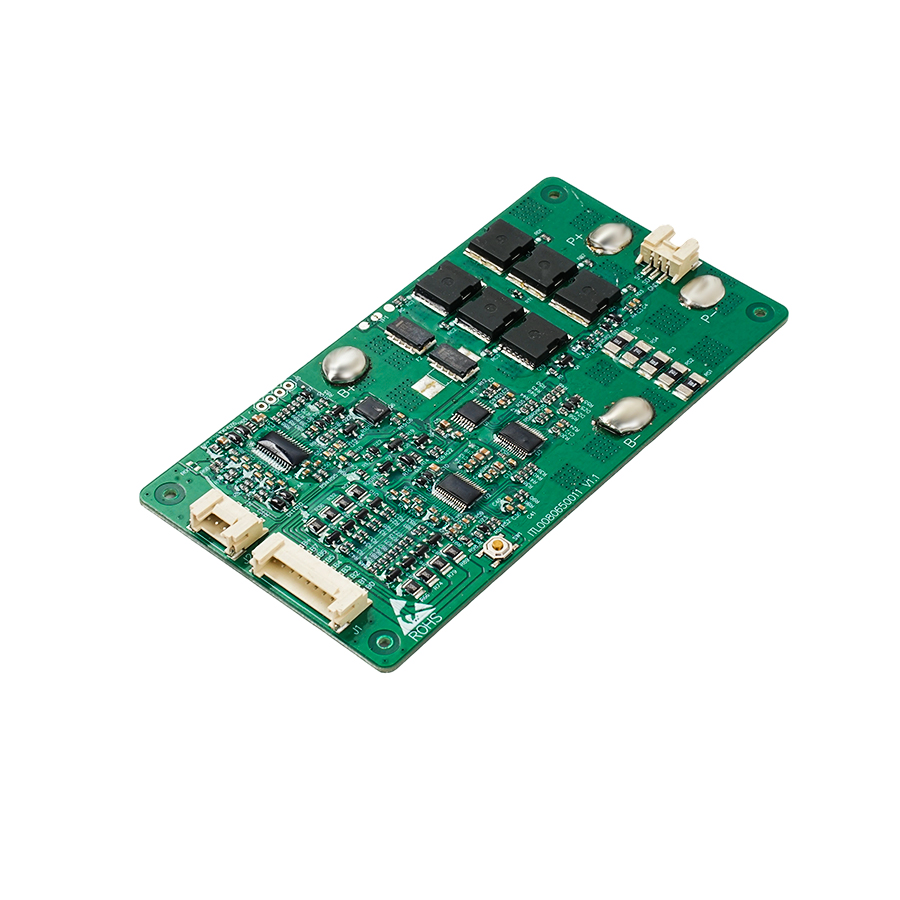

* Serial number: 8S lithium battery protection board

* Over charge detection voltage(Cell):  3.700V±0.050V

* Over Discharge Detection Voltage(Cell): 2.300V±0.05V

* Over Current Discharge: 50A±3A

* Over Current Charge: 65A±5A

* Discharging Temperature:  -5℃~60℃

* Charge Temperature:  -20℃~65℃

* Max.Discharge Current: 30A

* Max.charge Current: 30A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 125*64*6.79mm
