* Product solution Model number: BAKTH-ITL0040150037-01

* Product Solution: BQ4050/BQ40Z50+BQ34Z100

* Compatibleinterface: SMBUS

* Battery Type: Li-ion

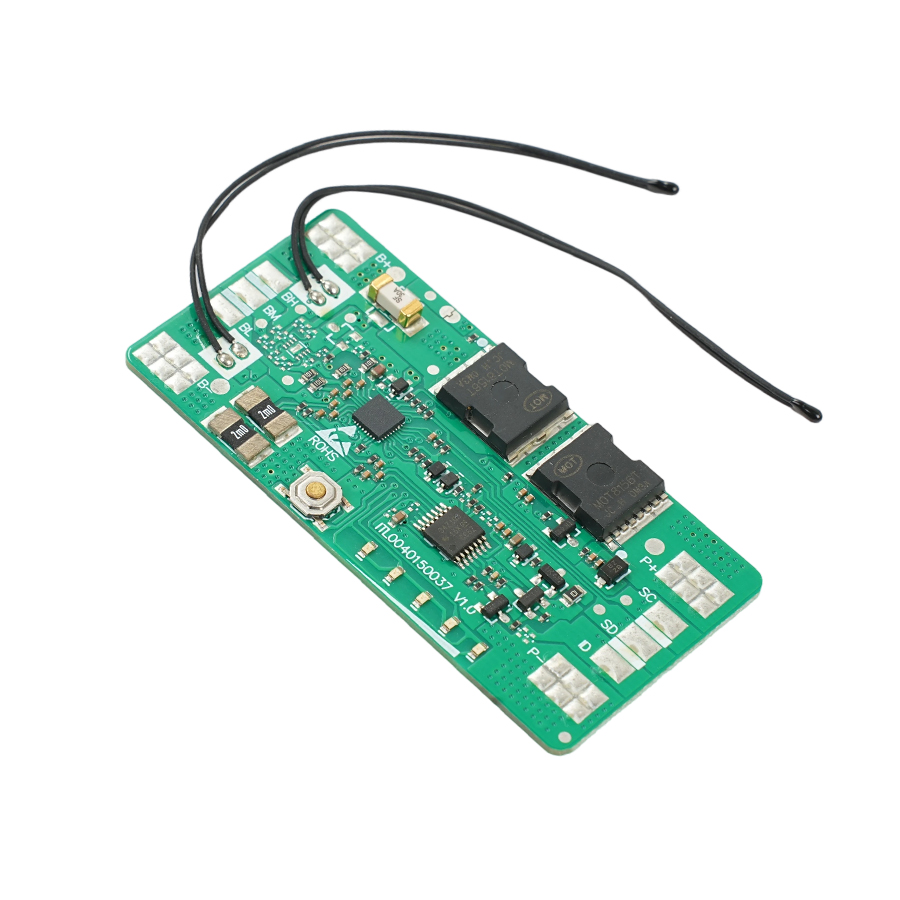

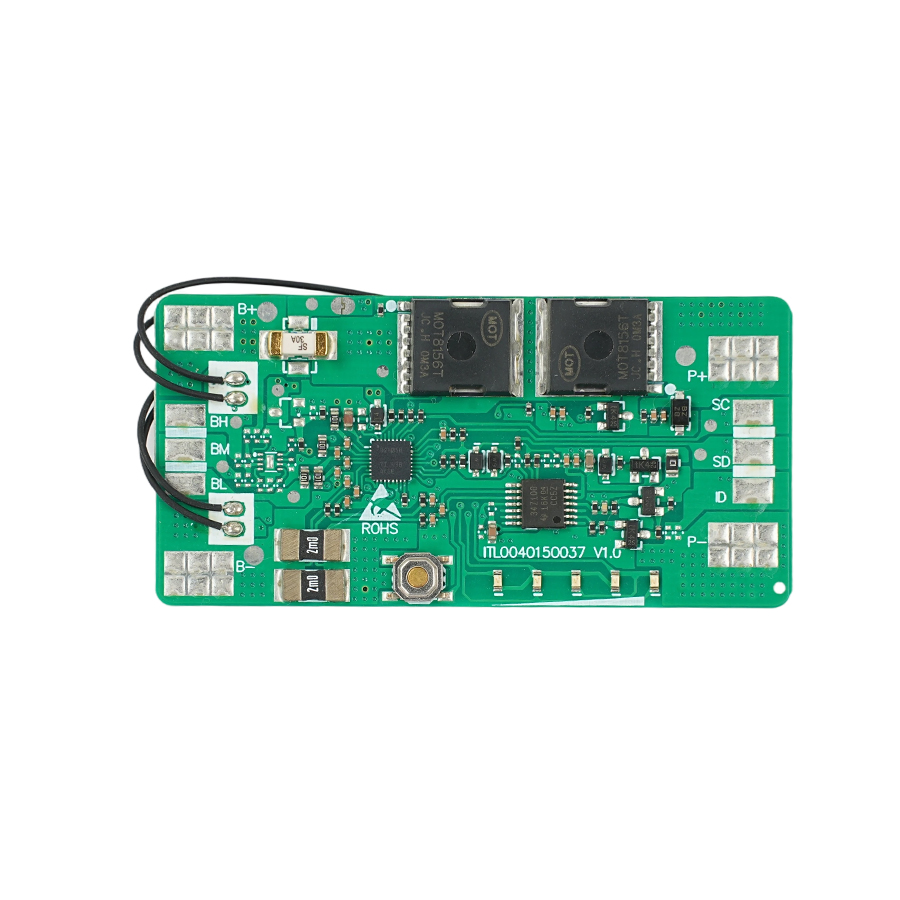

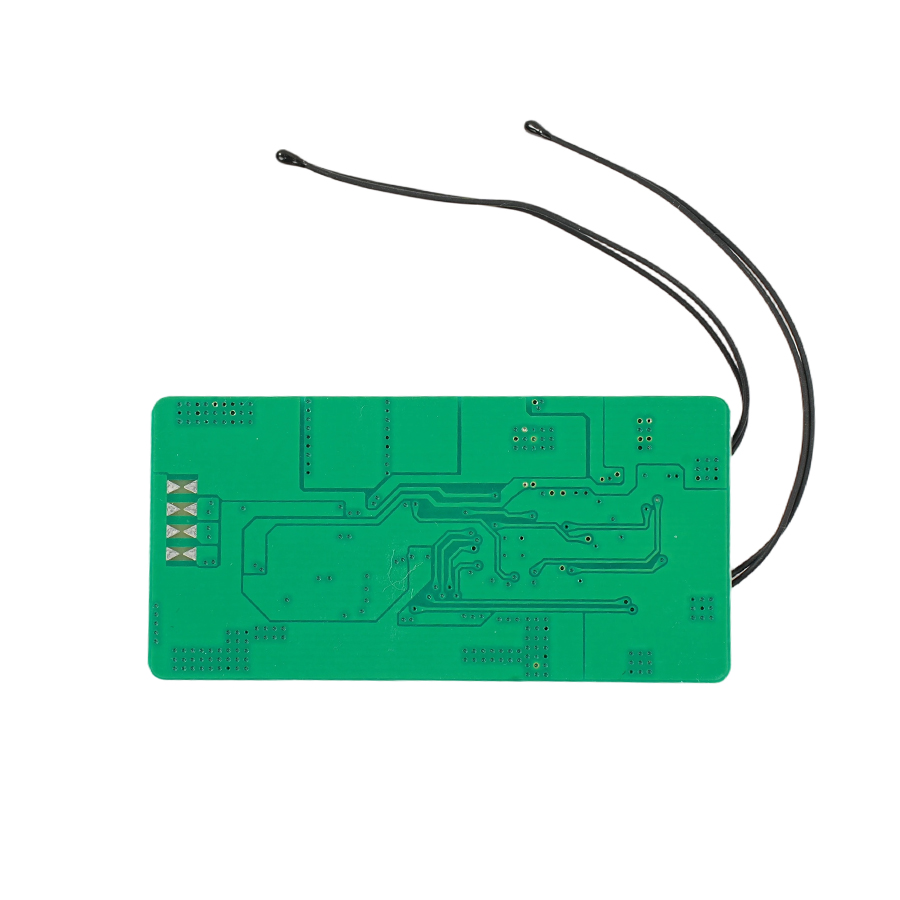

* Serial number: 4S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.025V

* Over Discharge Detection Voltage(Cell): 2.500V±0.025V

* Over Current Discharge:

* Over Current Charge: 65A±5A

* Discharging Temperature:  -5℃~60℃

* Charge Temperature:  -20℃~65℃

* Max.Discharge Current: 30A

* Max.charge Current: 30A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 125*64*6.79mm
