* Product solution Model number: BAKTH-ITL0040150037-01

* Product Solution: BQ34Z100G1+S-8254AAVFT-TB-G+AO4407

* Compatibleinterface: SMBUS

* Battery Type: Li-ion

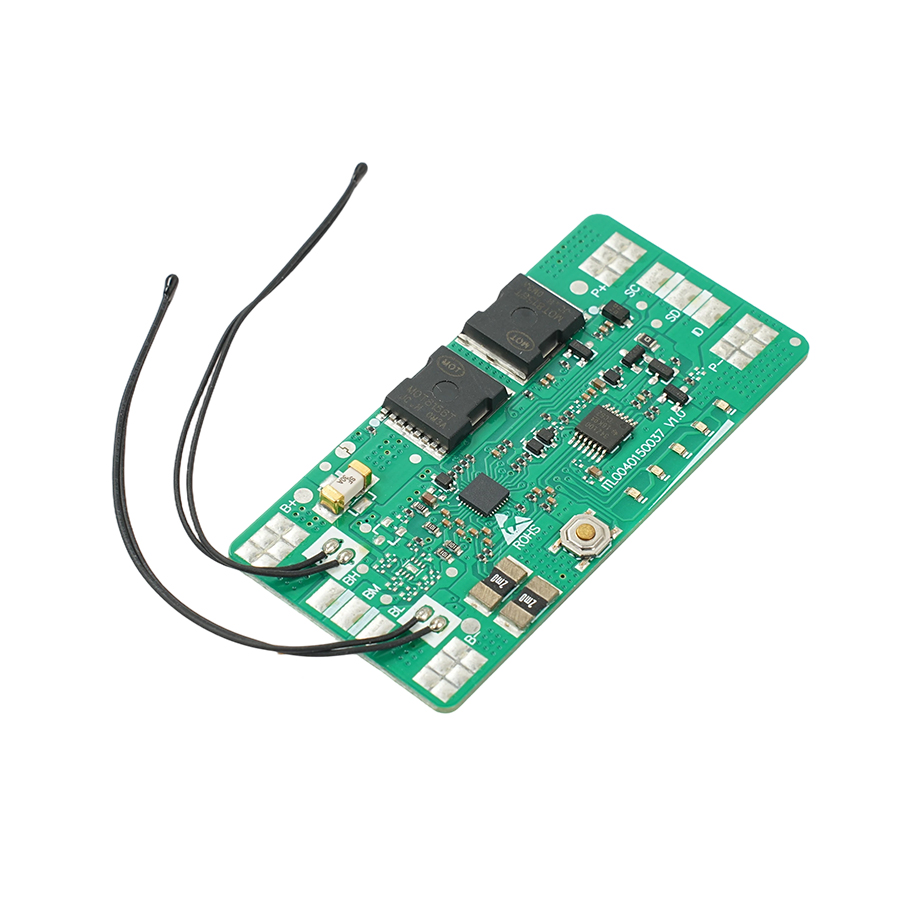

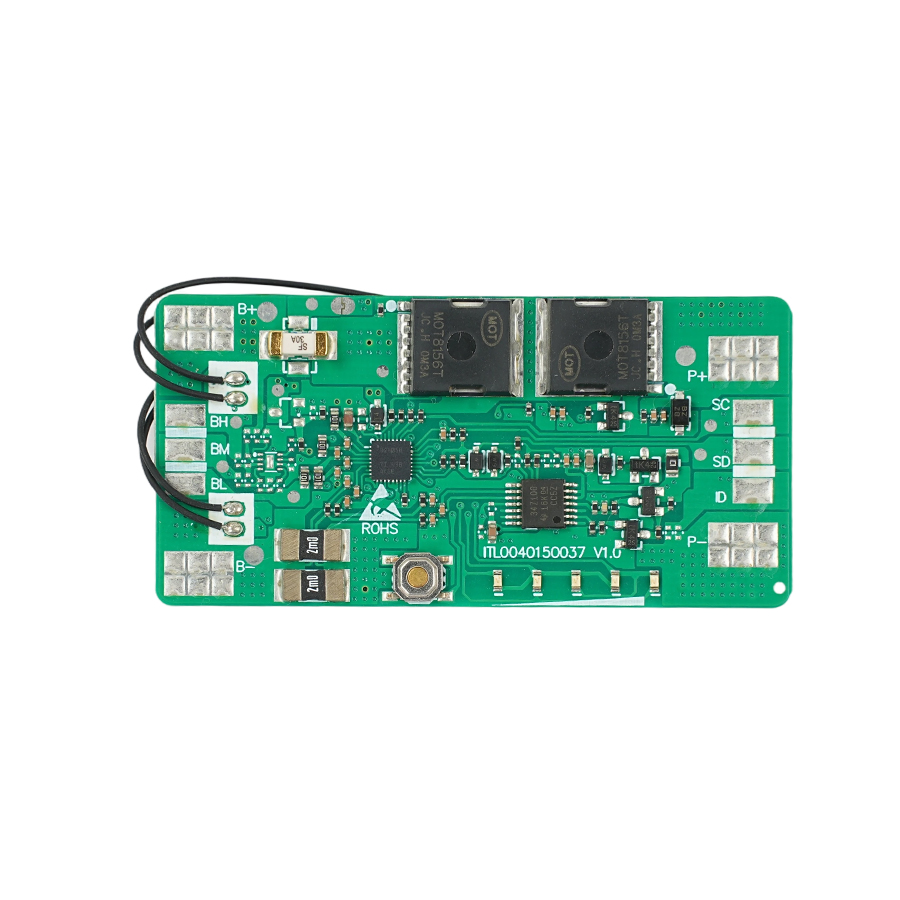

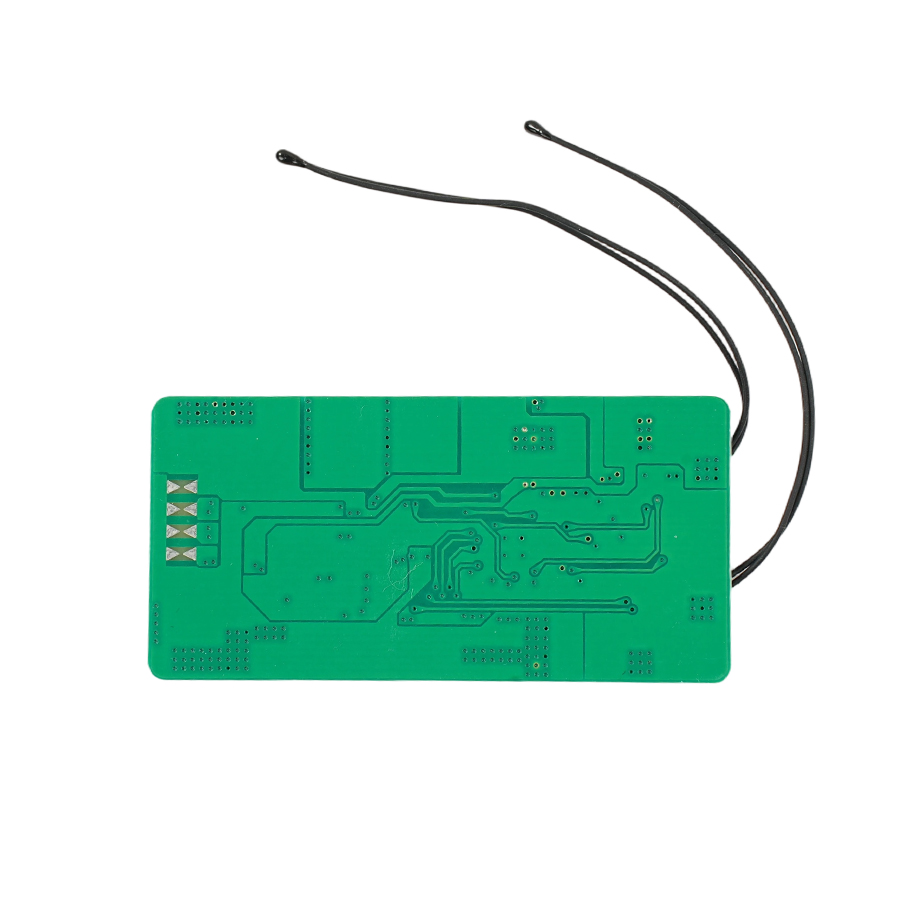

* Serial number: 4S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.025V

* Over Discharge Detection Voltage(Cell): 2.500V±0.025V

* Over Current Discharge: 8.0A±0.5A

* Over Current Charge: 12.0A±0.2A

* Discharging Temperature:  0℃~45℃

* Charge Temperature:  -20℃~55℃

* Max.Discharge Current: 30A

* Max.charge Current: 30A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 80*11*3mm
