* Product solution Model number: BAKTH-ITL0010030165-01

* Product Solution: CC9016CLDS+BQ27542+PAN1816DA

* Compatibleinterface: I2C

* Battery Type: Li-ion

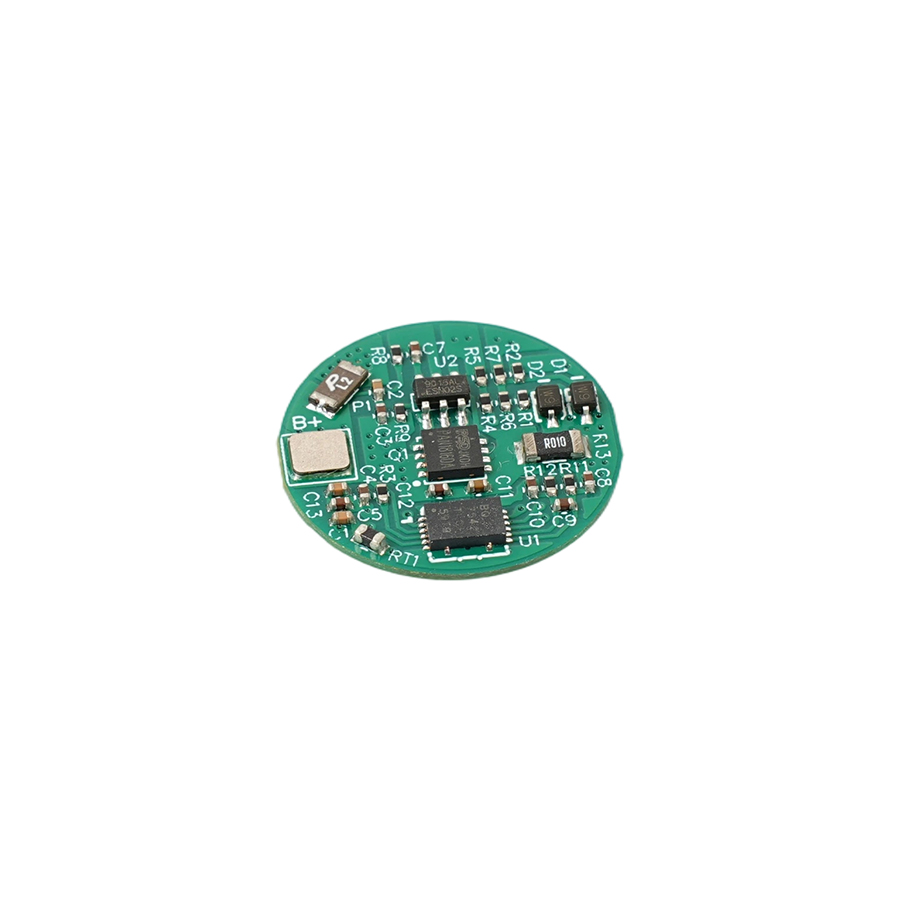

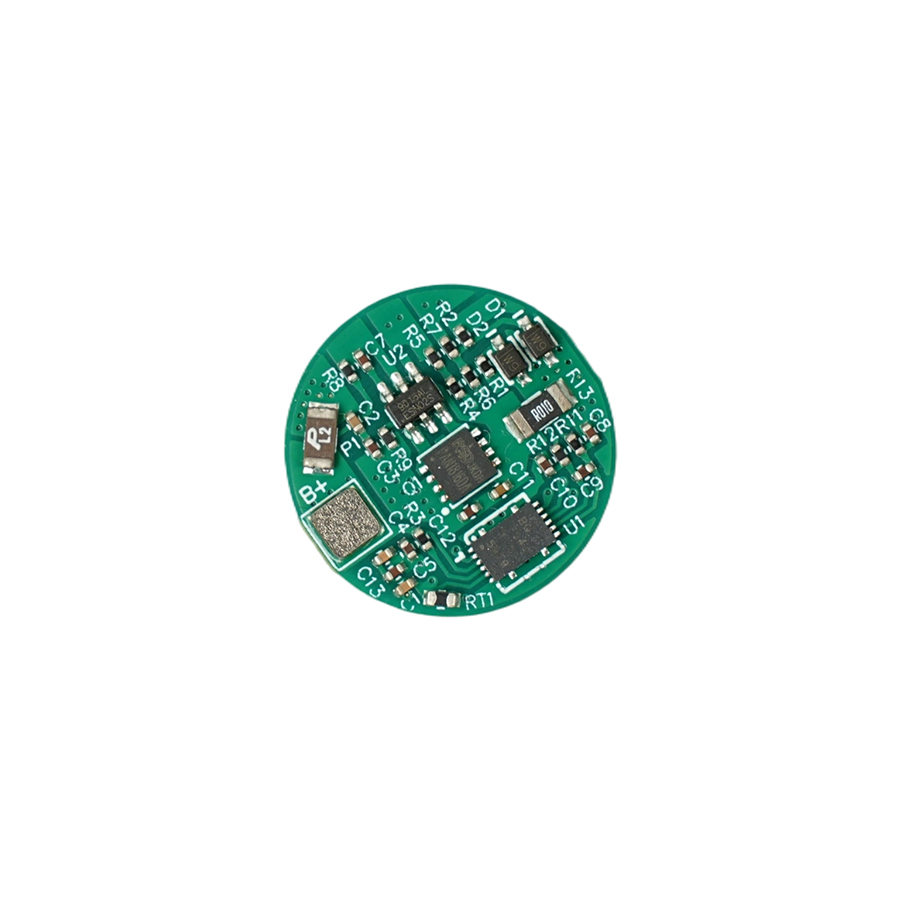

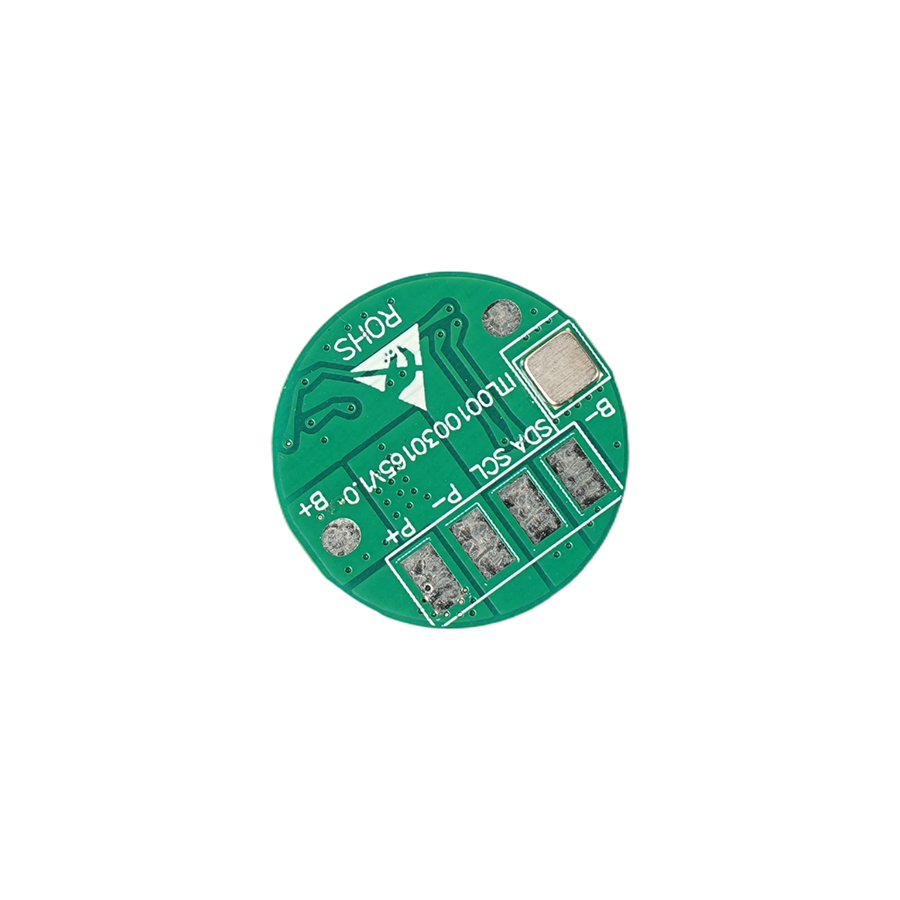

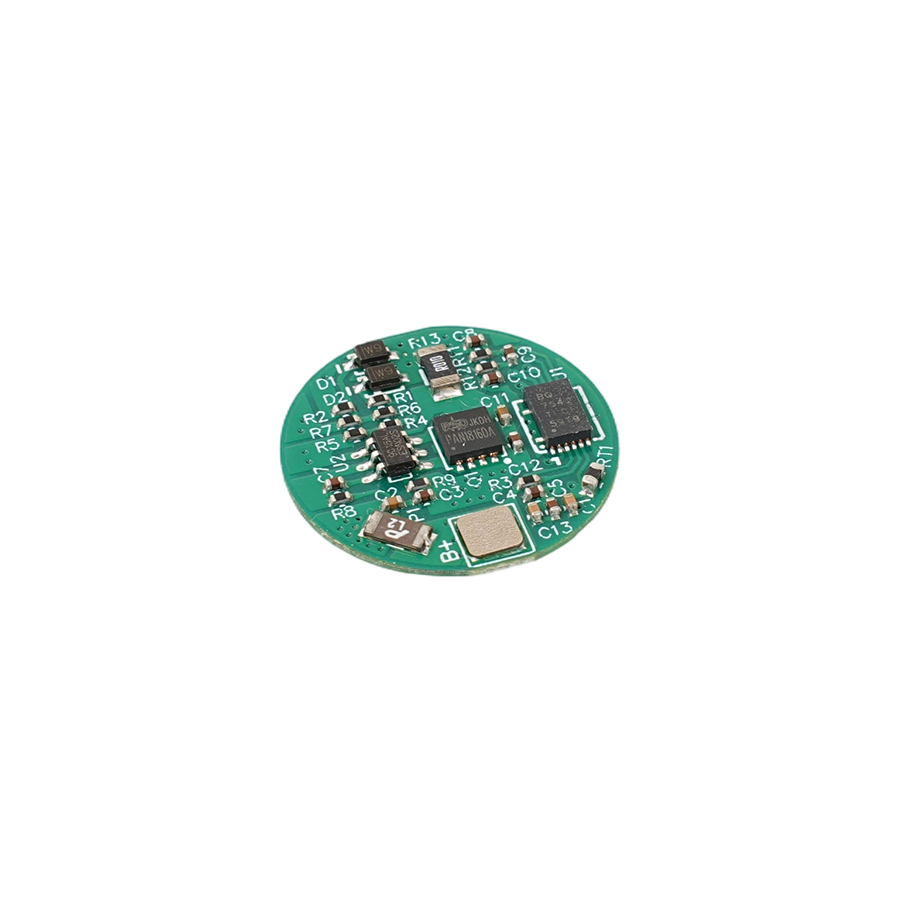

* Serial number: 1S lithium battery protection board

* Over charge detection voltage(Cell):  4.280V±0.030V

* Over Discharge Detection Voltage(Cell): 2.800V±0.050V

* Over Current Discharge: 10A-20A

* Over Current Charge: 10A-20A

* Discharging Temperature:  0℃~50℃

* Charge Temperature:  -0℃~60℃

* Max.Discharge Current: 5A

* Max.charge Current: 5A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): Φ18.3*0.6mm
