* Product solution Model number: BAKTH-ITL0030050162-01

* Product Solution: BQ4050 +AON6354

* Compatibleinterface: SMBUS

* Battery Type: Li-ion

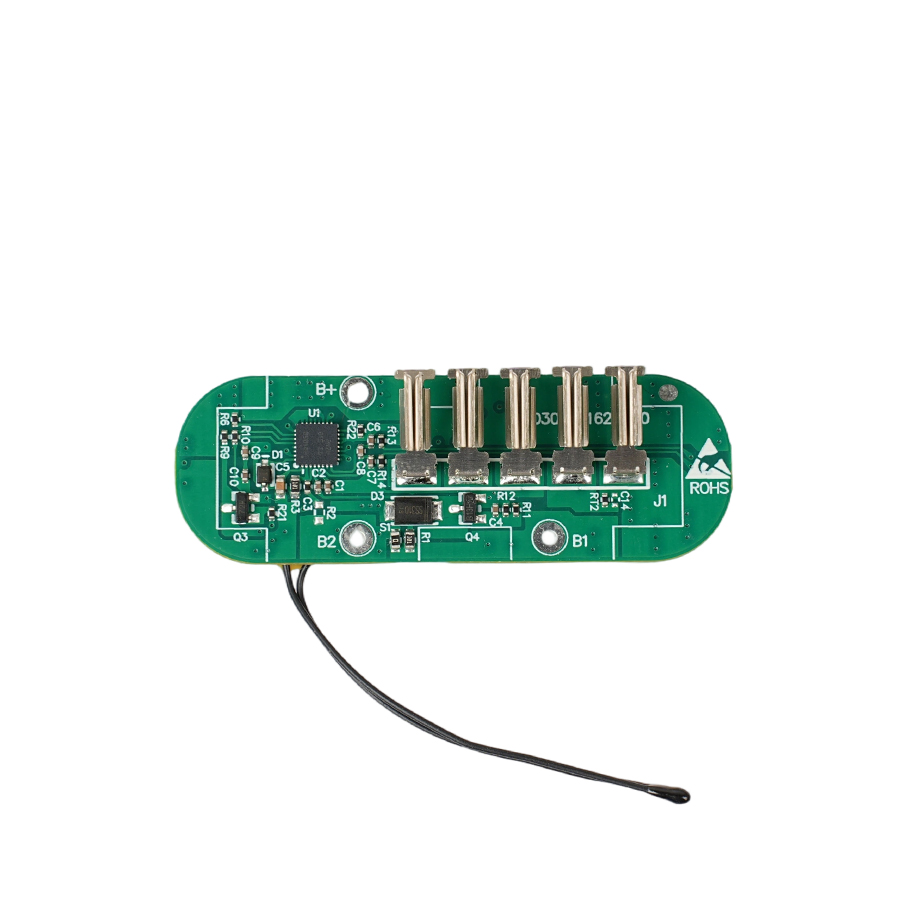

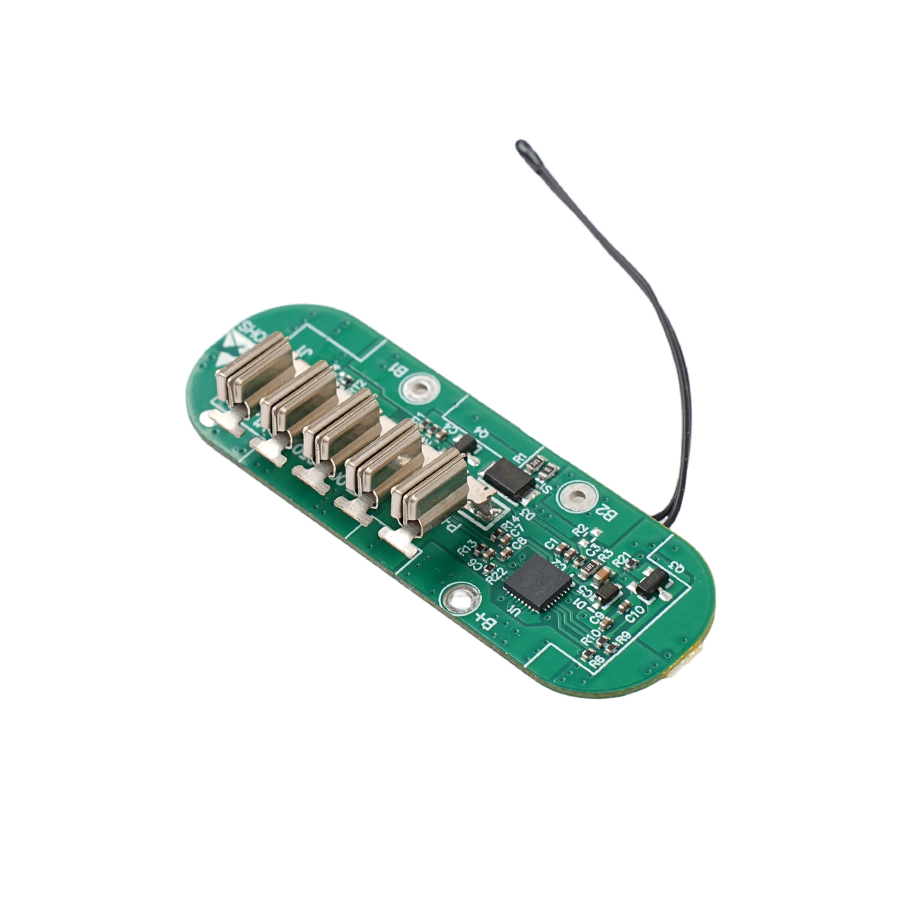

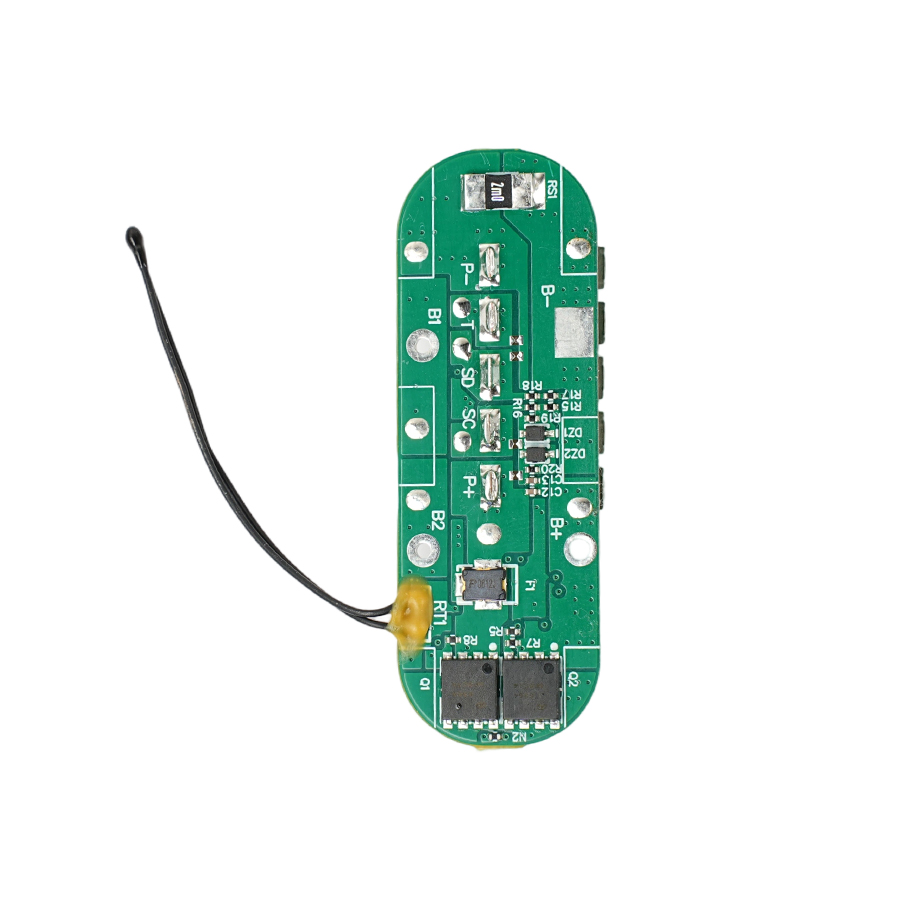

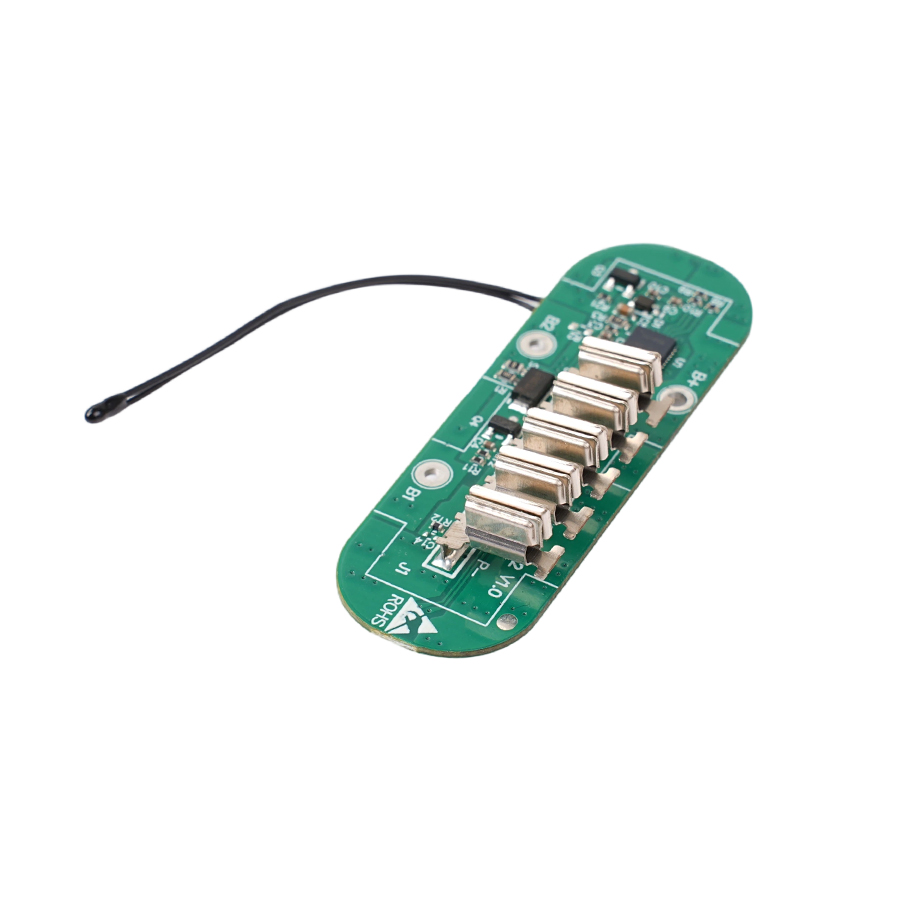

* Serial number: 3S lithium battery protection board

* Over charge detection voltage(Cell):  4.230V±0.025V

* Over Discharge Detection Voltage(Cell): 2.700V±0.025V

* Over Current Discharge: 5.0A±0.5A

* Over Current Charge: 4.0A±0.5A

* Discharging Temperature:  0℃~55℃

* Charge Temperature:  -20℃~60℃

* Max.Discharge Current: 5A

* Max.charge Current: 5A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 53.9*18.51*1.0mm
