* Product solution Model number: BAKTH-ITL0030050167-01

* Product Solution: BQ4050 +AON6354

* Compatibleinterface: SMBUS

* Battery Type: Li-ion

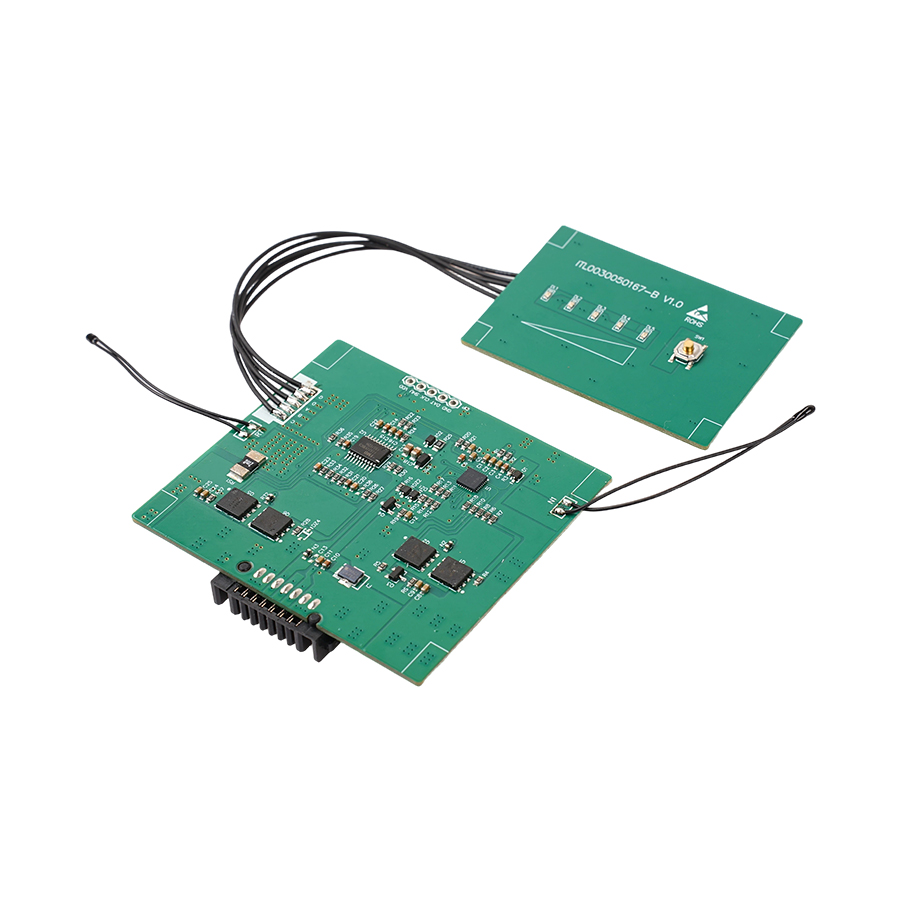

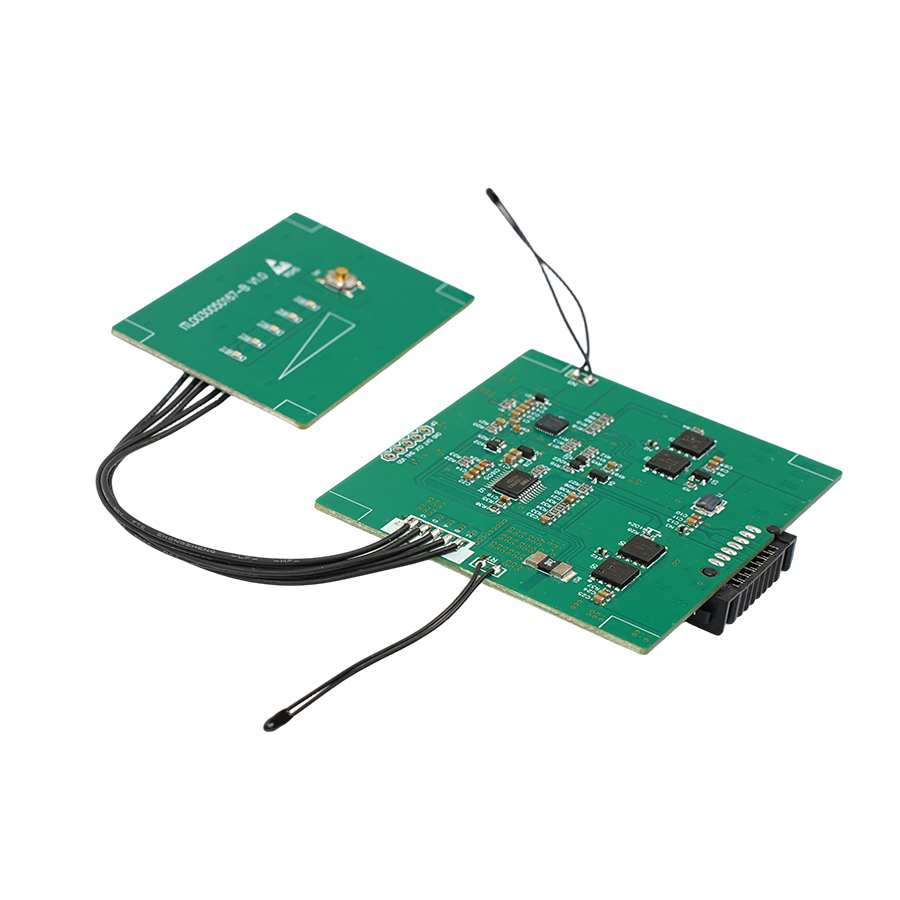

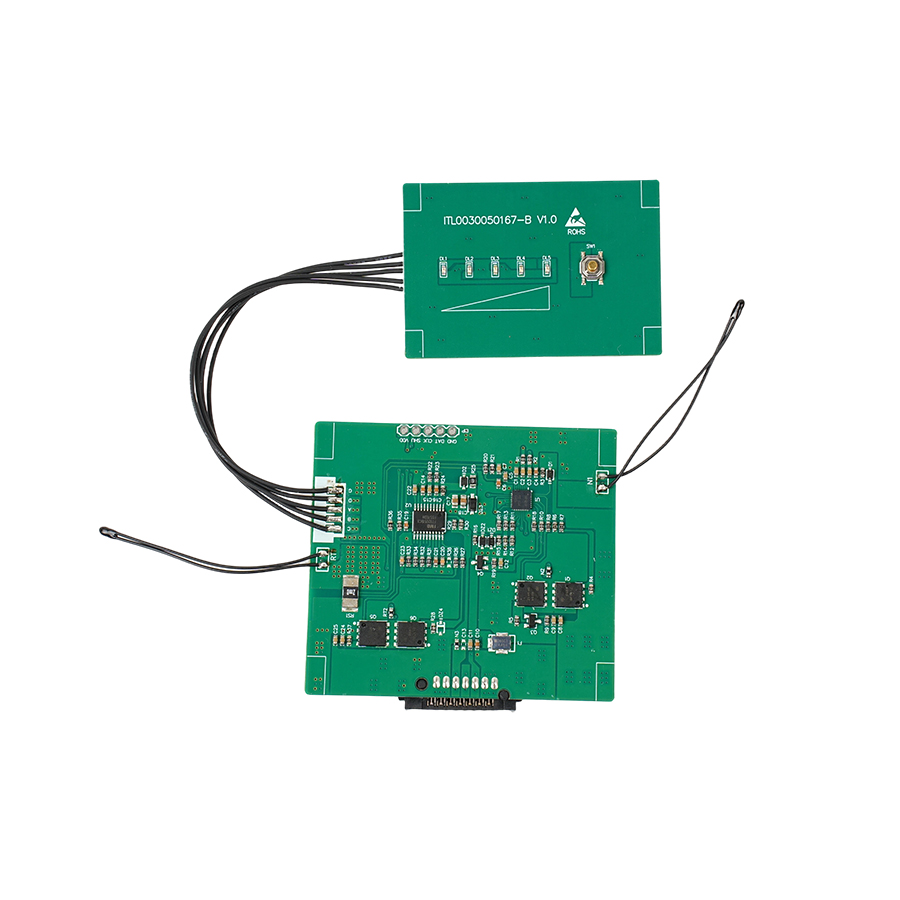

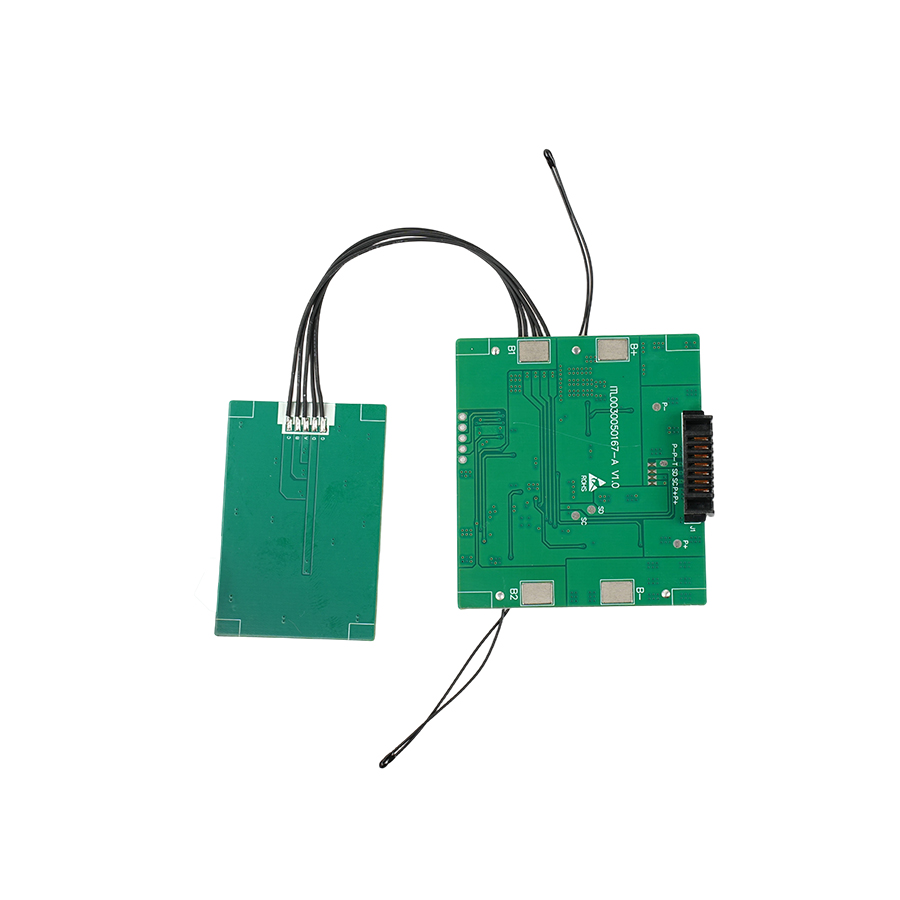

* Serial number: 3S lithium battery protection board

* Over charge detection voltage(Cell):  4.230V±0.025V

* Over Discharge Detection Voltage(Cell): 2.700V±0.025V

* Over Current Discharge: 5.0A±0.5A

* Over Current Charge: 4.0A±0.5A

* Discharging Temperature:  0℃~50℃

* Charge Temperature:  -18℃~55℃

* Max.Discharge Current: 4A

* Max.charge Current: 3A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): A: 64*57.6*1.2mm  B: 55*37.6*1.2mm
