* Product solution Model number: BAKTH-ITL0030100161-01

* Product Solution: BQ40Z50+CJAB35N03S+D6SC4

* Compatibleinterface: SMBUS

* Battery Type: Li-ion

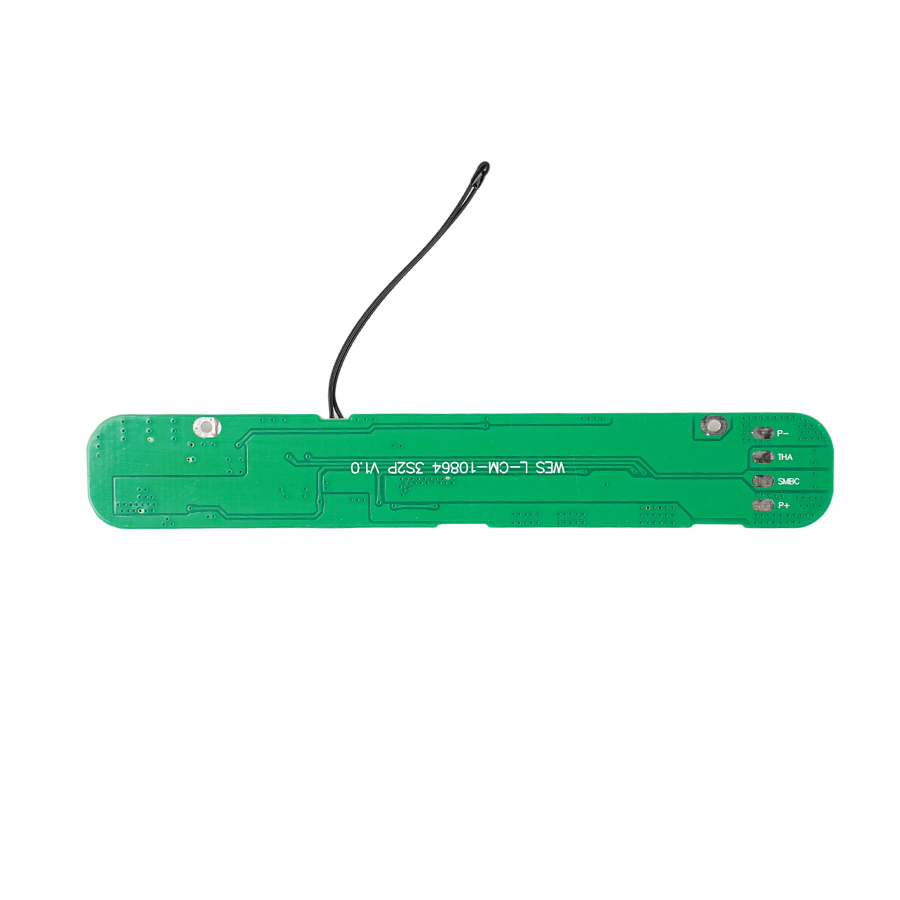

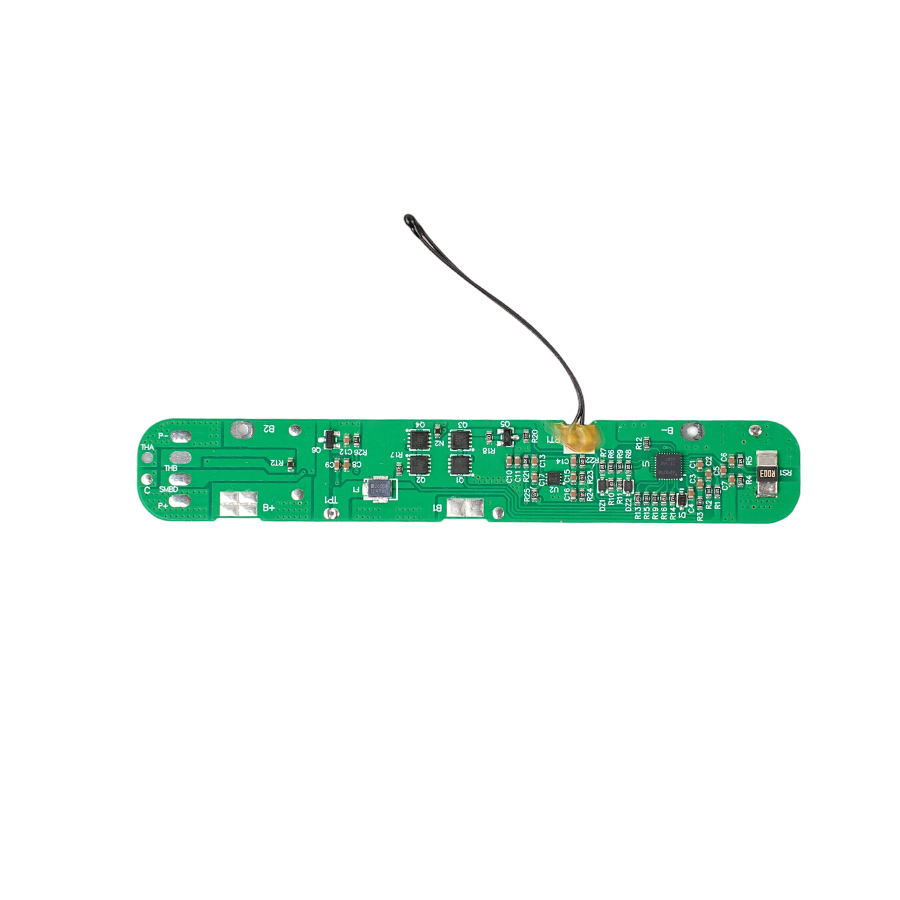

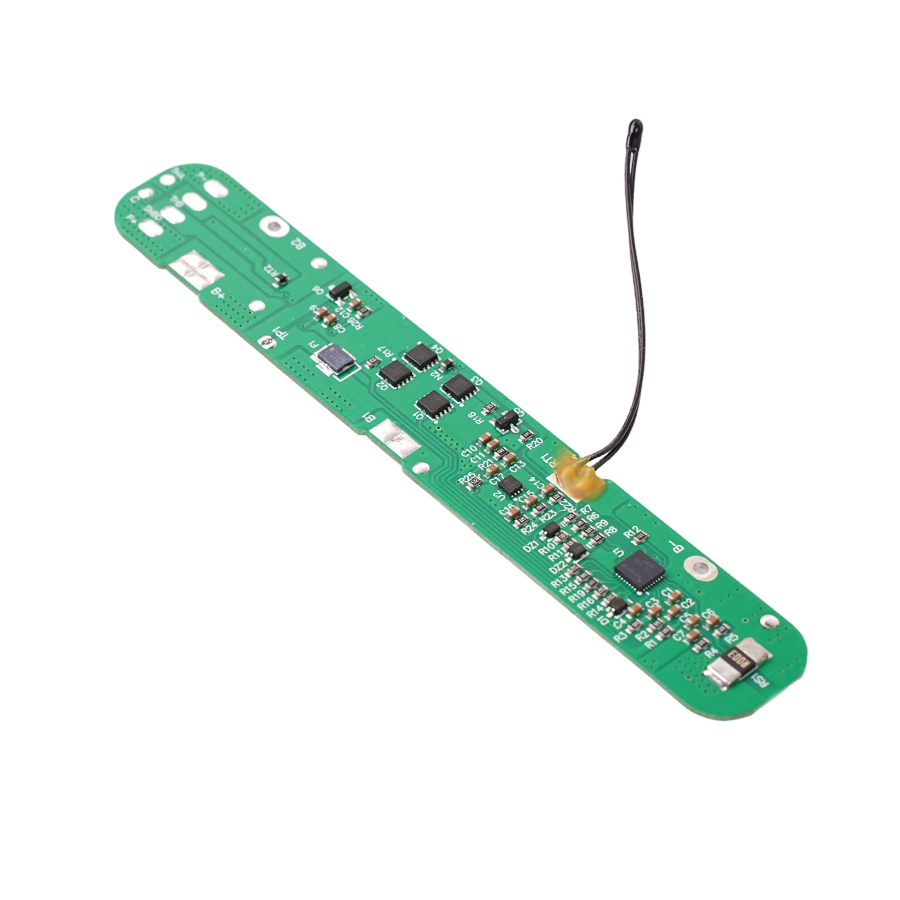

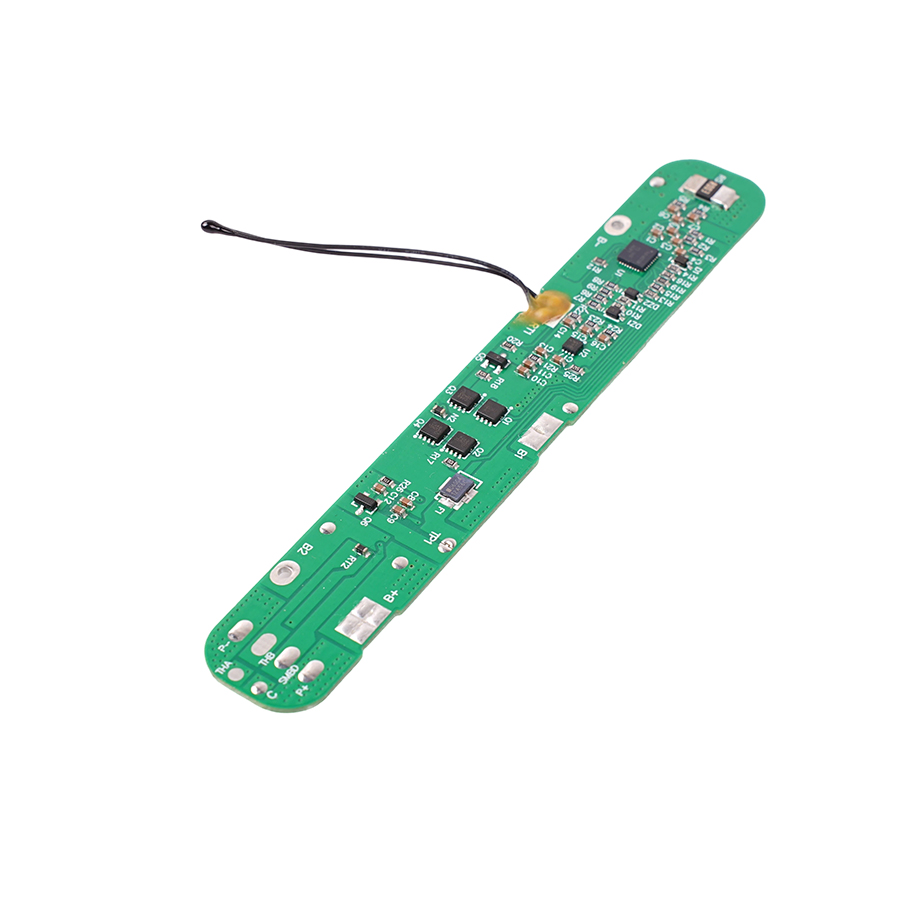

* Serial number: 3S lithium battery protection board

* Over charge detection voltage(Cell):  4.280V±0.025V

* Over Discharge Detection Voltage(Cell): 2.900V±0.025V

* Over Current Discharge: 9.0A±0.5A

* Over Current Charge: 5.0A±0.5A

* Discharging Temperature:  0℃~50℃

* Charge Temperature:  -10℃~60℃

* Max.Discharge Current: 8A

* Max.charge Current: 4A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 108*17*1.0mm
