* Product solution Model number: BAKTH-ITL0210600155-01

* Product Solution: BQ34Z100G1+S-8254AAVFT-TB-G+AO4407

* Compatibleinterface: SMBUS

* Battery Type: Li-ion

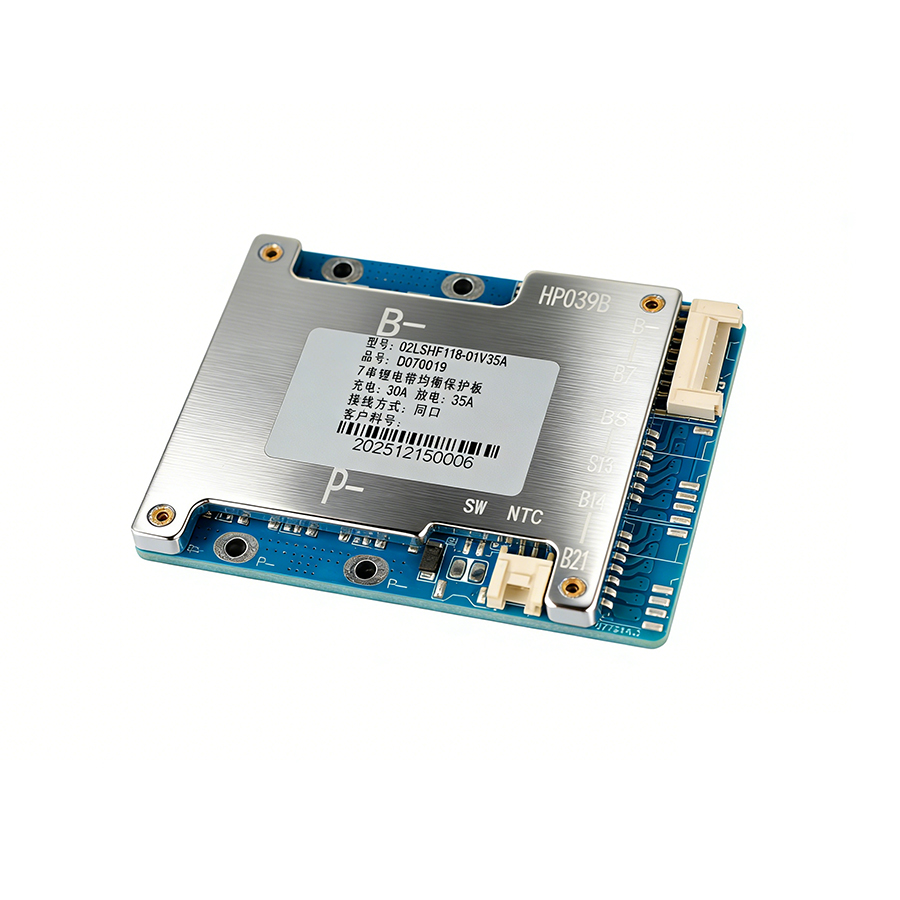

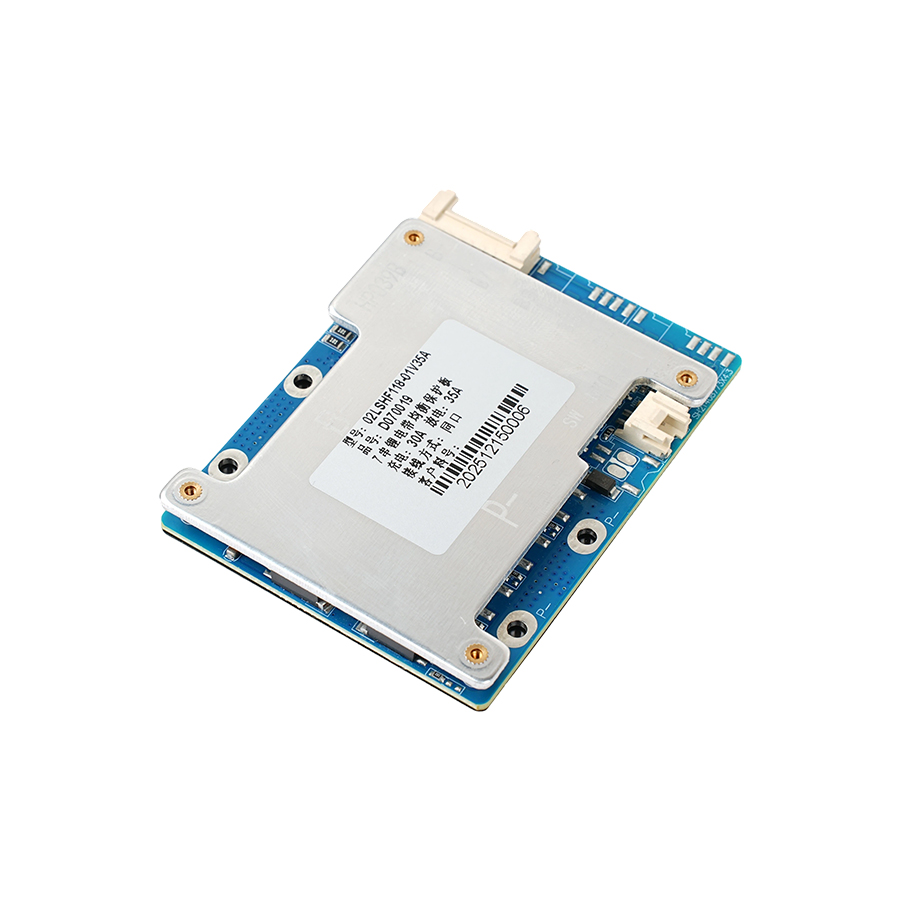

* Serial number: 7S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.030V

* Over Discharge Detection Voltage(Cell): 2.700V±0.080V

* Over Current Discharge: 60A±15A

* Over Current Charge: 25A±6A

* Discharging Temperature:  0℃~50℃

* Charge Temperature:  -10℃~60℃

* Max.Discharge Current: 15A

* Max.charge Current: 15A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 80*60*1.6mm
