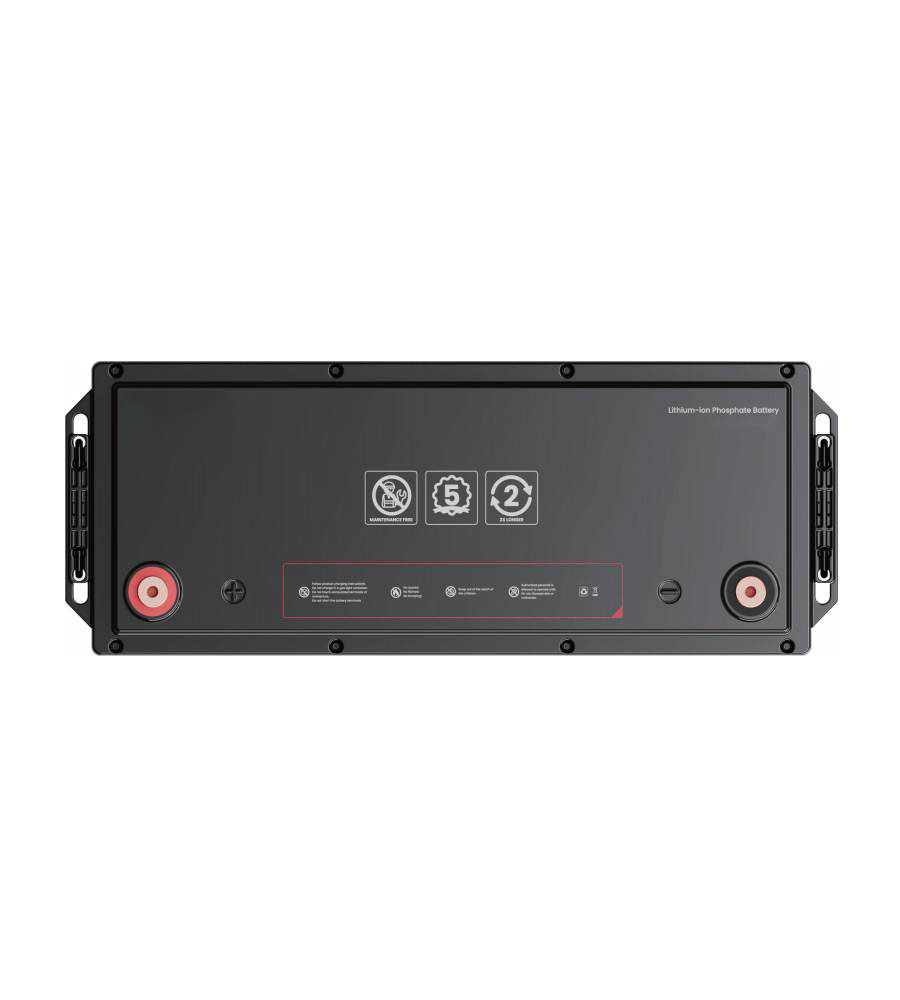

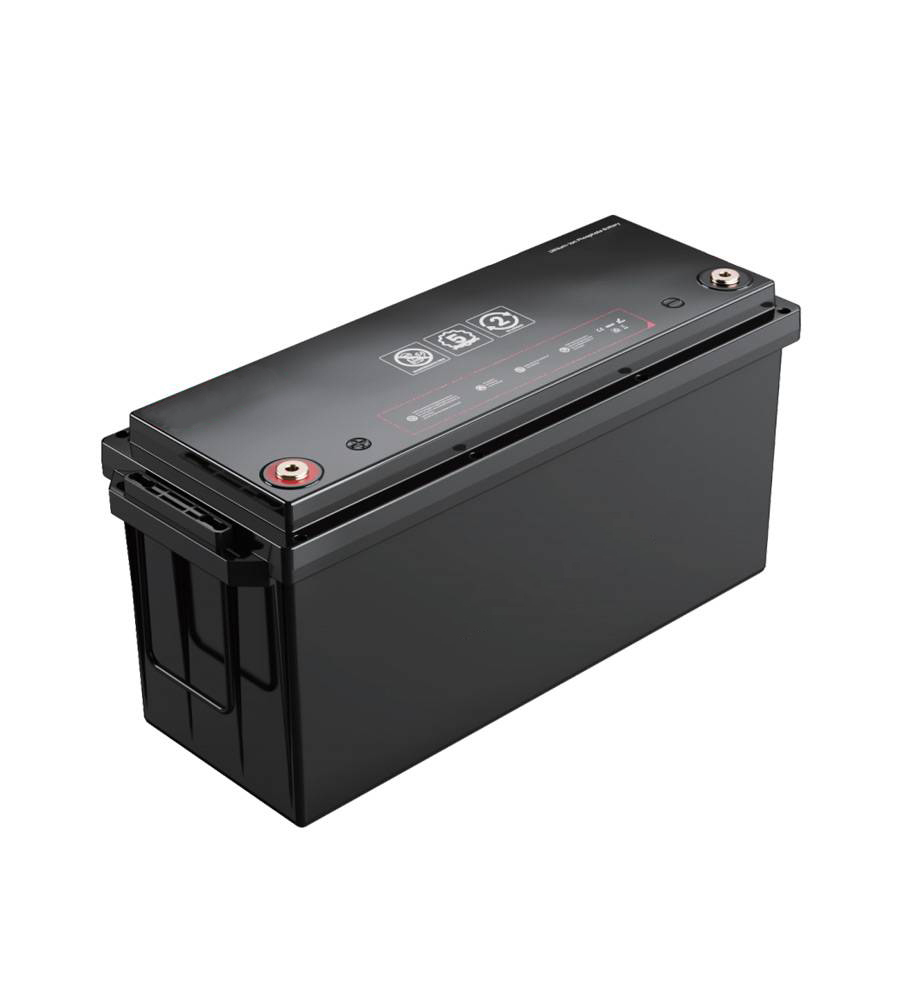

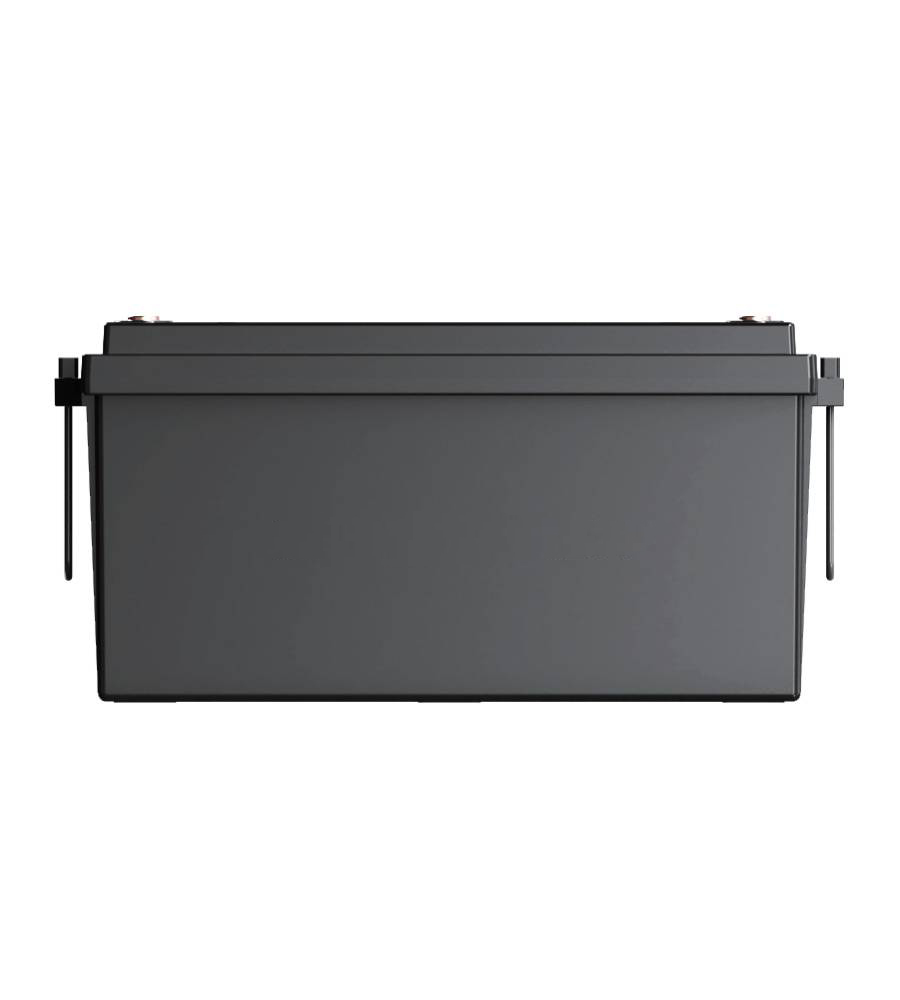

BAKH-LiFePO4 12V 100Ah battery

SKU: LiFePO4
Categories: Energy Storage Battery, General, LiFePO4 batteries / pack, UPS Lithium batteries 12V Lithium Battery
Tags: 12.8v 100Ah lifepo4 battery, BAKTH Shenzhen, BAKTH-LiFePO4 12.8V 100Ah, Home Energy Storage, LiFePO4 12.8V, LiFePO4 12.8V 100Ah, Marine, Scooters, Shenzhen BAK Technology, Solar Power System, 12V 100Ah Battery Supplier, B2B Lithium Battery Manufacturer, OEM LiFePO4 Battery, Wholesale 12V Lithium Battery

Contact us
Description
Weight~13kg
Dimensions502 x 187 x 242 mm
TypeLiFePo4
Nominal  Voltage12.8V
Nominal   Capacity100Ah
Nominal   Energy1280Wh
Max  Charge  Voltage14.6V
Discharge  Cut-off  Voltage10V
Max  Continues  Charge  Current100A
Max  Continues  Discharge  Current100A
Cycles   Life6000+
Self-discharge1.5% (per month)
Charge   Temperature0°C ~ 60°C
Discharge   Temperature-20°C ~ 65°C
Storage   Temperature-10°C ~ 50°C


Additional Information

12V 100Ah Ultra Lithium LiFePO4 Battery: Superior Energy Storage & Peak Performance

Engineered for exceptional energy storage and reliable performance, this battery combines an extended cycle life, advanced BMS protection, and optional smart features—making it the ultimate power solution for RVs, boats, off-grid solar setups, and industrial power systems.

Key Features & Benefits

  •        High Energy Density – Boasting a 1280Wh (1.28kWh) capacity, it delivers steady, trustworthy power to handle even the most demanding applications.
  •        Long Cycle Life – Built for 6000+ cycles at 80% DOD and 4000+ cycles at 100% DOD, guaranteeing over a decade of reliable service.
  •        Fast & Efficient Charging – Supports up to 100A charging (recommended 14.6V 20A charger), enabling a full charge in as little as 5 hours.
  •        Advanced BMS Protection – Integrated JBD BMS defends against overcharging, over-discharging, short circuits, and extreme temperatures for safe operation.
  •        Durable & Weatherproof – IP65-rated to resist dust and water, making it ideal for harsh environments like mountains, deserts, and damp conditions.
  •        Lightweight & Compact – Weighing just 13 kg (29 lbs), it delivers greater energy output while being 50% lighter than traditional lead-acid batteries.
  •        Scalable Power – Supports 4 batteries in series (for 48V systems) or 4 in parallel (for 400Ah capacity) to meet expanded energy needs.
  •        Smart Technology (Optional) – Upgrade with Bluetooth, WiFi, GPS, LCD Display, RS485/CAN bus, or self-heating for advanced monitoring and control capabilities.

Technical Specifications

Voltage & Capacity: 12.8V | 100Ah (1280Wh)
Charge Voltage: 14.6V | Discharge Cut-off Voltage: 10V
Max Charge/Discharge Current: 100A
Standard Charge/Discharge Current: 50A
Cycle Life: 6000+ cycles (80% DOD), 4000+ cycles (100% DOD)
Dimensions (L × W × H): 502 × 187 × 242 mm (19.8 × 7.4 × 9.5 inches)
Weight: ~13 kg (29 lbs)
Operating Temperature: Charge: 0°C to 60°C | Discharge: -20°C to 65°C
Storage Temperature: -10°C to 50°C
Self-Discharge Rate: ≤1.5% per month
Protection Rating: IP65

Built for Extreme Conditions

Crafted to perform in winter snow, mountainous terrain, humid environments, and even desert heat, the 12V 100Ah Ultra LiFePO4 Battery is engineered for resilience and long-lasting, consistent performance—no matter the environment.

OEM & Customization Options

For OEM/ODM buyers, we offer silk-screen labeling, laser logos, and customizable accessories. Our batteries are compliant with global safety standards, holding certifications including IEC 62619, UL 1642, CE, MSDS, and UN38.3.

Upgrade to Ultra Power

Whether you need a robust RV battery, marine power solution, or industrial backup system, the 12V 100Ah Ultra Lithium LiFePO4 Battery delivers unmatched efficiency, safety, and longevity.

Choose smarter energy with our advanced LiFePO4 technology!
