* Product solution Model number: BAKTH-ITL0160600048-01

* Product Solution: SH3676016BP+MOT8156T

* Compatibleinterface: /

* Battery Type: LiFe-Po4

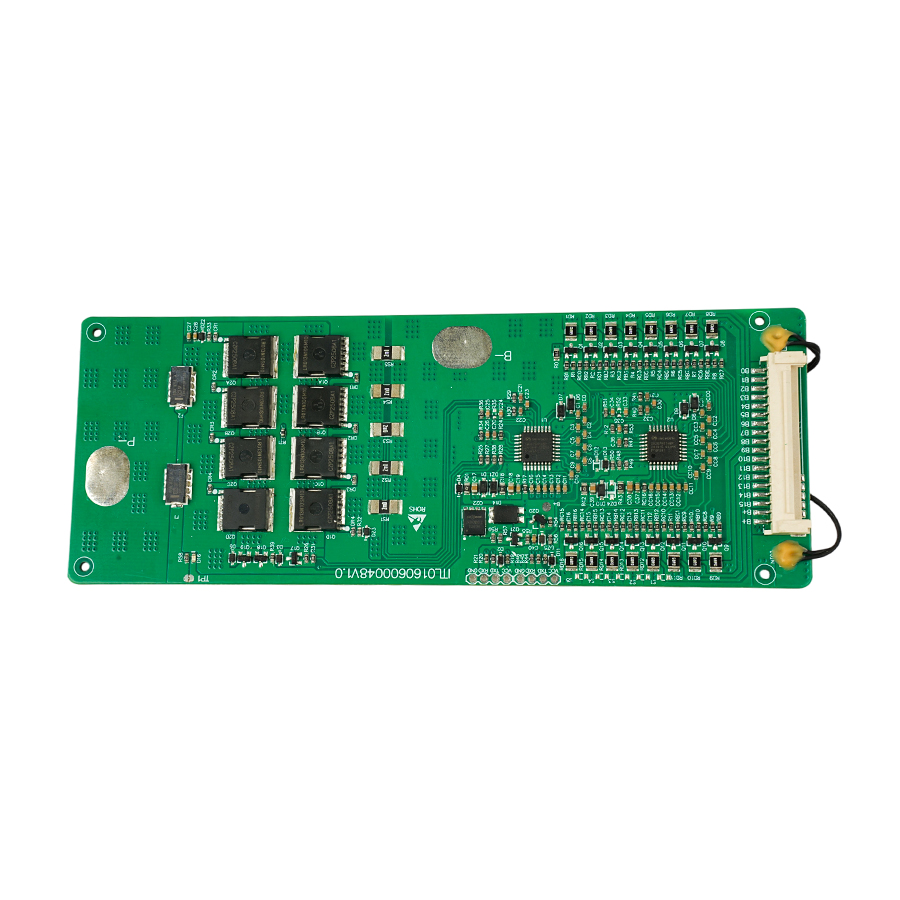

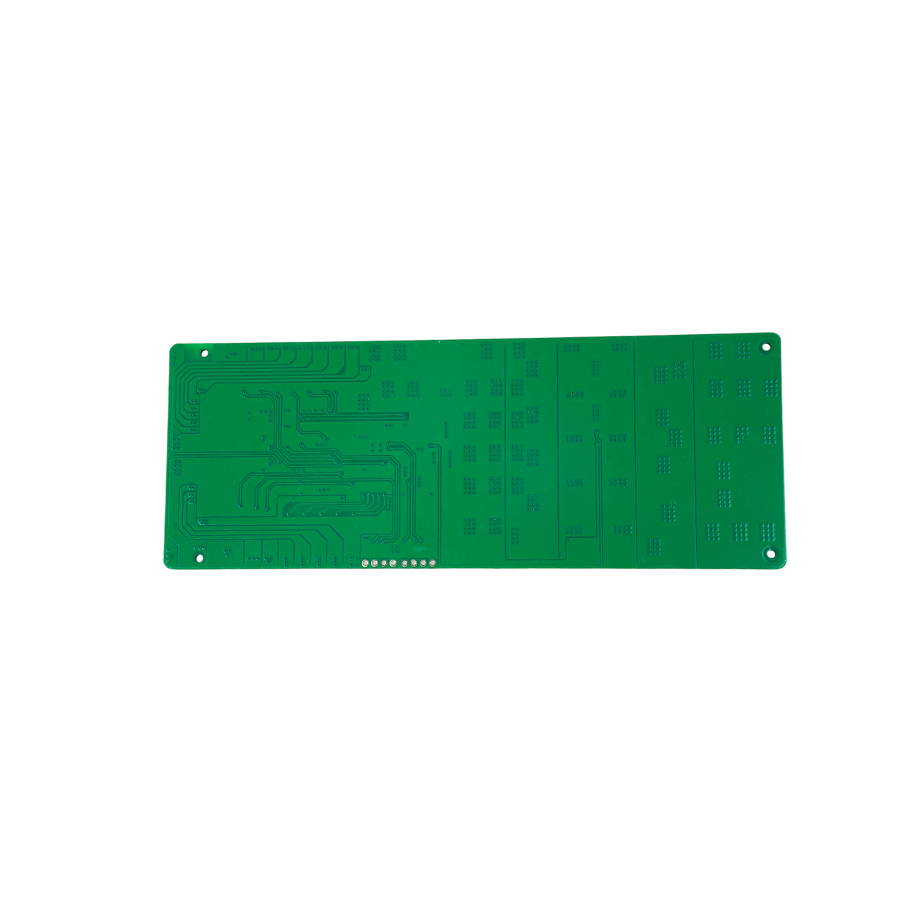

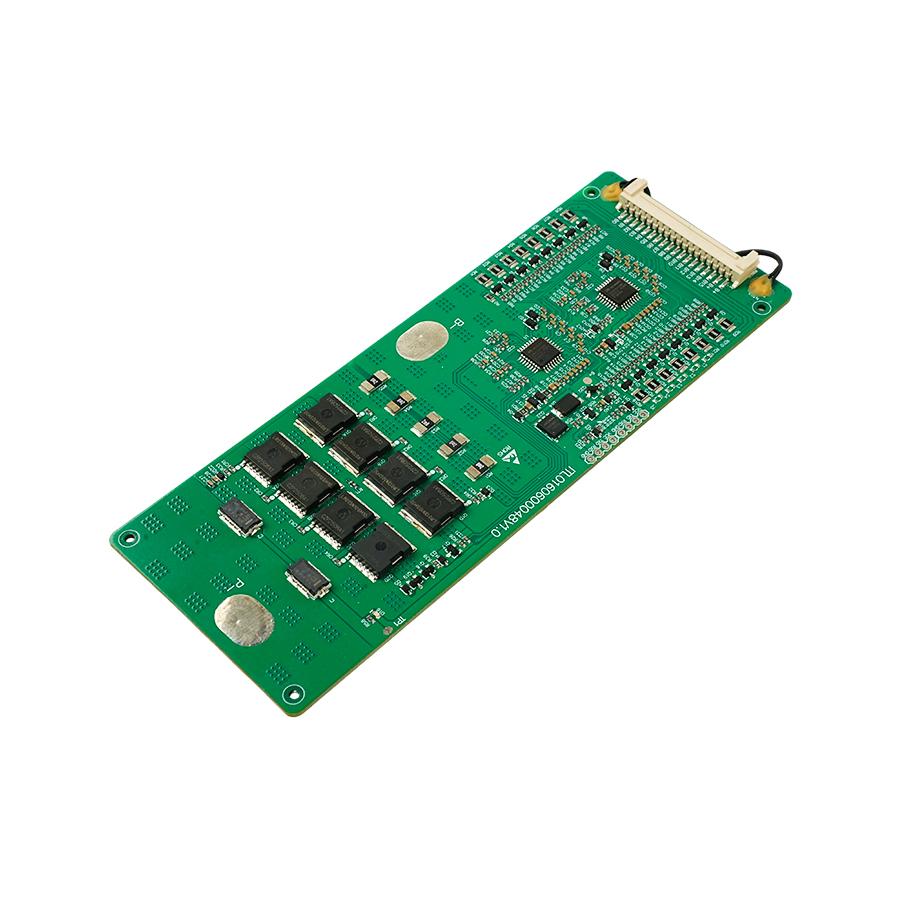

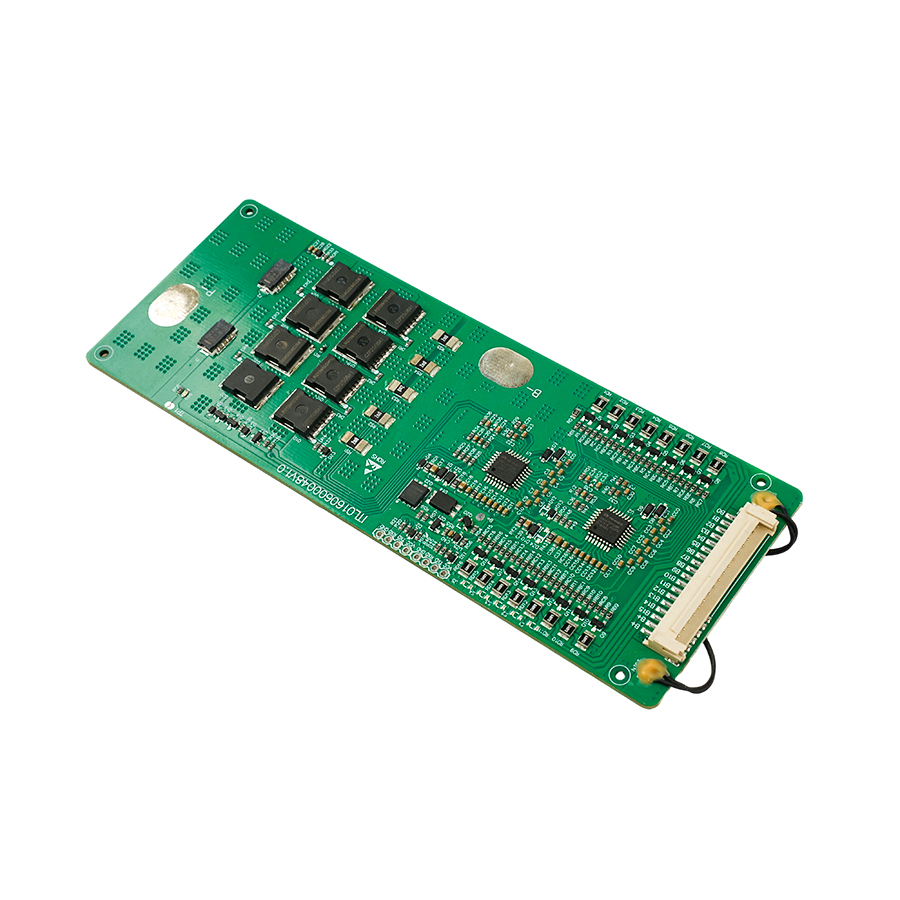

* Serial number: 16S lithium battery protection board

* Over charge detection voltage(Cell):  3.600V±0.050V

* Over Discharge Detection Voltage(Cell): 2.000V±0.050V

* Over Current Discharge: 110A-130A

* Over Current Charge: 15A-25A

* Discharging Temperature:  -20℃~60℃

* Charge Temperature:  0℃~55℃

* Max.Discharge Current: 30A

* Max.charge Current: 15A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 110*60*1.6mm
