* Product solution Model number: BAKTH-ITL0100600055-01

* Product Solution: SH3676010BX+LR013N10SM10 +SFK-3045A

* Compatibleinterface: SMBUS

* Battery Type: LiLe-PO4

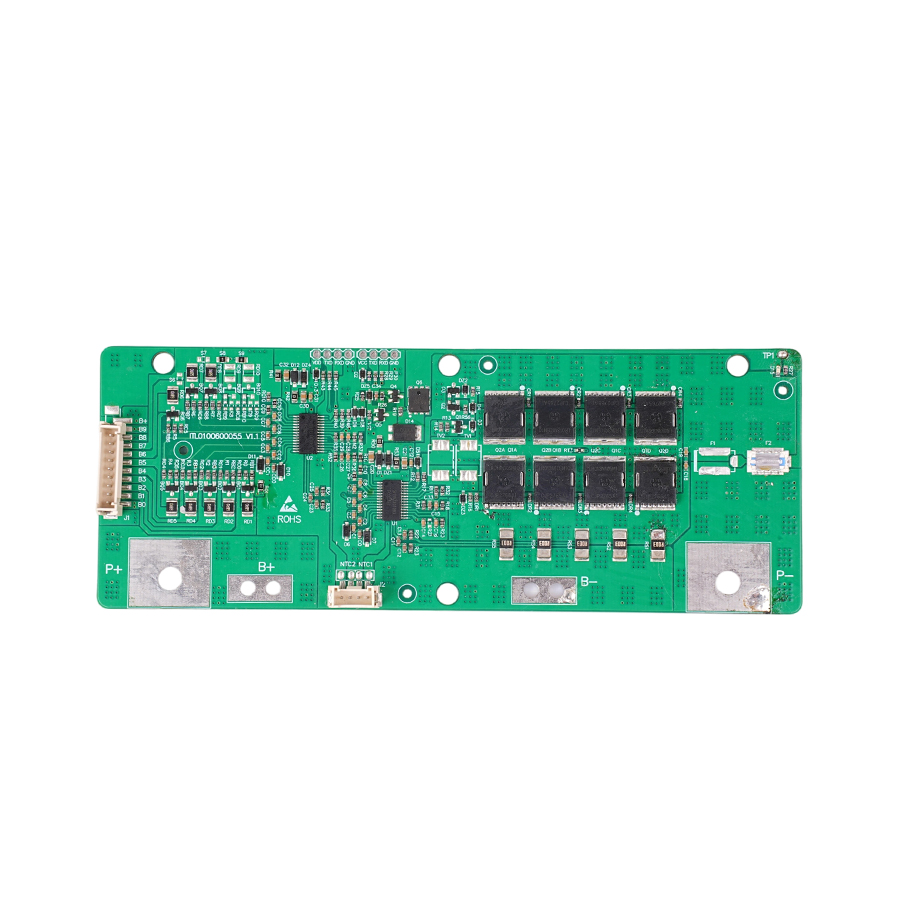

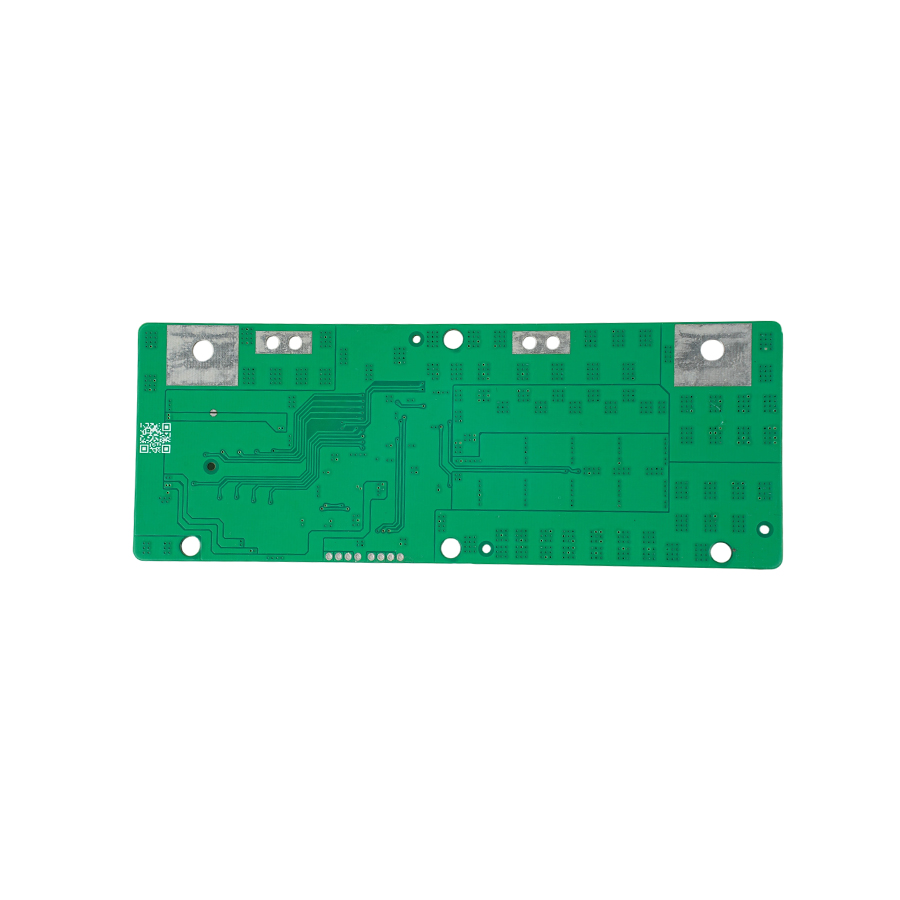

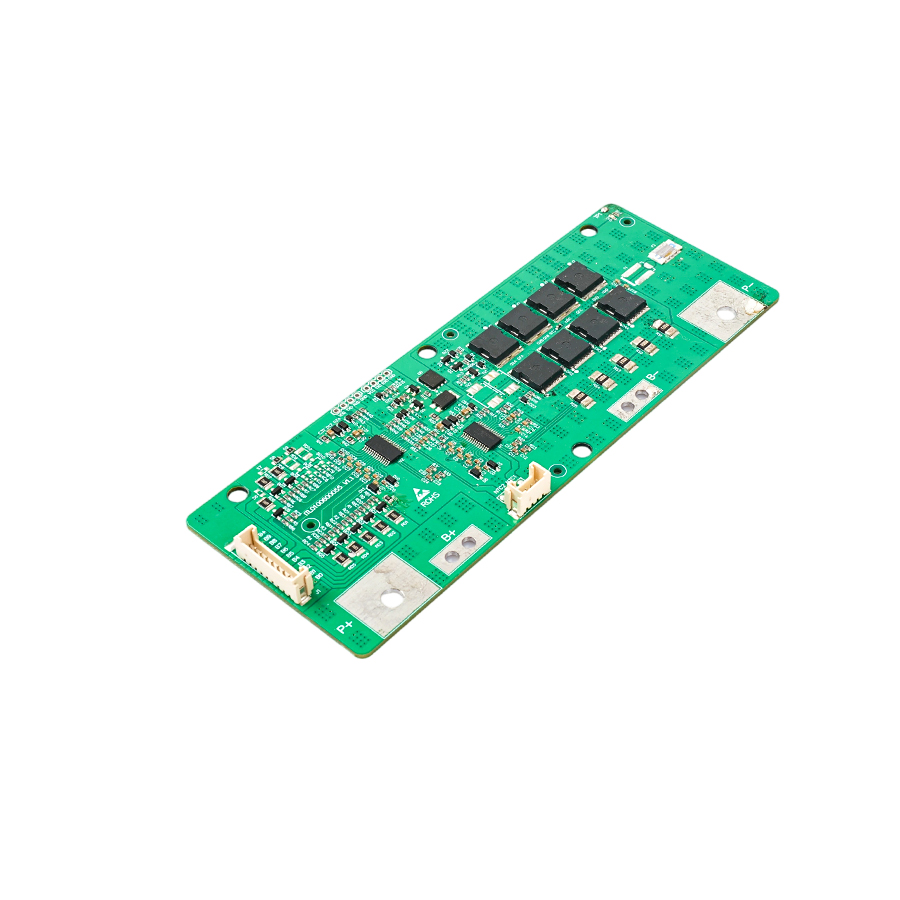

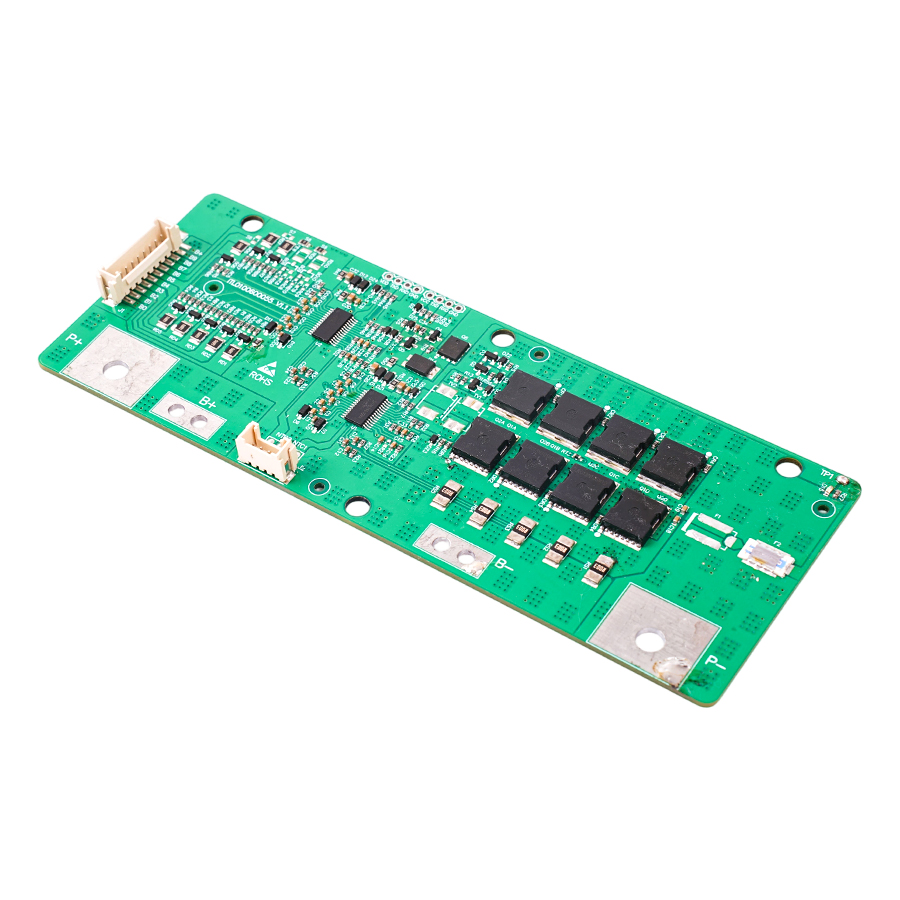

* Serial number: 8S lithium battery protection board

* Over charge detection voltage(Cell): 3.650V±0.030V

* Over Discharge Detection Voltage(Cell): 2.300V±0.030V

* Over Current Discharge: 65A-75A

* Over Current Charge: 25A-35A

* Discharging Temperature: -20℃~60℃

* Charge Temperature:  0℃~60℃

* Max.Discharge Current: 10A

* Max.charge Current: 6A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 167.4*63*11.77mm
