* Product solution Model number: BAKTH-ITL0080050065-01

* Product Solution: BQ76952PFBR+BQ34Z100+CRSM060N06L2

* Compatibleinterface: SMBUS

* Battery Type: Li-ion

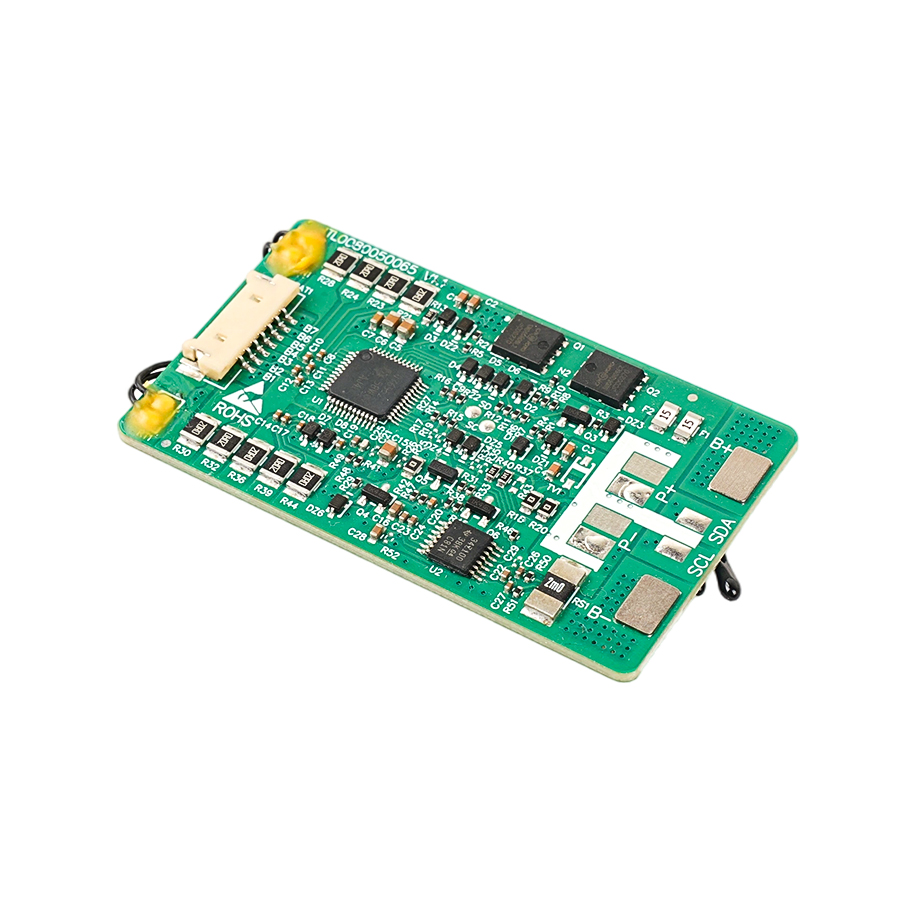

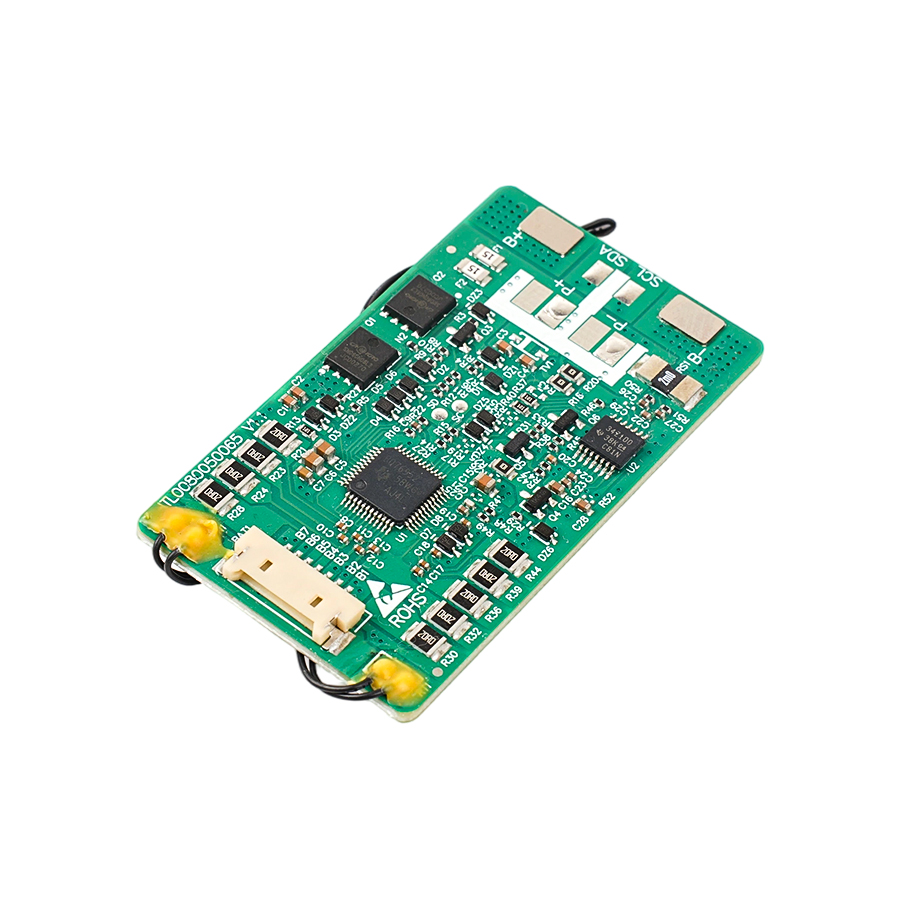

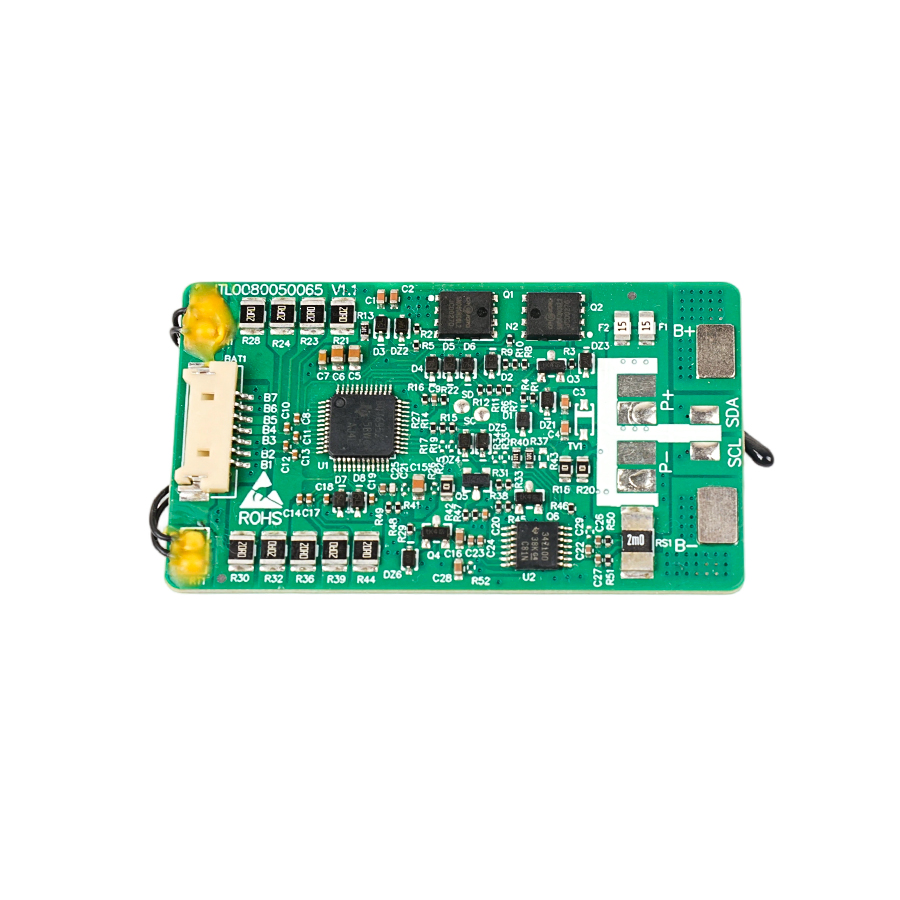

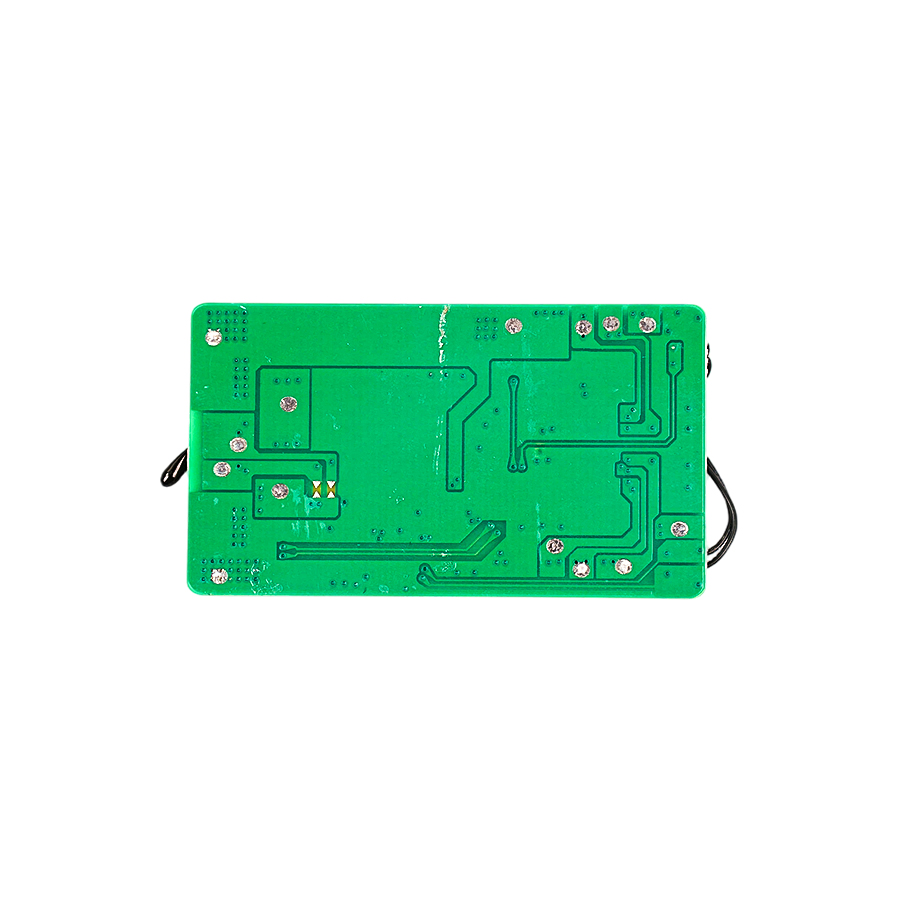

* Serial number: 8S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.050V

* Over Discharge Detection Voltage(Cell): 2.830V±0.050V

* Over Current Discharge: 18A-23A

* Over Current Charge: 3A-7A

* Discharging Temperature:  -5℃~55℃

* Charge Temperature:  -35℃~65℃

* Max.Discharge Current: 15A

* Max.charge Current: 3A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 60*34*3.10mm
