* Product solution Model number: BAKTH-ITL0070200050-01

* Product Solution: BQ7693000+BQ78350++LR013N10SM10

* Compatibleinterface: SMBUS

* Battery Type: Li-ion

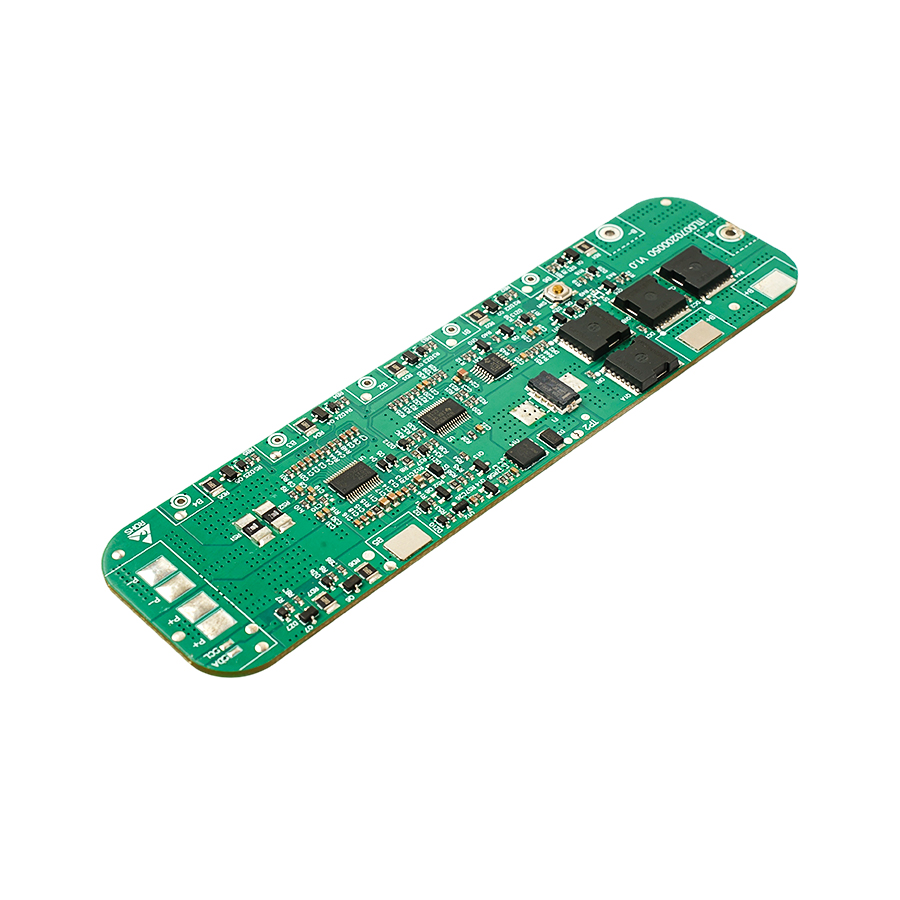

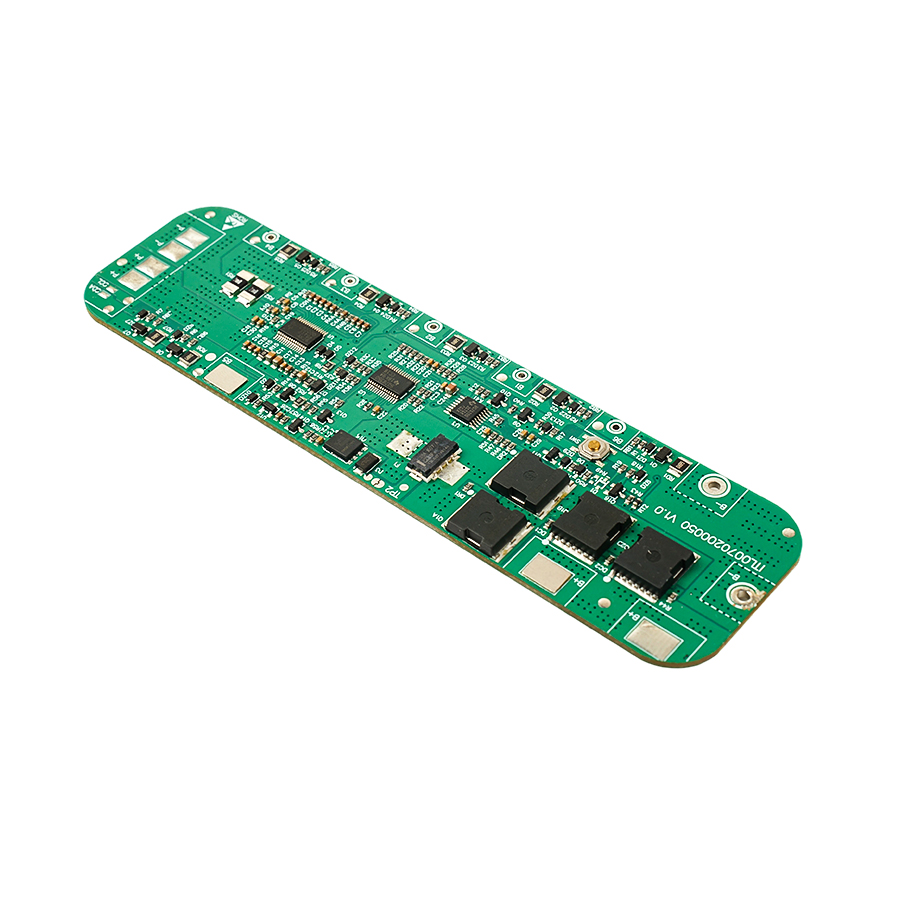

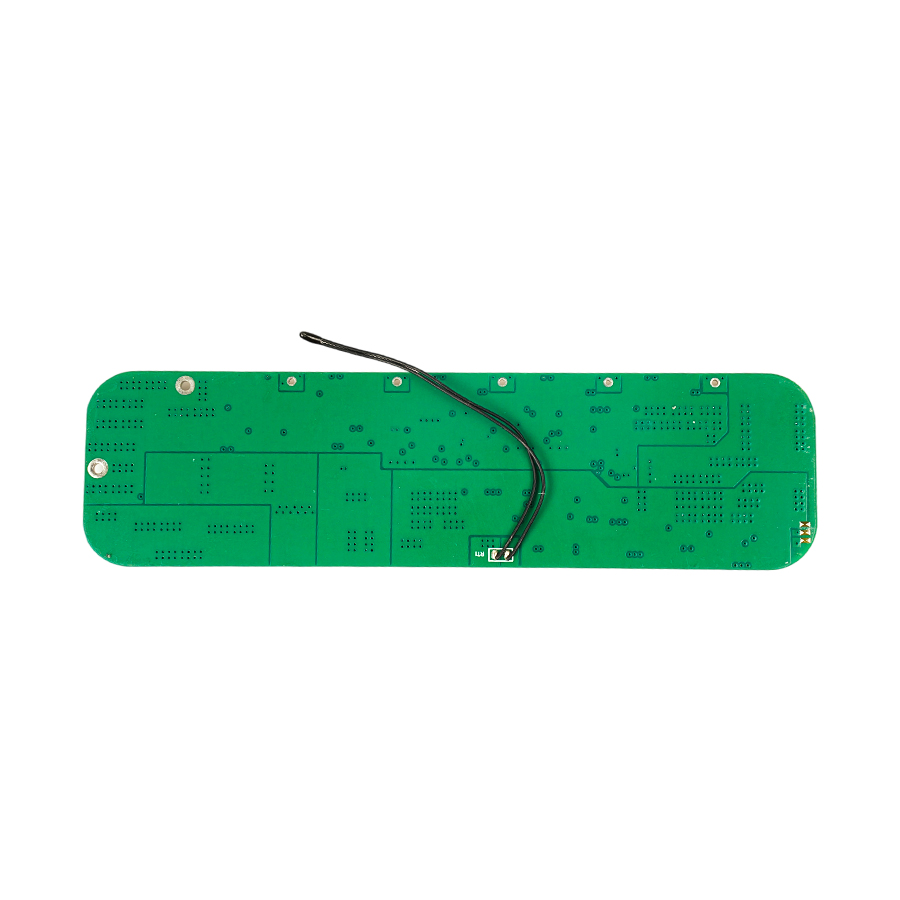

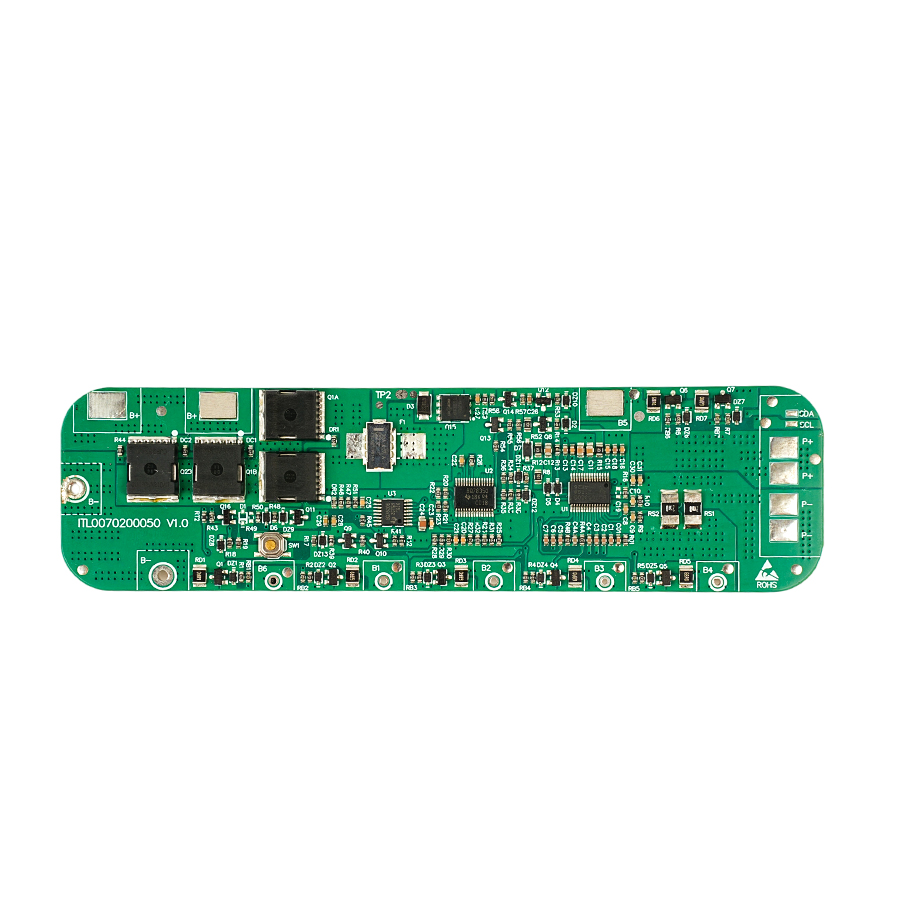

* Serial number: 7S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.025V

* Over Discharge Detection Voltage(Cell): 2.500V±0.025V

* Over Current Discharge: 28.0A±2A

* Over Current Charge: 15.0A±2A

* Discharging Temperature:  -10℃~65℃

* Charge Temperature:  0℃~55℃

* Max.Discharge Current: 20A

* Max.charge Current: 10A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 148*40*4.05mm
