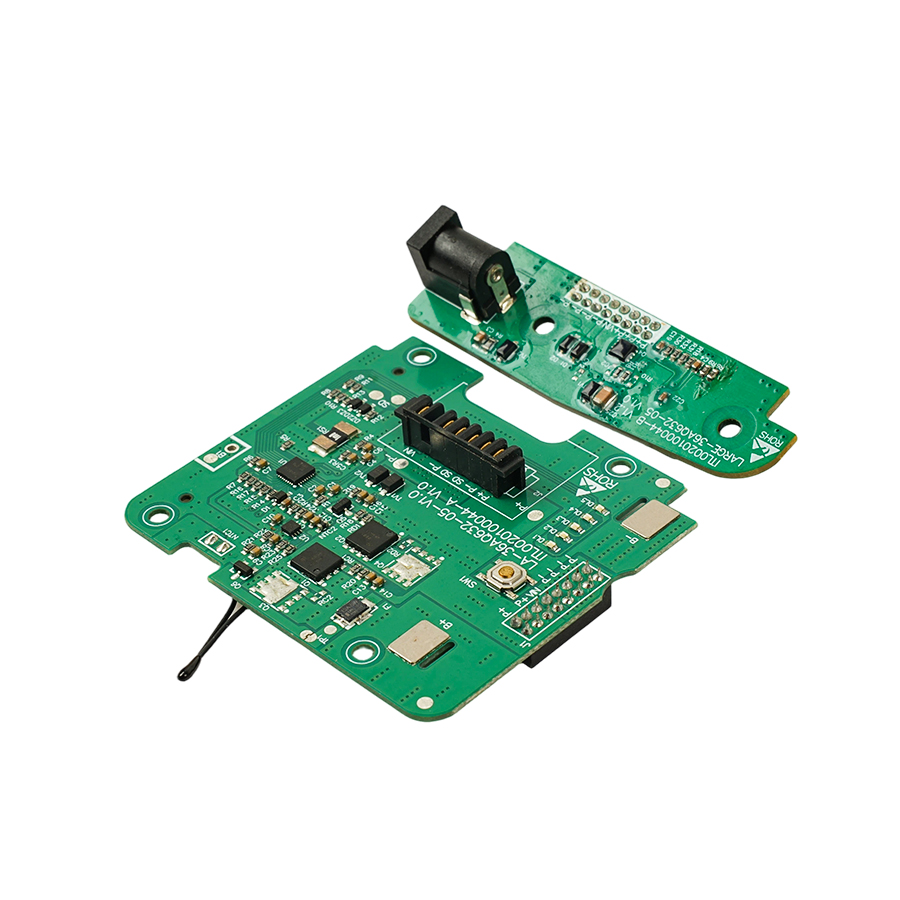

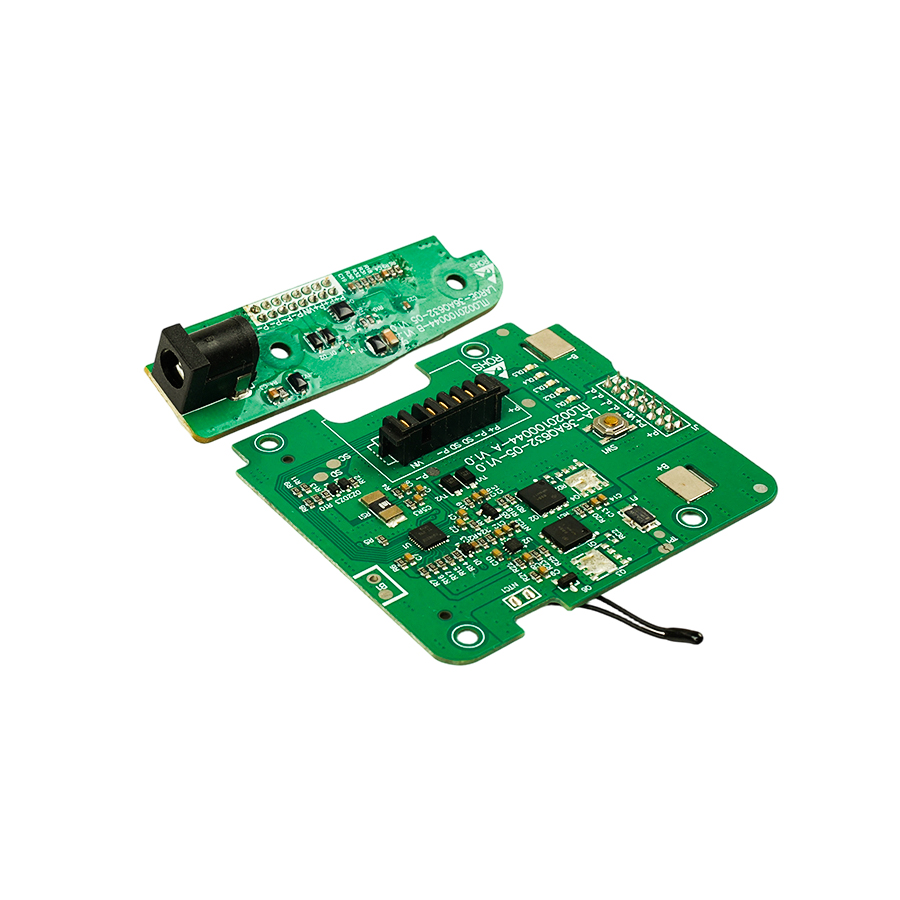

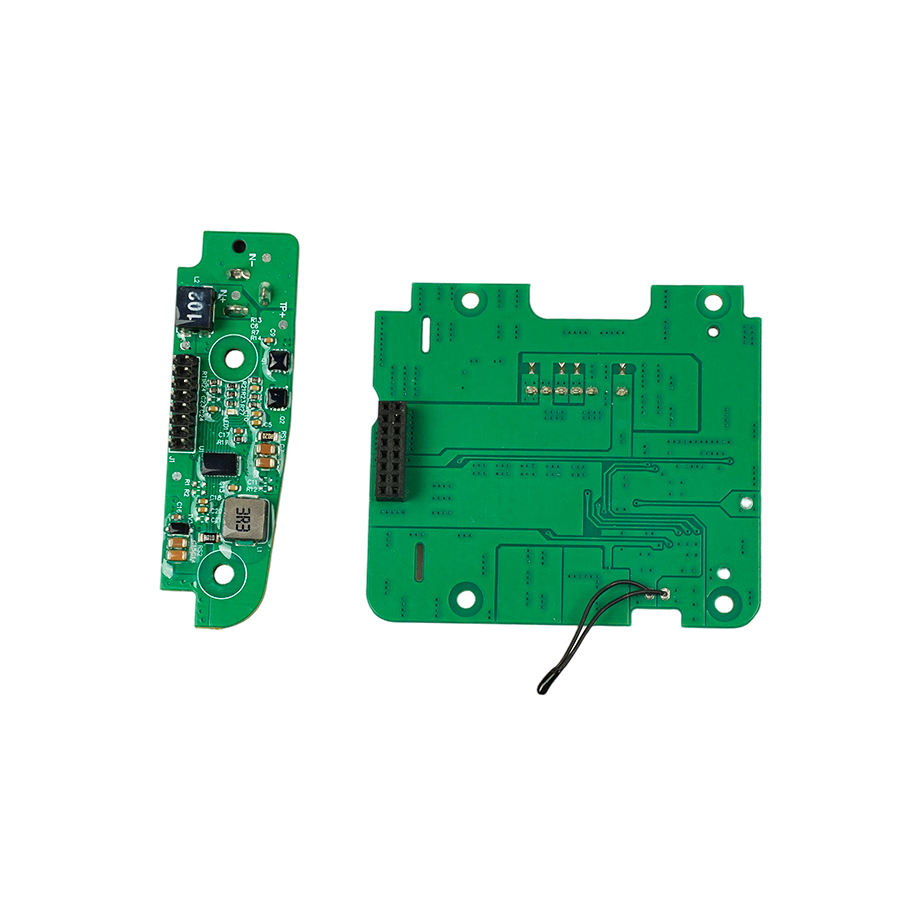

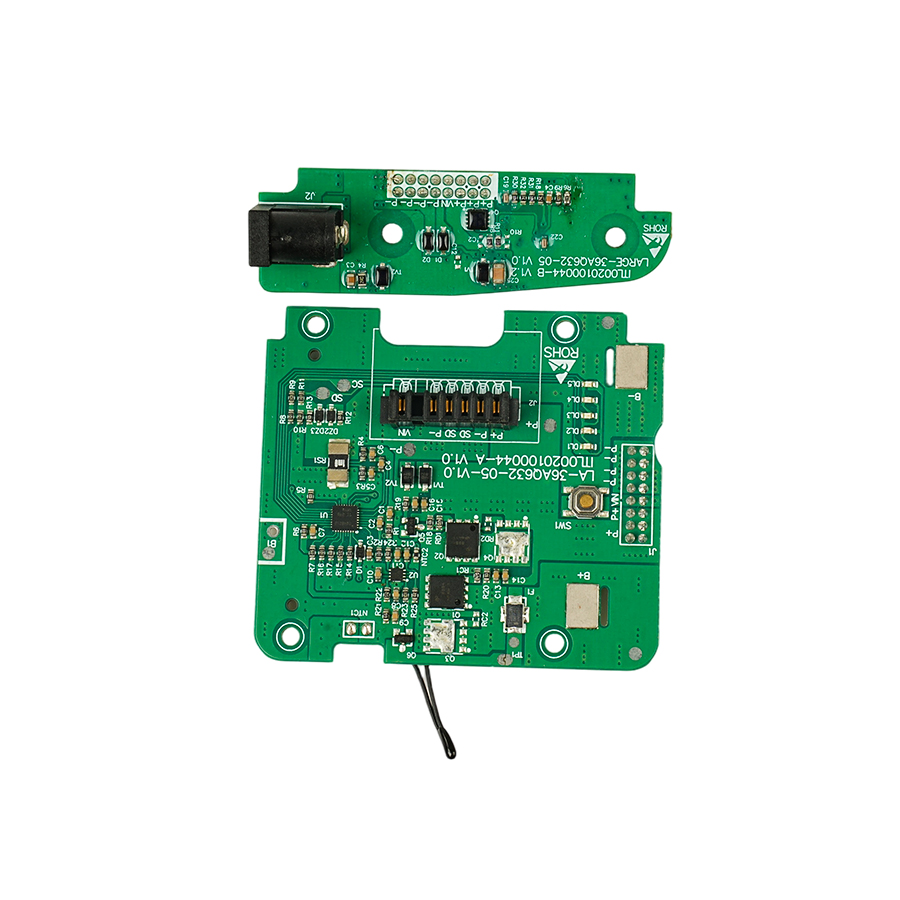

* Product solution Model number: BAKTH-ITL0020100044-01

* Product Solution: BQ40Z50+BQ294705+AON6354

* Compatibleinterface: SMBUS

* Battery Type: Li-ion

* Serial number: 2S lithium battery protection board

* Over charge detection voltage(Cell):  4.230V±0.025V

* Over Discharge Detection Voltage(Cell): 2.800V±0.025V

* Over Current Discharge: 6.0A±0.2A

* Over Current Charge: 5.0A±0.2A

* Discharging Temperature:  -25℃~65℃

* Charge Temperature:  0℃~50℃

* Max.Discharge Current: 4A

* Max.charge Current: 4A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 64.6*57.5*8.62mm
