* Product solution Model number: BAKTH-ITL0020050174-01

* Product Solution: BQ40Z50+2N7002K+CJAB35N03S

* Compatibleinterface: SMBUS

* Battery Type: Li-ion

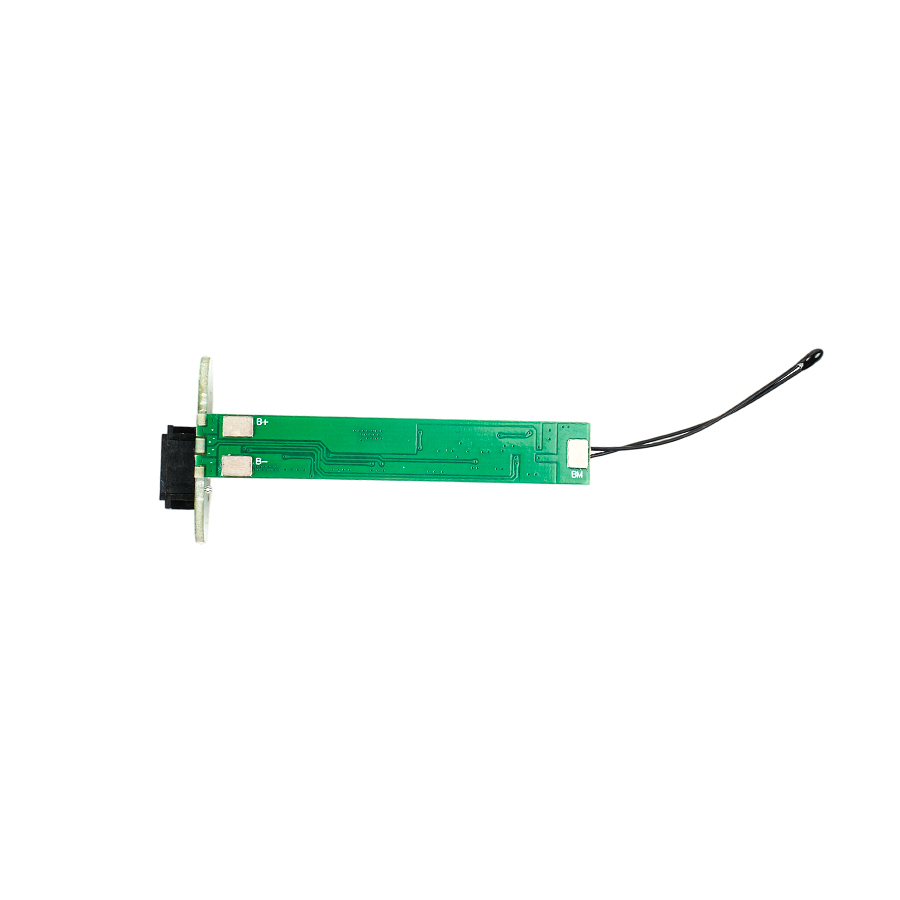

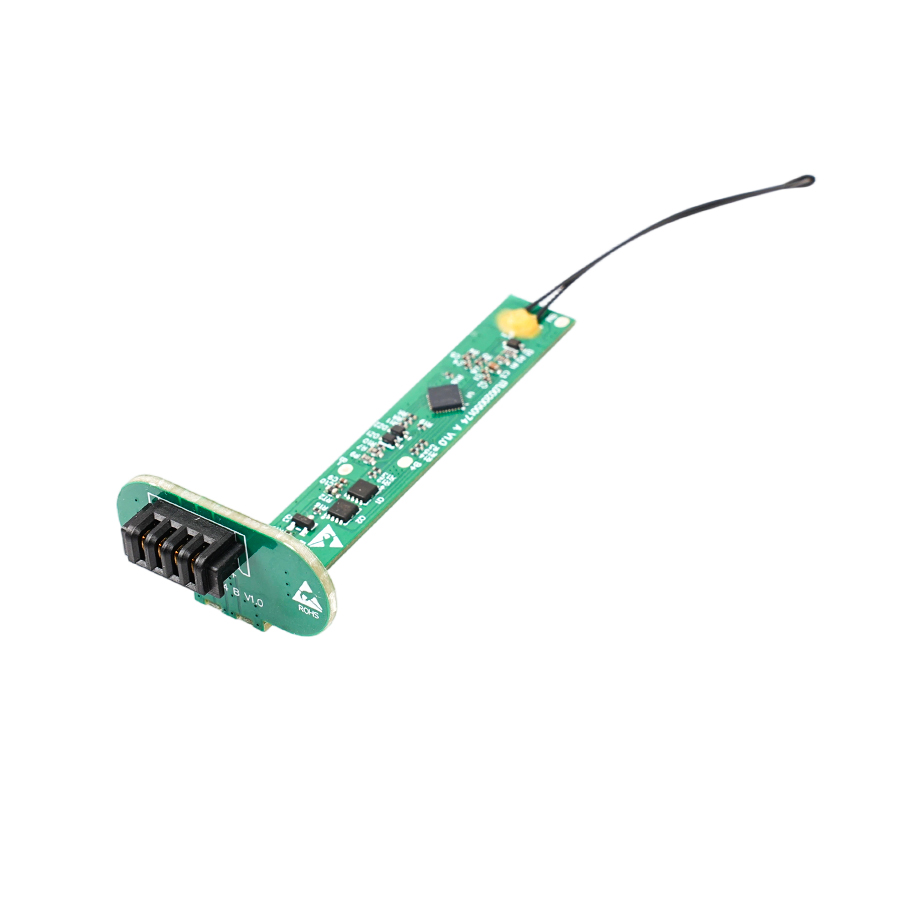

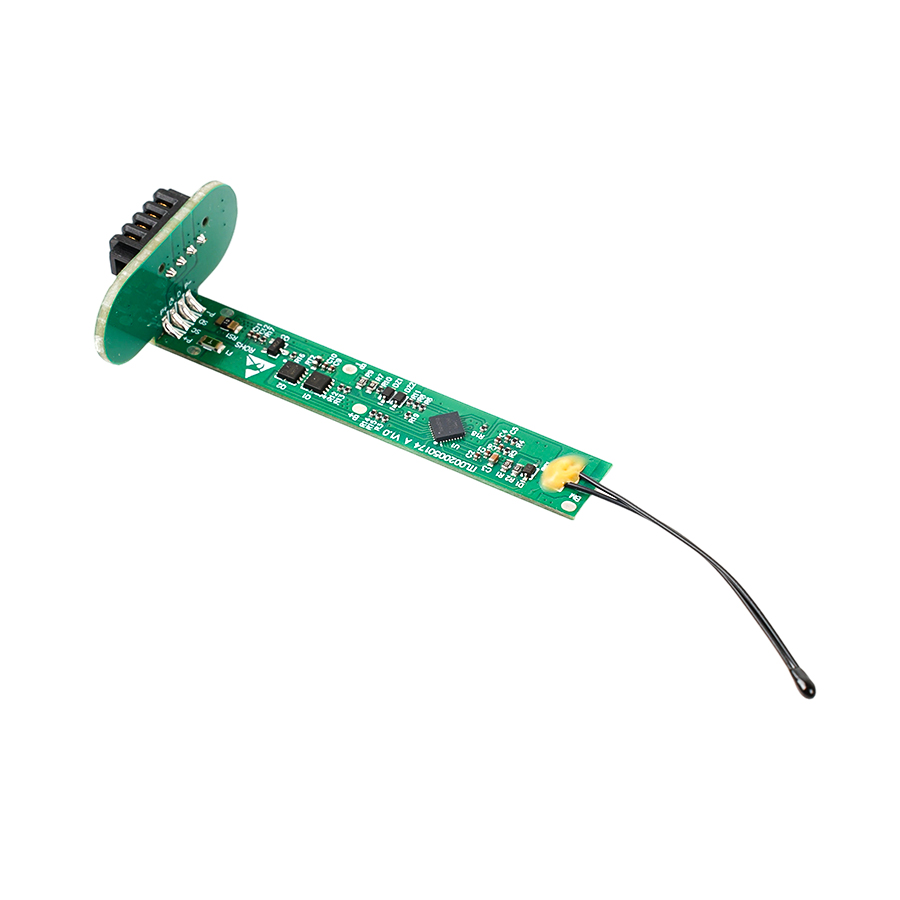

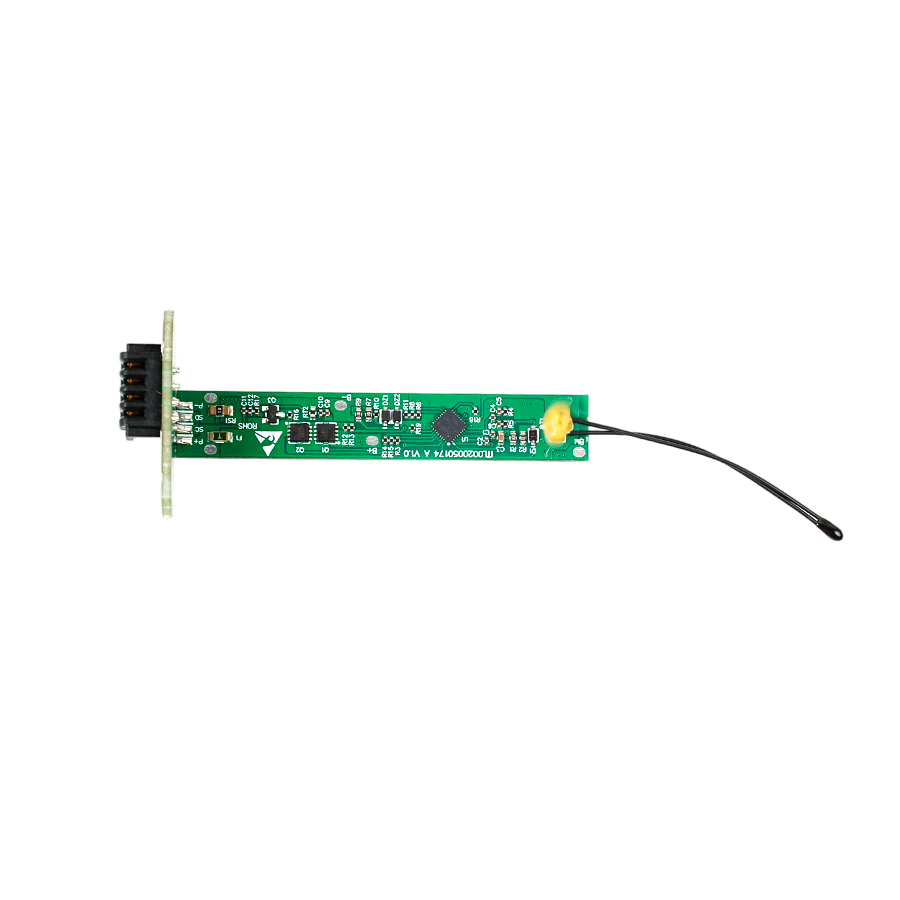

* Serial number: 2S lithium battery protection board

* Over charge detection voltage(Cell):  4.230V±0.025V

* Over Discharge Detection Voltage(Cell): 2.800V±0.025V

* Over Current Discharge: 4.0A±0.2A

* Over Current Charge: 2.0A±0.2A

* Discharging Temperature:  -20℃~60℃

* Charge Temperature:  0℃~45℃

* Max.Discharge Current: 3A

* Max.charge Current: 1.5A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 67.5*10.9*0.8mm
