* Product solution Model number: BAKTH-ITL0010060170-01

* Product Solution: R5478N185CJ +DS2781E+CJS8810

* Compatibleinterface: LiFe-PO4

* Battery Type: Li-ion

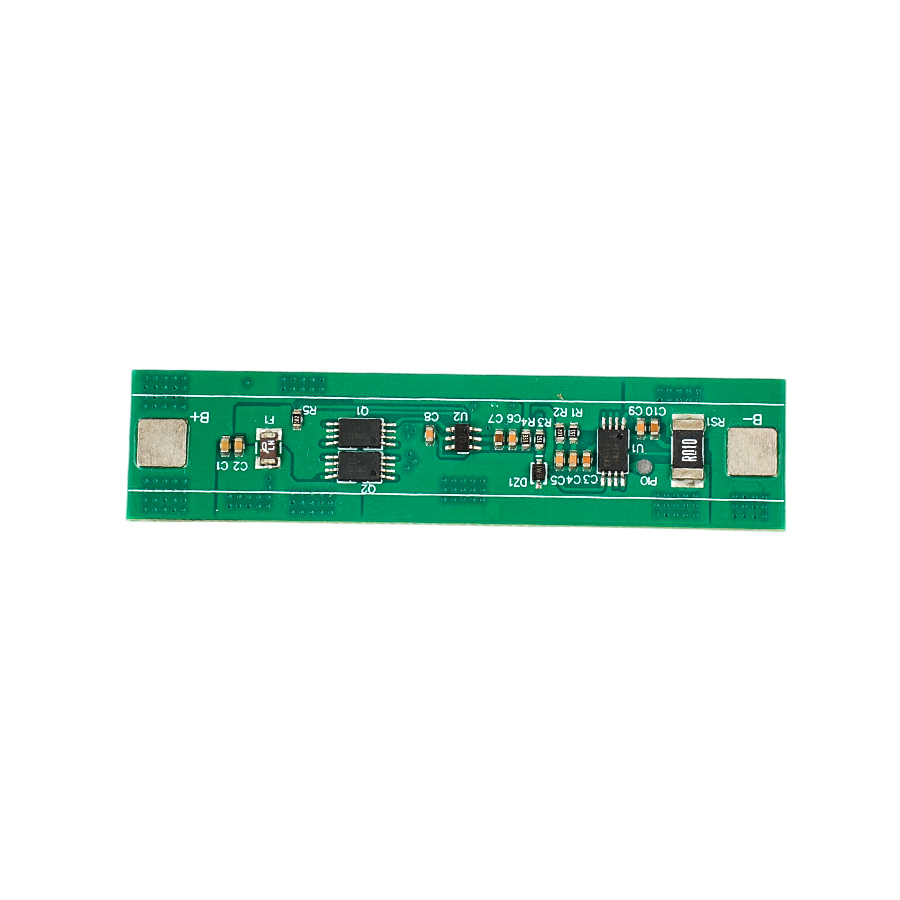

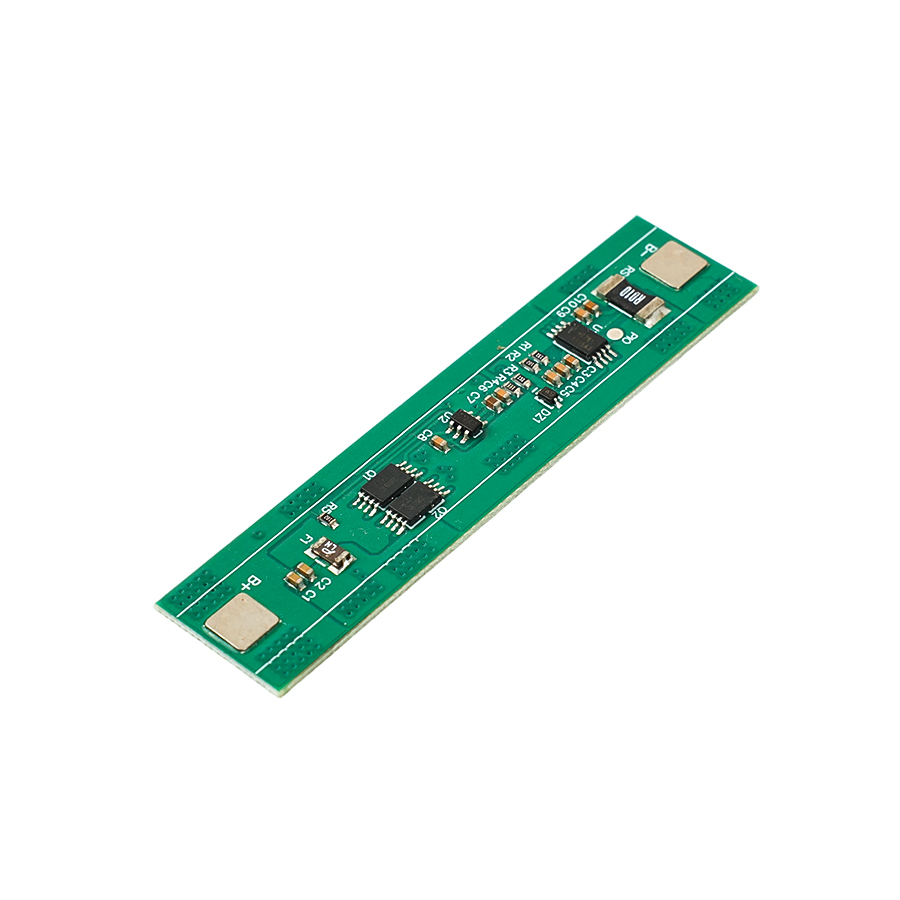

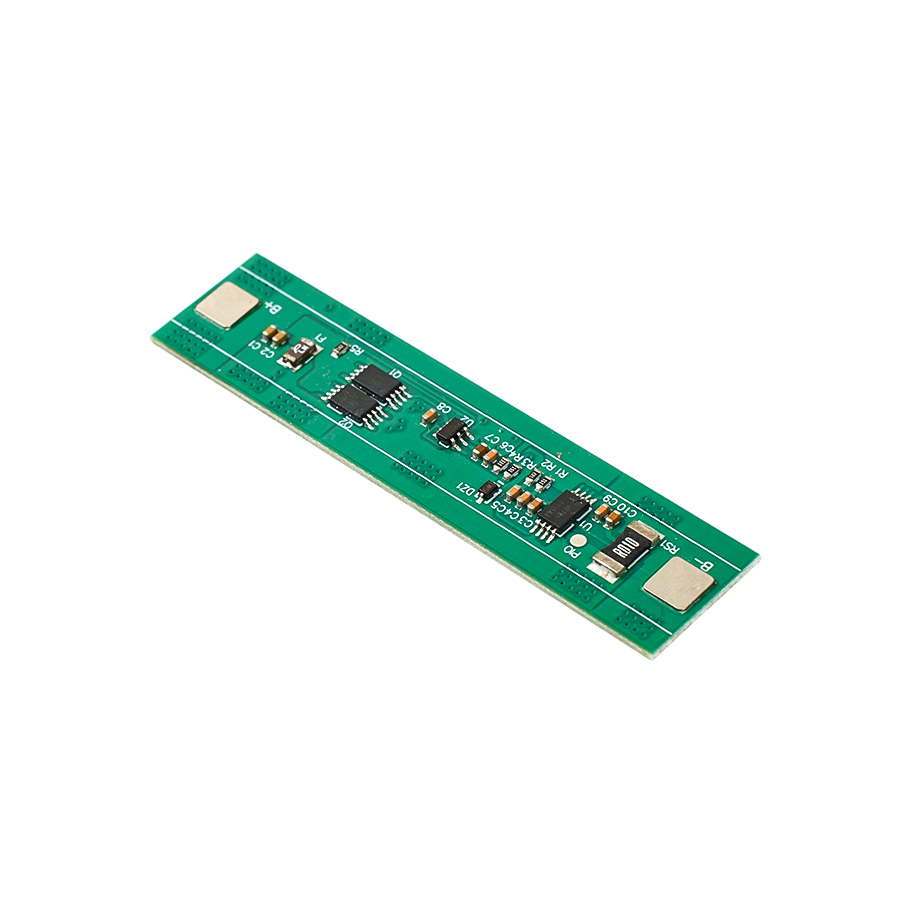

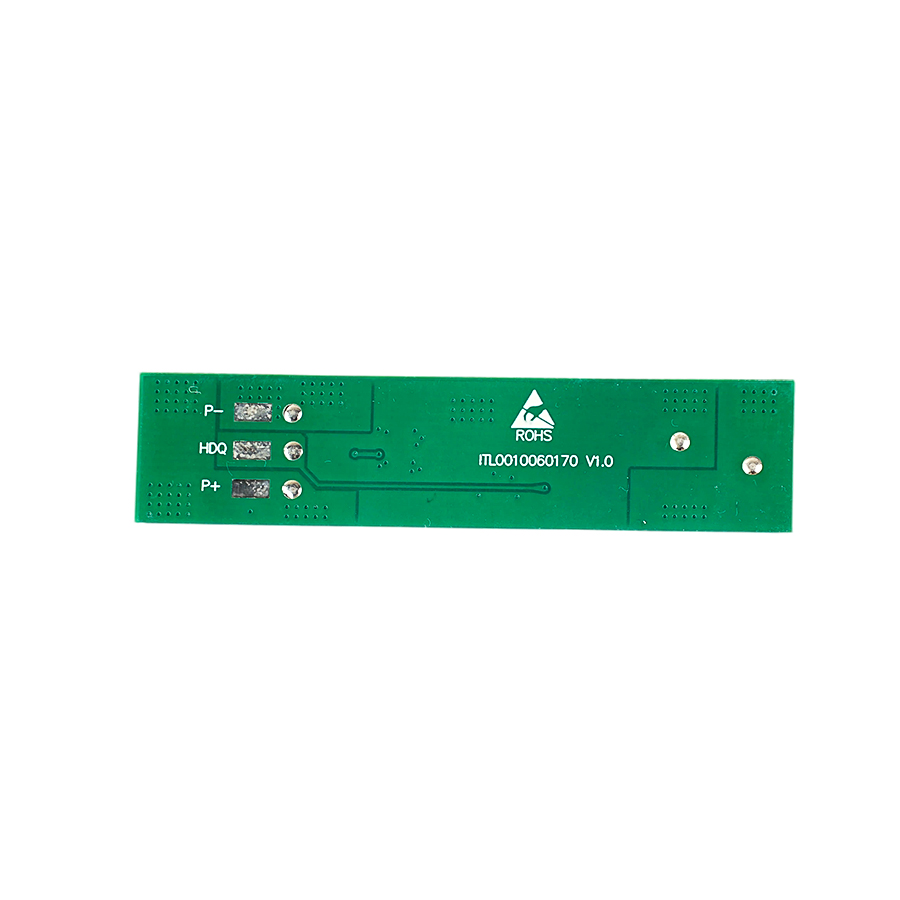

* Serial number: 1S lithium battery protection board

* Over charge detection voltage(Cell):  3.650V±0.030V

* Over Discharge Detection Voltage(Cell): 2.500V±0.050V

* Over Current Discharge: 10A±3A

* Over Current Charge: /

* Discharging Temperature:  /

* Charge Temperature:  /

* Max.Discharge Current: 4A

* Max.charge Current: 3A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 68.12*16.12*1.0mm
