* Product solution Model number: BAKTH-ITL0010050177-01

* Product Solution: R5492N101KL+PAN1816DA

* Compatibleinterface: I2C

* Battery Type: Li-ion

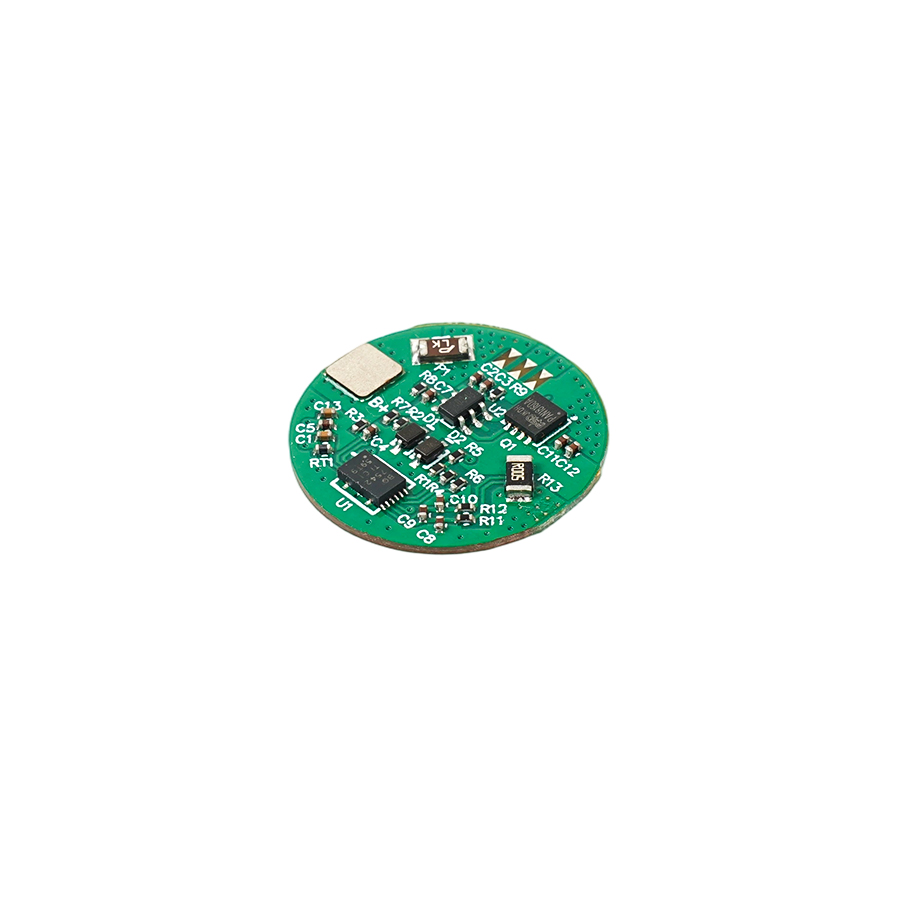

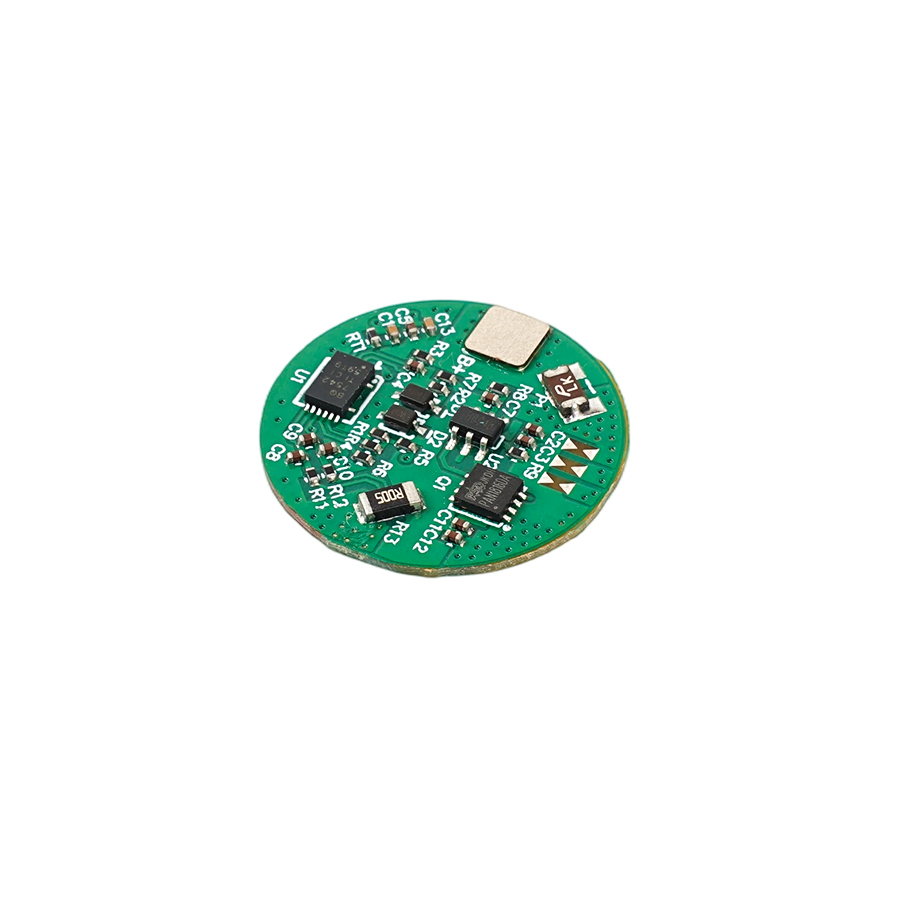

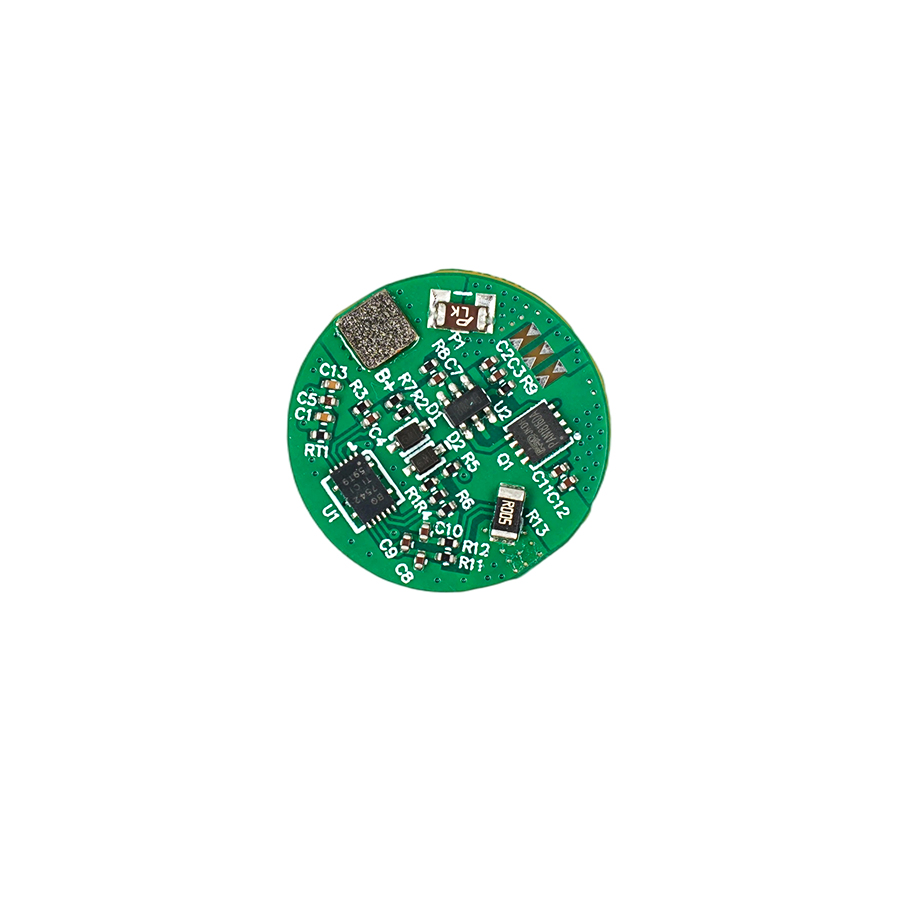

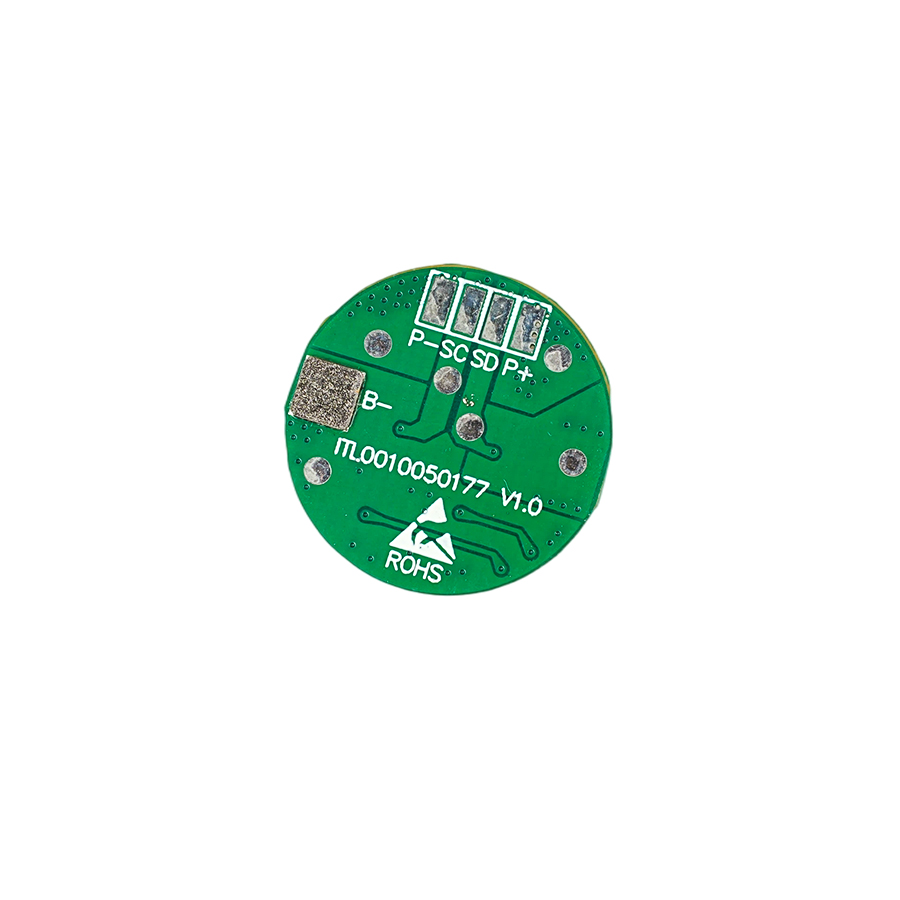

* Serial number: 1S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.030V

* Over Discharge Detection Voltage(Cell): 2.500V±0.062V

* Over Current Discharge: 15A-25A

* Over Current Charge: 7A-13A

* Discharging Temperature:  /

* Charge Temperature:  /

* Max.Discharge Current: 3A

* Max.charge Current: 3A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): Φ21.5*0.8mm
