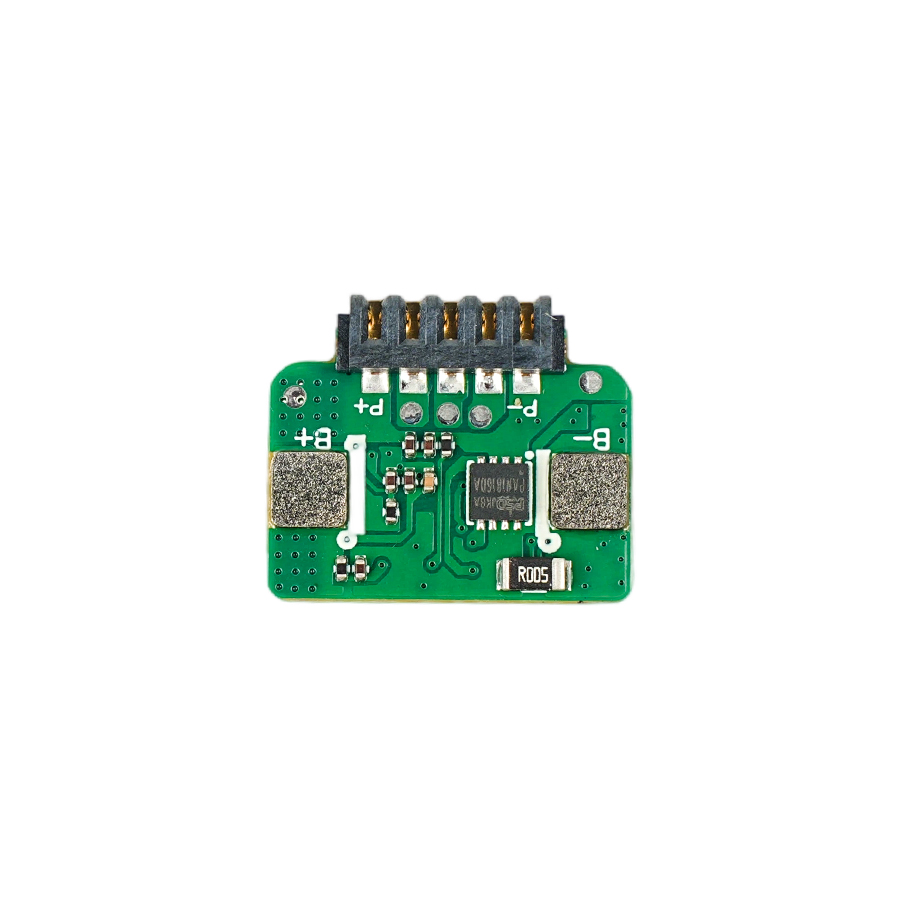

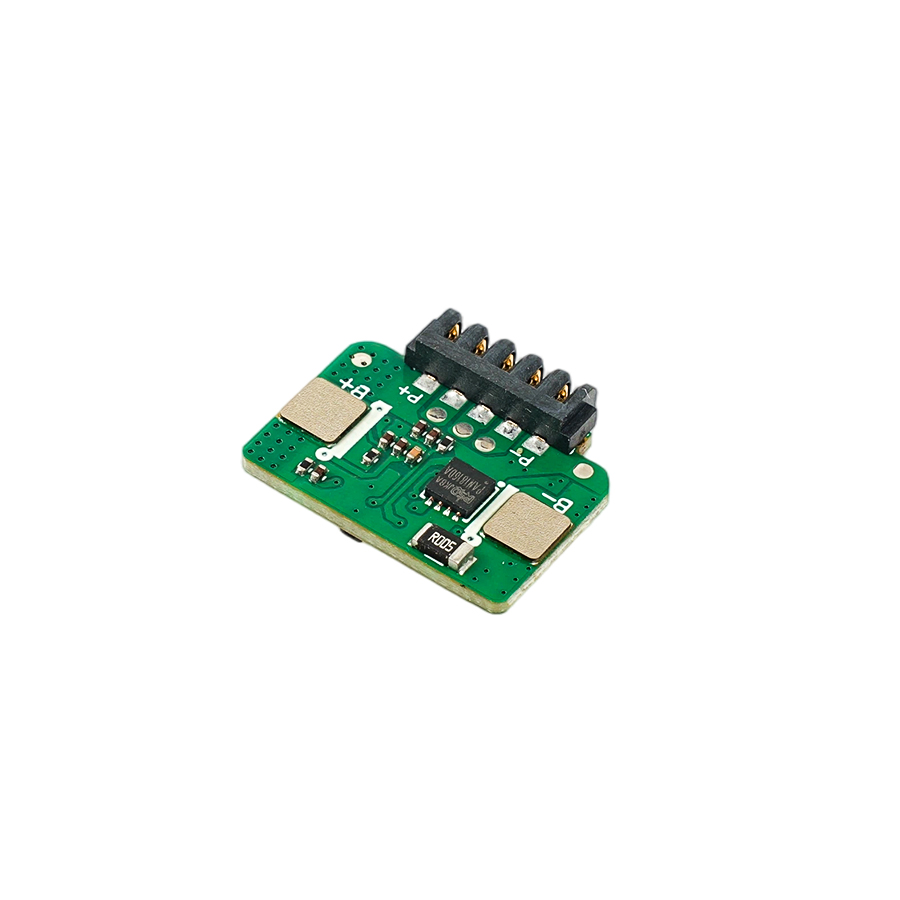

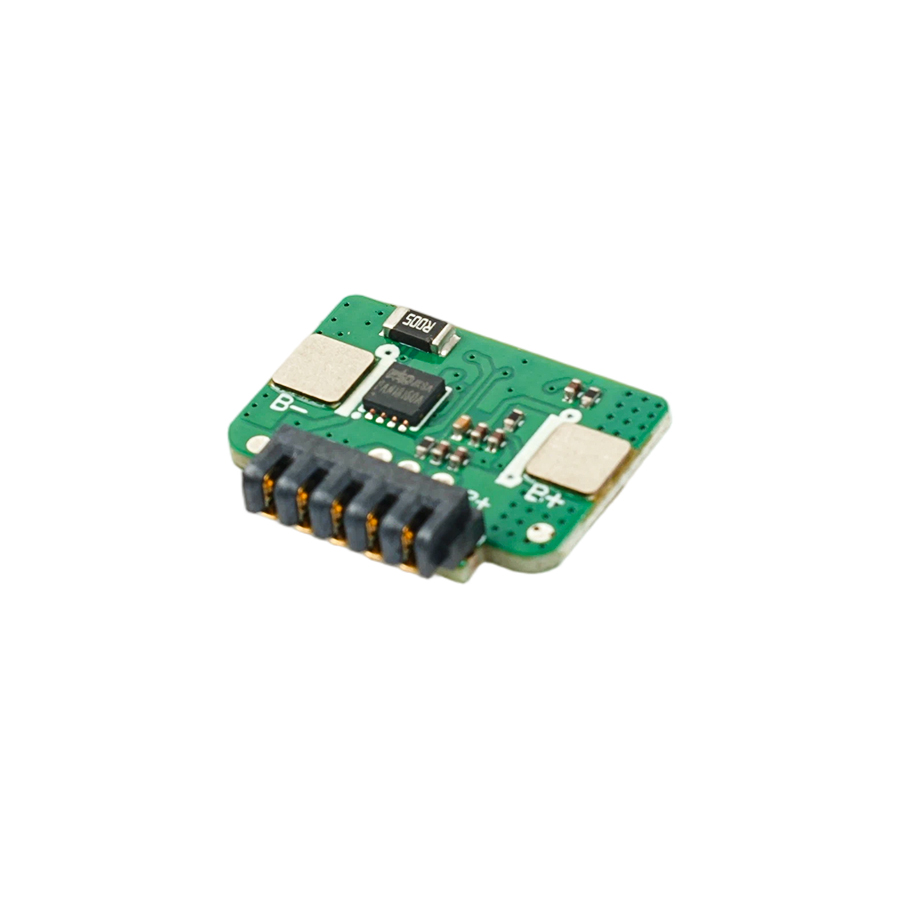

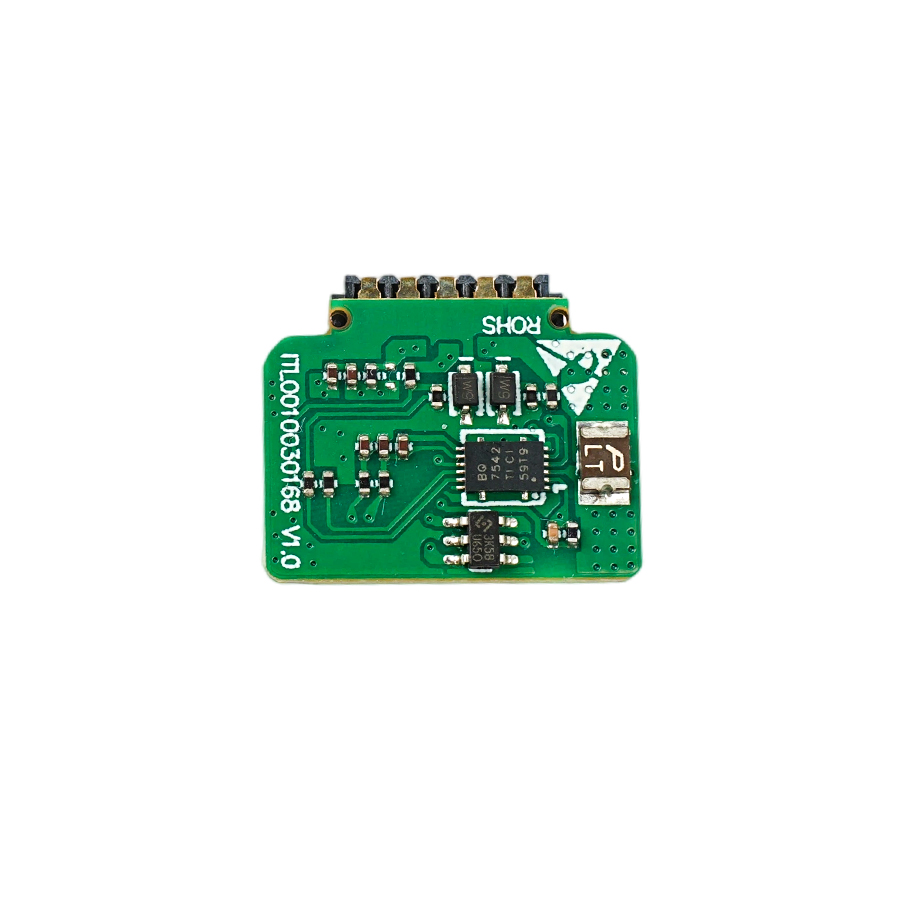

* Product solution Model number: BAKTH-ITL0010030168-01

* Product Solution: R5492N101KL+BQ27542DRZR-G1+PAN1816DA

* Compatibleinterface: I2C

* Battery Type: Li-ion

* Serial number: 1S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.030V

* Over Discharge Detection Voltage(Cell): 2.500V±0.062V

* Over Current Discharge: 15A±4A

* Over Current Charge: 10A±4A

* Discharging Temperature: /

* Charge Temperature:  /

* Max.Discharge Current: 6A

* Max.charge Current: 6A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 19.4*14.52*1.2mm
