* Product solution Model number: BAKTH-1S6P-BQ-01

* Product Solution: BQ4050+MX2814

* Compatibleinterface: SMBUS

* Battery Type: Li-ion

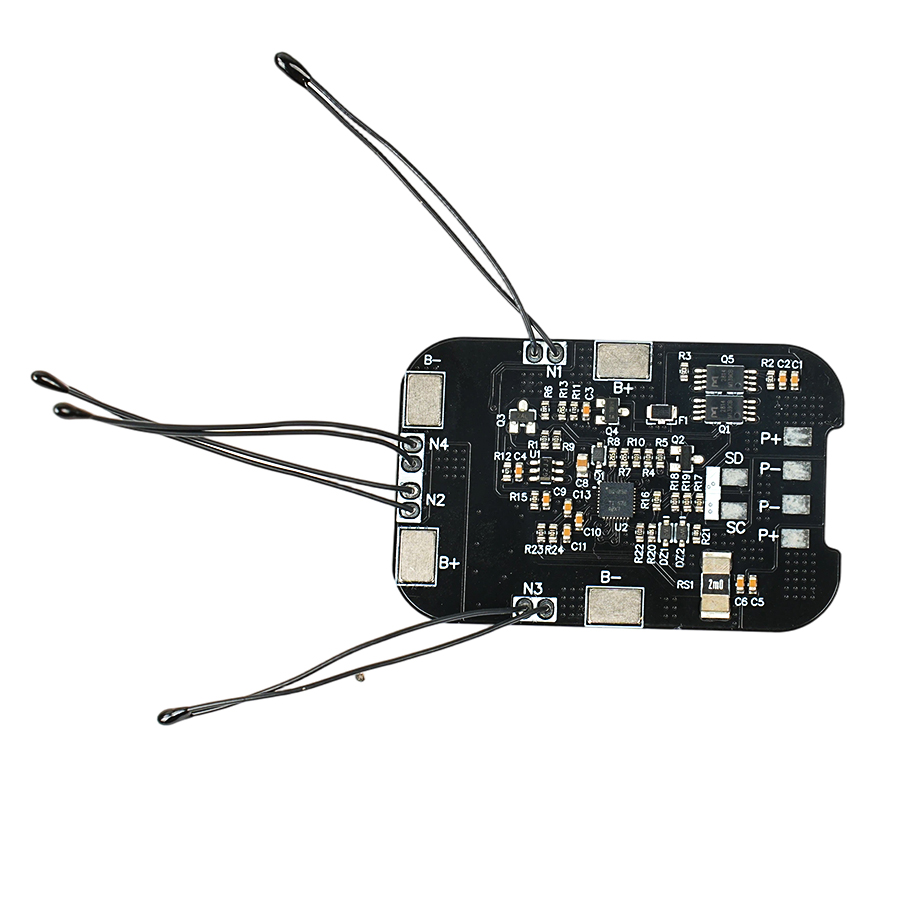

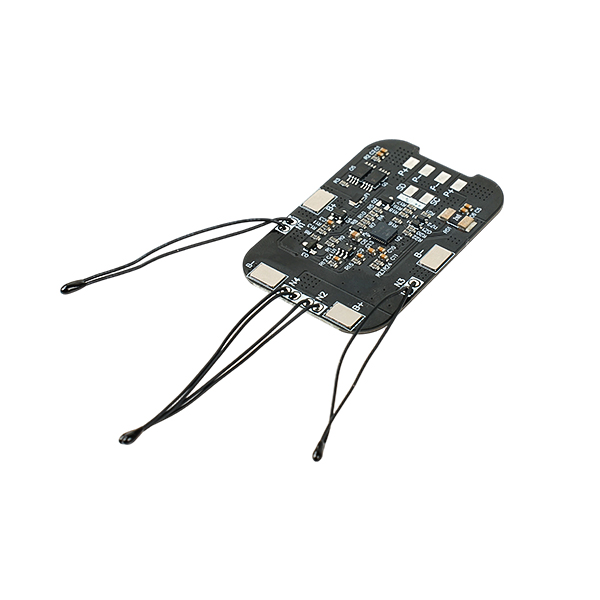

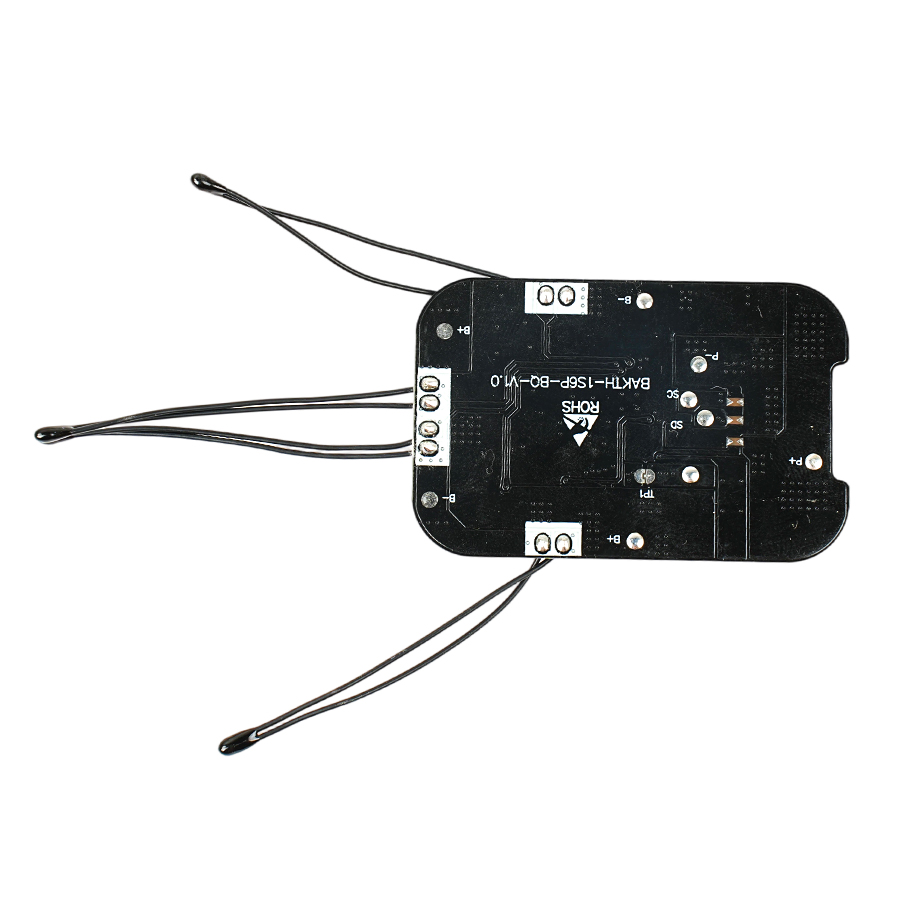

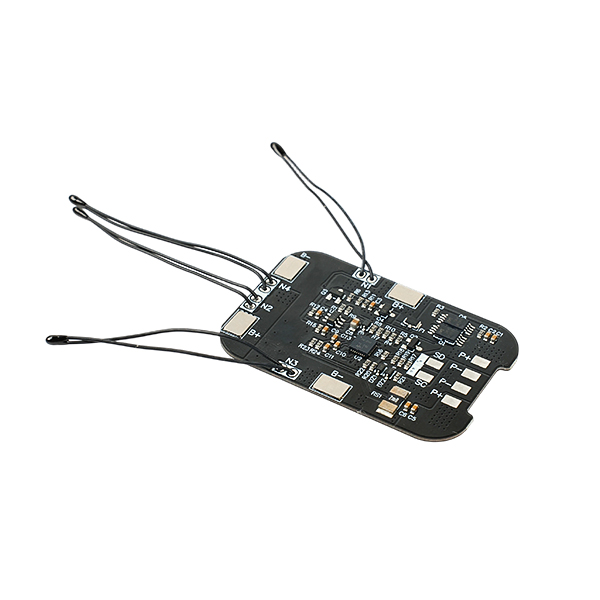

* Serial number: 3S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.025V

* Over Discharge Detection Voltage(Cell): 2.750V±0.025V

* Over Current Discharge: 5.0A±0.5A

* Over Current Charge: 4.5A±0.2A

* Discharging Temperature:  -20℃~75℃

* Charge Temperature:  -3℃~65℃

* Max.Discharge Current: 4A

* Max.charge Current: 4A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 52.5*34*2.45mm
