* Product solution Model number: BAKTH-ITL0050150094-01

* Product Solution: BQ40Z80

* Compatibleinterface: SMBUS

* Battery Type: Li-ion

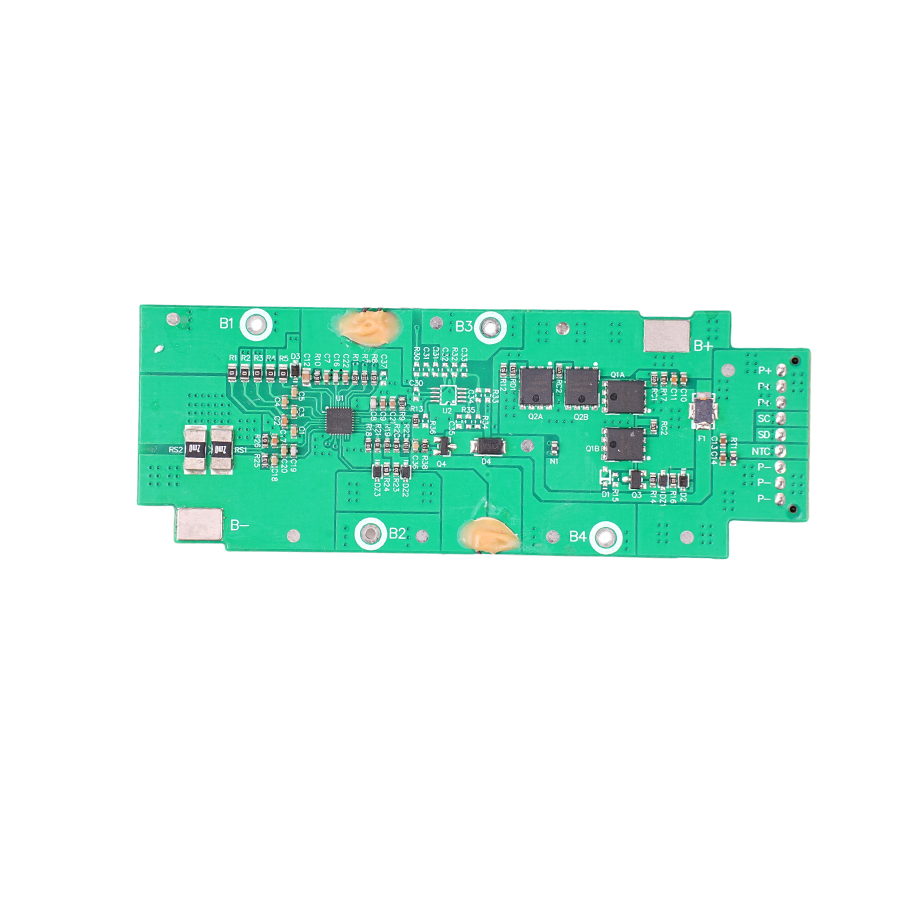

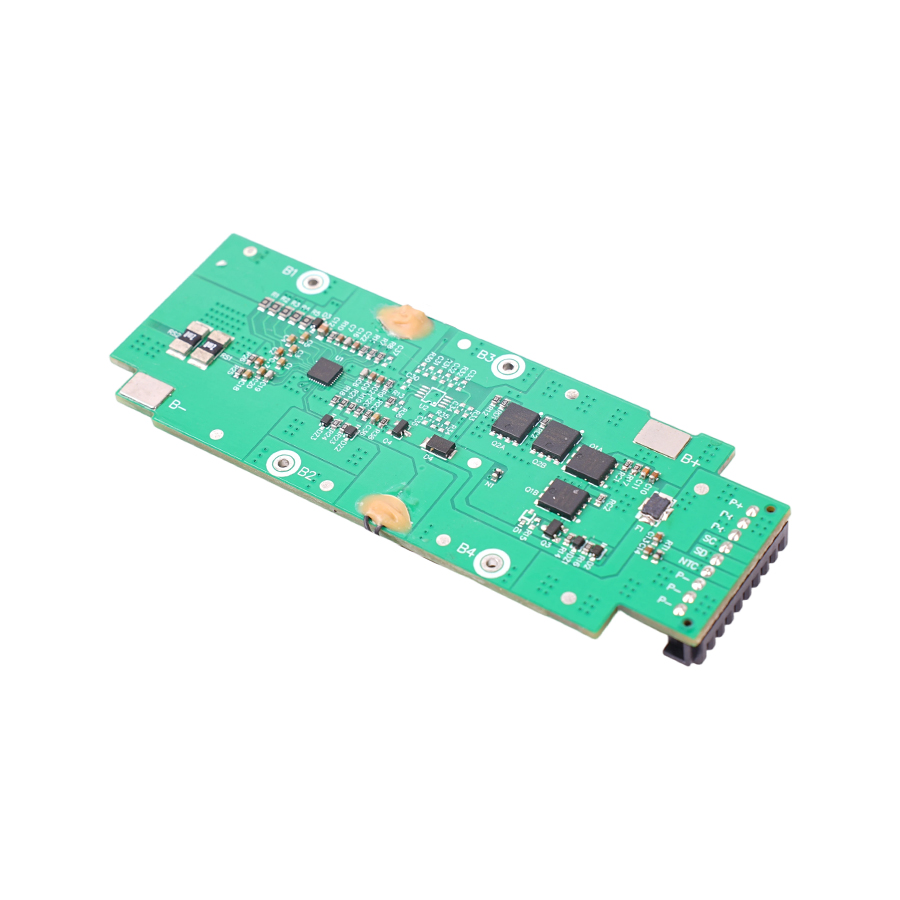

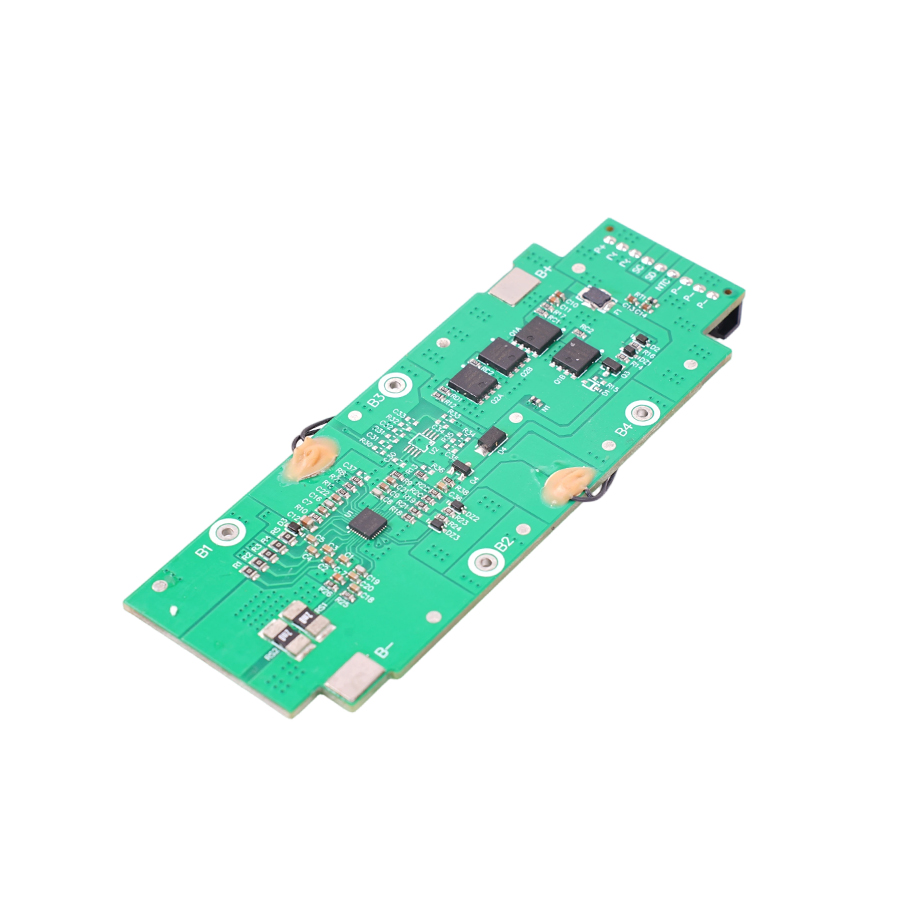

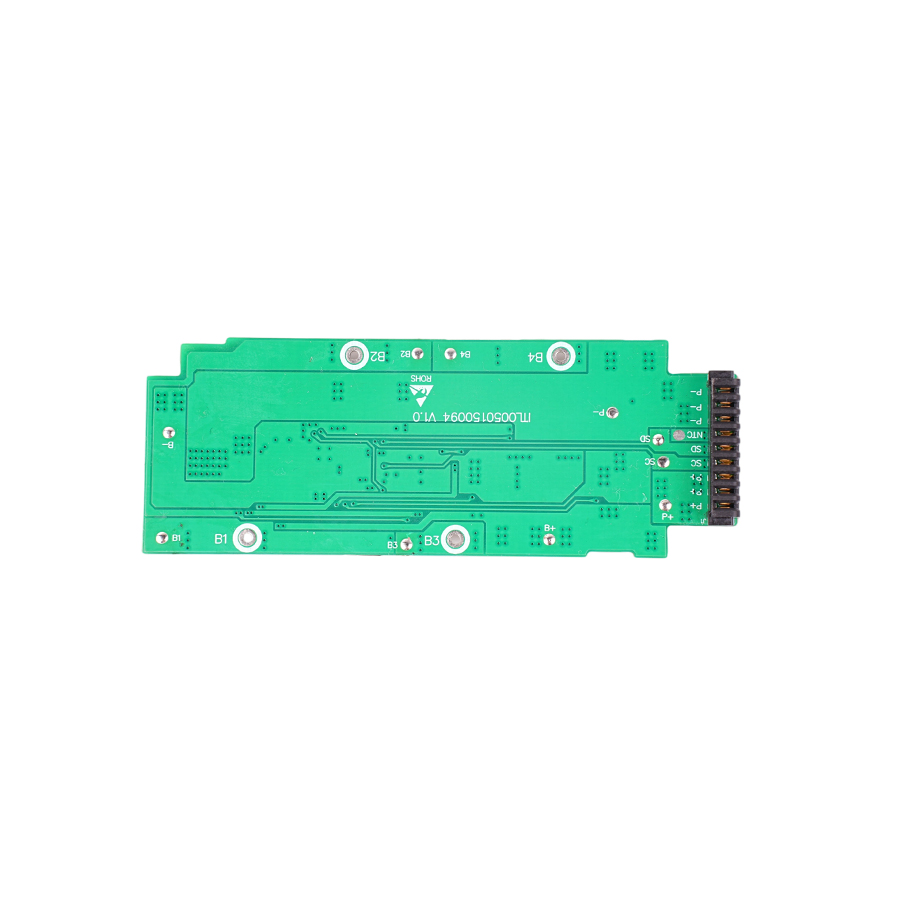

* Serial number: 5S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.025V

* Over Discharge Detection Voltage(Cell): 2.750V±0.025V

* Over Current Discharge: 8.0A±0.2A

* Over Current Charge: 28.0A±0.5A

* Discharging Temperature:  -25℃~75℃

* Charge Temperature:  0℃~65℃

* Max.Discharge Current: 15A

* Max.charge Current: 5A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 105*38.8*8.53mm
