* Product solution Model number: BAKTH-ITL0060100072-01

* Product Solution: BQ40Z80RSMR

* Compatibleinterface: SMBUS

* Battery Type: Li-ion

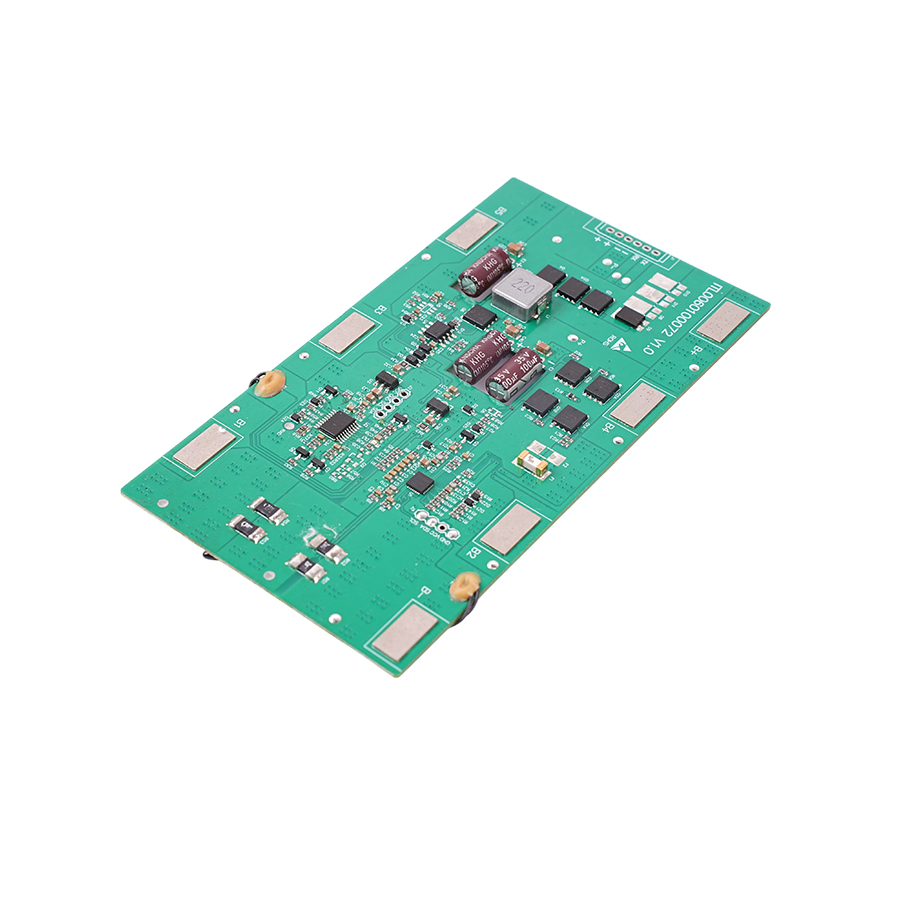

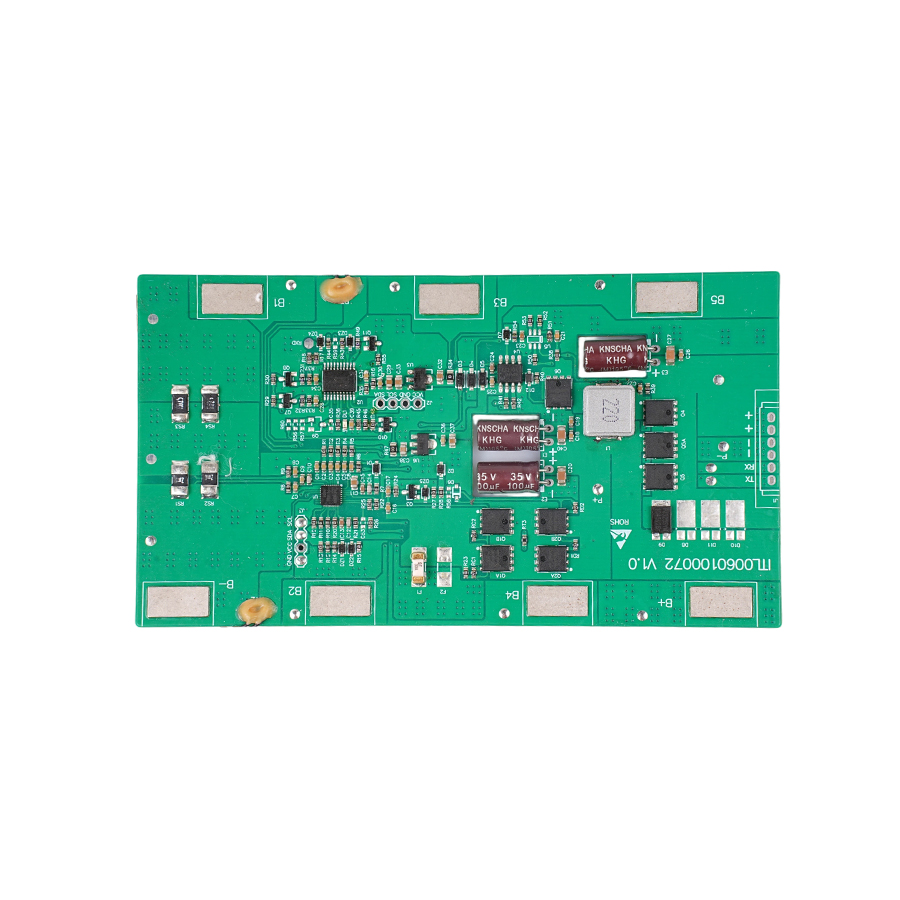

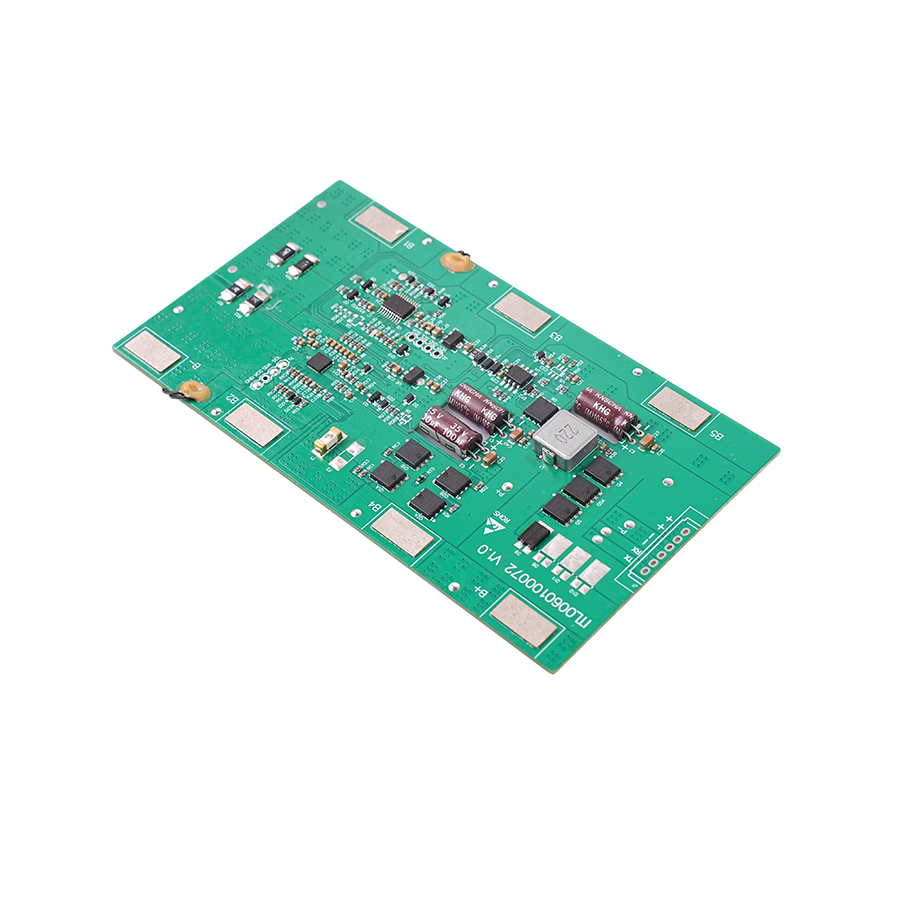

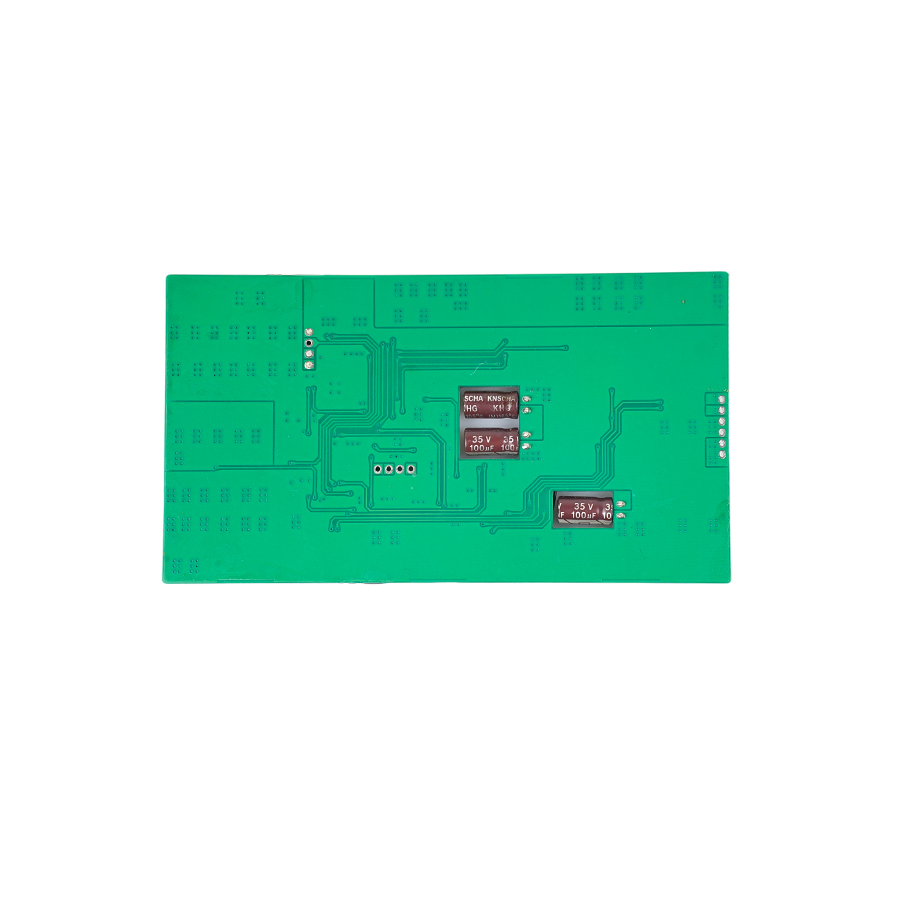

* Serial number: 3S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.025V

* Over Discharge Detection Voltage(Cell): 2.700V±0.025V

* Over Current Discharge: 12.0A±1.0A

* Over Current Charge: 3.0A±0.5A

* Discharging Temperature:  -22℃~60℃

* Charge Temperature:  0℃~45℃

* Max.Discharge Current: 5A

* Max.charge Current: 2A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 128.85*71*1.2mm
