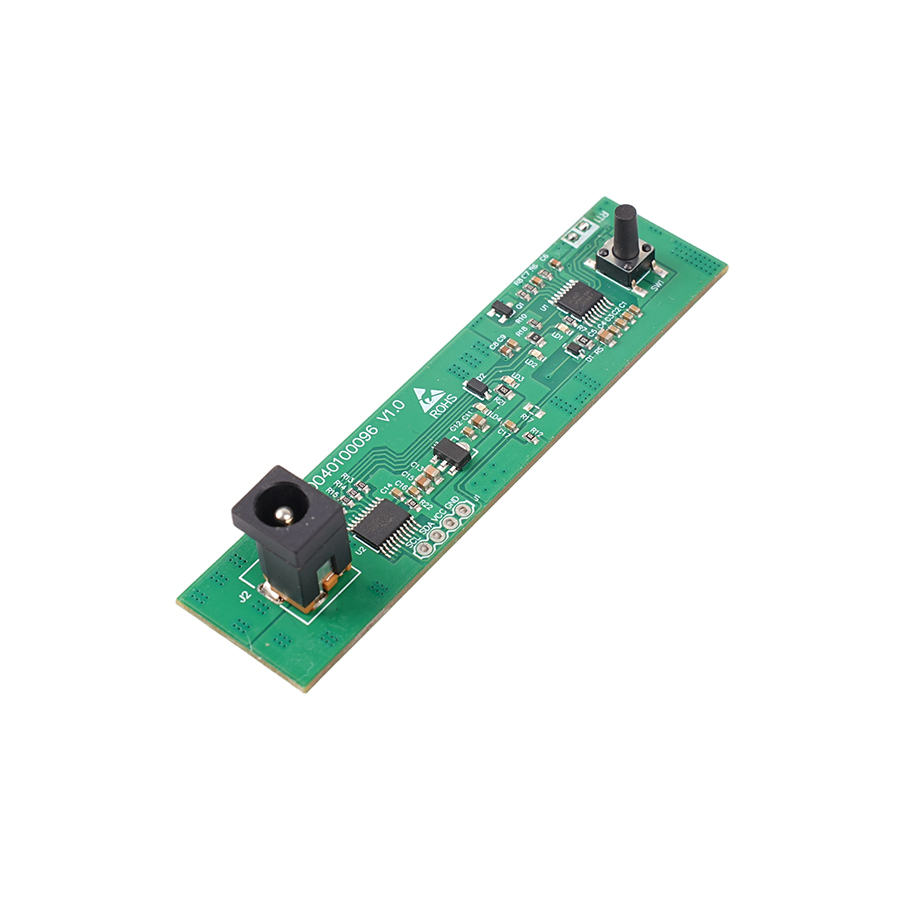

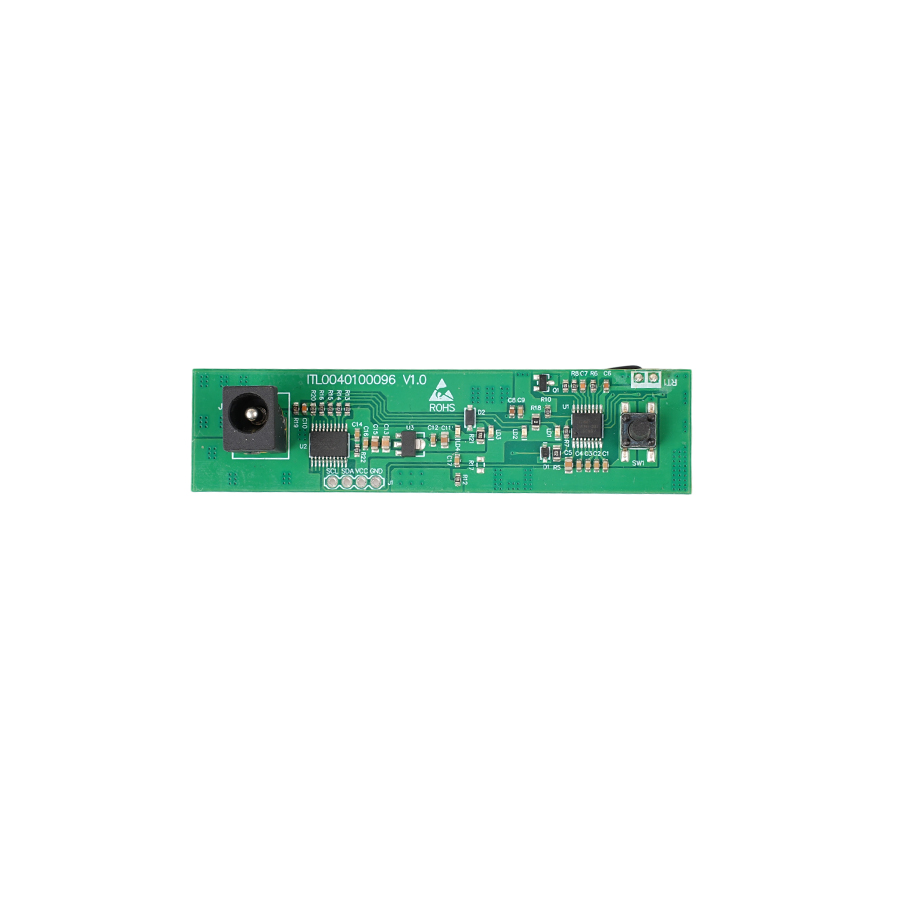

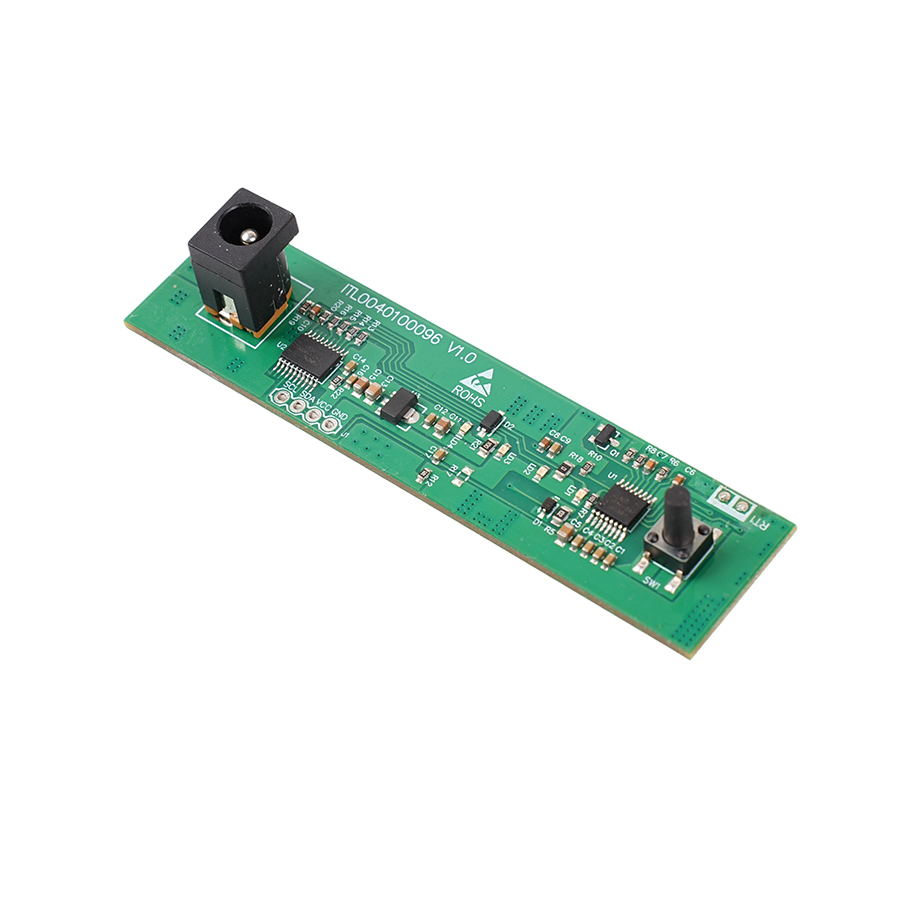

* Product solution Model number: BAKTH-ITL0040100096-01

* Product Solution: CM1341-FKT

* Compatibleinterface: Hardware board

* Battery Type: Li-ion

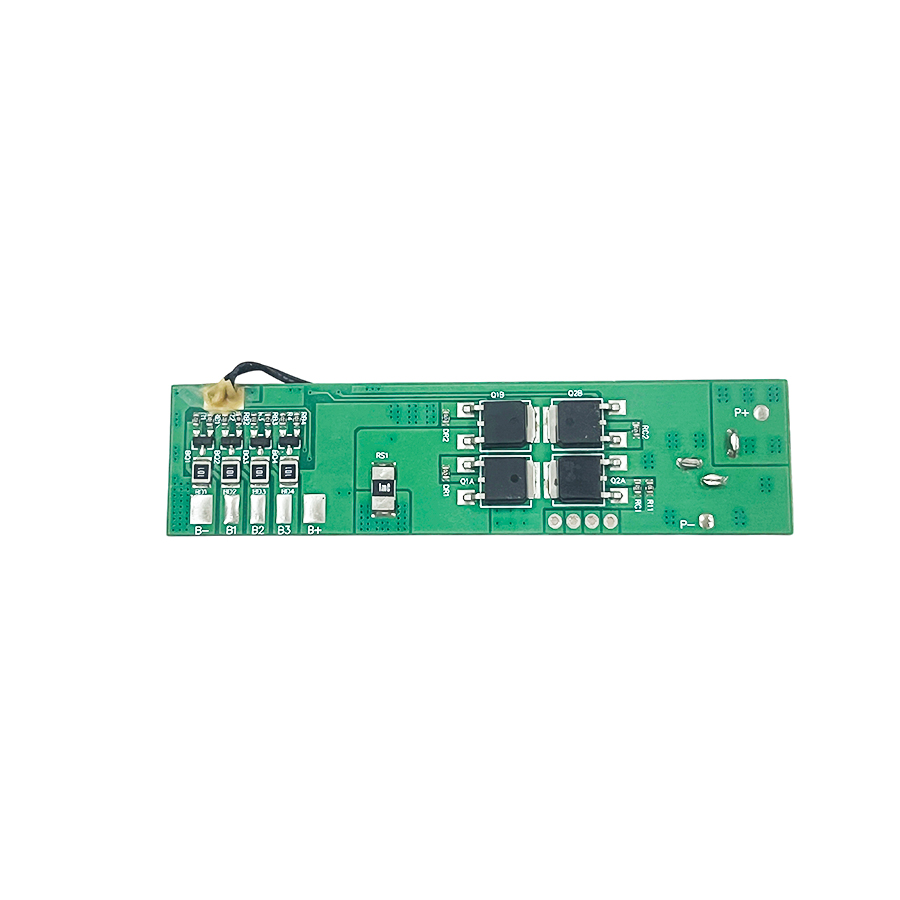

* Serial number: 4S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.015V

* Over Discharge Detection Voltage(Cell): 2.700V±0.050V

* Cell Balance Threshold:4.150V±0.025V

* Balance Current:30mA-50mA

* Over Current Discharge: 20A±4A

* Over Current Charge: 12A±3A

* Discharging Temperature:  -5℃~60℃

* Charge Temperature:  -20℃~65℃

* Max.Discharge Current: 10A

* Max.charge Current: 7.5A

* Design Certification Requirements: /

* Dimension(mm): 125*64*6.79mm
