* Product solution Model number: BAKTH-ITL0030200083-01

* Product Solution: BQ40Z50/BQ4050

* Compatibleinterface: SMBUS

* Battery Type: Li-ion

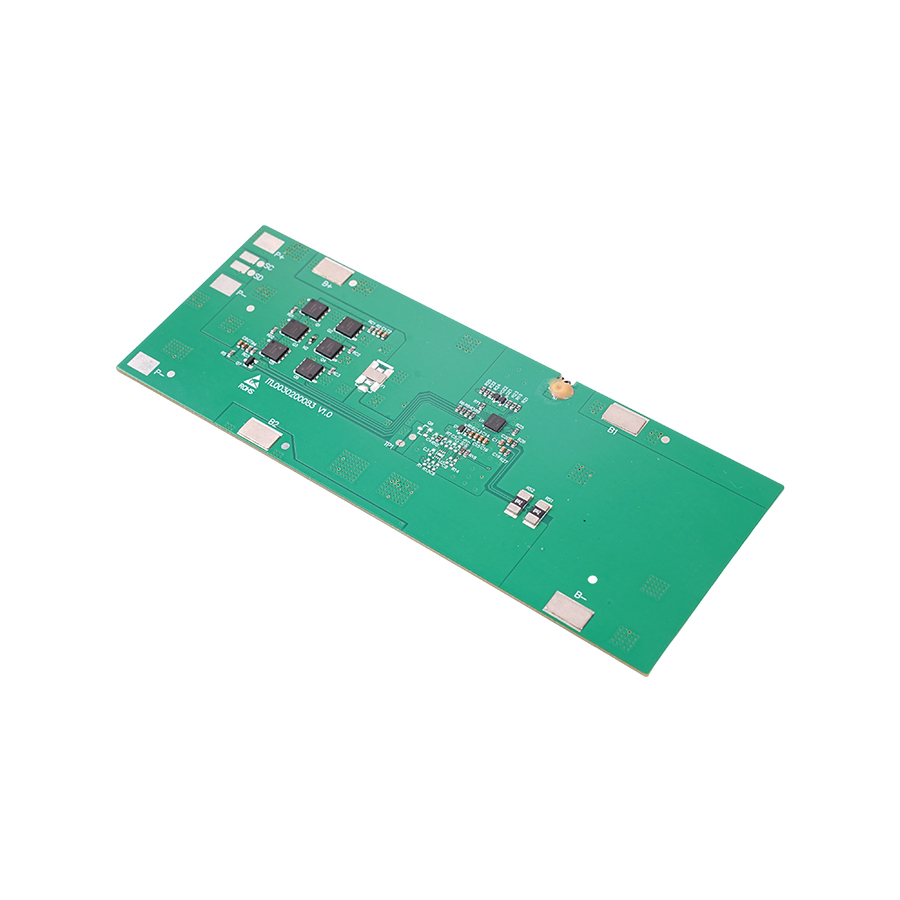

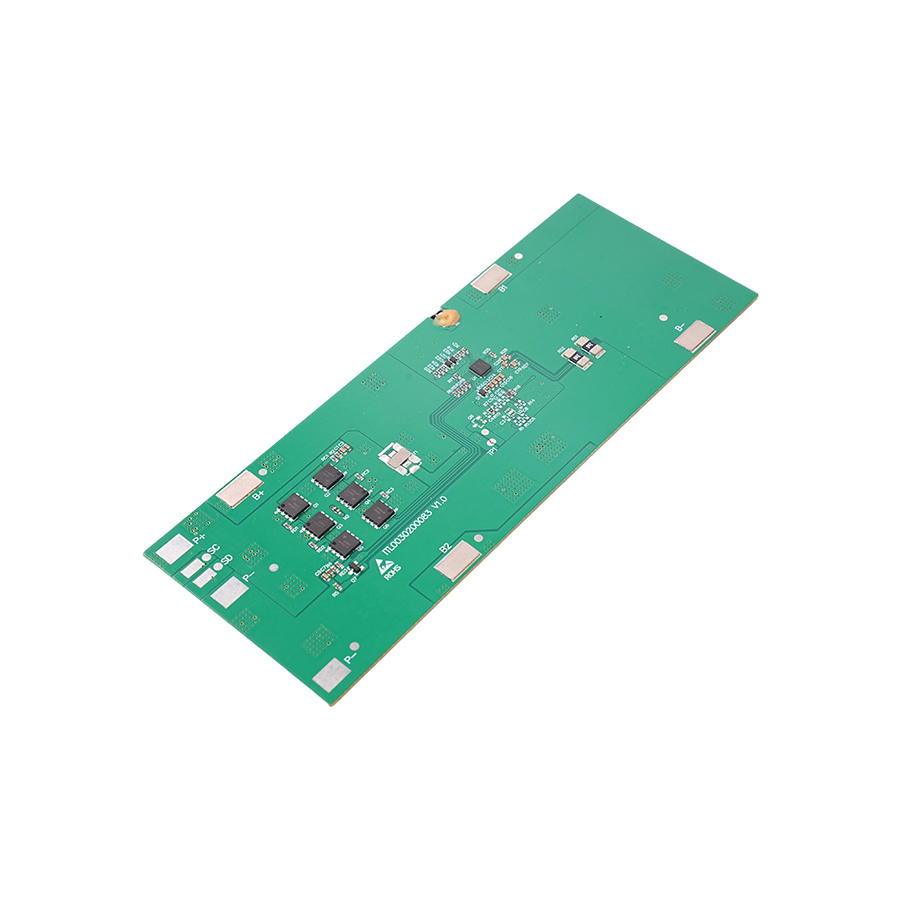

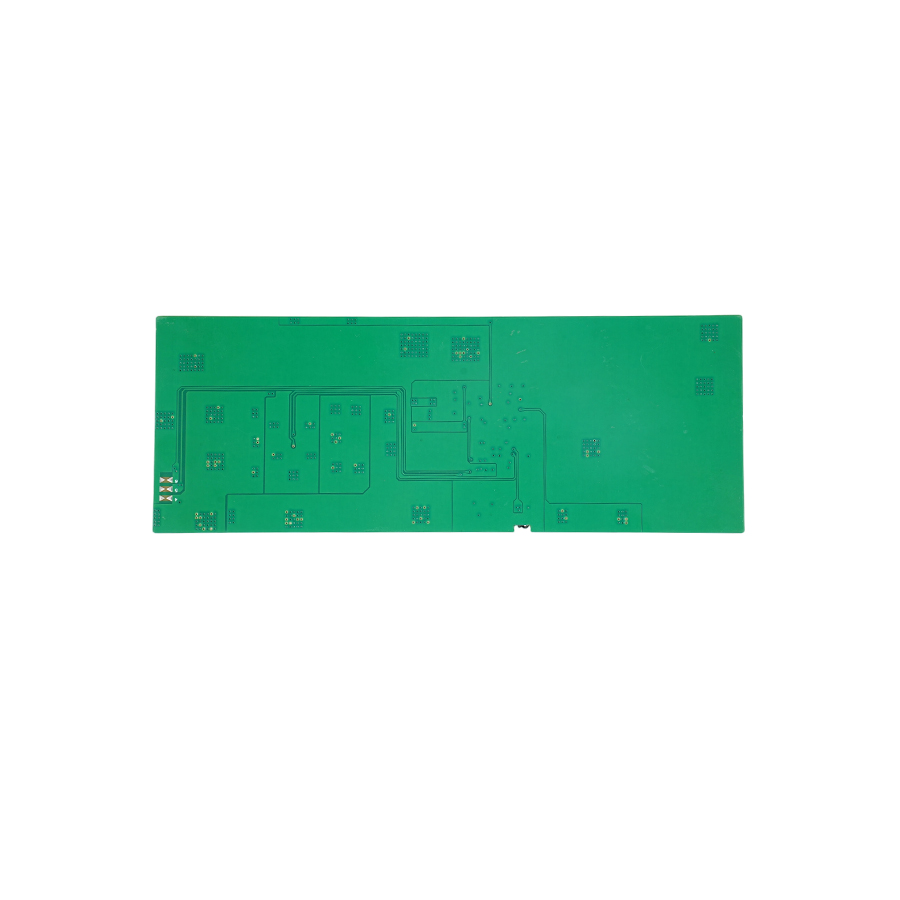

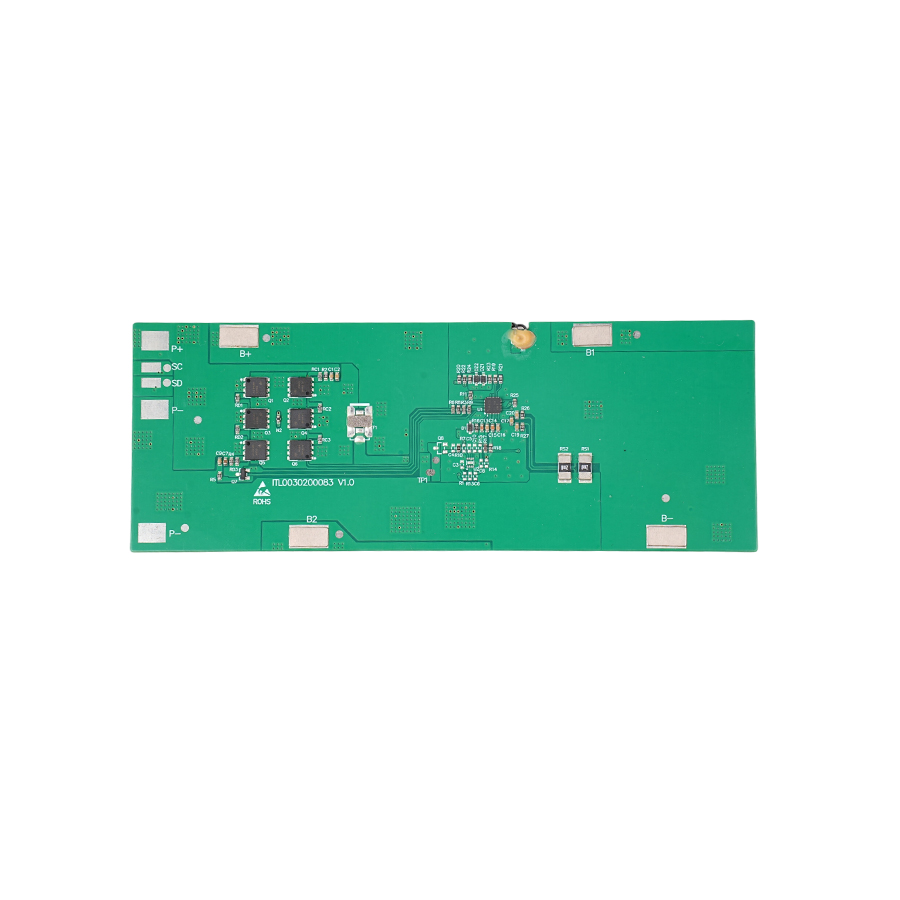

* Serial number: 3S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.025V

* Over Discharge Detection Voltage(Cell): 2.500V±0.025V

* Over Current Discharge: 25.0A±2.0A

* Over Current Charge: 10.0A±0.5A

* Discharging Temperature:  -20℃~65℃

* Charge Temperature:  0℃~55℃

* Max.Discharge Current: 10A

* Max.charge Current: 9A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 162*60*2.05mm
