* Product solution Model number: BAKTH-ITL0030100081-01

* Product Solution: BQ40Z50/BQ4050

* Compatibleinterface: SMBUS

* Battery Type: Li-ion

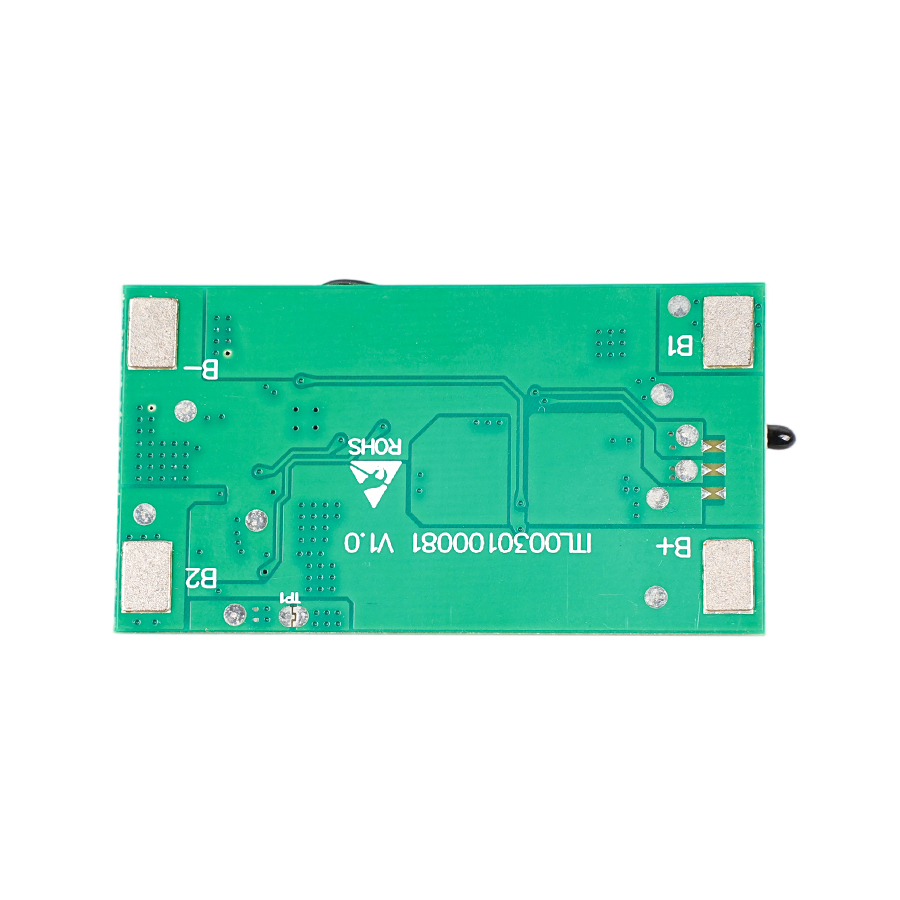

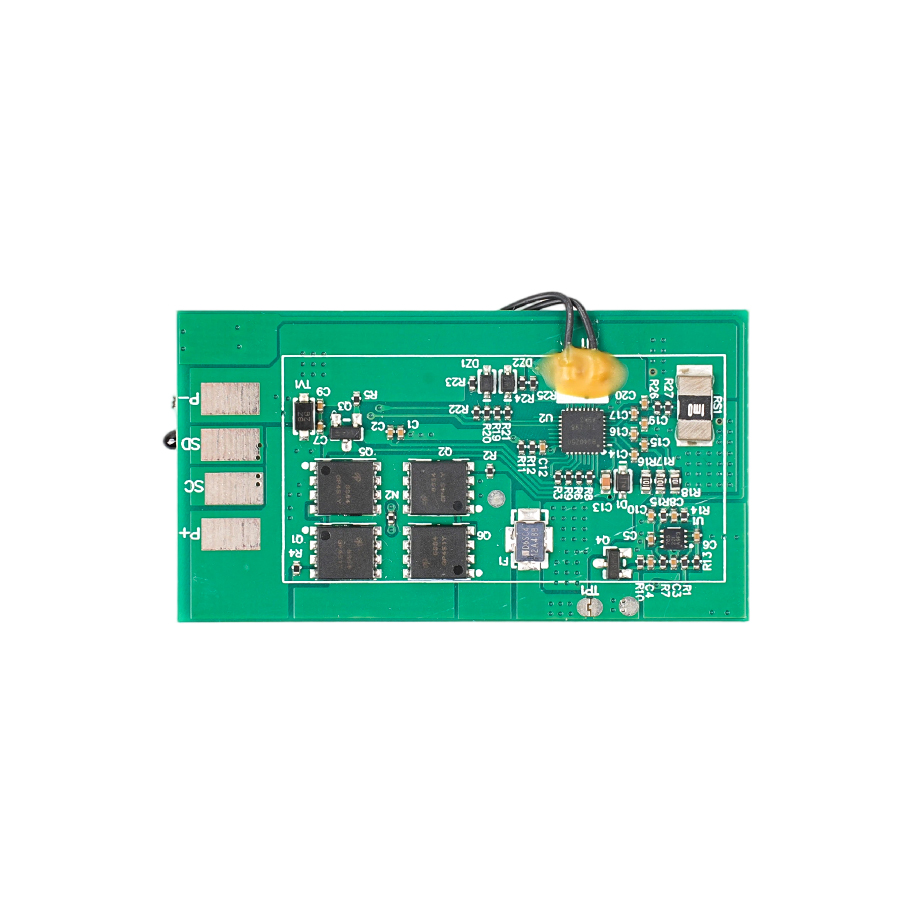

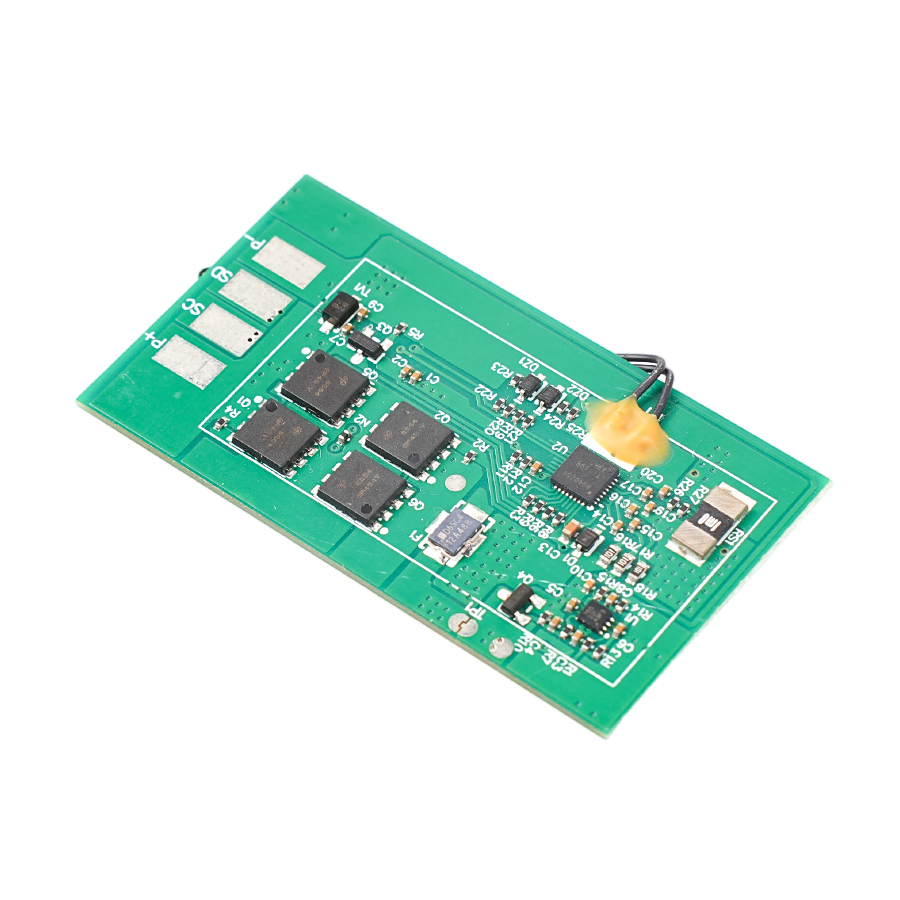

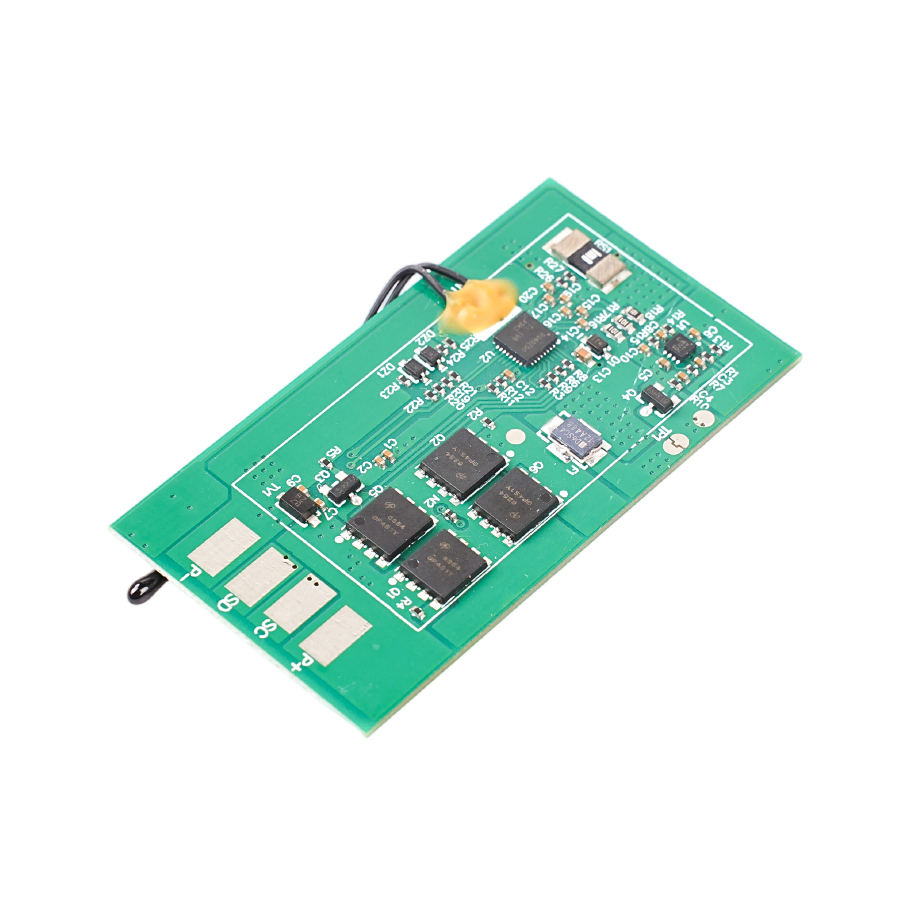

* Serial number: 3S lithium battery protection board

* Over charge detection voltage(Cell): 4.250V±0.025V

* 2st Level charge detection voltage(Cell):4.450V±0.050V

* Over Discharge Detection Voltage(Cell): 2.500V±0.025V

* Over Current Discharge:5.50A±0.5A

* Over Current Charge: 5.50A±0.5A

* Discharging Temperature:  -20℃~65℃

* Charge Temperature:  0℃~55℃

* Max.Discharge Current: 5A

* Max.charge Current: 5A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 55*30*2.05mm
