* Product solution Model number: BAKTH-ITL0240600090-01

* Product Solution: SH3676010BX +SH3676016BP

* Compatibleinterface: Hardware board

* Battery Type: Li-ion

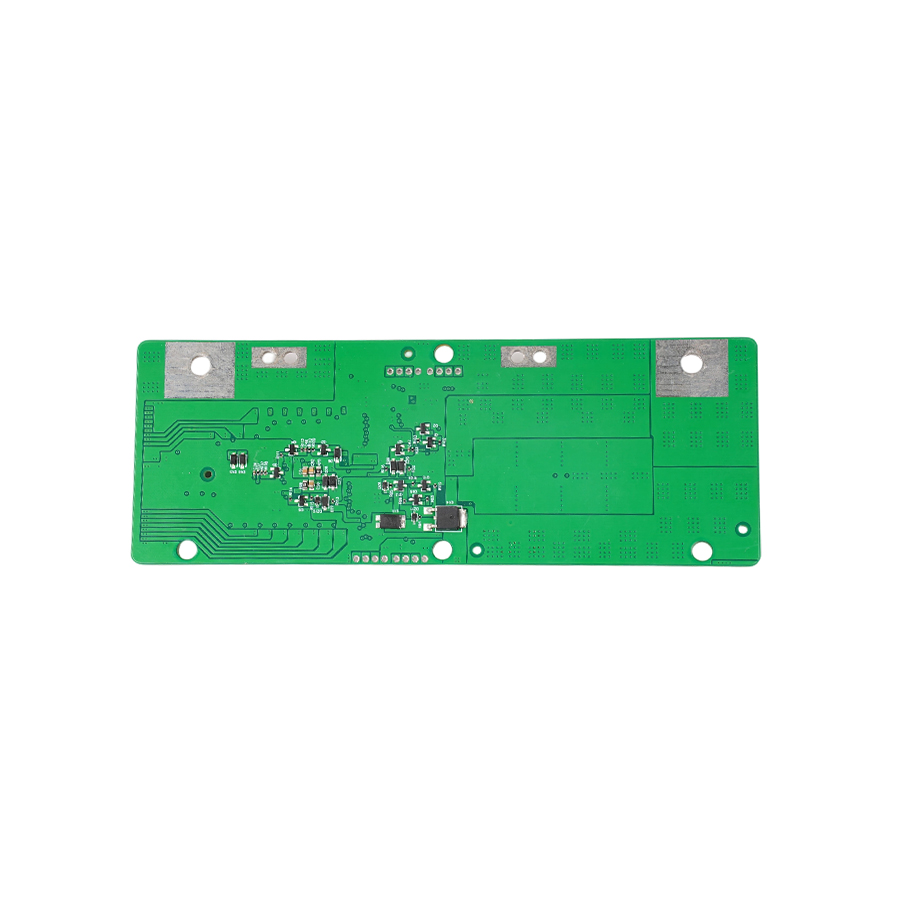

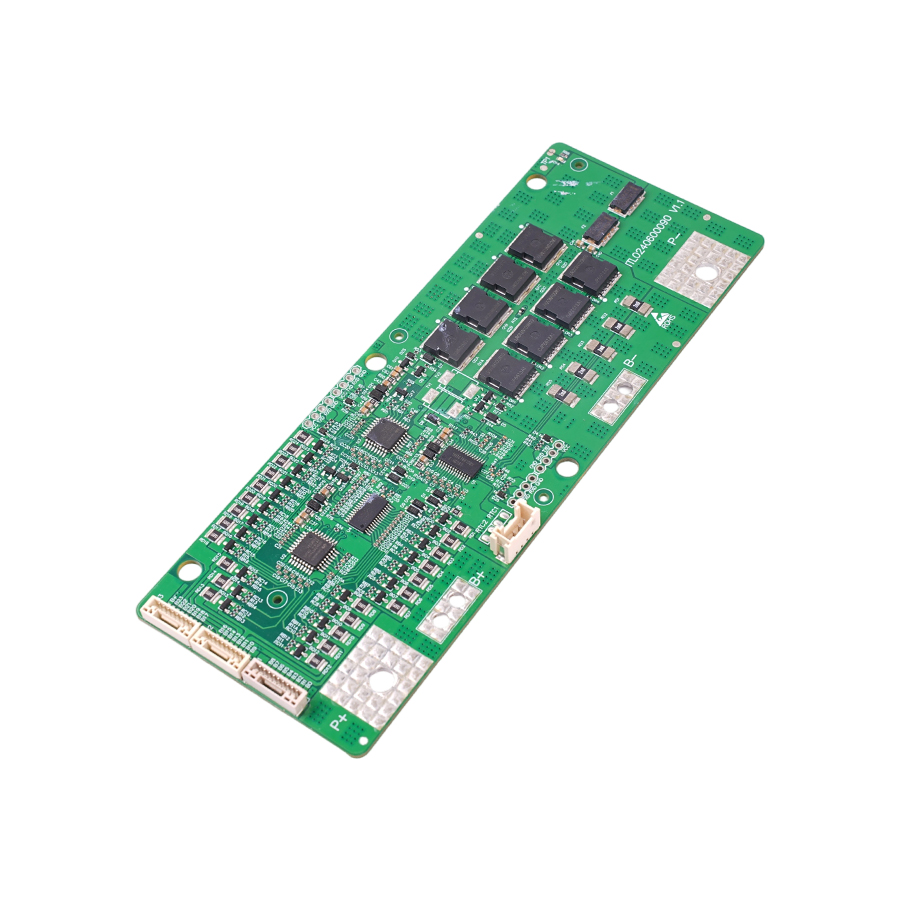

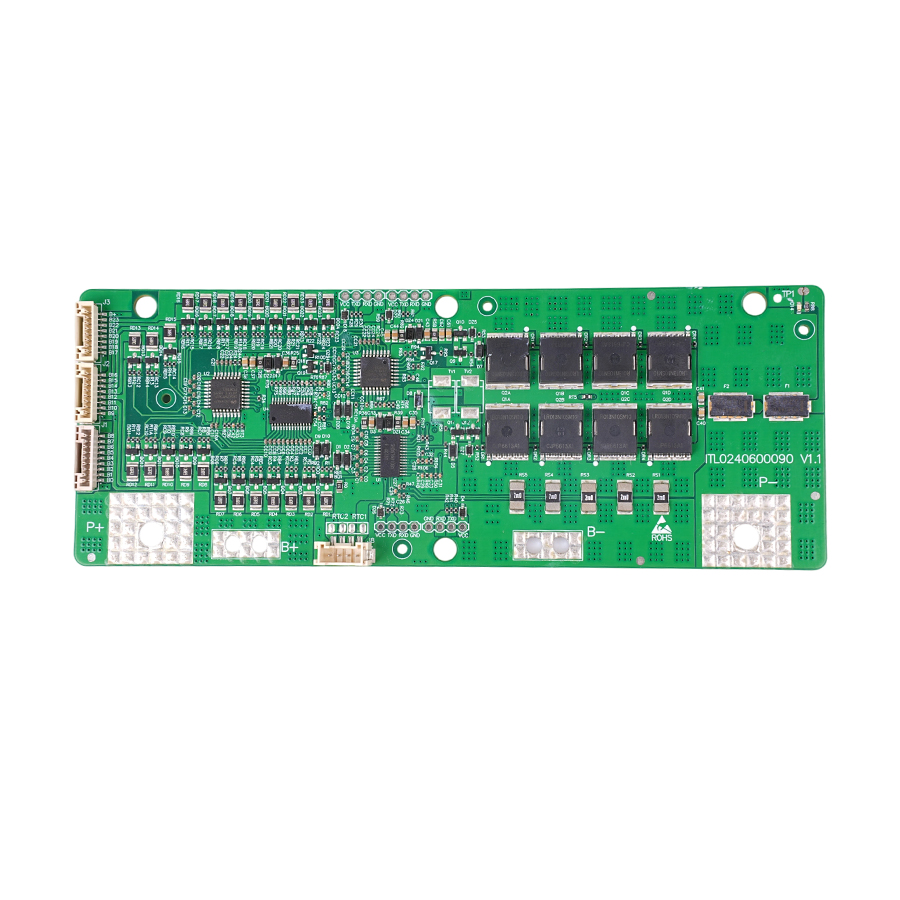

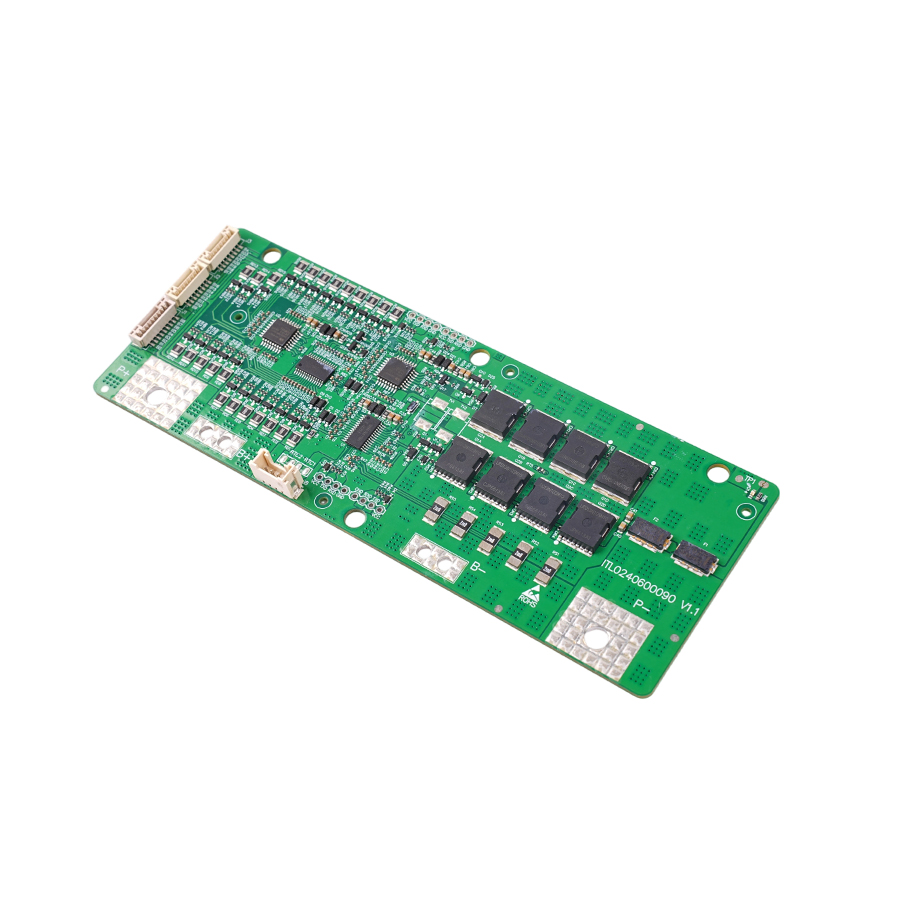

* Serial number: 24S lithium battery protection board

* Over charge detection voltage(Cell):  3.500V±0.050V

* Over Discharge Detection Voltage(Cell): 2.500V±0.050V

* Over Current Discharge: 78A±5A

* Over Current Charge: 30A±5A

* Discharging Temperature:  -20℃~65℃

* Charge Temperature:  -5℃~60℃

* Max.Discharge Current: 45A

* Max.charge Current: 20A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 167.4*63*1.6mm
