* Product solution Model number: BAKTH-ITL0020050078-01

* Product Solution: R5460N209AD

* Compatibleinterface: I2C

* Battery Type: Li-ion

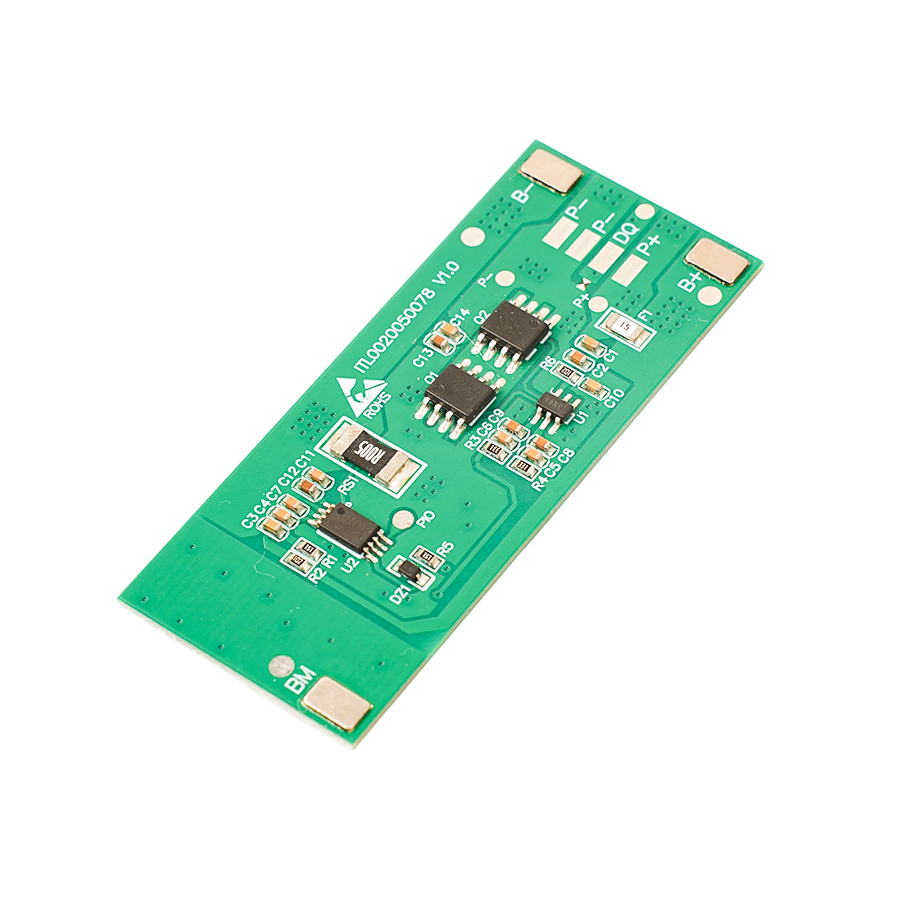

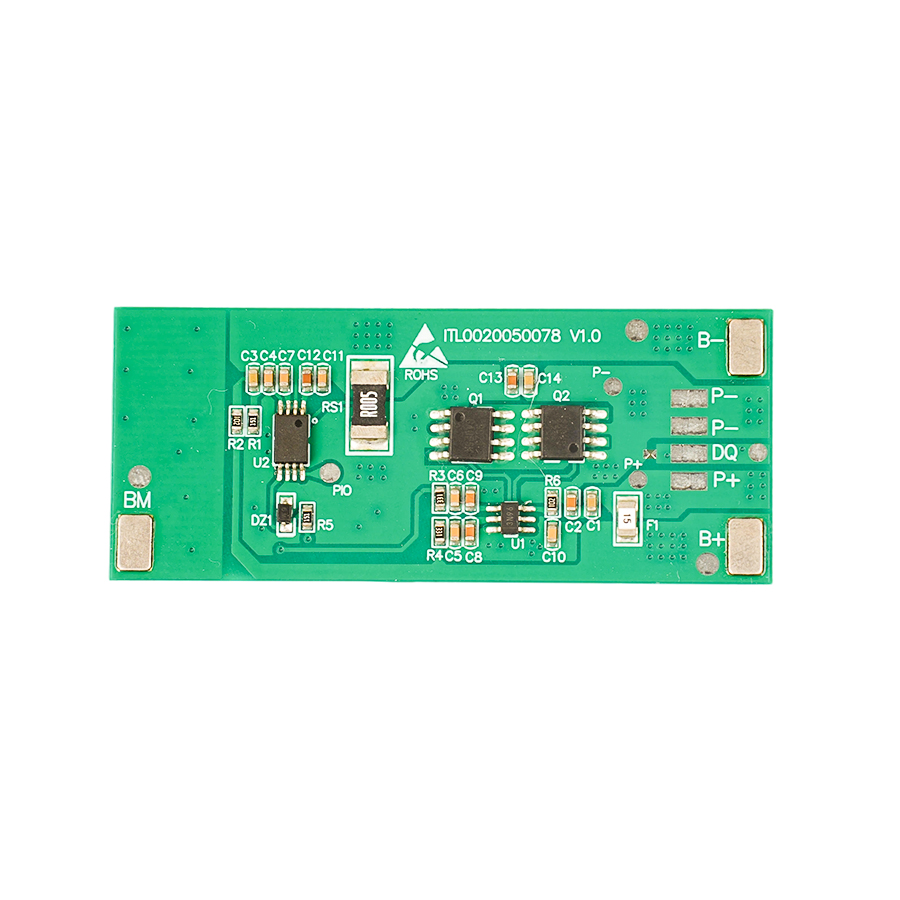

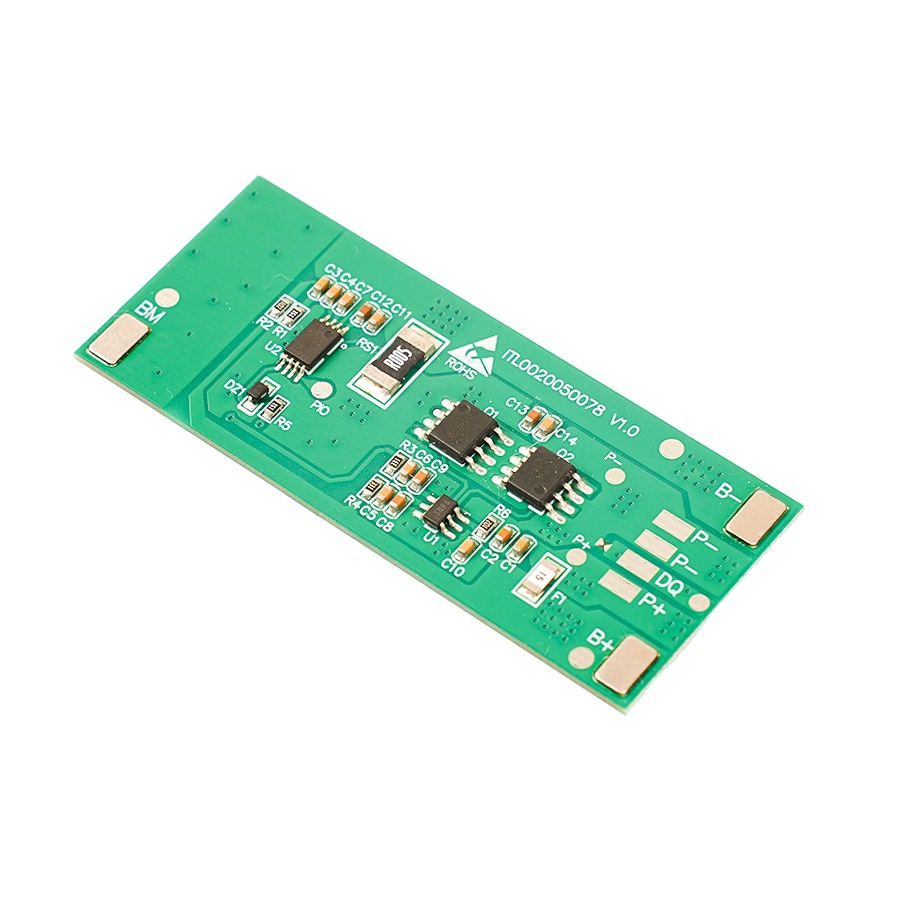

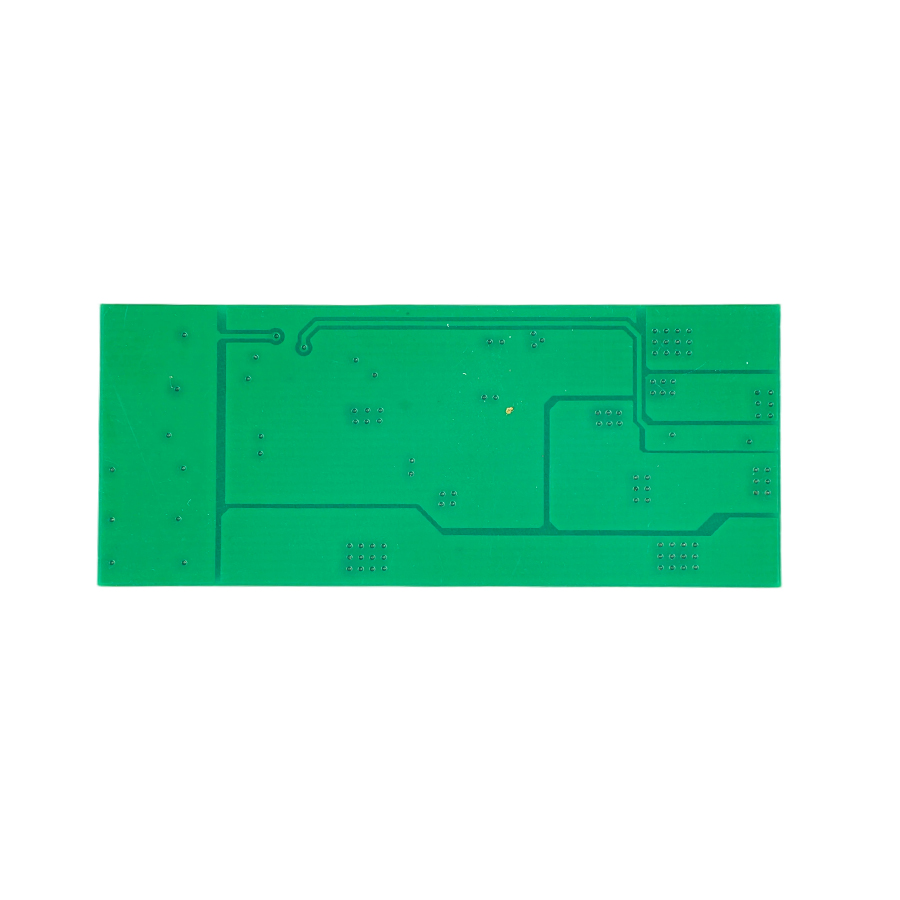

* Serial number: 3S lithium battery protection board

* Over charge detection voltage(Cell): 3.65V±0.030V

* Over Discharge Detection Voltage(Cell): 2.500V±0.030V

* Over Current Discharge: 10A±3A

* Over Current Charge: 10A±3A

* Discharging Temperature:  /

* Charge Temperature:  /

* Max.Discharge Current: 5A

* Max.charge Current: 5A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 60*25*2.46mm
