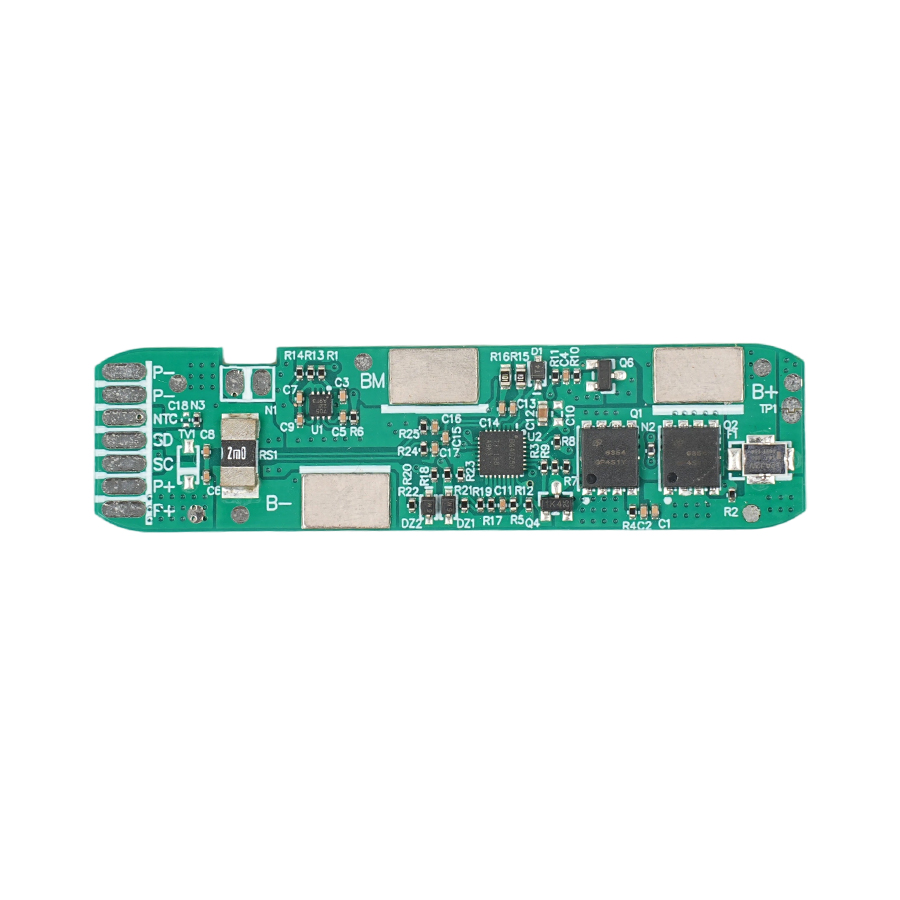

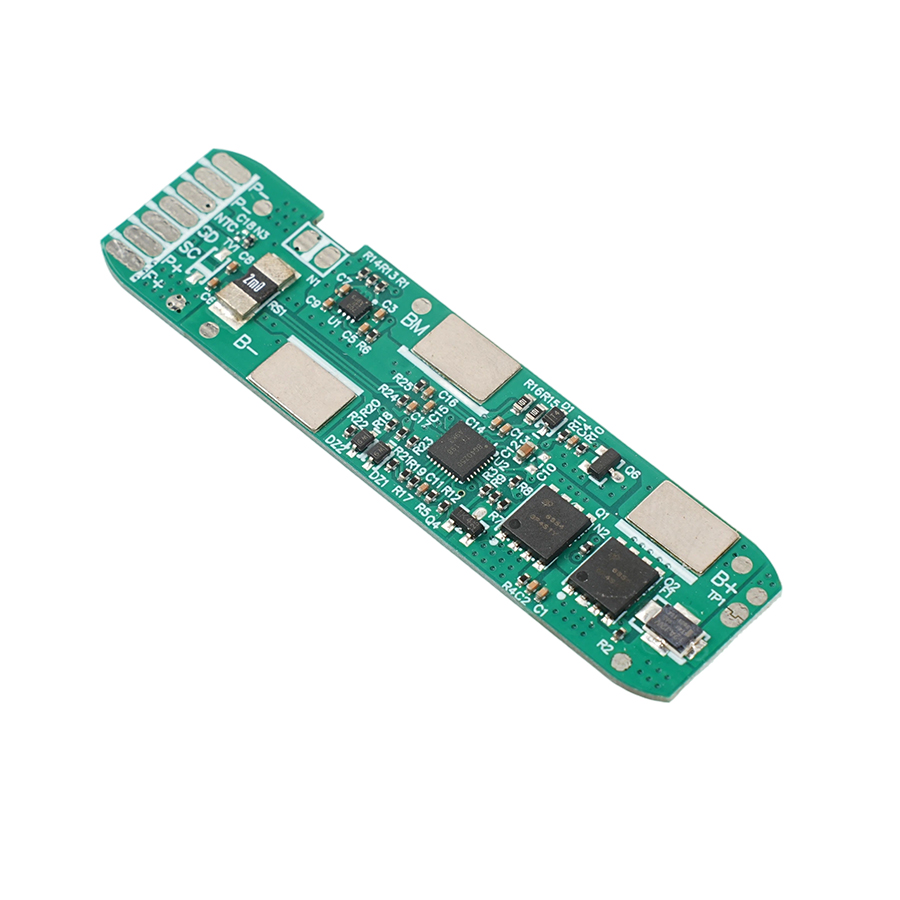

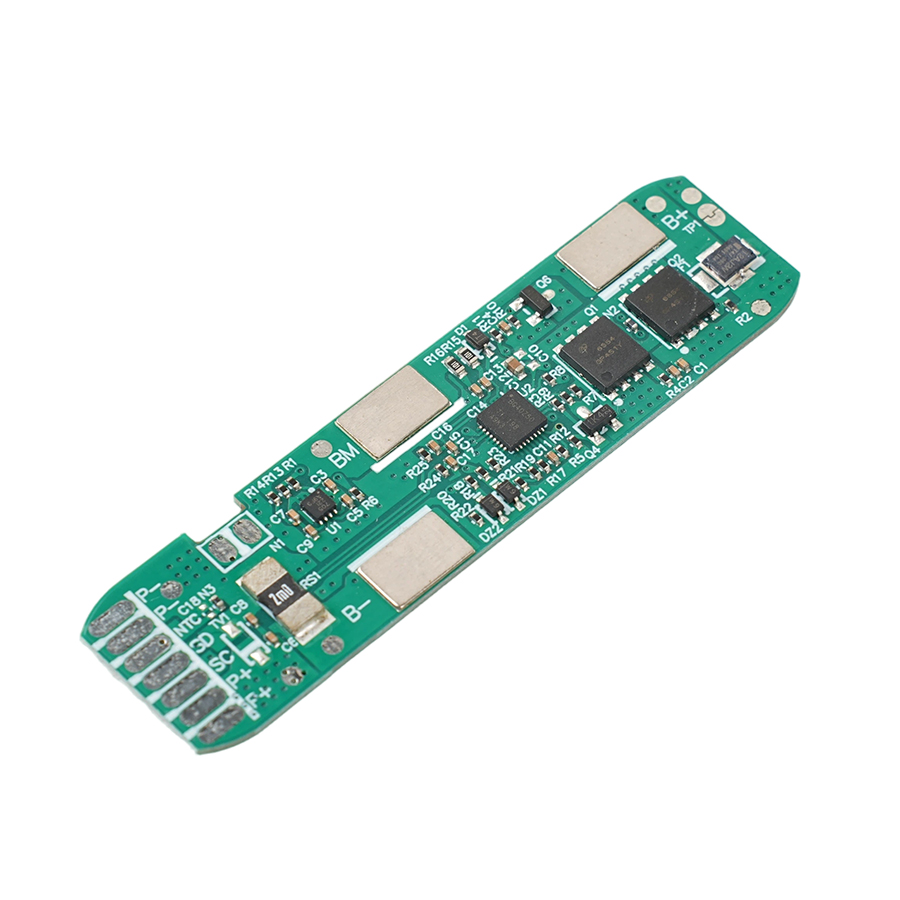

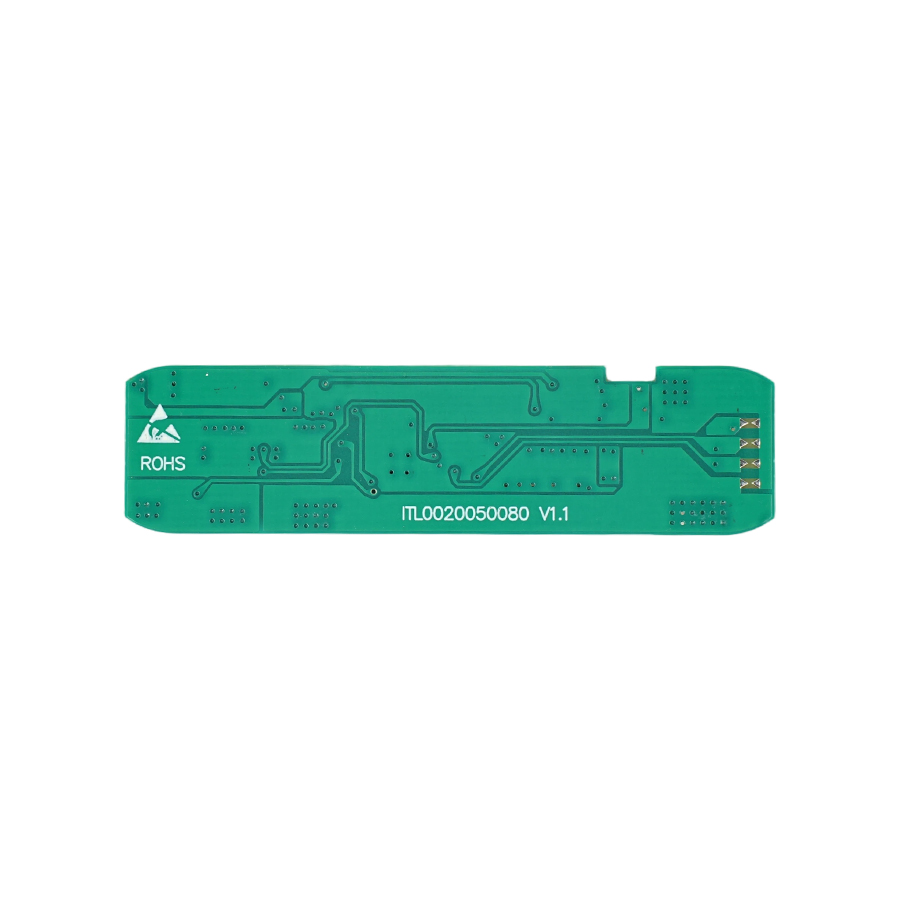

* Product solution Model number: BAKTH-ITL0020050080-01

* Product Solution: BQ40Z50/BQ4050

* Compatibleinterface: SMBUS

* Battery Type: LiFe-PO4/Li-ion

* Serial number: 2S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.025V

* 2st Level charge detection voltage(Cell):  4.450V±0.050V

* Over Discharge Detection Voltage(Cell): 2.400V±0.025V

* OCD1 Over Current Discharge: 4.0A±0.2A

* OCD2 Over current Discharge: 5.0A±0.2A

* OCC1 Over Current Charge: 4.0A±0.2A

* OCC2 Over current charge: 5.0A±0.2A

* Discharging Temperature:  -20℃~60℃

* Charge Temperature:  0℃~45℃

* Max.Discharge Current: 3A

* Max.charge Current: 3A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 69*17*1.79mm
