* Product solution Model number: BAKTH-ITL0020100071-01

* Product Solution: BQ40Z50/BQ4050

* Compatibleinterface: SMBUS

* Battery Type: LiFe-PO4/Li-ion

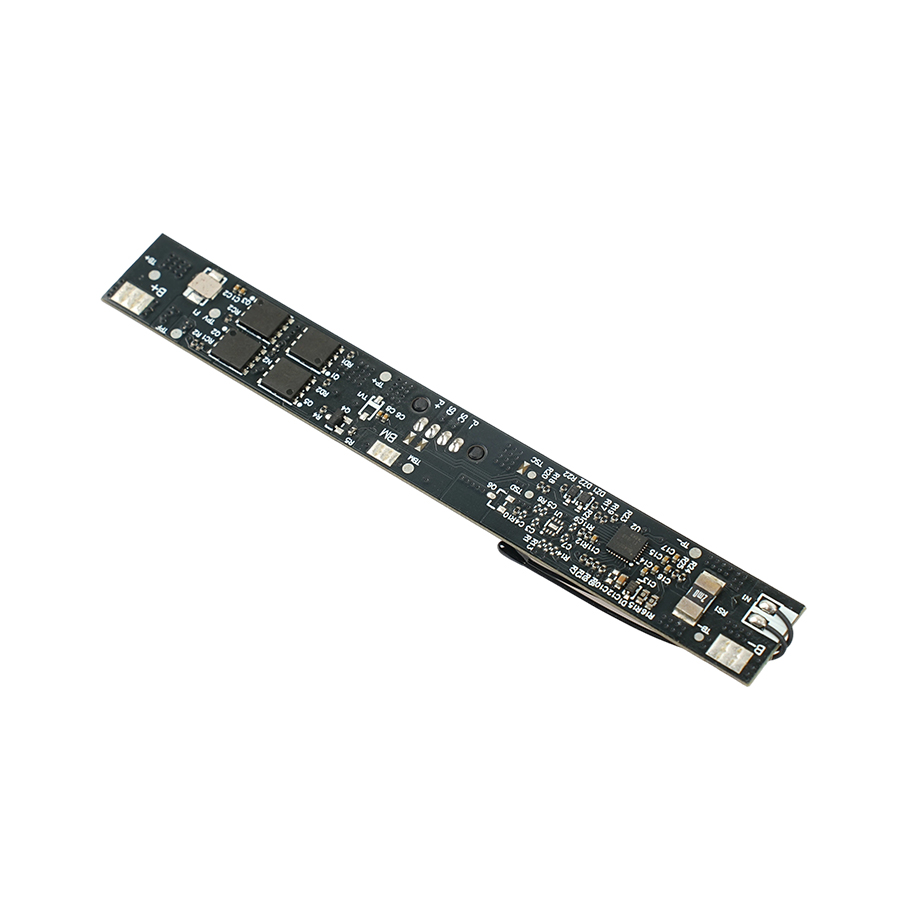

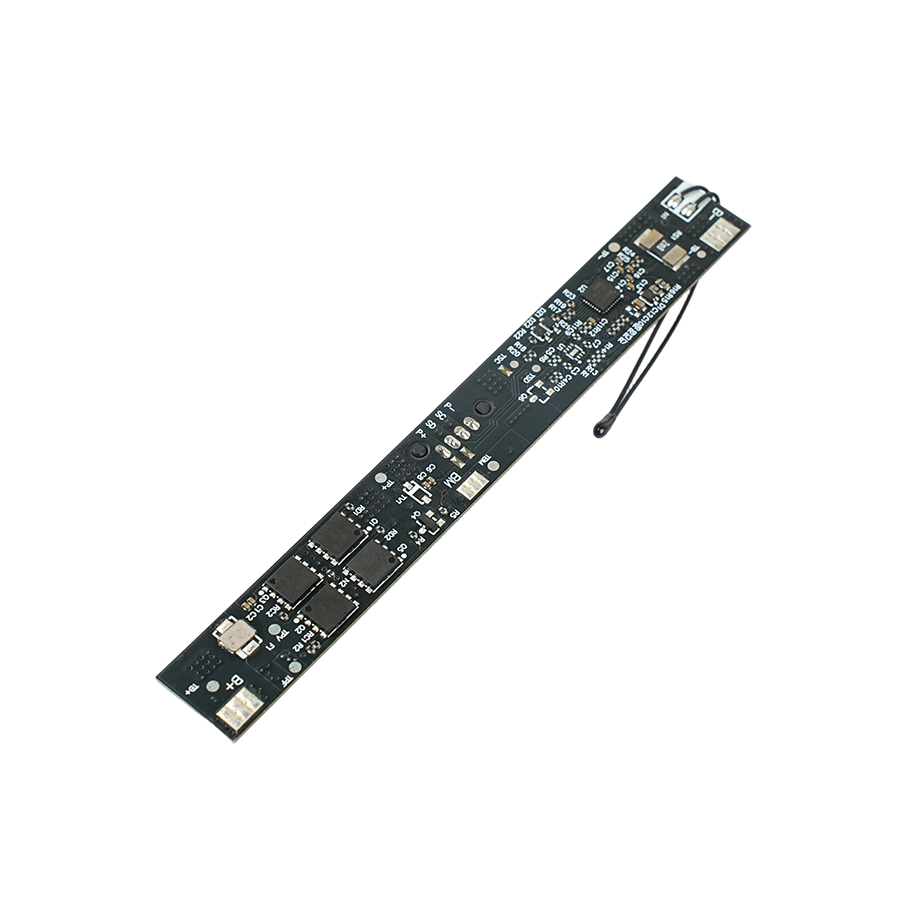

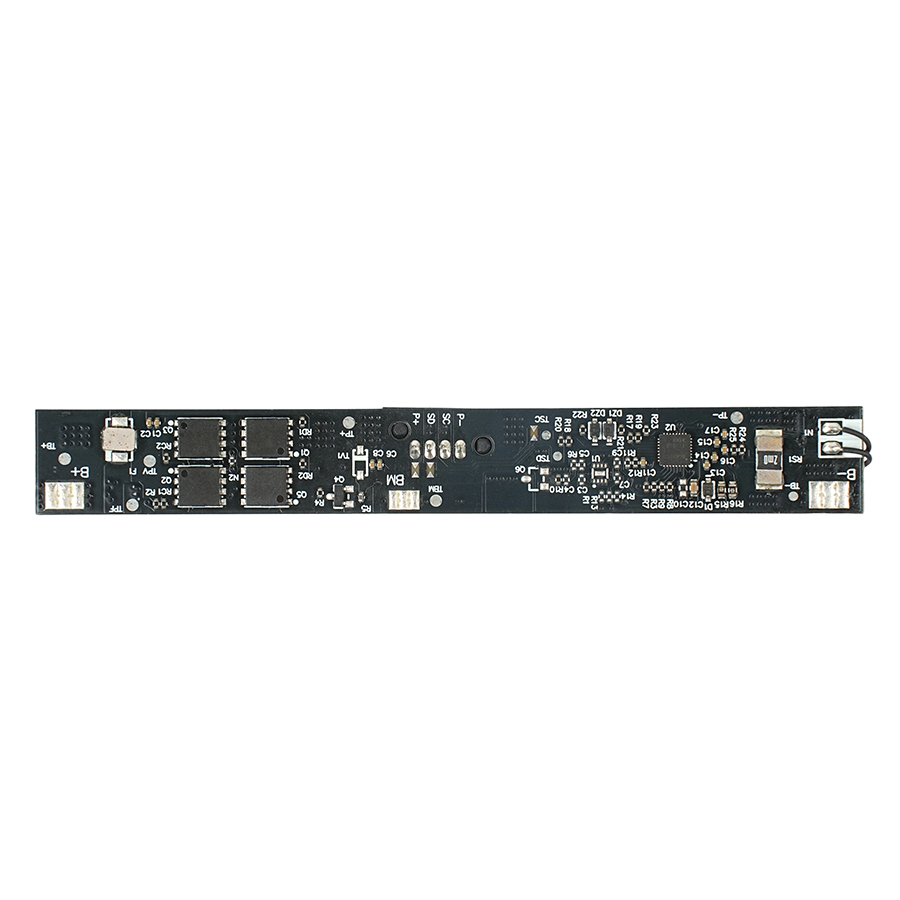

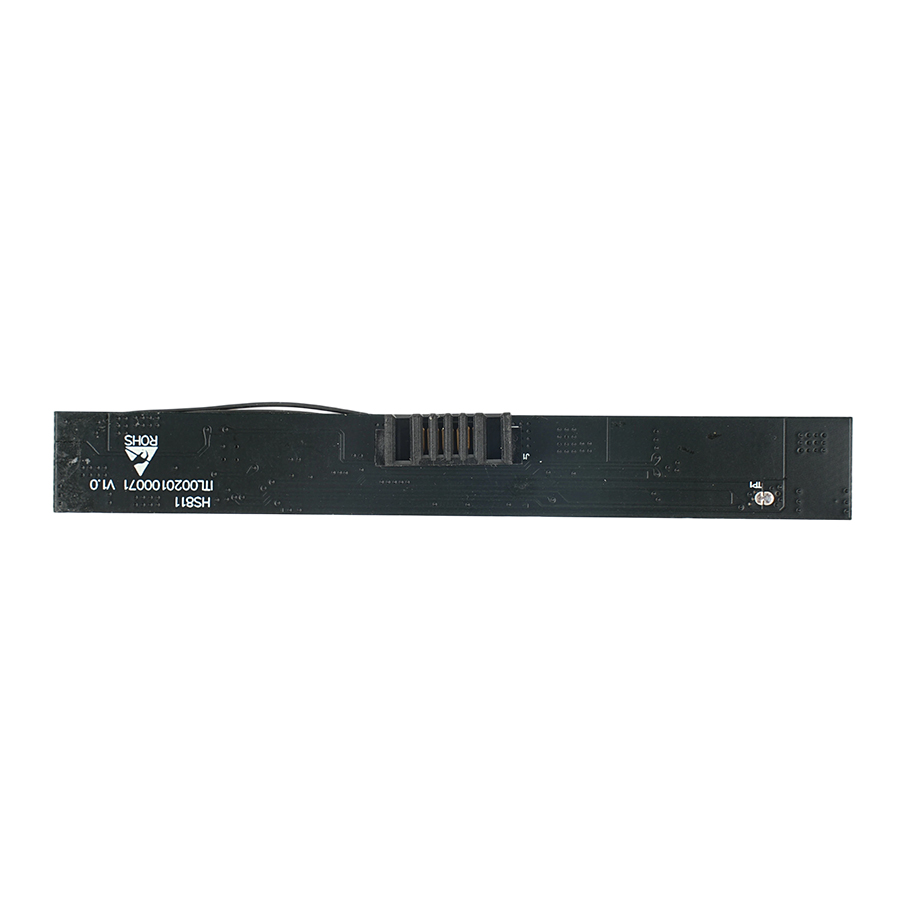

* Serial number: 2S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.025V

* Over Discharge Detection Voltage(Cell): 2.800V±0.025V

* OCD1 Over Current Discharge: 20.0A±0.2A

* OCD2 Over current Discharge: 25.0A±0.2A

* OCC1 Over Current Charge: 10.0A±0.2A

* OCC2 Over current charge: 12.0A±0.2A

* Discharging Temperature:  -20℃~60℃

* Charge Temperature:  0℃~50℃

* Max.Discharge Current: 5A

* Max.charge Current: 5A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 108*14*7.39mm
