* Product solution Model number: BAKTH-ITL0010020086-01

* Product Solution: S-8261DAI-M6T1U

* Compatibleinterface: Hardware board

* Battery Type: LiFe-PO4/Li-ion

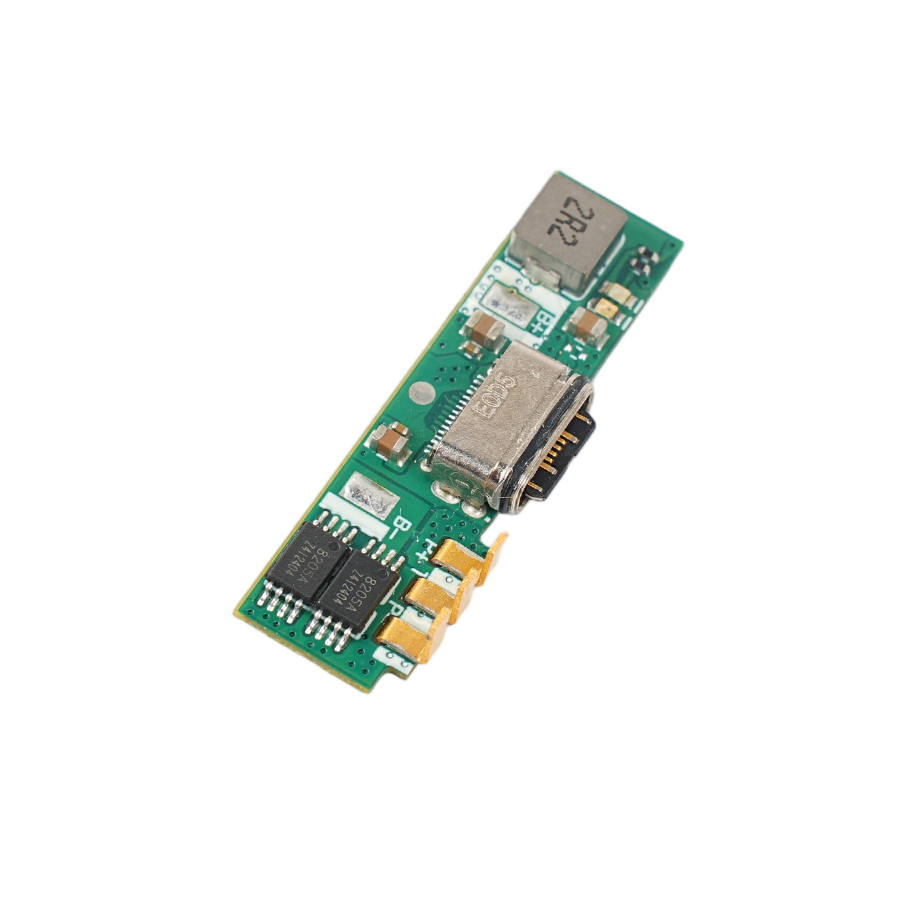

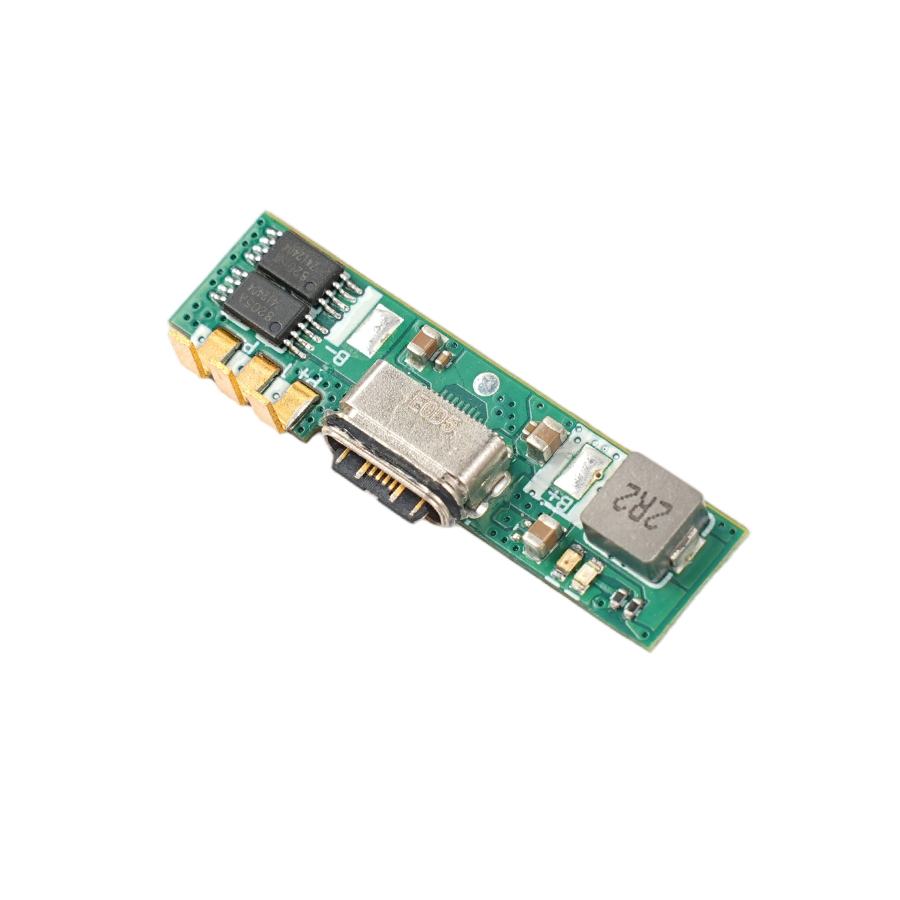

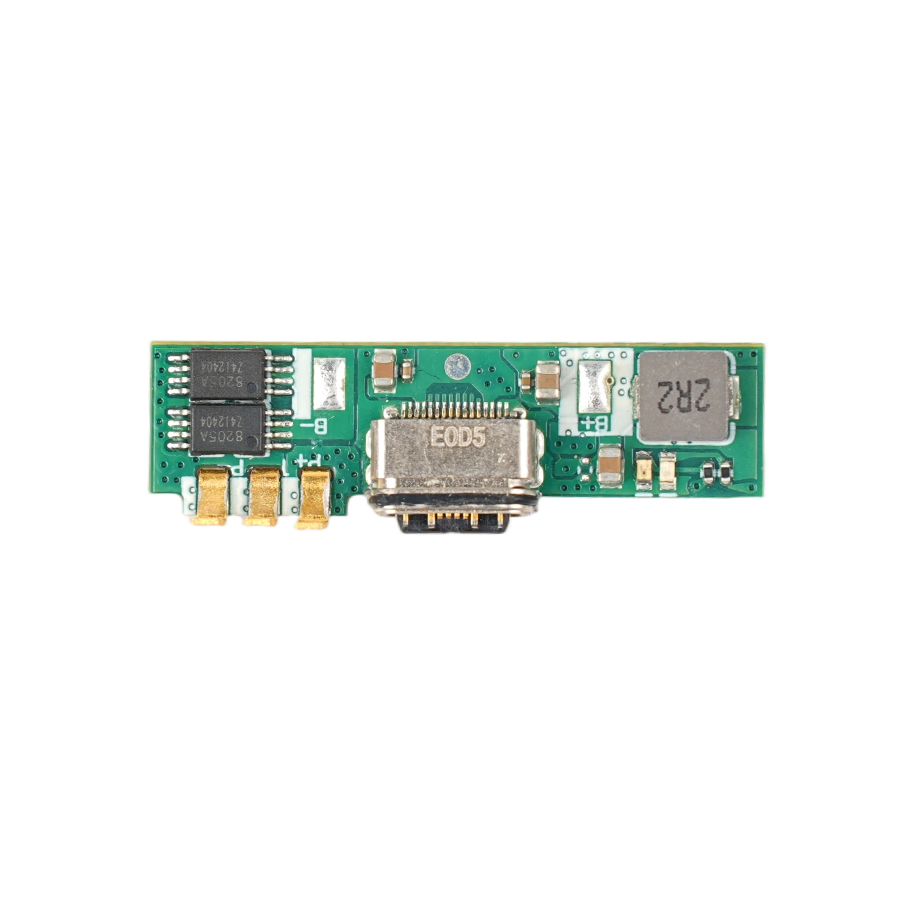

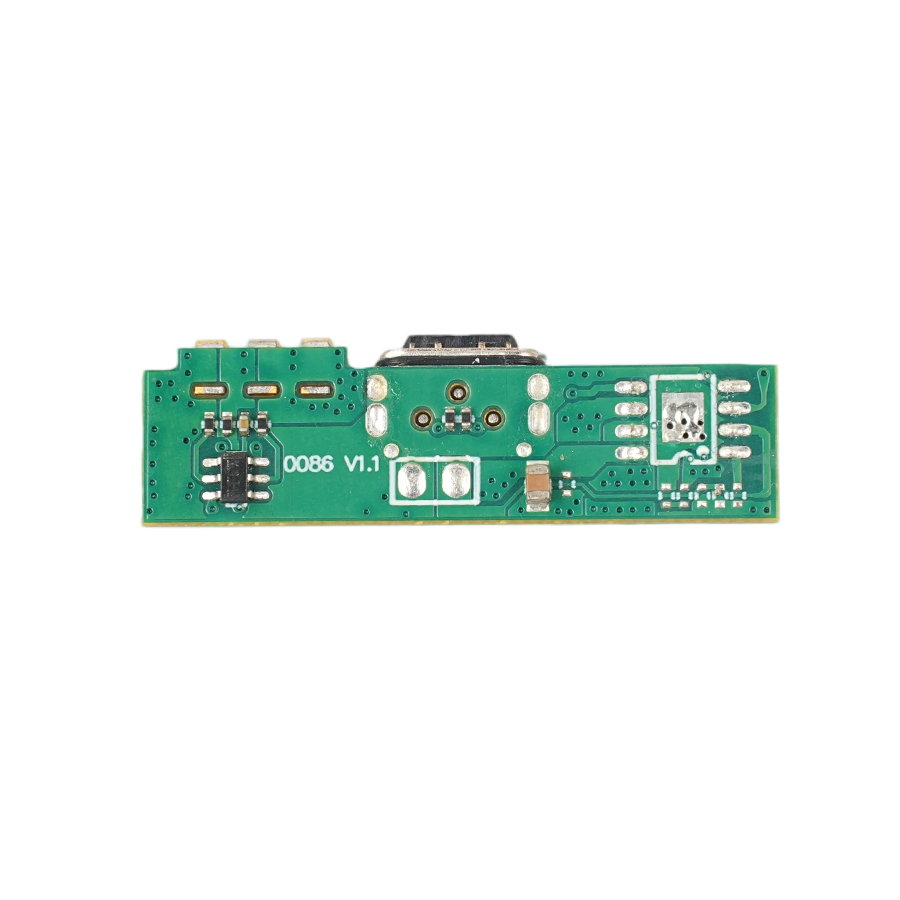

* Serial number: 1S lithium battery protection board

* Over charge detection voltage(Cell):  4.280V±0.030V

* Over Discharge Detection Voltage(Cell): 3.000V±0.050V

* Over Current Discharge: 8A±2A

* Over Current Charge: 7A±2A

* Discharging Temperature:  /

* Charge Temperature:  62℃~68℃

* Max.Discharge Current: 4A

* Max.charge Current: 2A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 36*10.3*5.31mm
