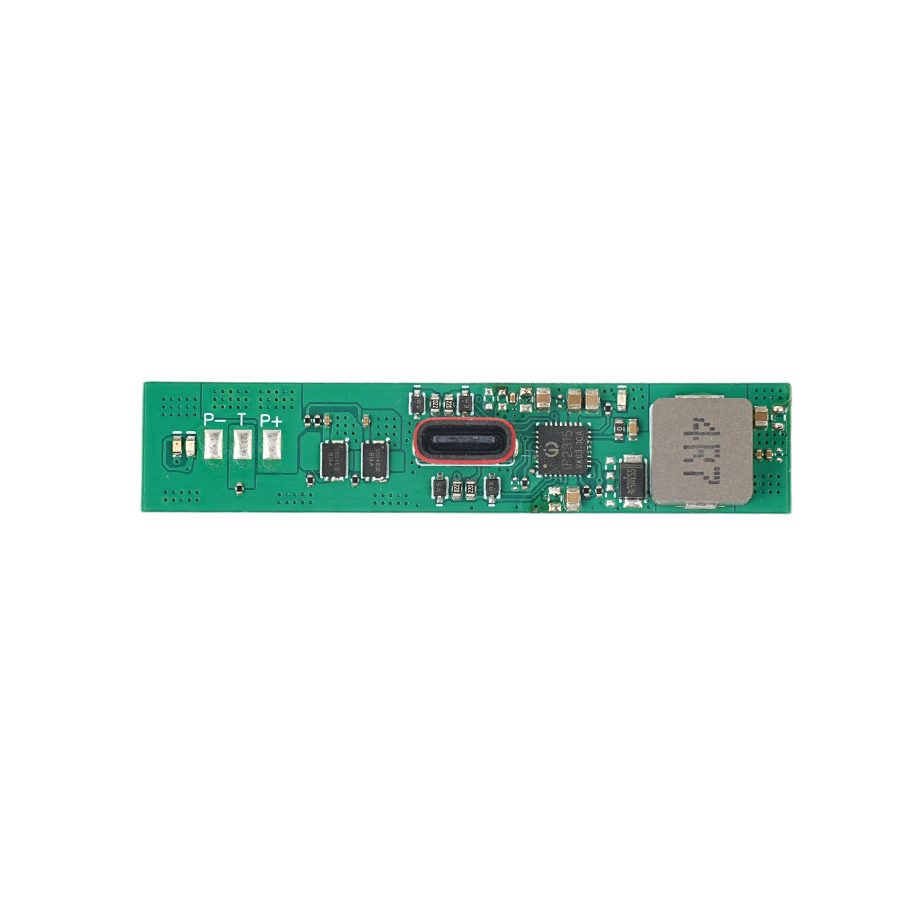

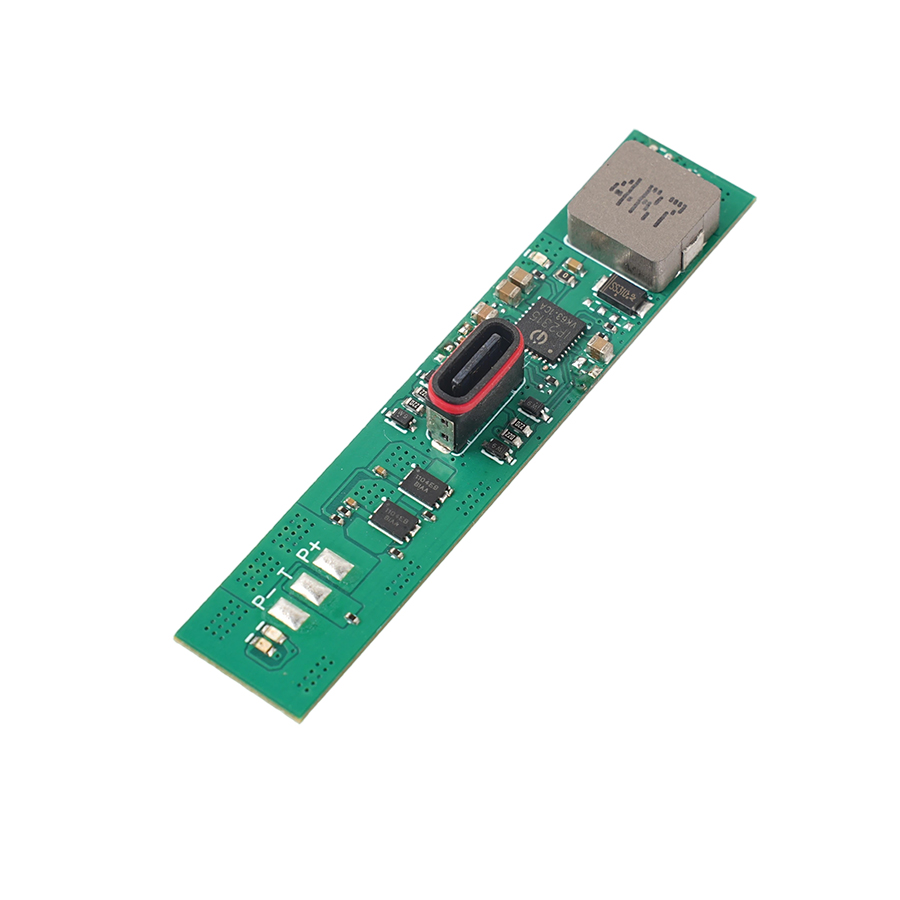

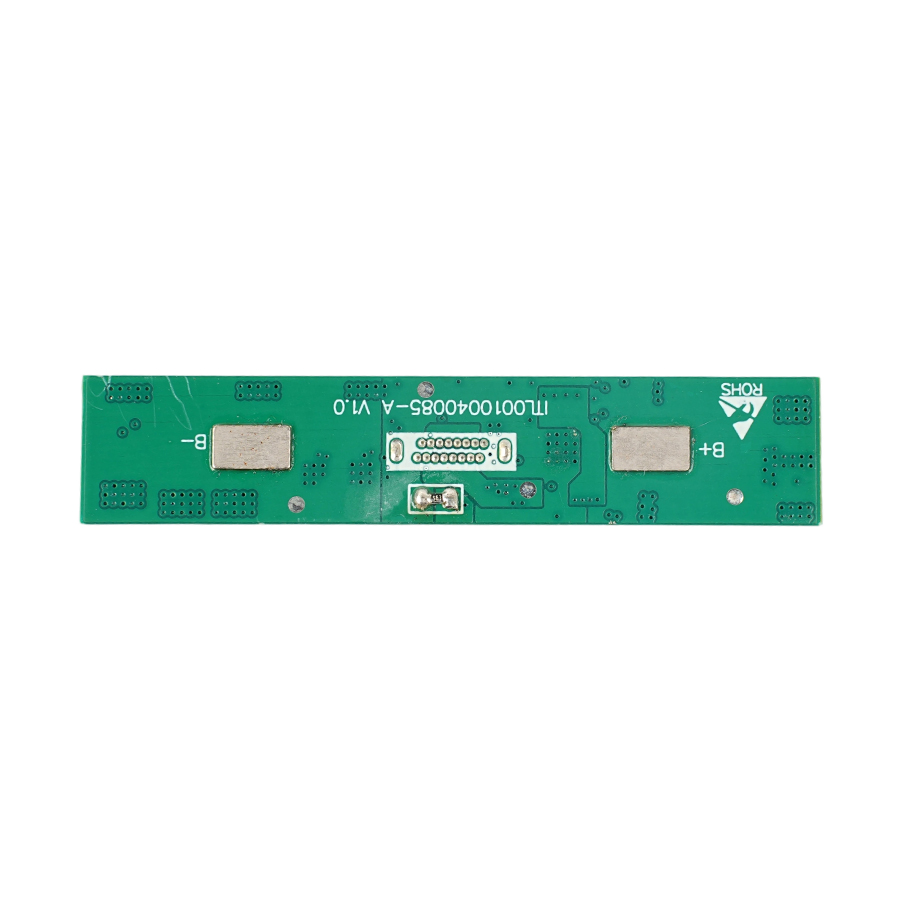

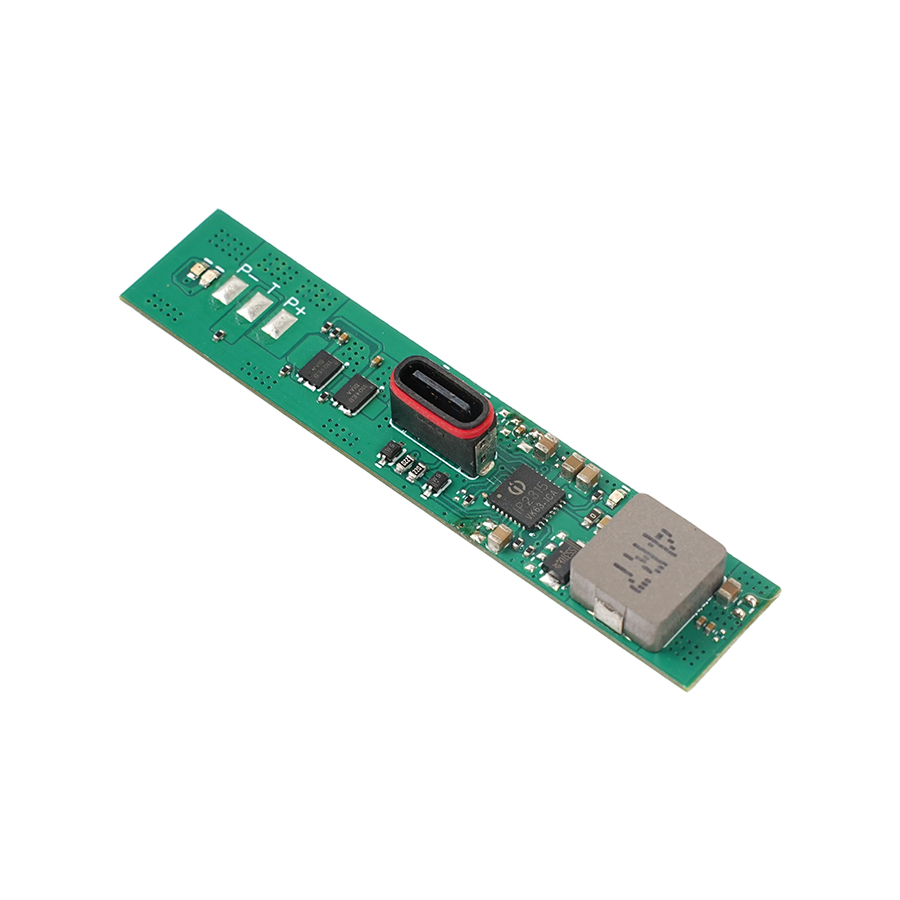

* Product solution Model number: BAKTH-ITL0010040085-01

* Product Solution: CM1104

* Compatibleinterface: Hardware board  DC TO DC charge

* Battery Type: LiFe-PO4/Li-ion

* Serial number: 1S lithium battery protection board

* Over charge detection voltage(Cell):  4.425V±0.030V

* Over Discharge Detection Voltage(Cell): 2.400V±0.050V

* Over Current Discharge: 12A±3A

* Over Current Charge: 10A±3A

* Discharging Temperature:  /

* Charge Temperature:  /

* Max.Discharge Current: 4A

* Max.charge Current: 2A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 66.6*13.8*9.03mm
