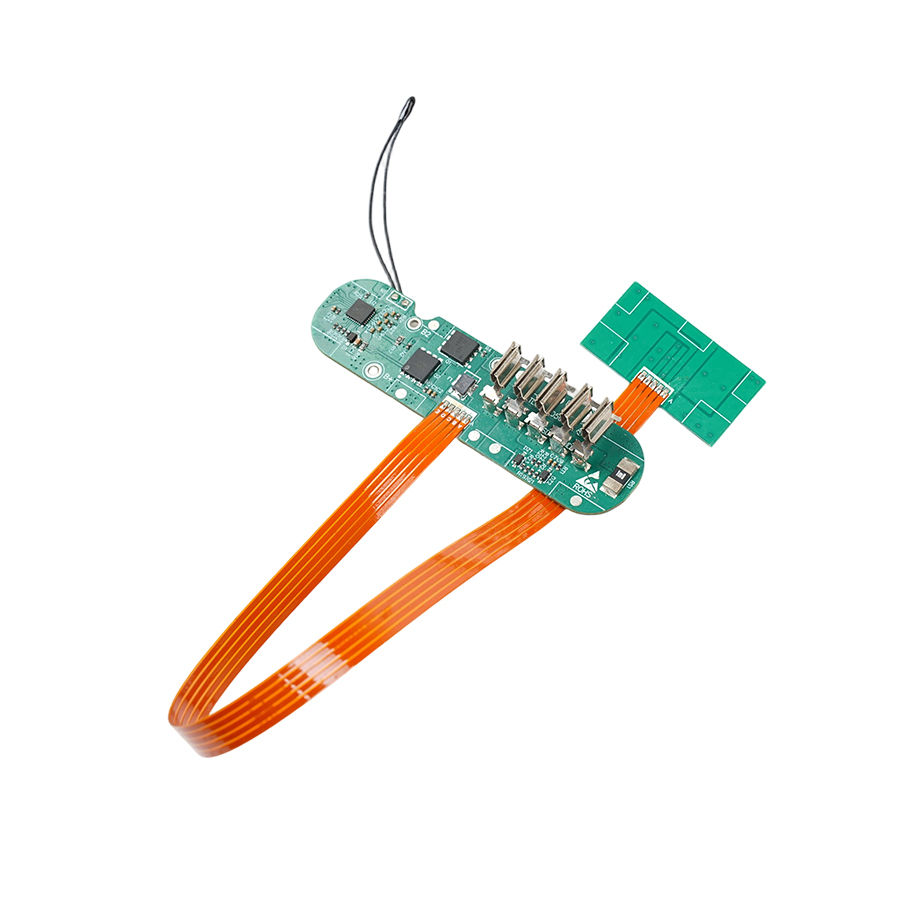

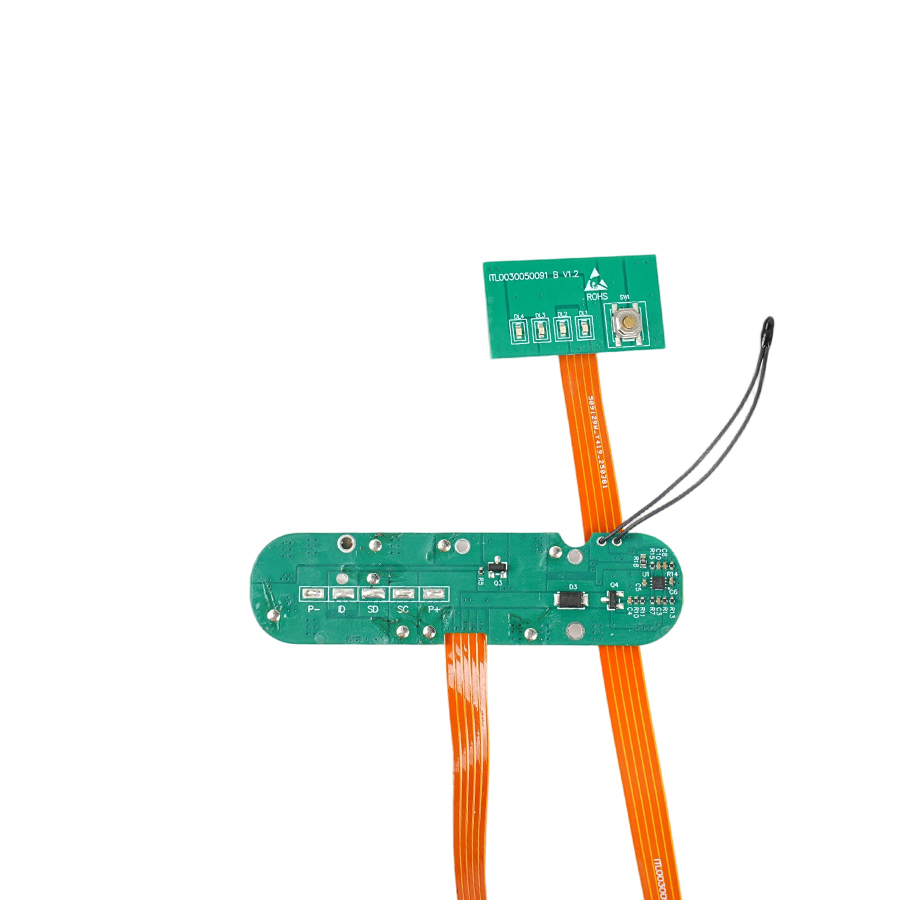

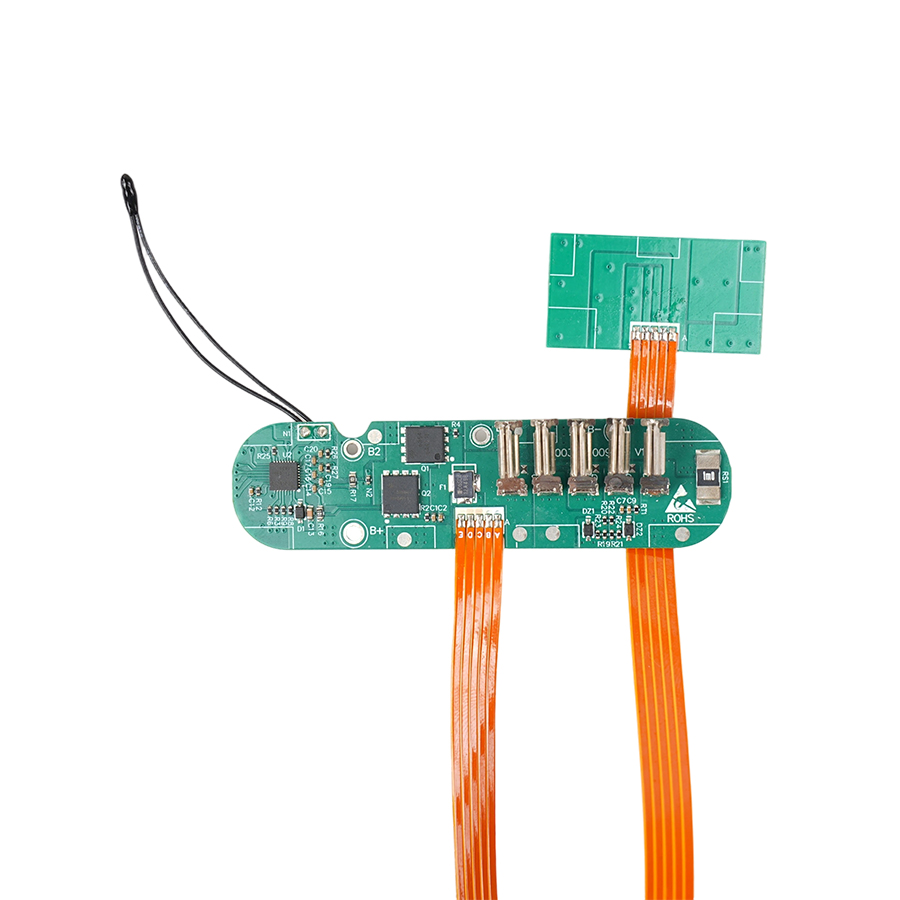

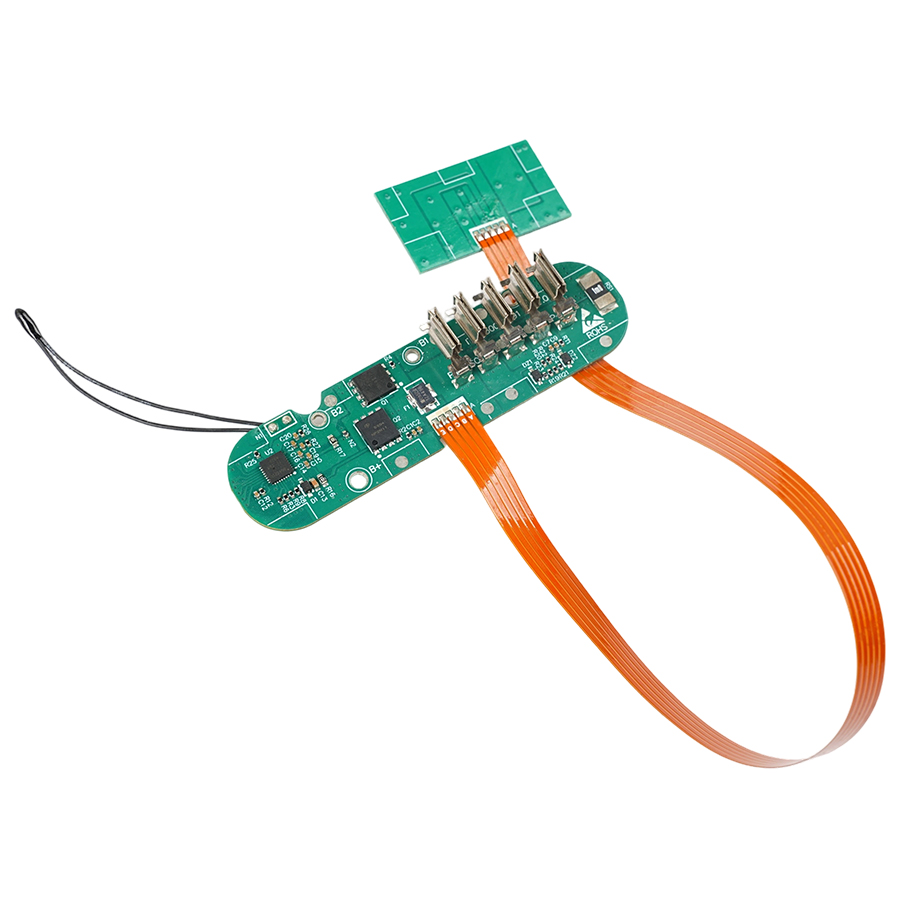

* Product solution Model number: BAKTH-ITL0030050091-01

* Product Solution: BQ40Z50/BQ4050

* Compatibleinterface: Hardware board  DC TO DC charge

* Battery Type: LiFe-PO4/Li-ion

* Serial number: 3S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.025V

* 2st Level charge detection voltage(Cell): 4.450V±0.025V

* Over Discharge Detection Voltage(Cell): 2.500V±0.025V

* OCD1 Over Current Discharge: 8.0A±0.5A

* OCD2 Over current Discharge: 6.50A±0.5A

* OCC1 Over current charge: 5.0A±0.5A

* Discharging Temperature:  -25℃~60℃

* Charge Temperature:  0℃~50℃

* Max.Discharge Current: 5A

* Max.charge Current: 6A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 71.4*18.51*11.14mm
