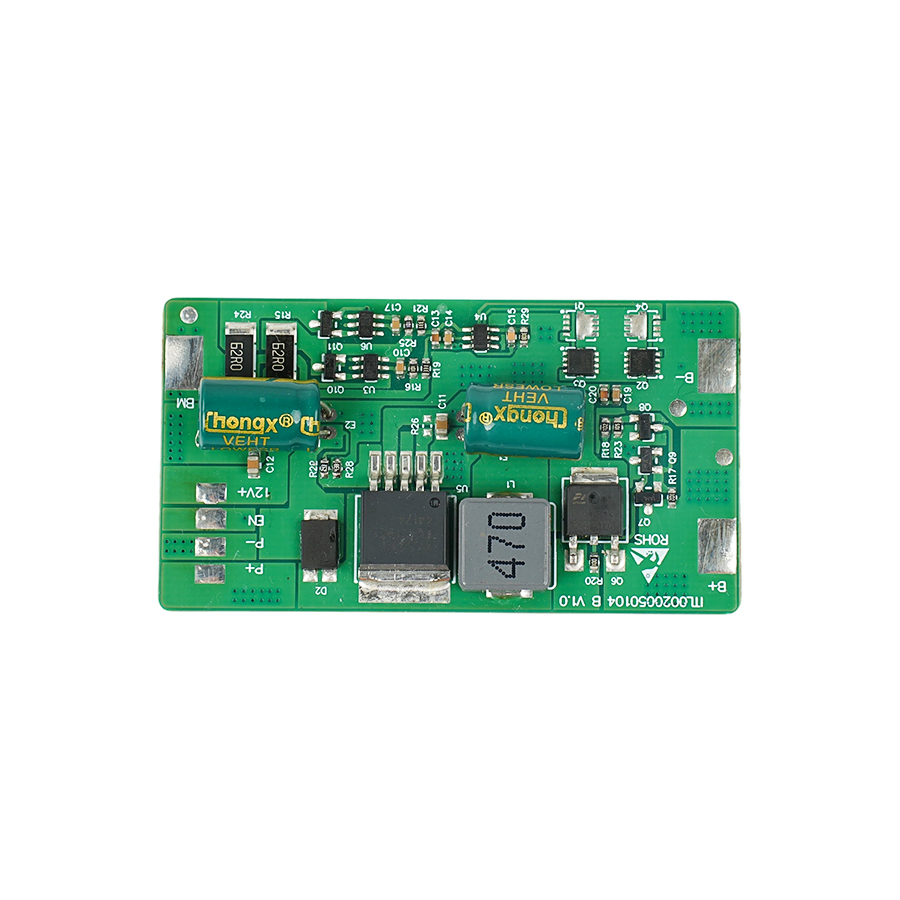

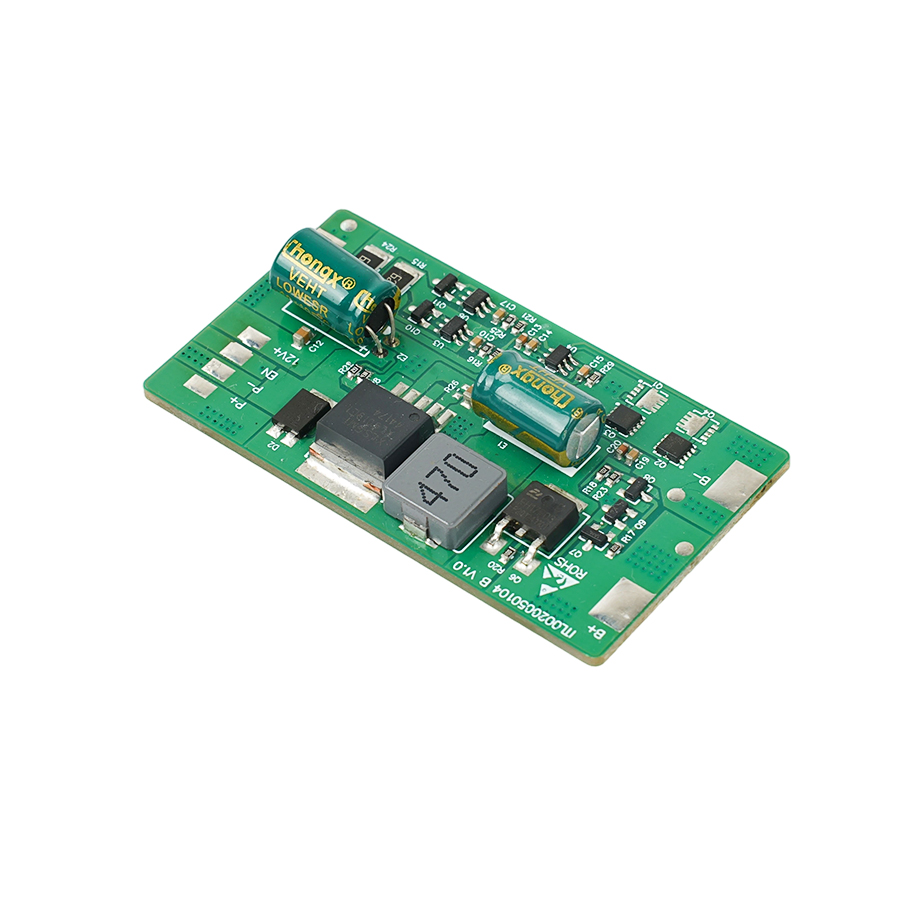

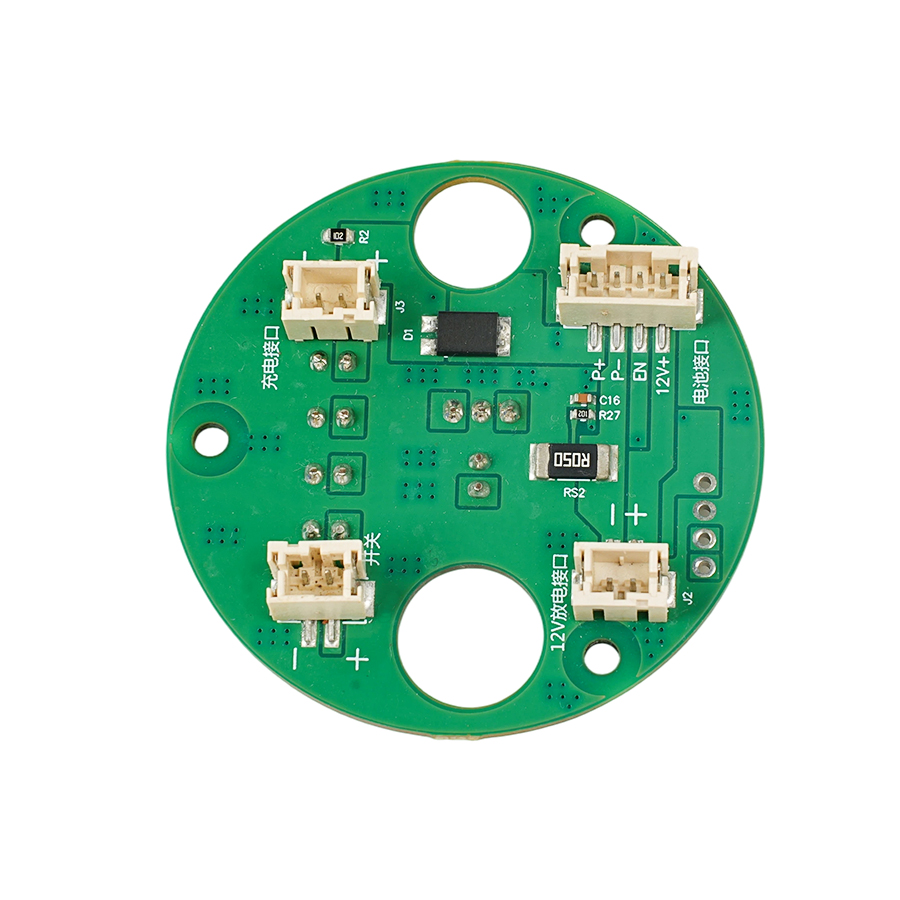

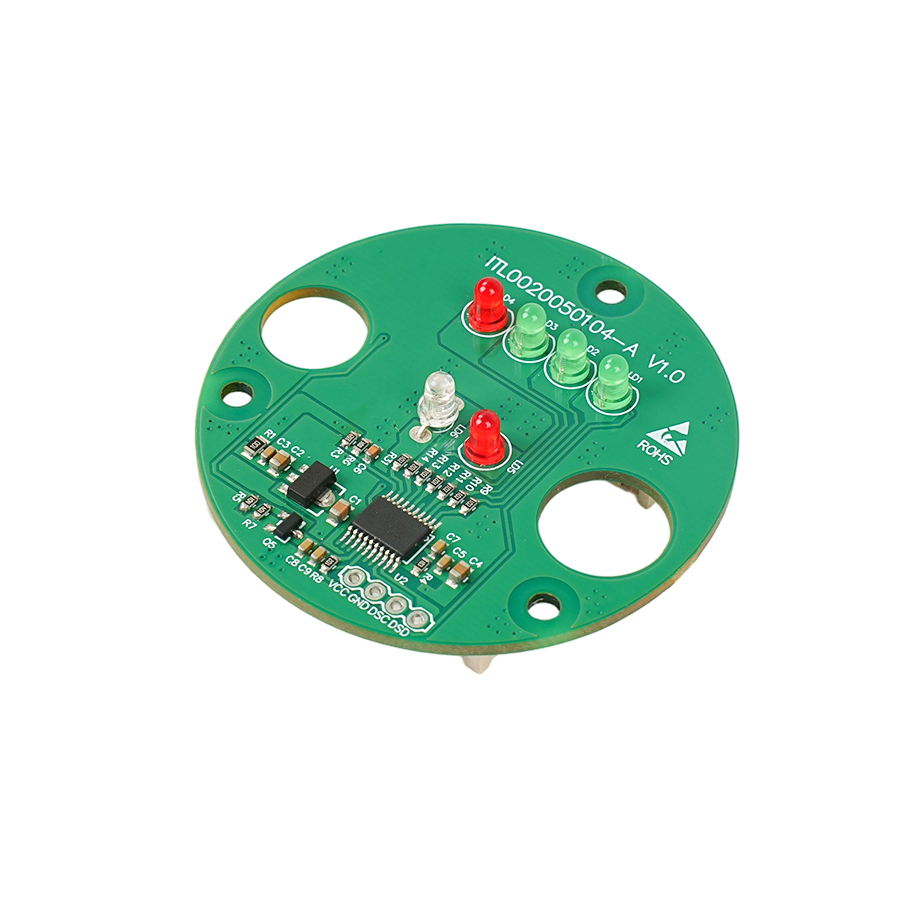

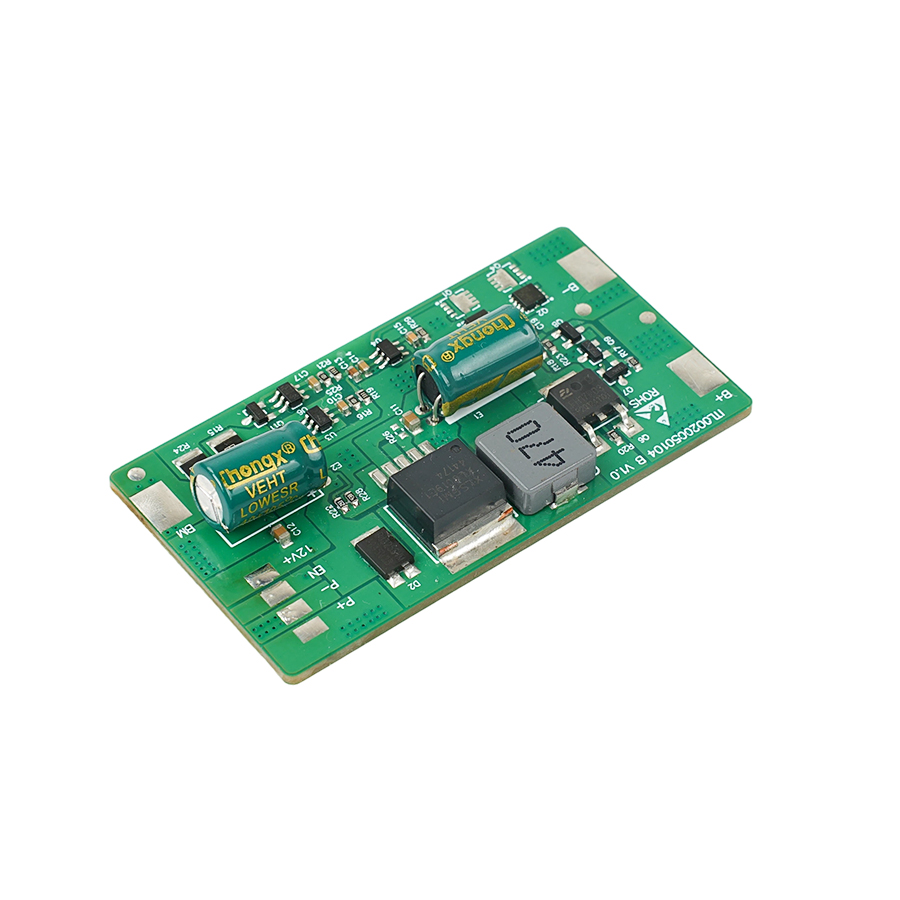

* Product solution Model number: BAKTH-ITL0020050104-01

* Product Solution: HY2213+HY2120+XL6019

* Compatibleinterface: Hardware board

* Battery Type: Li-ion

* Serial number: 2S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.030V

* Over Discharge Detection Voltage(Cell): 2.700V±0.030V

* Over Current Discharge: 20A±3A

* Over Current Charge: 8A±3A

* Discharging Temperature:  /

* Charge Temperature:  /

* Max.Discharge Current: 5A

* Max.charge Current: 5A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): A: Ø26.4*14.0±0.5mm B:64*35*9.95mm±0.2mm
