* Product solution Model number: BAKTH-ITL0020050111-01

* Product Solution: S-8252AAC-M6T1U

* Compatibleinterface: Hardware board

* Battery Type: Li-ion

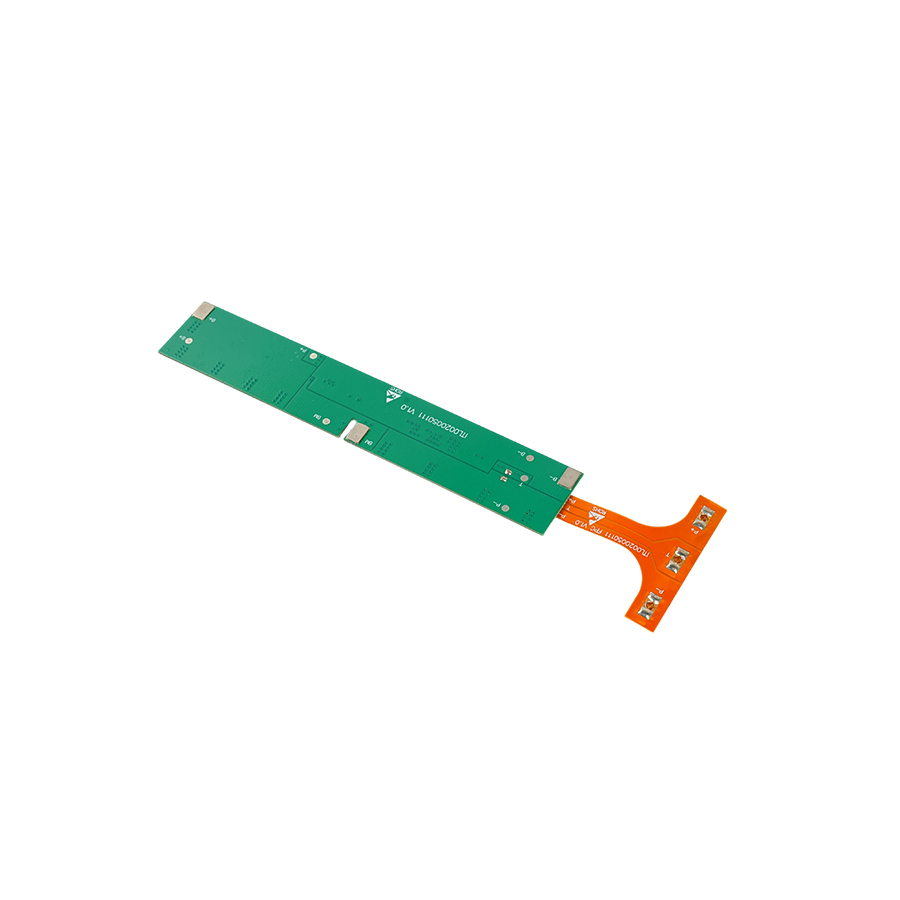

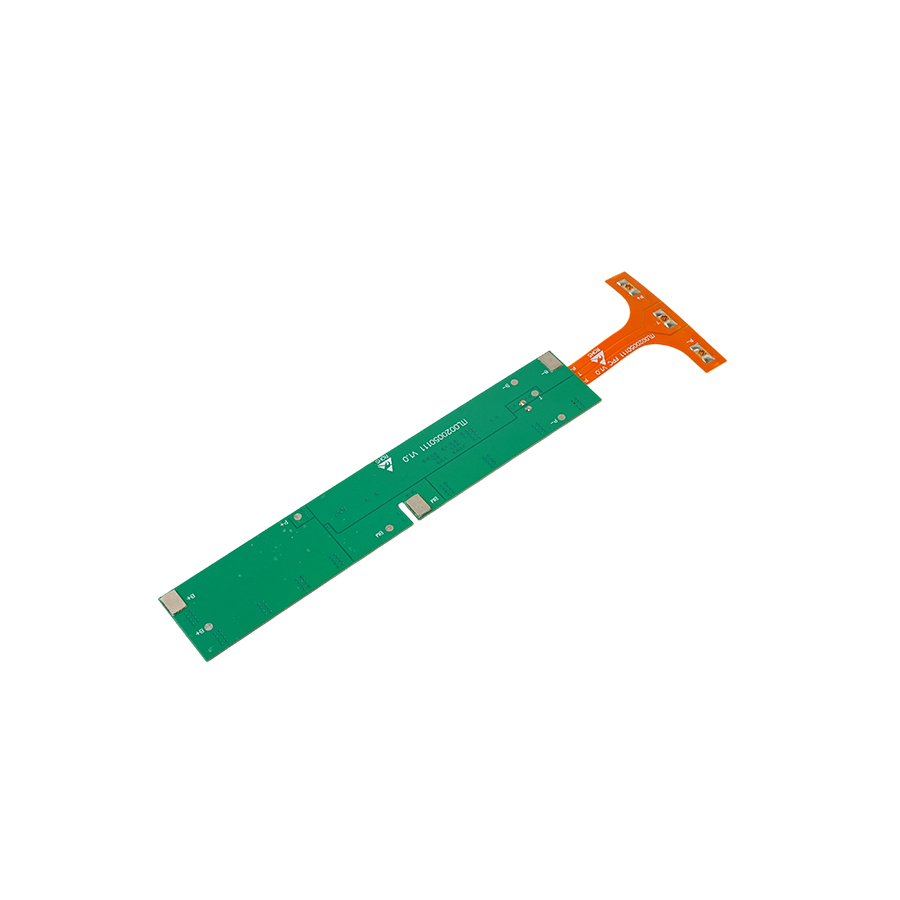

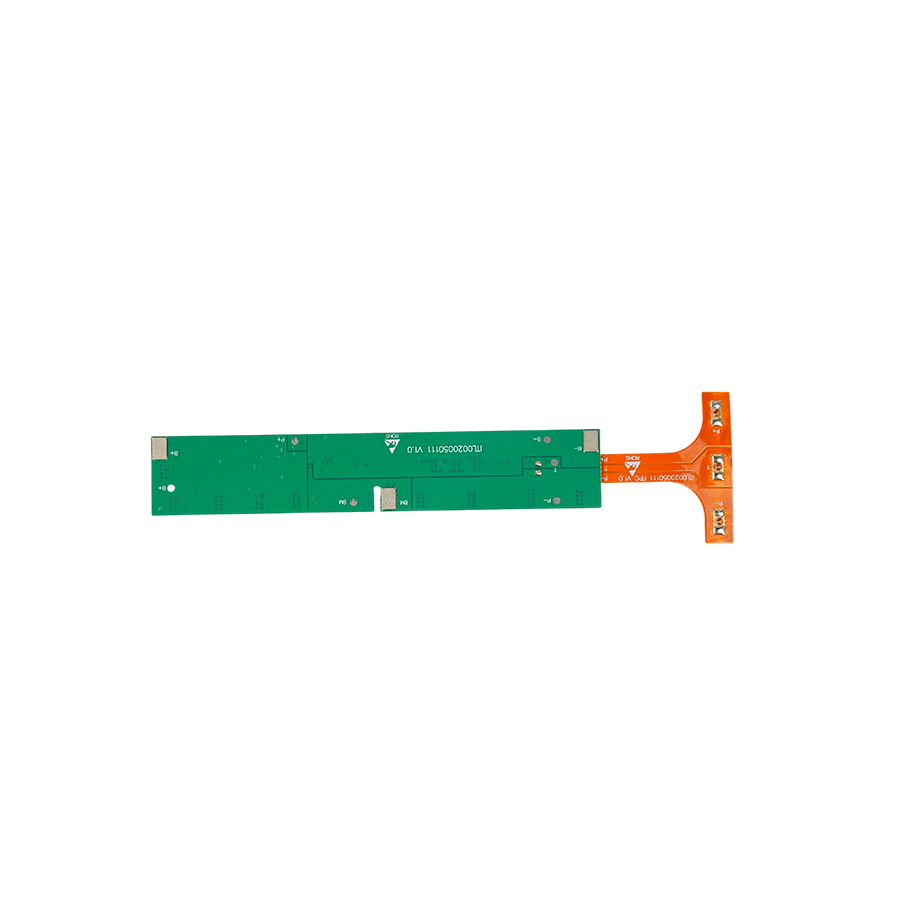

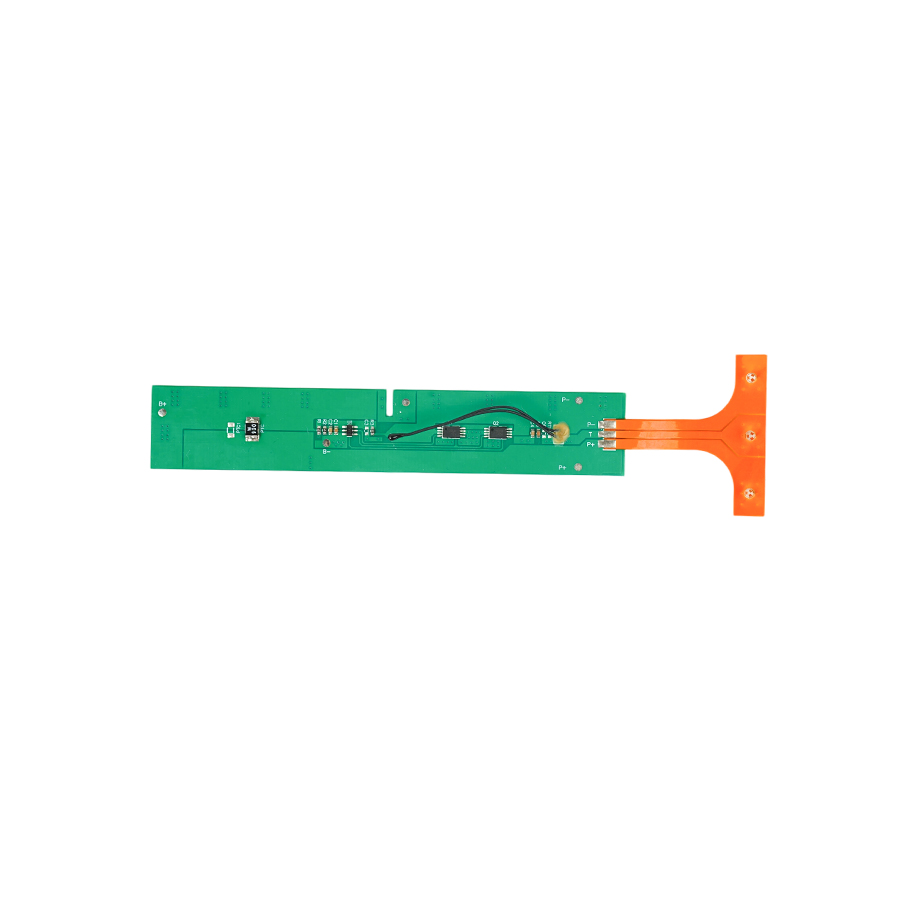

* Serial number: 2S lithium battery protection board

* Over charge detection voltage(Cell):  4.300V±0.030V

* Over Discharge Detection Voltage(Cell): 2.400V±0.030V

* Over Current Discharge: 15A±3A

* Over Current Charge: 15A±3A

* Discharging Temperature:  /

* Charge Temperature:  /

* Max.Discharge Current: 5A

* Max.charge Current: 5A

* Design Certification Requirements: Conform to IEC62133、KC

* Dimension(mm): 60*25*2.46mm
