* Product solution Model number: BAKTH-ITL0030050113-01

* Product Solution: BQ4050/BQ40Z50

* Compatibleinterface: SMBUS

* Battery Type: Li-ion

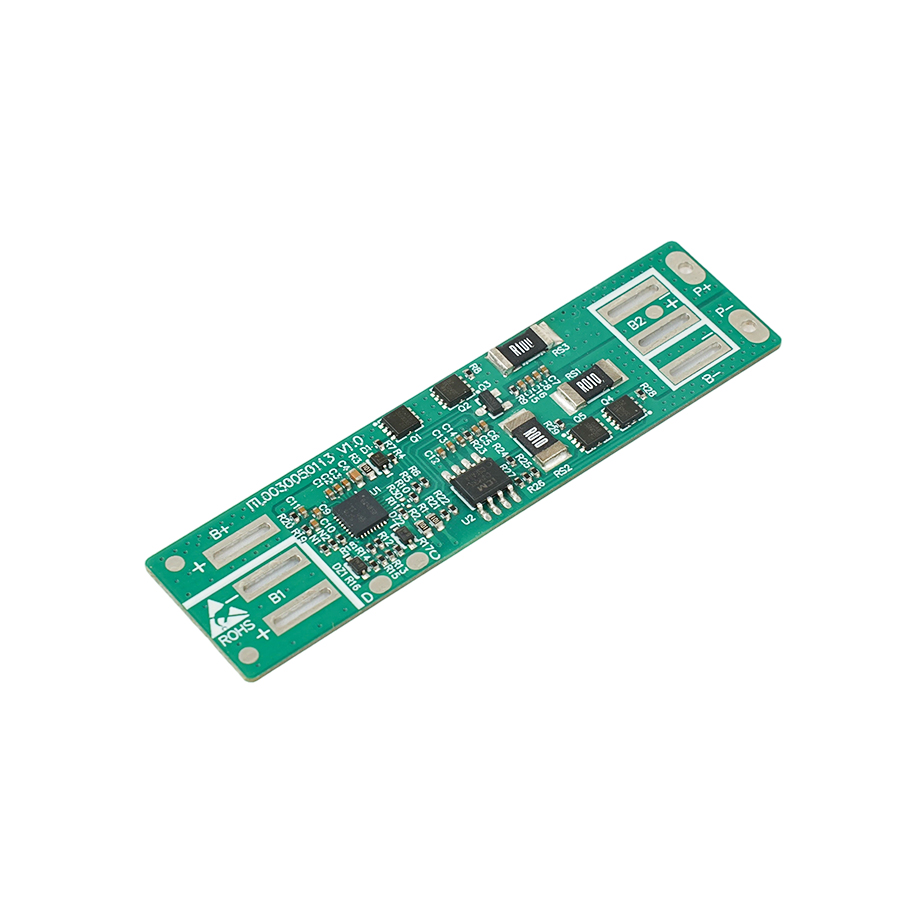

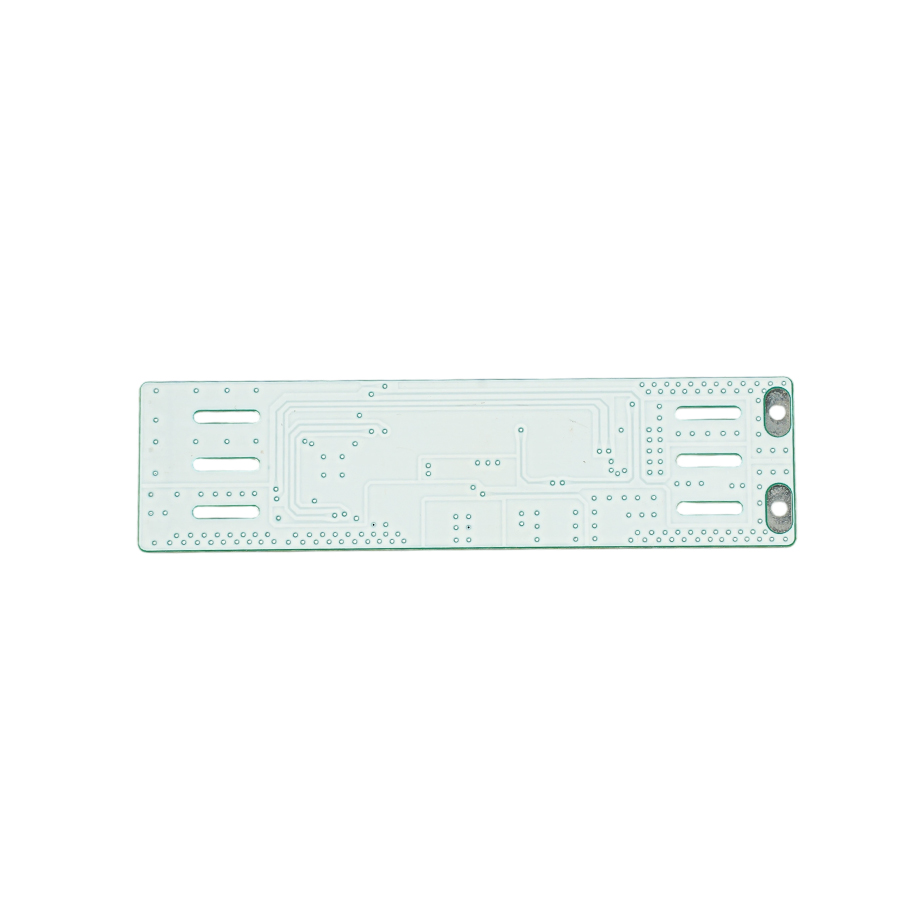

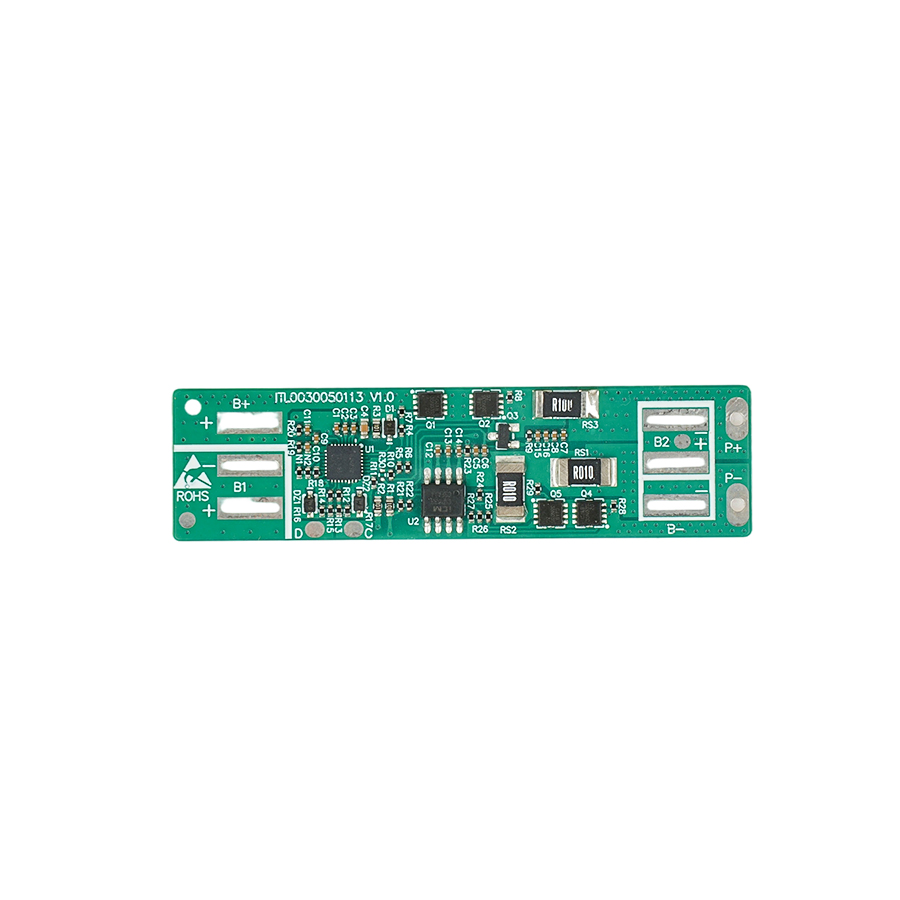

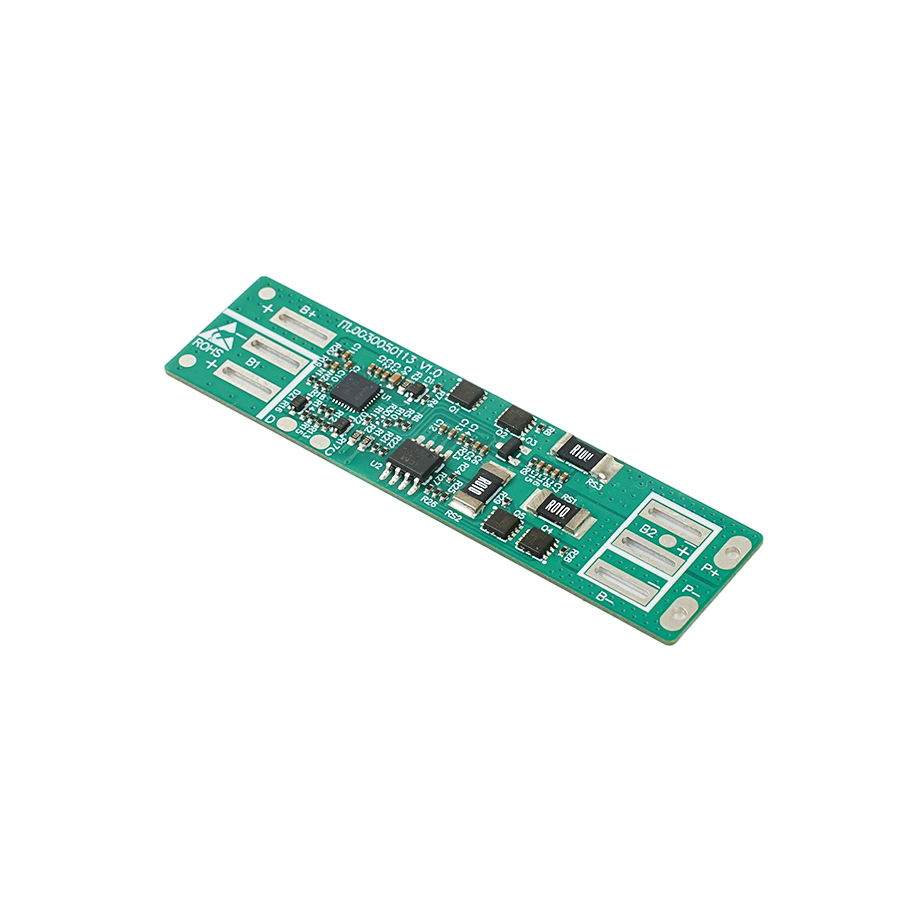

* Serial number: 3S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.030V

* Over Discharge Detection Voltage(Cell): 2.700V±0.030V

* Over Current Discharge: 1.2A±0.2A

* Over Current Charge: 2.0A±0.2A

* Discharging Temperature:  -20℃~60℃

* Charge Temperature:  -20℃~65℃

* Max.Discharge Current: 0.8A

* Max.charge Current: 0.8A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 125*64*6.79mm
