* Product solution Model number: BAKTH-ITL0030100098-01

* Product Solution: BQ34Z100+BQ4050RSMR

* Compatibleinterface: SMBUS

* Battery Type: Li-ion

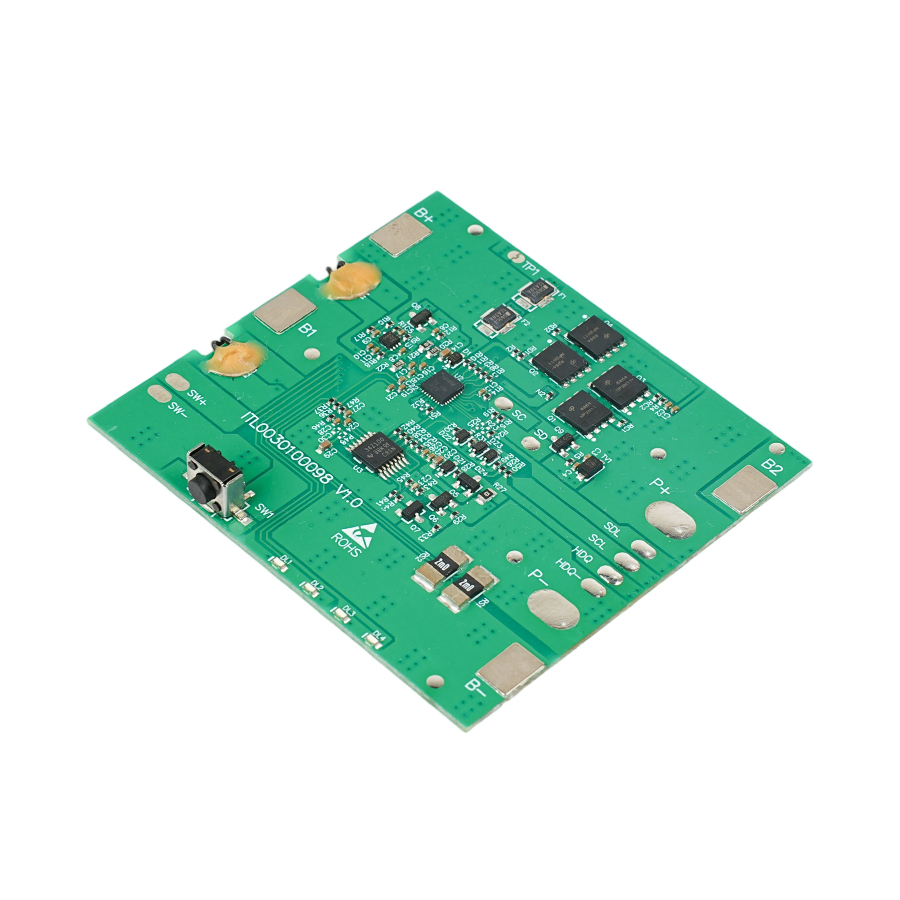

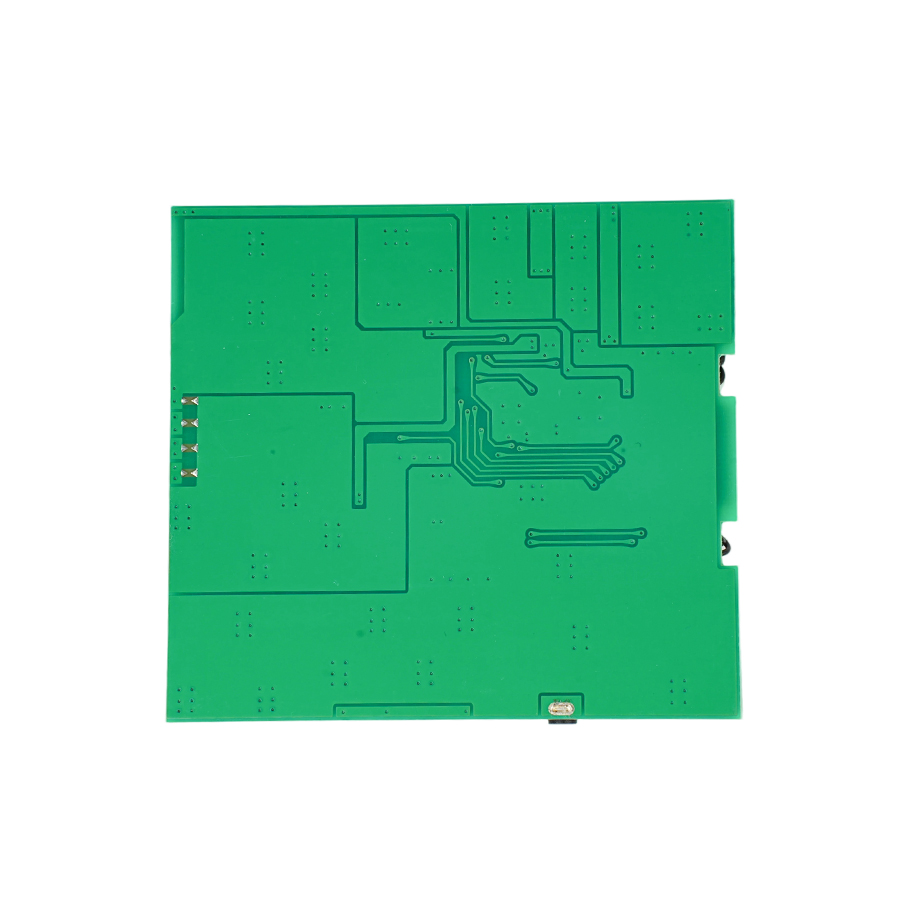

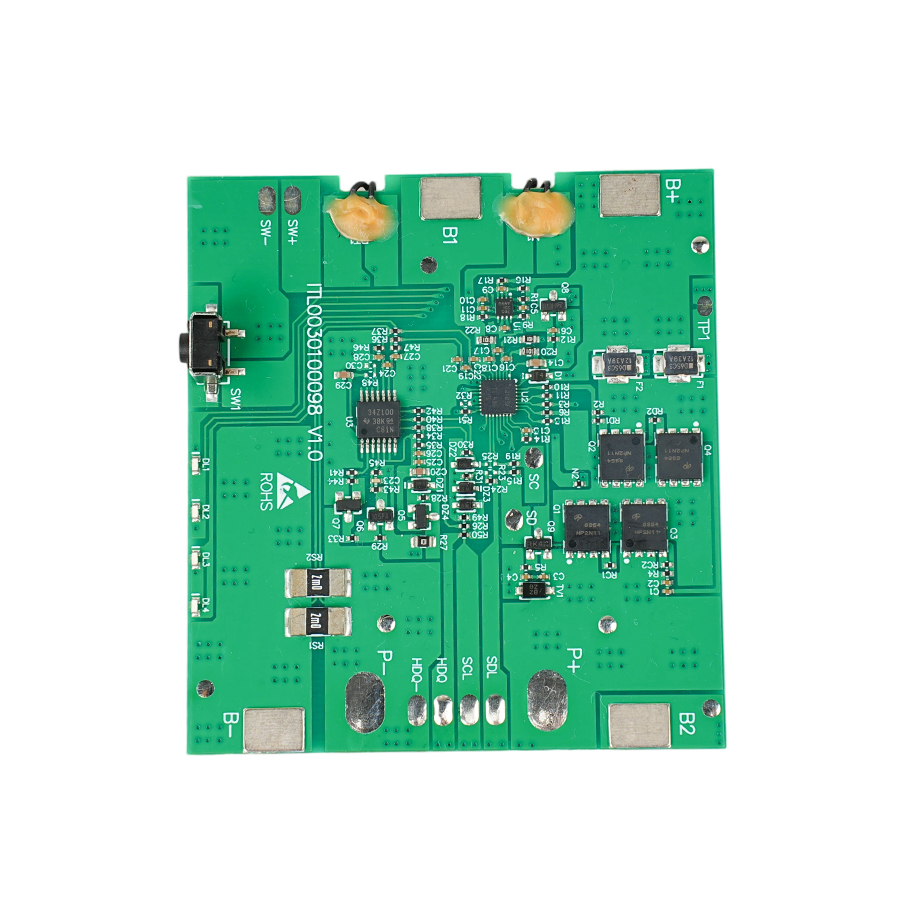

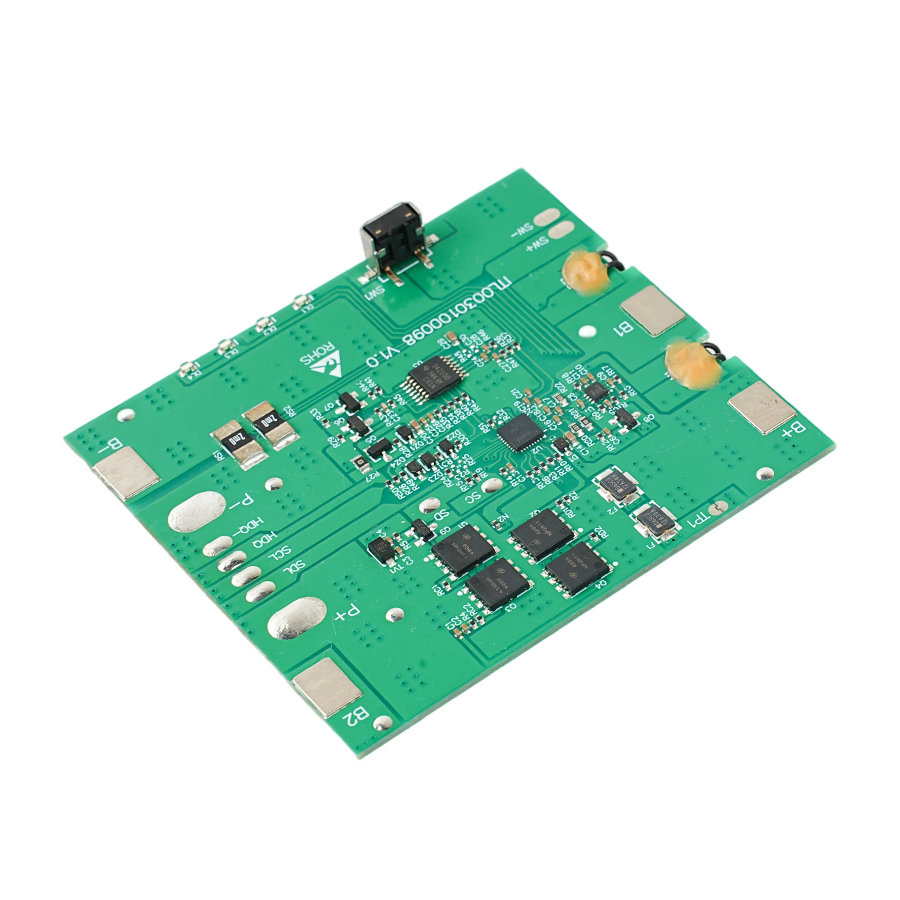

* Serial number: 3S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.025V

* Over Discharge Detection Voltage(Cell): 2.800V±0.025V

* OCD1 Over Current Discharge: 15.0A±0.5A

*OCD2 Over Current Discharge: 18.0A±0.5A

* OCC1 Over Current Charge: 8.0A±0.5A

*OCC2 Over Current Charge: 10.0A±0.5A

* Discharging Temperature:  -5℃~60℃

* Charge Temperature:  -20℃~65℃

* Max.Discharge Current: 7A

* Max.charge Current: 10A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 68*62*7.78mm
