* Product solution Model number: BAKTH-ITL0041000097-01

* Product Solution: CW1244AFBS

* Compatibleinterface: Hardware board

* Battery Type: LiLe-PO4

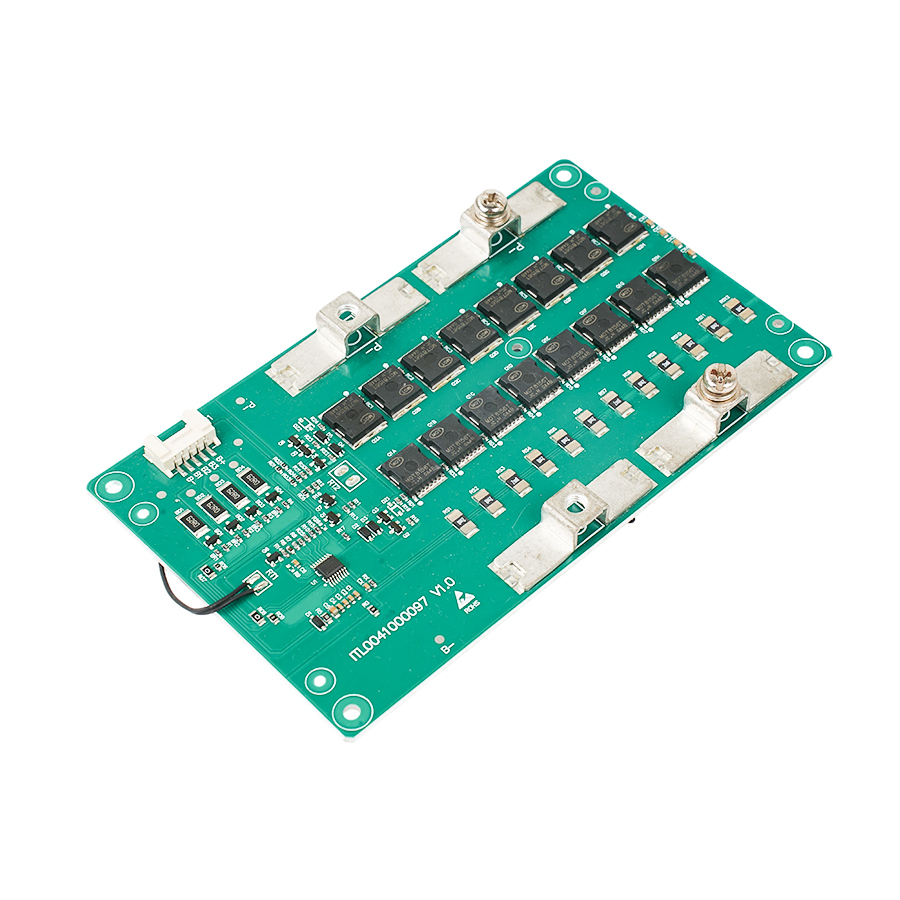

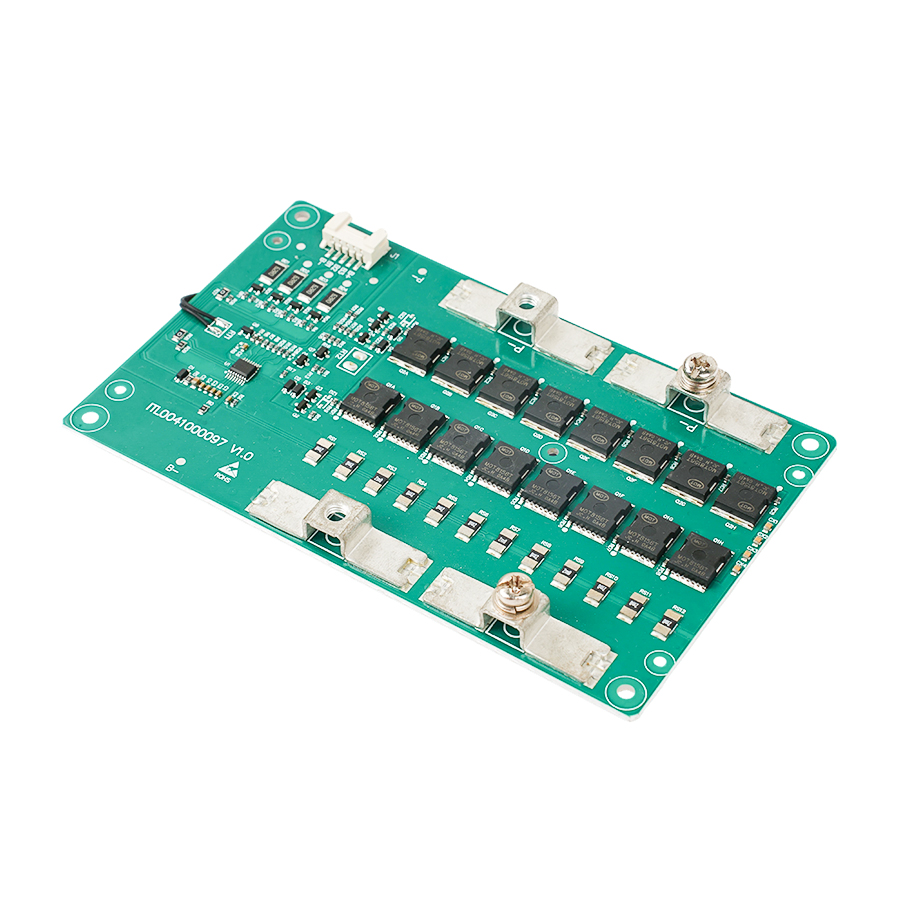

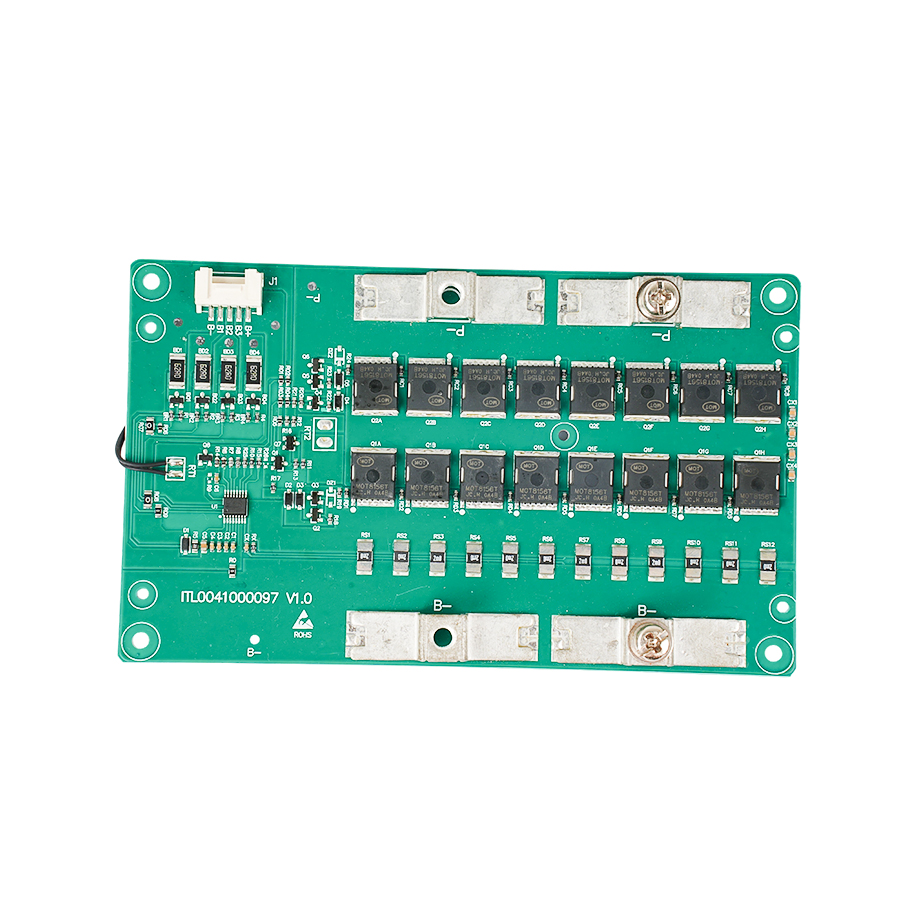

* Serial number: 4S lithium battery protection board

* Over charge detection voltage(Cell):  3.850V±0.030V

* Over Discharge Detection Voltage(Cell): 2.300V±0.030V

* Equalizing voltage: 3.725V±0.100V

* Equalizing current: 40mA-80mA

* Over Current Discharge: 12A±3A

* Over Current Charge: 12A±3A

* Discharging Temperature:  -7℃~61℃

* Charge Temperature:  -6℃~61℃

* Max.Discharge Current: 100A

* Max.charge Current: 50A

* Design Certification Requirements: Conform to IEC62133、KC

* Dimension(mm): 147*88*10.10mm
