* Product solution Model number: BAKTH-ITL0050050121-01

* Product Solution: SH367005X/ 020XY-AAC00

* Compatibleinterface: Hardware board

* Battery Type: LiFe-PO4/Li-ion

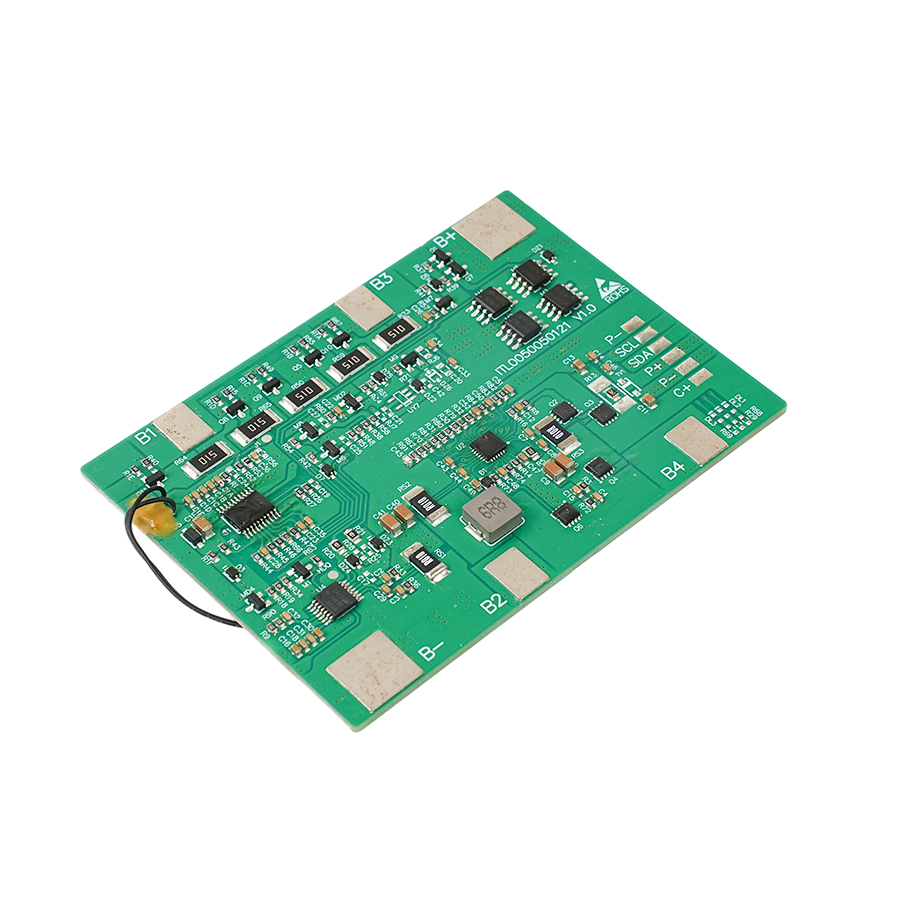

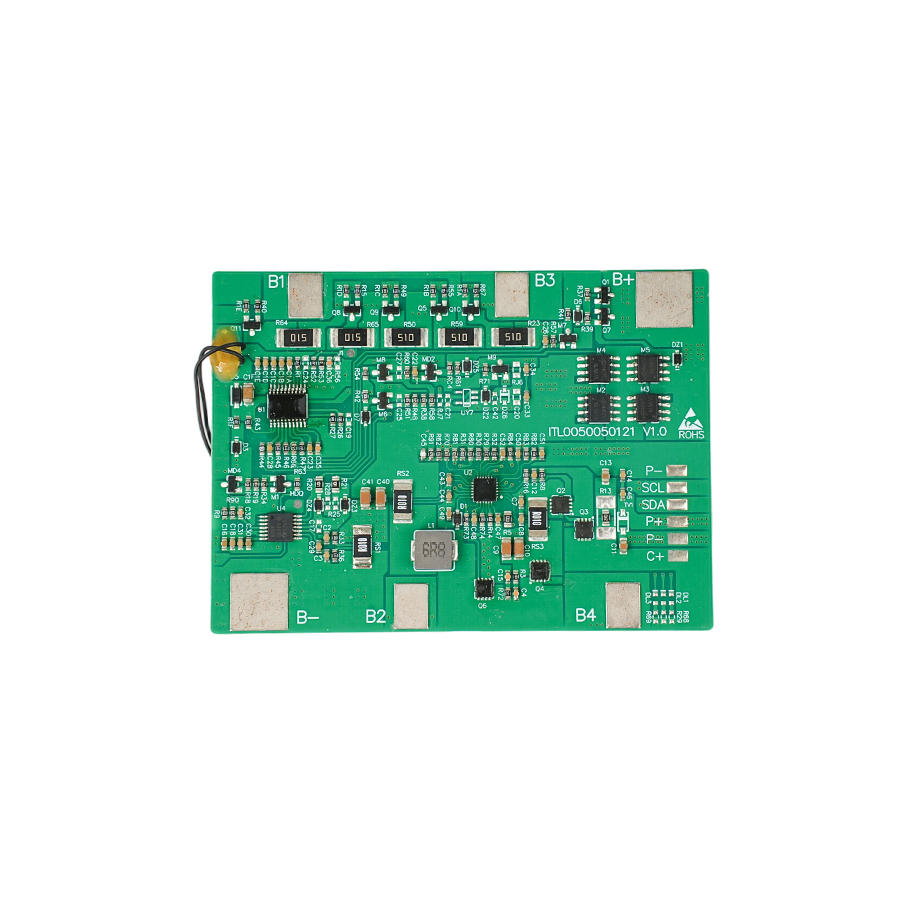

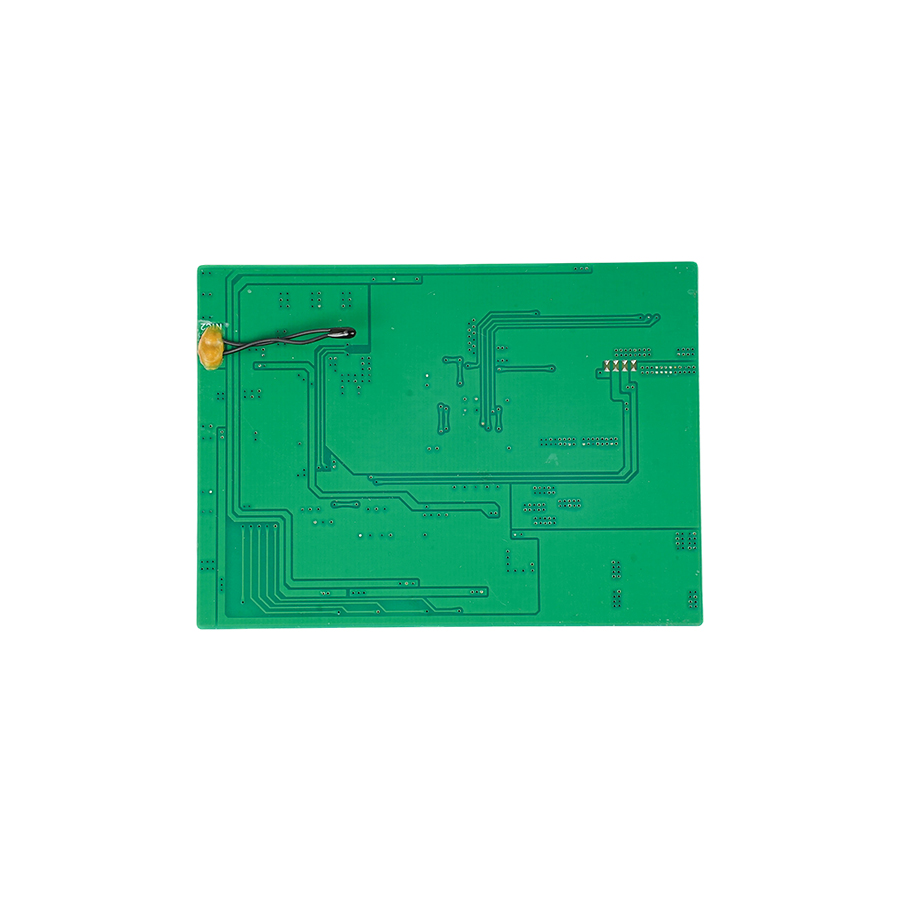

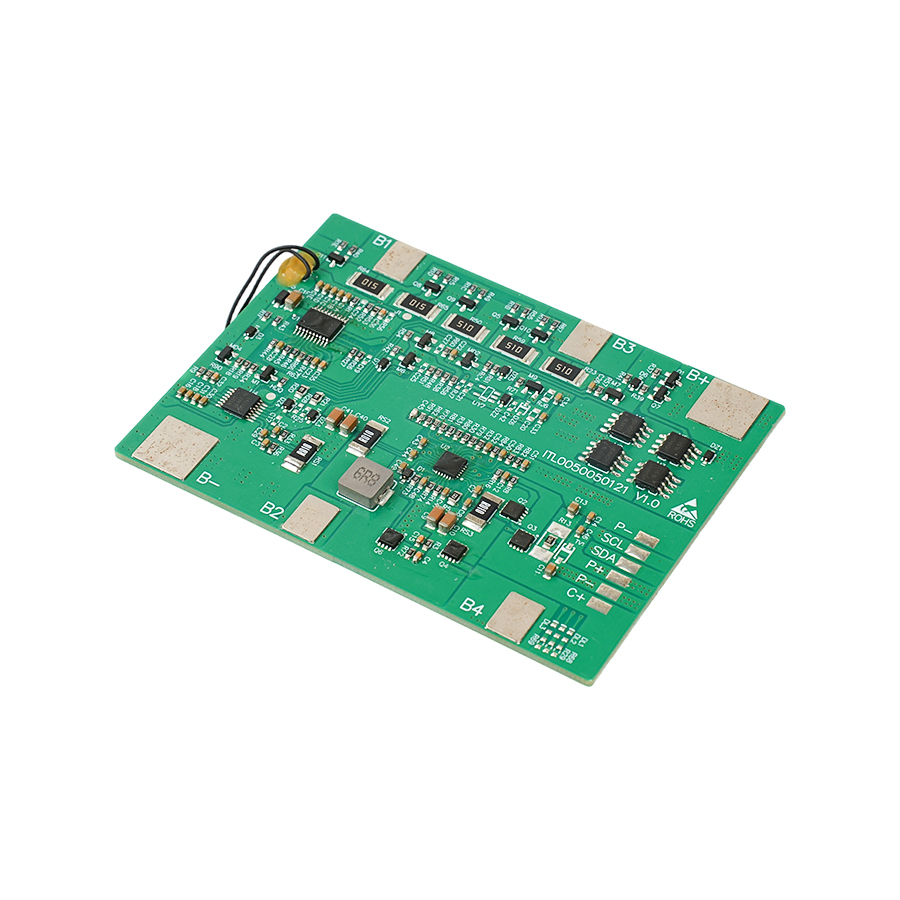

* Serial number: 5S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.050V

* Over Discharge Detection Voltage(Cell): 2.700V±0.050V

* Cell Balance Window:  50mV

* Balance Current:  60mA-100mA

* Over Current Discharge: 10A±2A

* Over Current Charge: /

* Discharging Temperature:  1℃~74℃

* Charge Temperature:  -4℃~54℃

* Max.Discharge Current: 5A

* Max.charge Current: 1.5A

* Design Certification Requirements: Conform to IEC62133、KC

* Dimension(mm): 88*64*4.45mm
