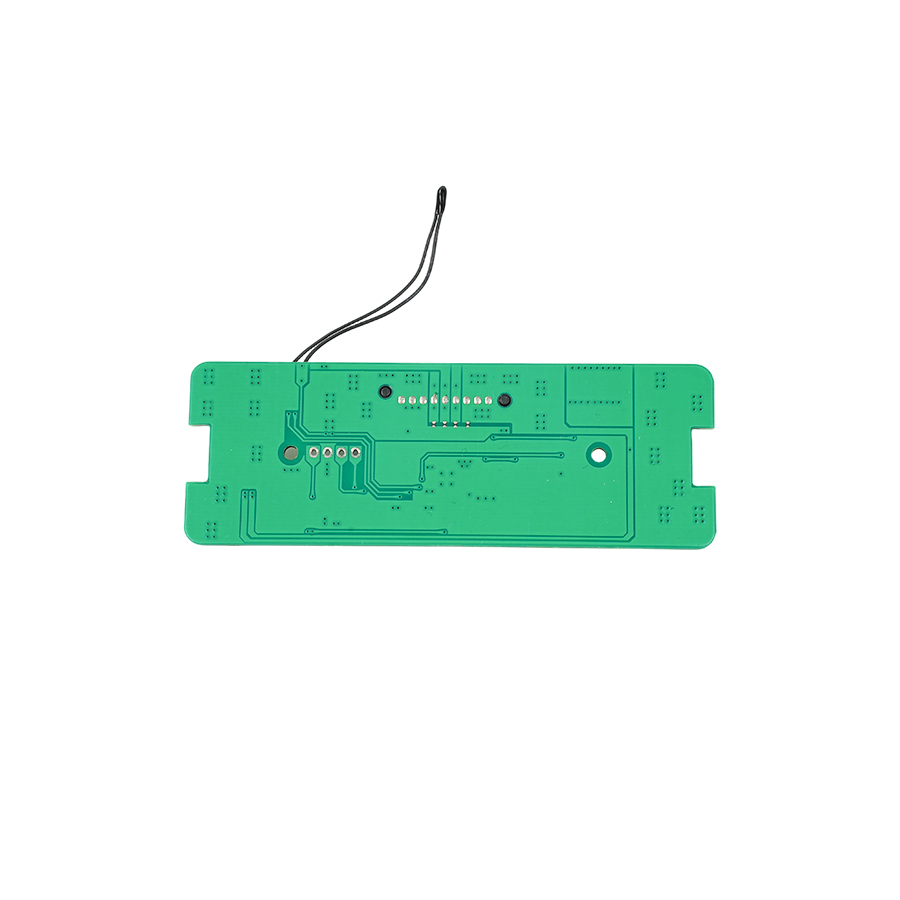

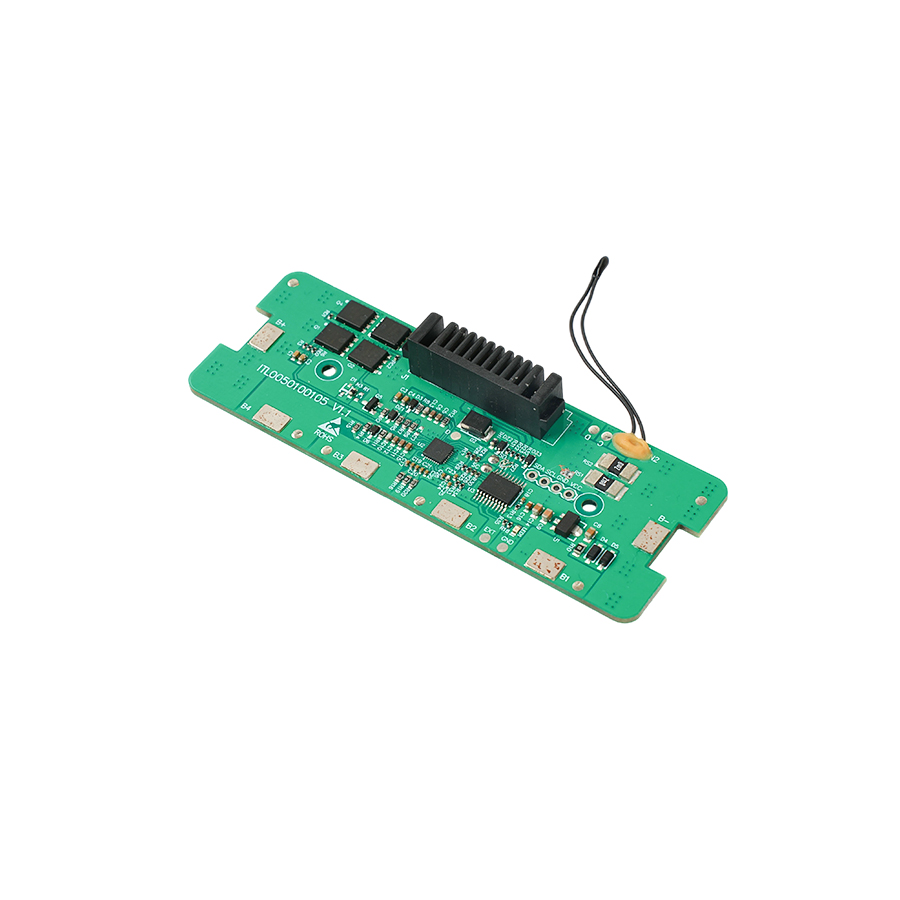

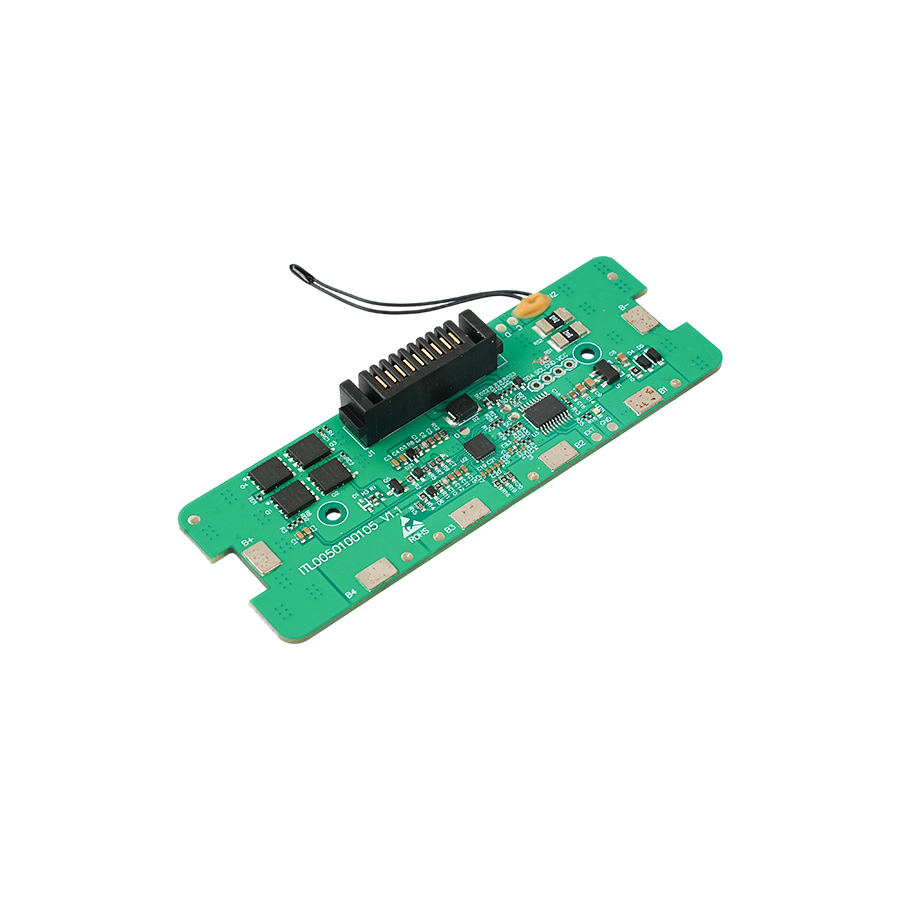

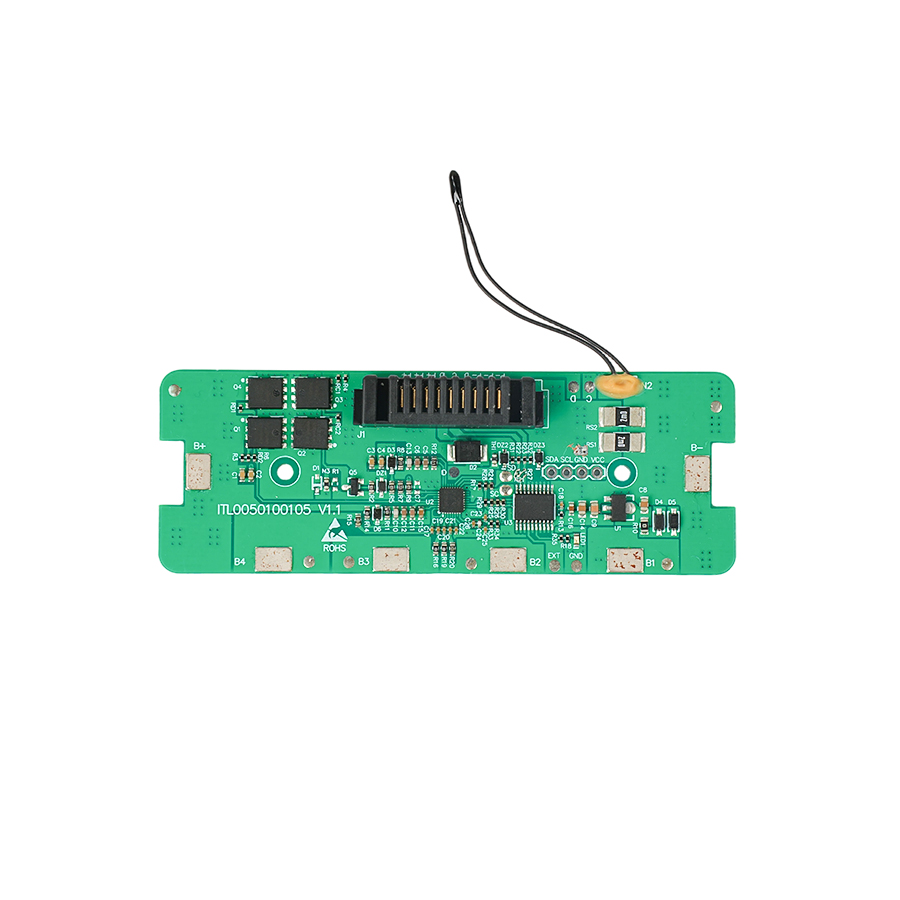

* Product solution Model number: BAKTH-ITL0050100105-01

* Product Solution: BQ40Z80

* Compatibleinterface: SMBUS

* Battery Type: LiFe-PO4/Li-ion

* Serial number: 5S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.025V

* Over Discharge Detection Voltage(Cell): 2.500V±0.025V

* OCD1 Over Current Discharge: 10.0A±0.2A

* OCD2 Over Current Discharge: 10.50A±0.2A

* OCC1 Over Current Charge: 15A±3A

* OCC2 Over Current Charge: 6.50A±0.5A

* Discharging Temperature:  -36℃~74℃

* Charge Temperature:  -6℃~74℃

* Max.Discharge Current: 8A

* Max.charge Current: 5A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 96*34*11.57mm
