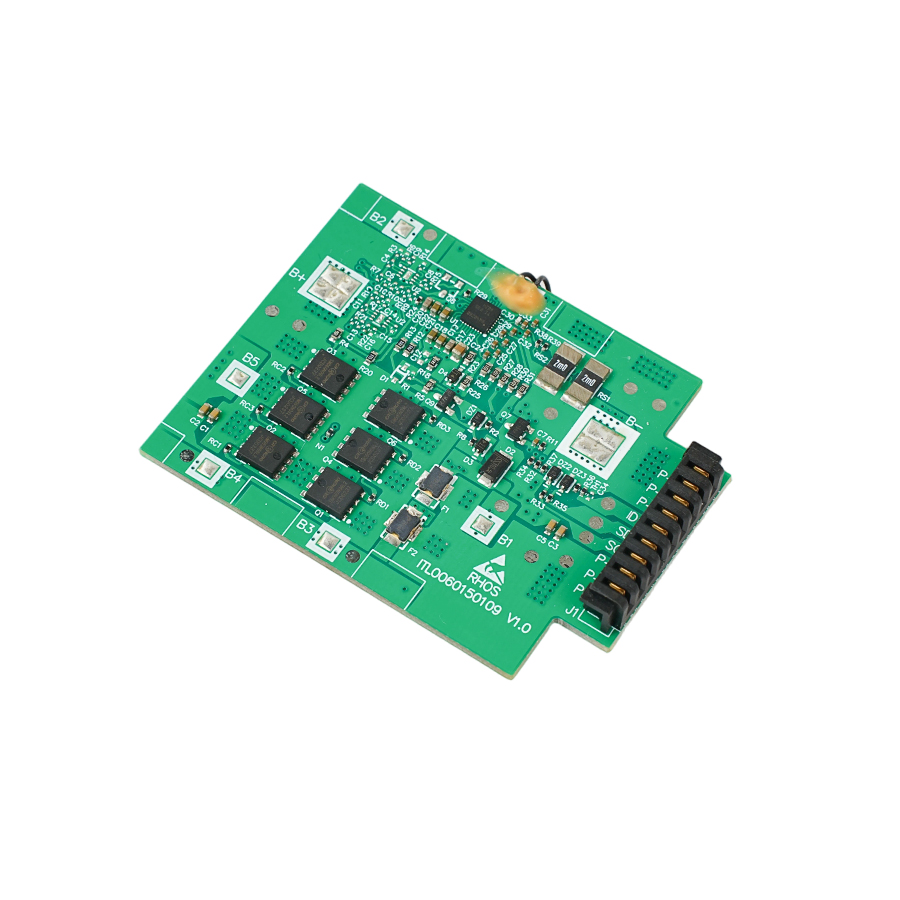

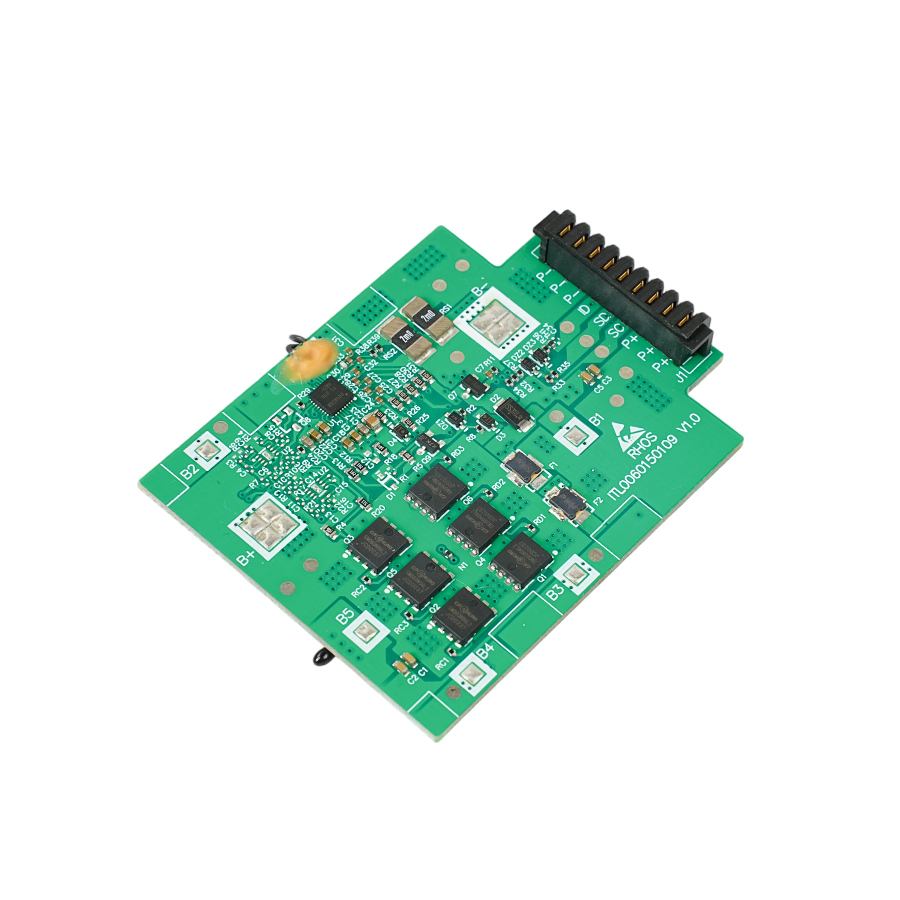

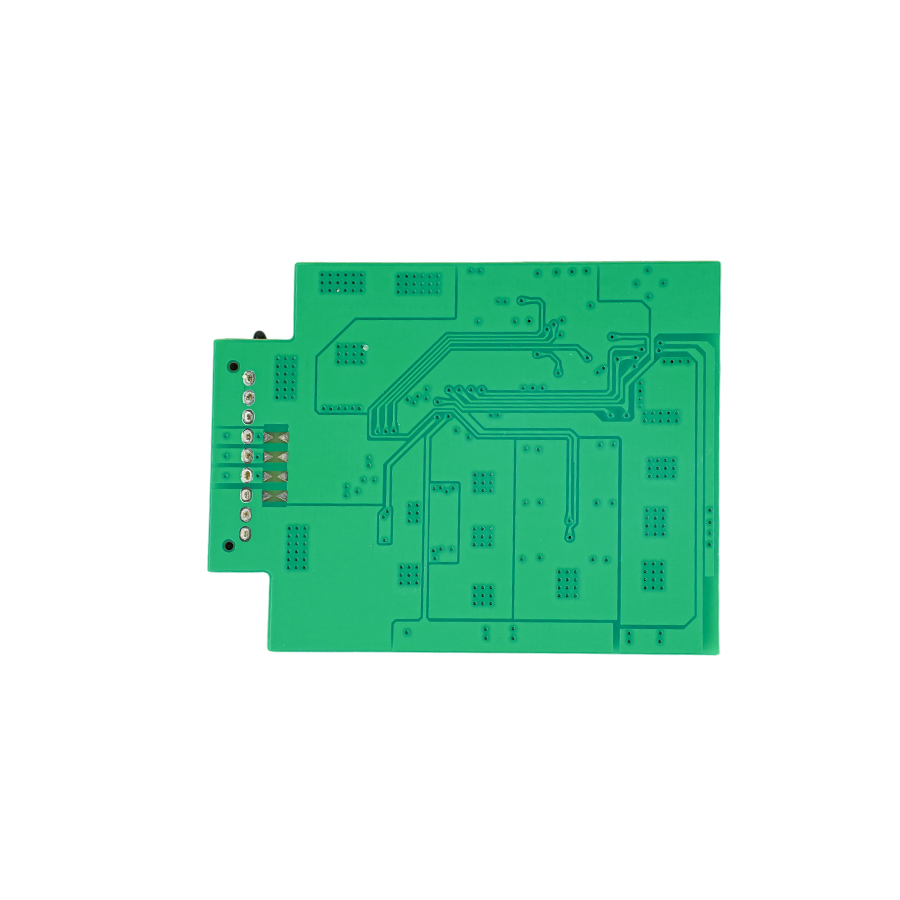

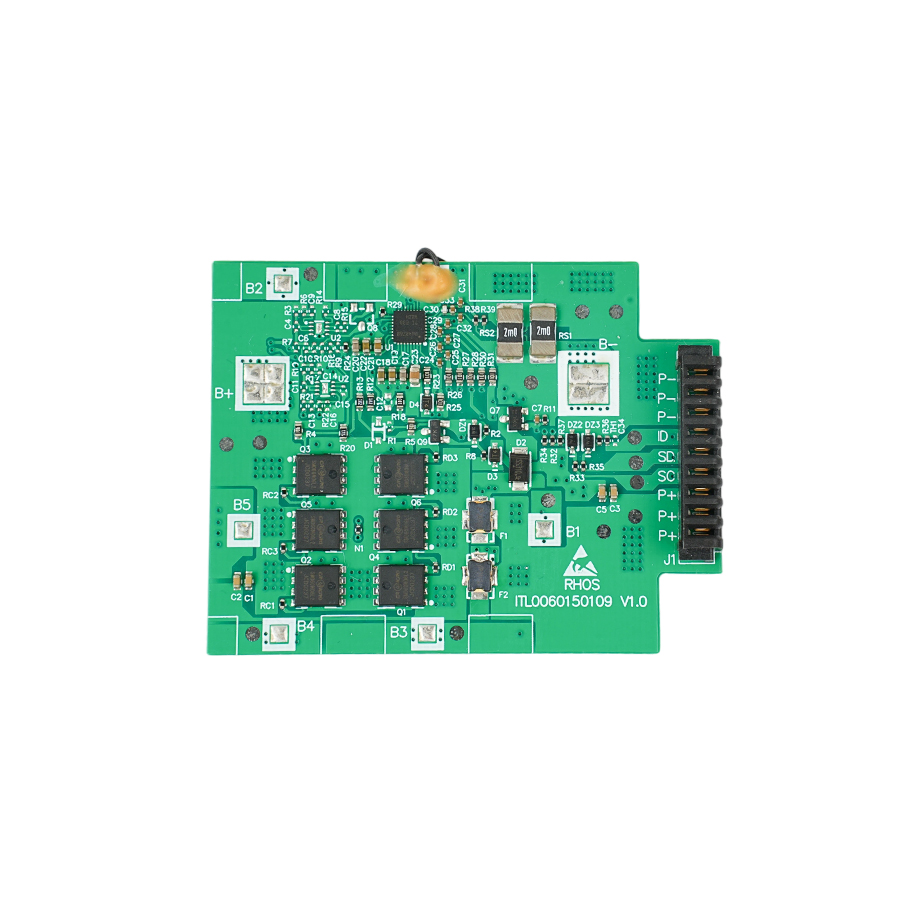

* Product solution Model number: BAKTH-ITL0060150109-01

* Product Solution: BQ40Z80RSMR

* Compatibleinterface: SMBUS

* Battery Type: Li-ion

* Serial number: 6S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.025V

* Over Discharge Detection Voltage(Cell): 2.700V±0.025V

* OCD1 Over Current Discharge: 12.0A±0.2A

* OCD2 Over Current Discharge: 14.0A±0.2A

* OCC1 Over Current Charge: 3.0A±0.5A

* OCC2 Over Current Charge: 4.0A±0.5A

* Discharging Temperature:  -18℃~64℃

* Charge Temperature:  -4℃~49℃

* Max.Discharge Current: 8A

* Max.charge Current: 3A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 92*52*8.31mm
