* Product solution Model number: BAKTH-ITL0060300110-01

* Product Solution: BQ76952PFBR+BQ34Z100PWR

* Compatibleinterface: I2C

* Battery Type: Li-ion

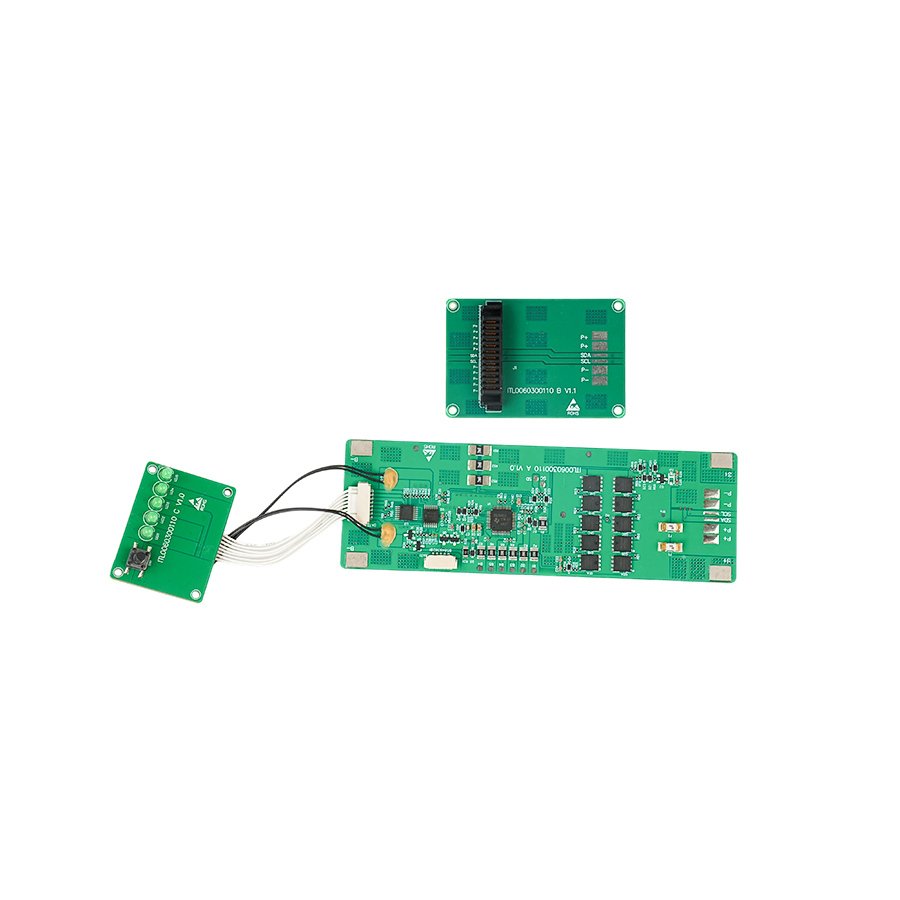

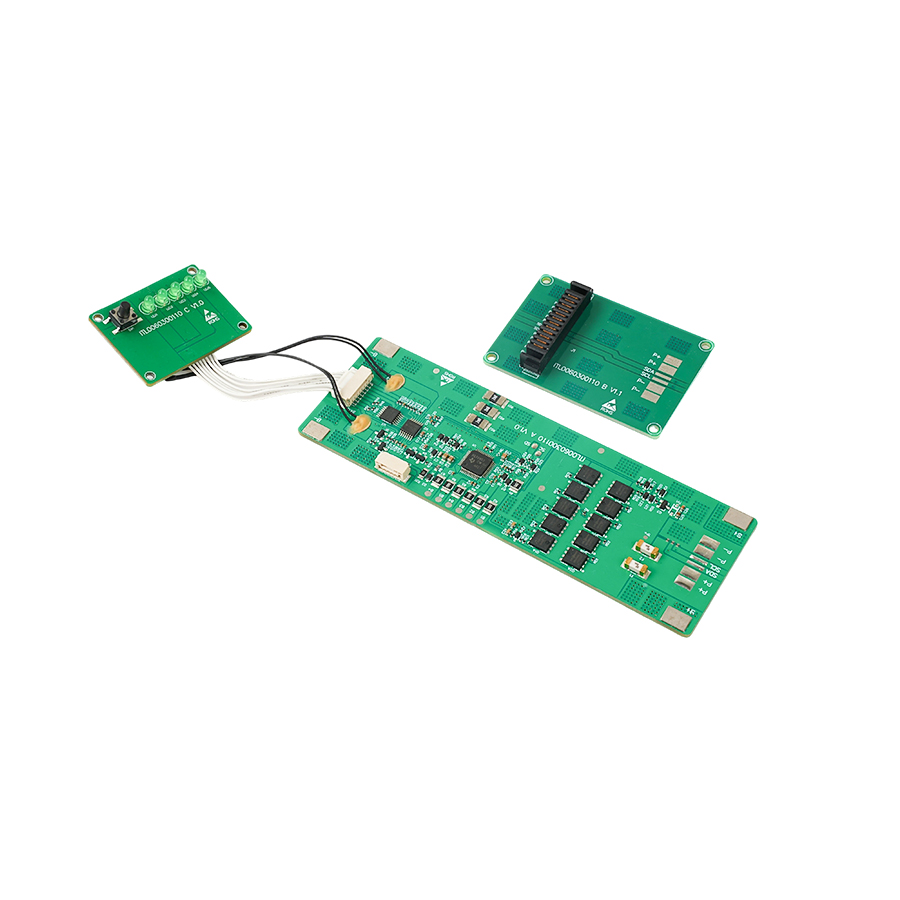

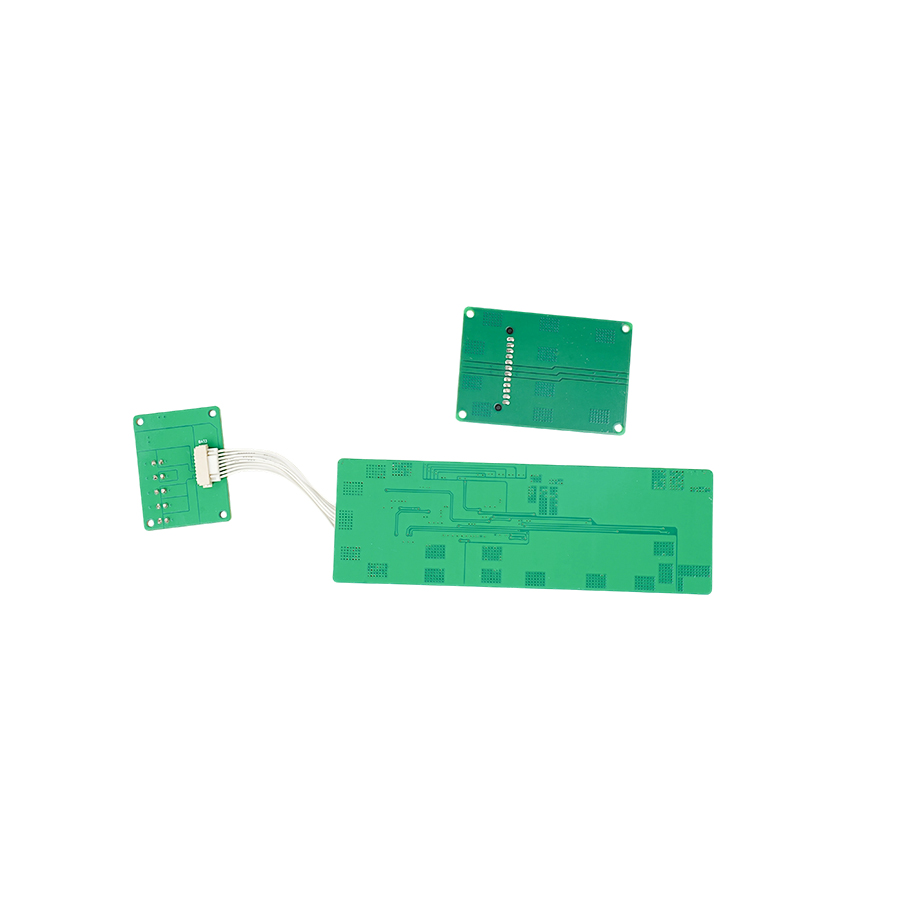

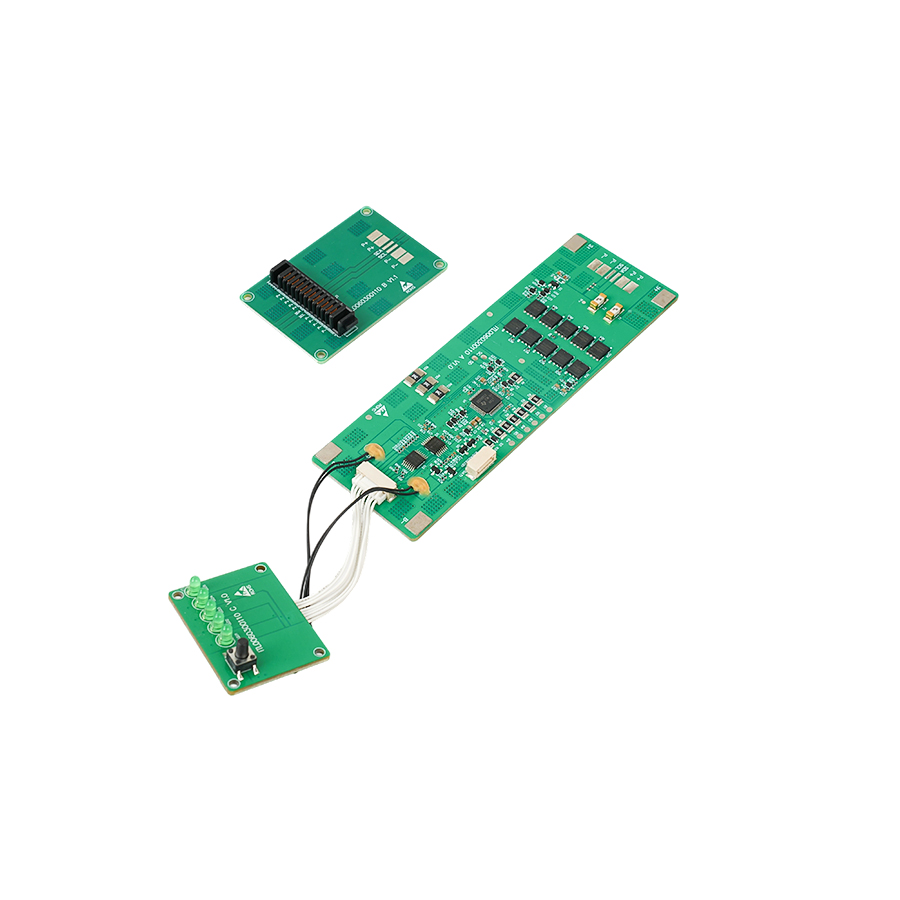

* Serial number: 6S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.050V

* Over Discharge Detection Voltage(Cell): 2.700V±0.050V

* OCD1 Over Current Discharge: 50.0A±2.0A

* OCD2 Over Current Discharge: 60.0A±2.0A

*  OCD3 Over Current Discharge: 75.0A±3.0A

* OCC Over Current Charge: 30.0A±3.0A

* Discharging Temperature:  -26℃~79℃

* Charge Temperature:  -4℃~49℃

* Max.Discharge Current: 20A

* Max.charge Current: 20A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): 130*43**6.00mm
