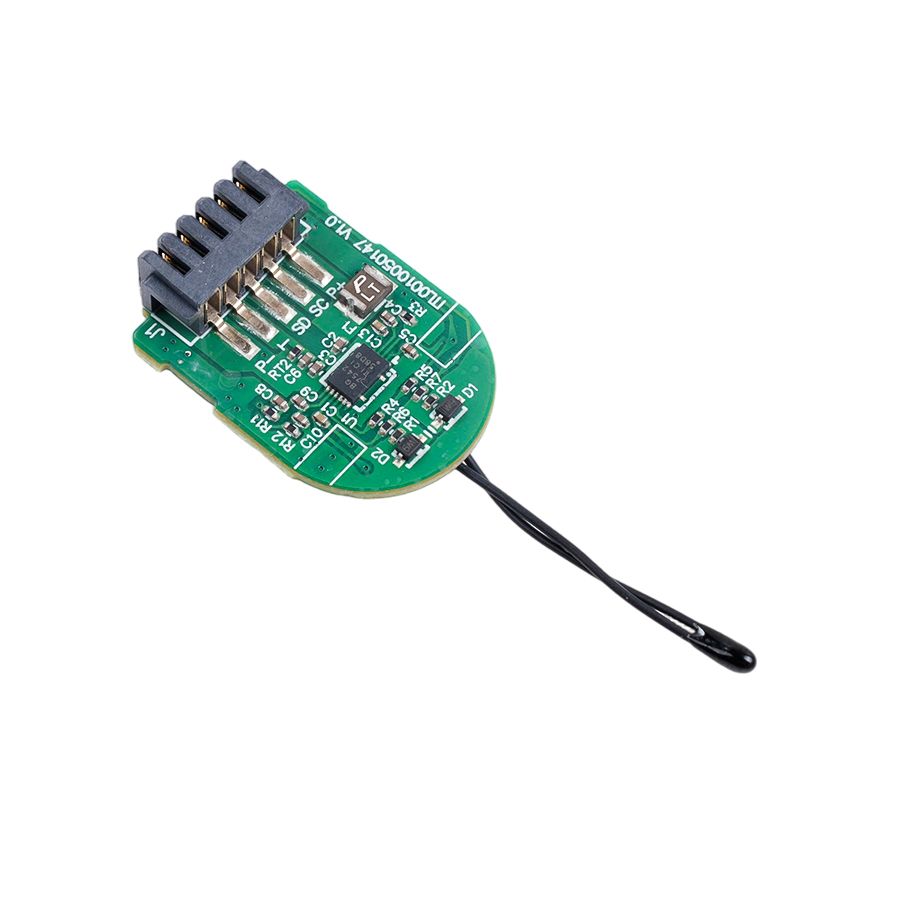

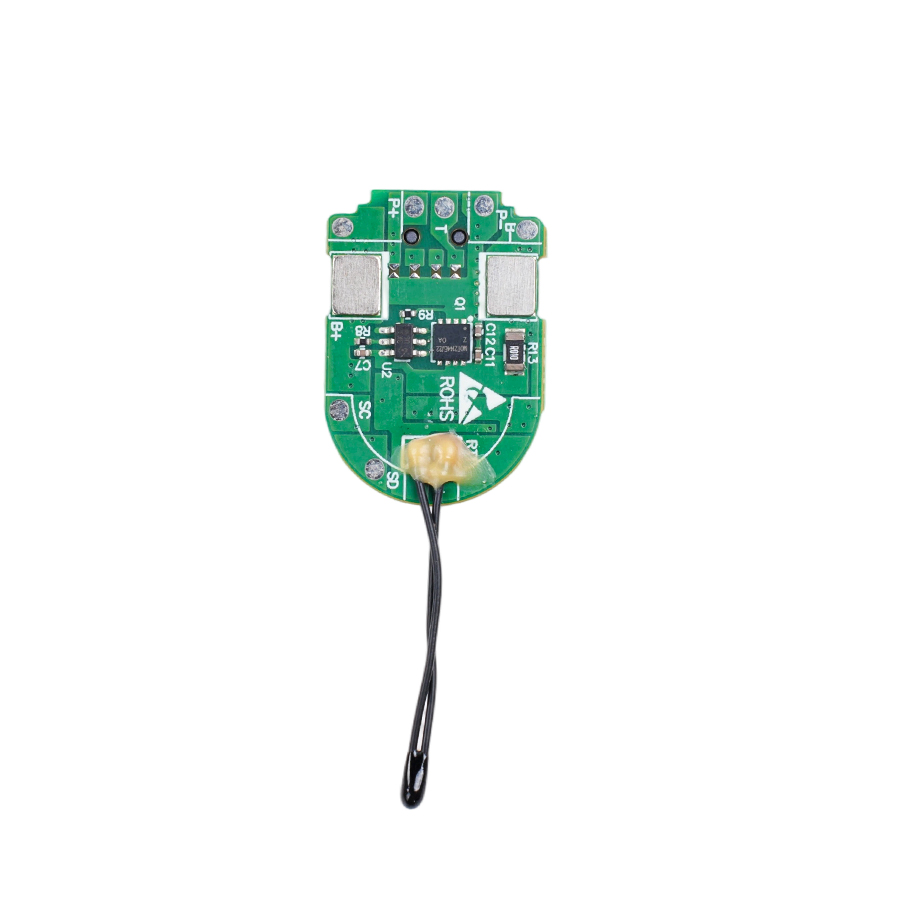

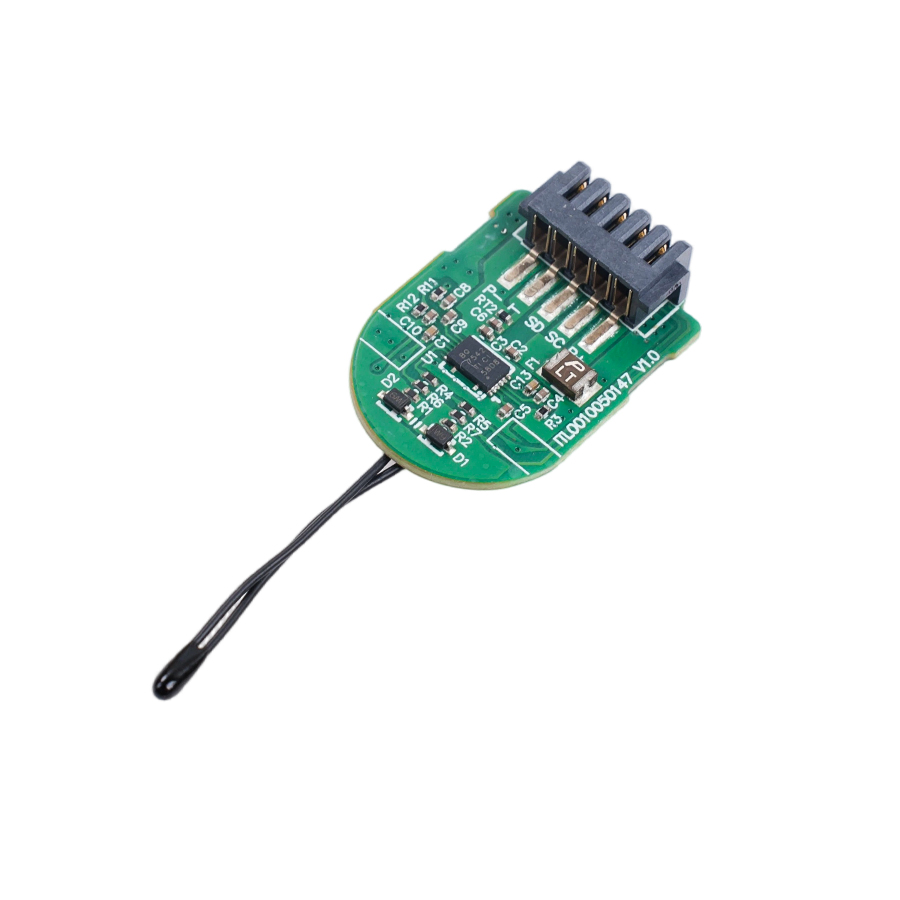

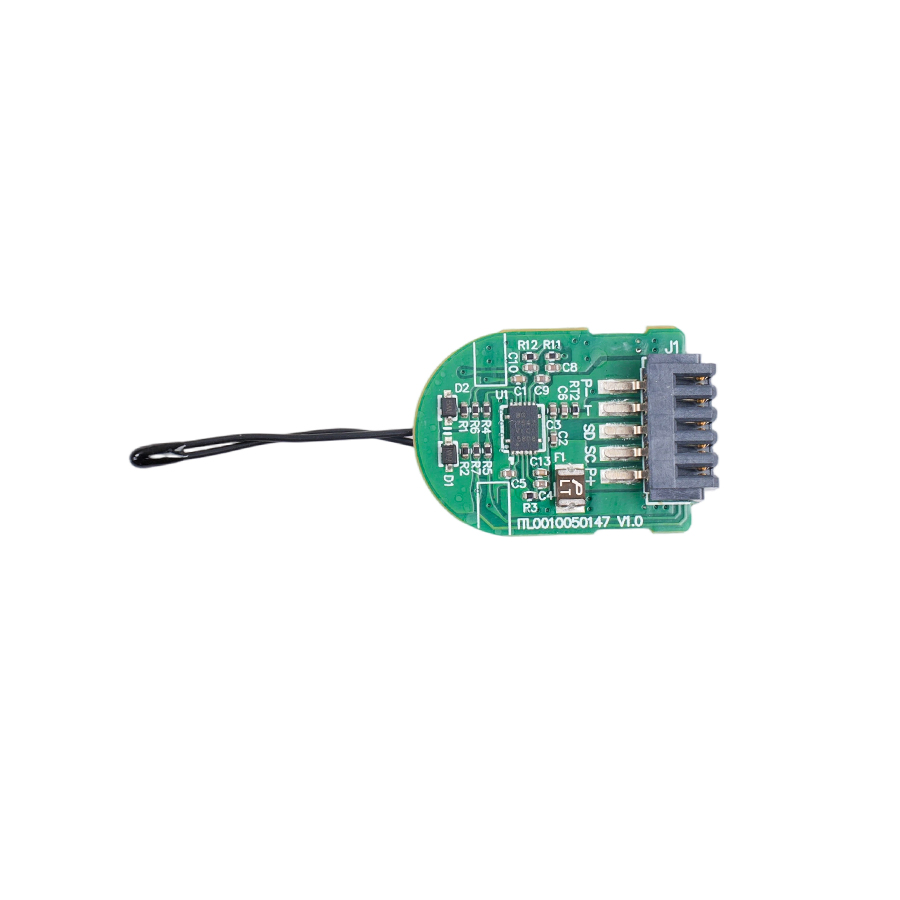

* Product solution Model number: ITL0010050147-01

* Product Solution: HY2113KB5B

* Compatibleinterface: I2C

* Battery Type: Li-ION

* Serial number: 1S lithium battery protection board

* Over charge detection voltage(Cell):  4.250V±0.025V

* Over Discharge Detection Voltage(Cell): 2.800V±0.050V

* Over Current Discharge: 12A±3A

* Over Current Charge: 10A±3A

* Discharging Temperature:  /

* Charge Temperature:  /

* Max.Discharge Current: 2.5A

* Max.charge Current: 2.5A

* Design Certification Requirements: Conform to IEC62133、KC

* Dimension(mm): 26.61*18.47*6.12mm
