* Product solution Model number: BAKTH-ITL0020050142-01

* Product Solution: BQ40Z50/BQ4050

* Compatibleinterface: SMBUS

* Battery Type: LiLe-PO4

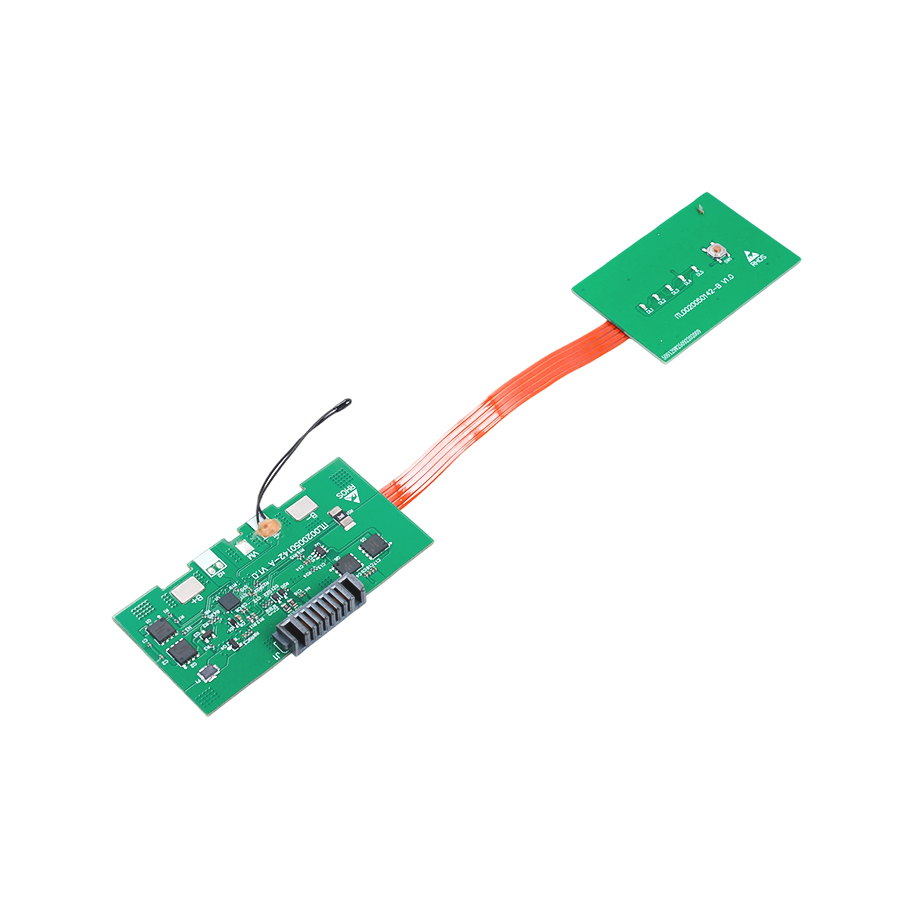

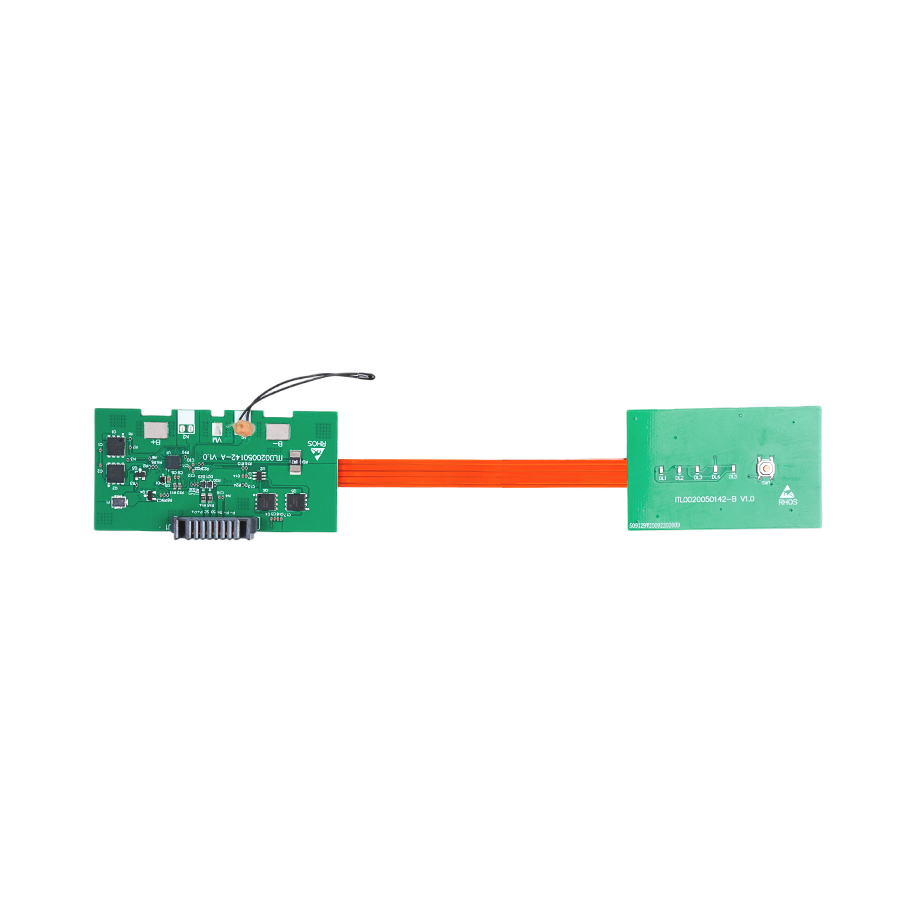

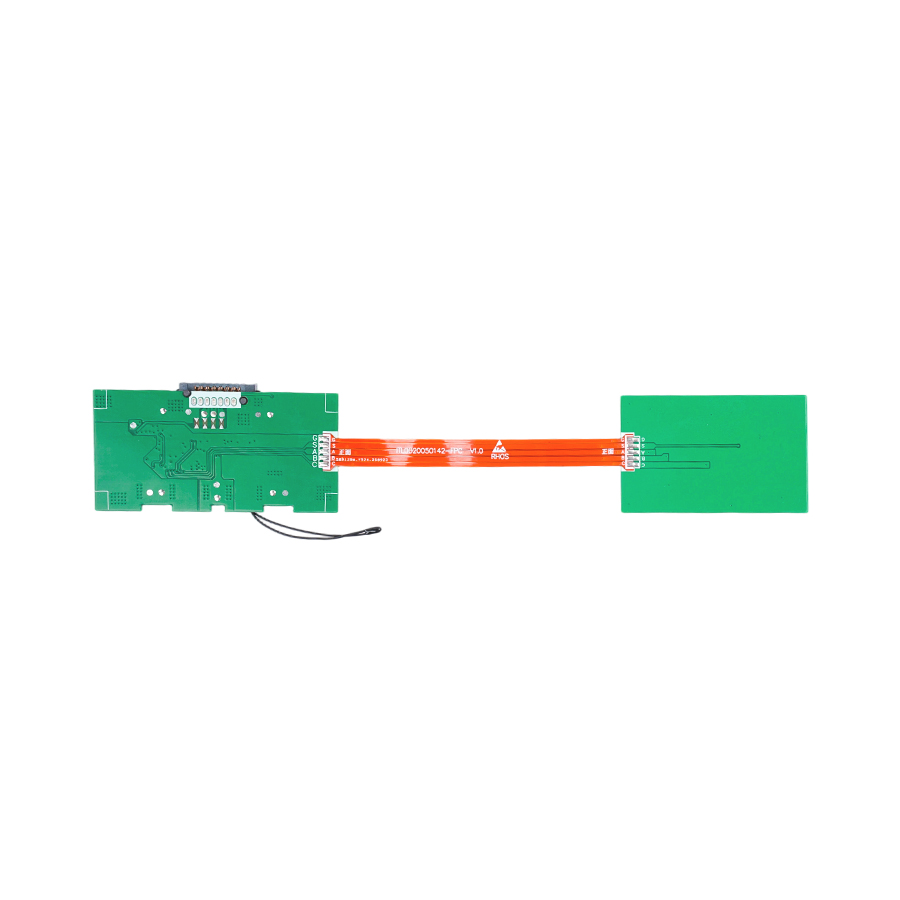

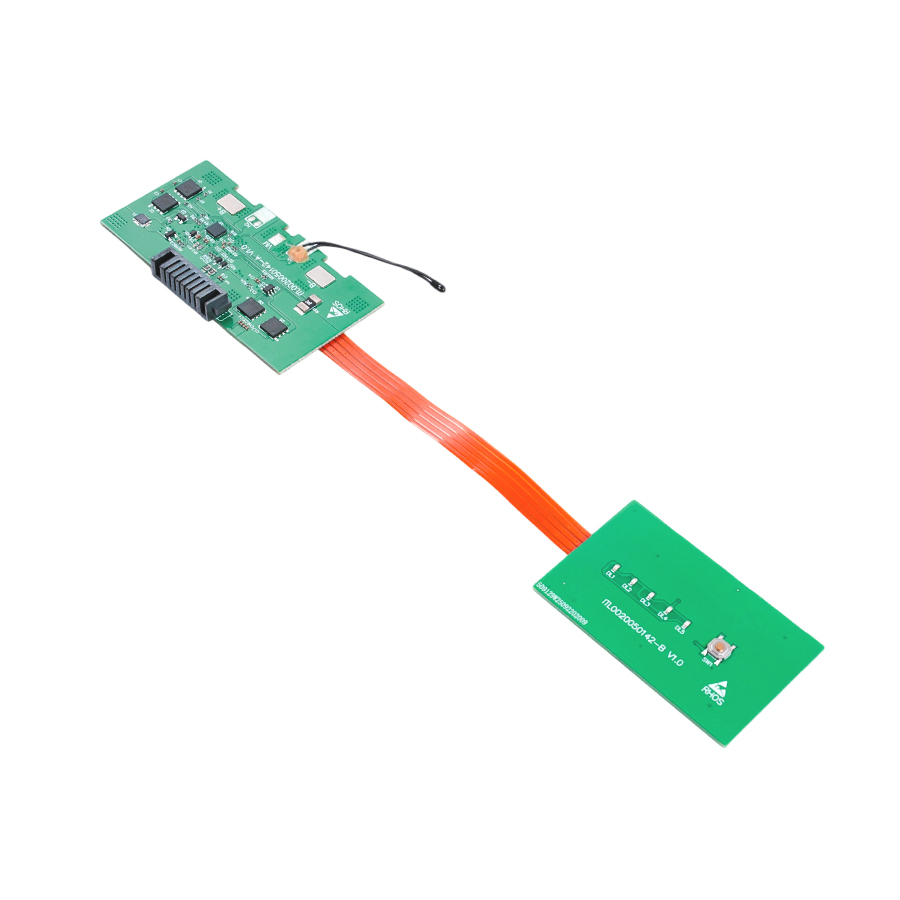

* Serial number: 2S lithium battery protection board

* Over charge detection voltage(Cell):  4.230V±0.025V

* Over Discharge Detection Voltage(Cell): 2.700V±0.025V

* OCC1 Over Current Discharge: 3.20A±0.5A

* OCC2 Over Current Discharge: 5.00A±0.5A

* OCD1 Over Current Charge: 3.50A±0.5A

* OCD2 Over Current Charge: 5.0A±0.5A

* Discharging Temperature:  -18℃~64℃

* Charge Temperature:  -2℃~49℃

* Max.Discharge Current: 3A

* Max.charge Current: 2A

* Design Certification Requirements: Conform to IEC62133、KC、PSE、UL2054

* Dimension(mm): A板74*37.6*7.4mm B板59*37.6*2.94mm
